The 5th Generation MRCOOL DIY Mini Split 36k BTU 18 SEER2 Ductless Heat Pump & AC System** delivers powerful heating and cooling for spaces between **1,500 - 1,800 sq ft. Featuring Energy Star certification**, AHRI listing, and UL certification, it ensures superior climate control year-round.
Designed for **efficiency and DIY installation**, this MRCOOL system includes **patented Quick Connect Pre-Charged Line Sets**, allowing for **easy setup without specialized training**. Equipped with **smart controls, auto-restart, and anti-mildew function**, it offers **maximum convenience and reliability**.

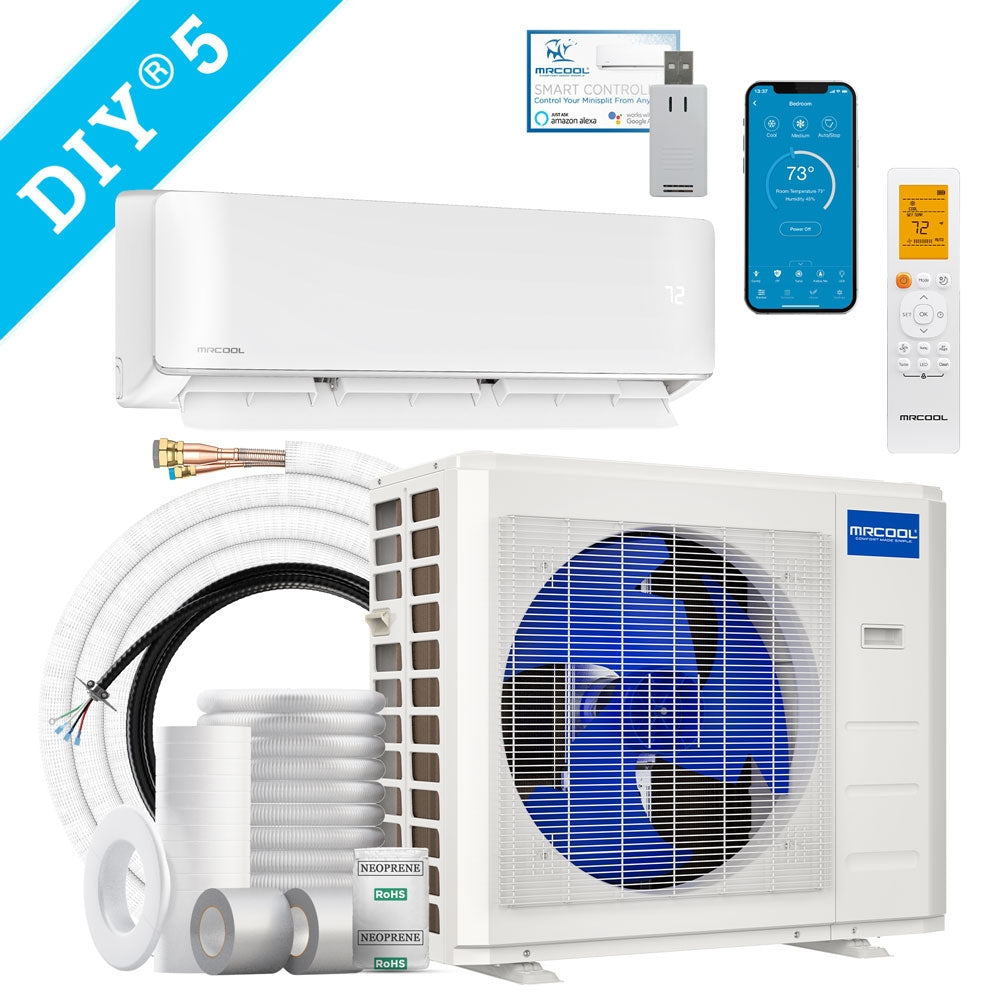

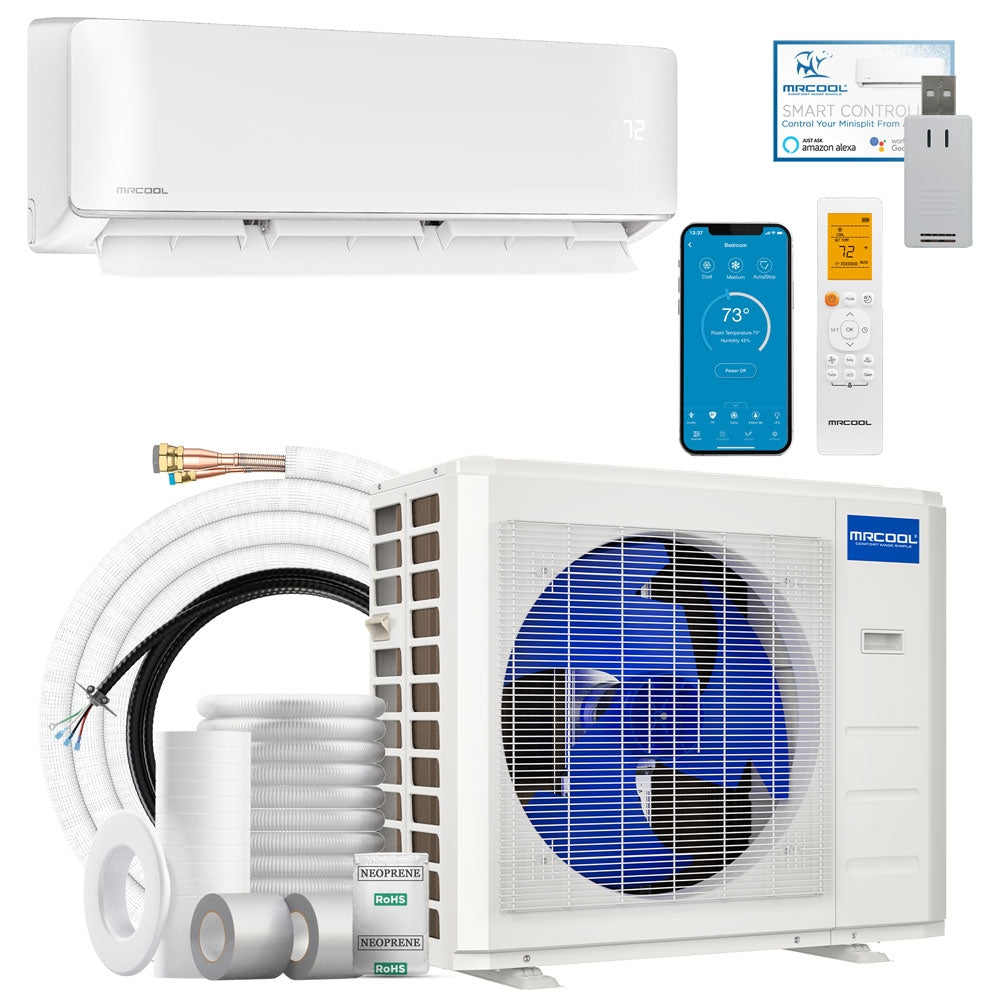

This Bundle Includes

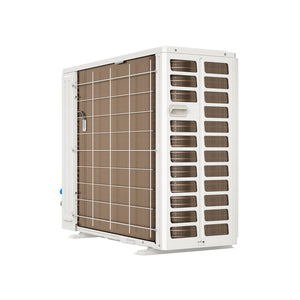

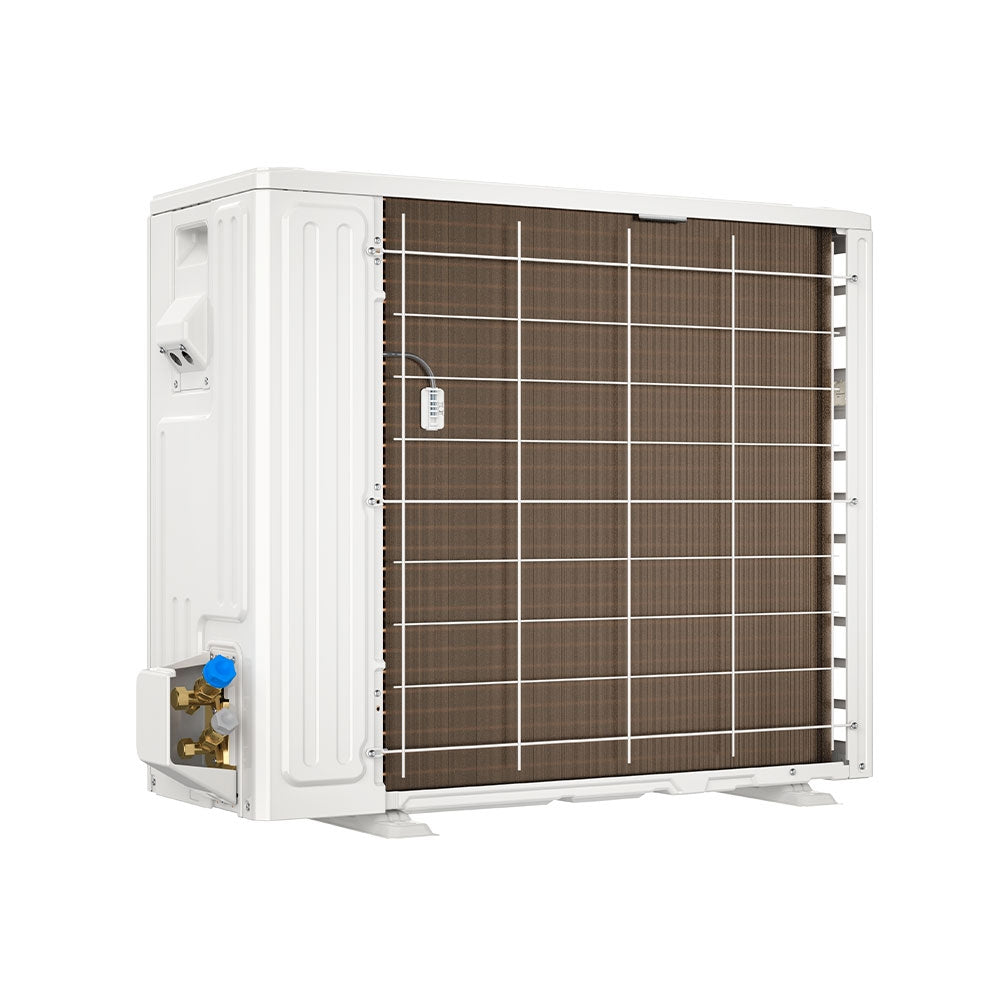

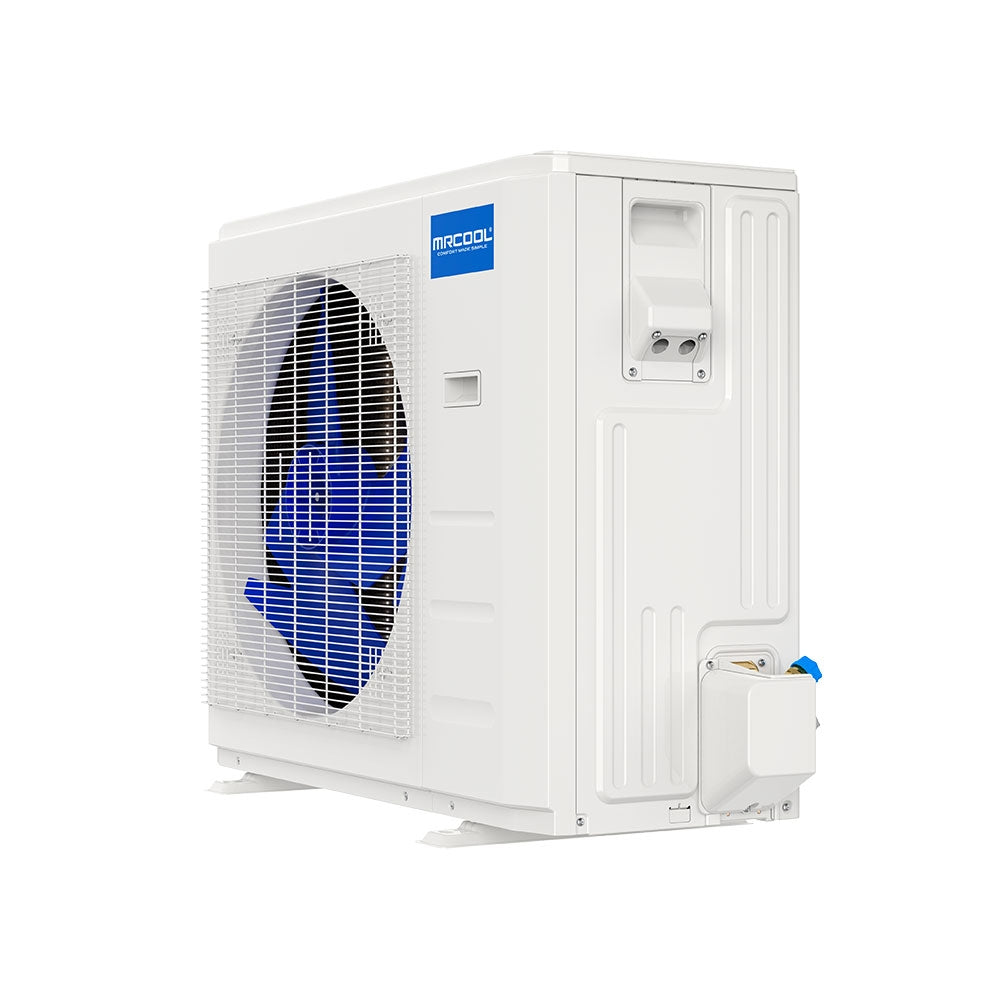

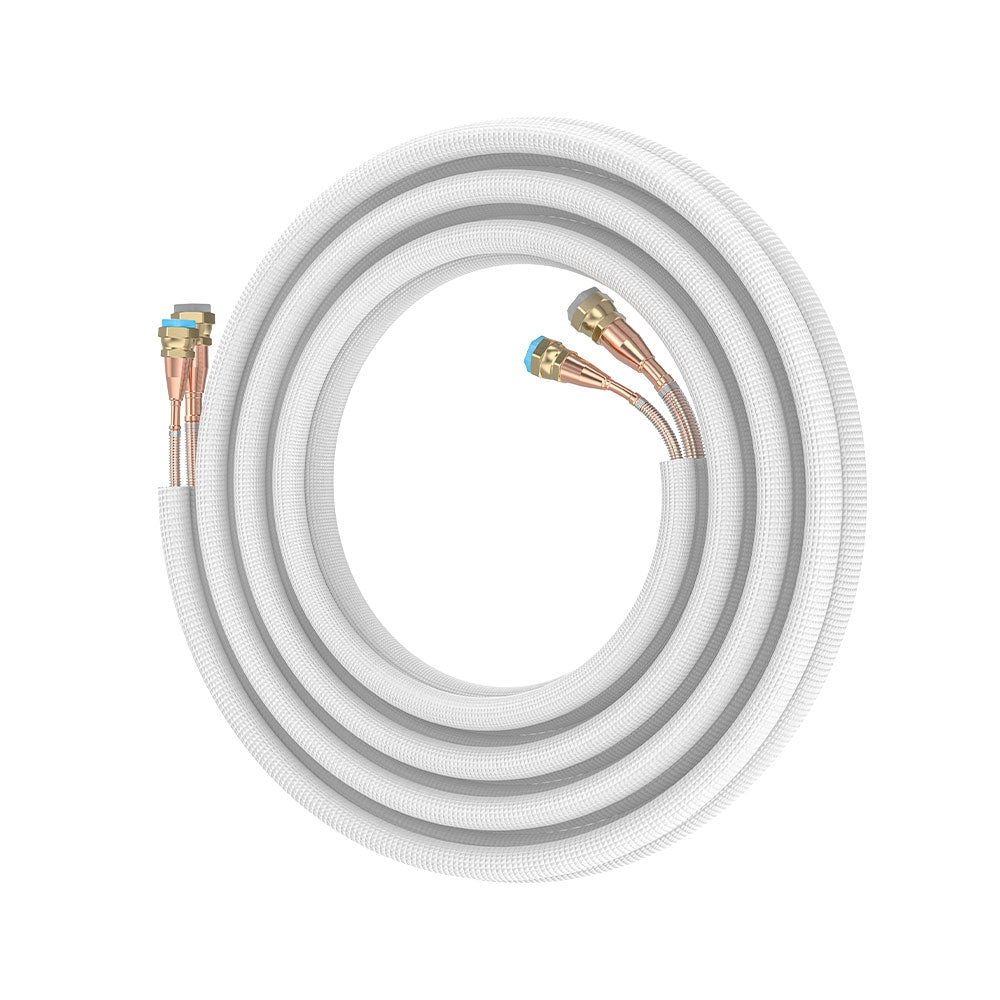

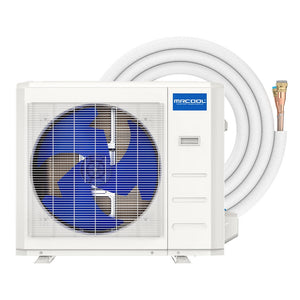

36k BTU 18 SEER2 MRCOOL DIY Ductless Heat Pump Condenser - 5th Generation - with 25 ft Line Set
Model: DIY-36-HP-C-230D25-O
Qty: 1

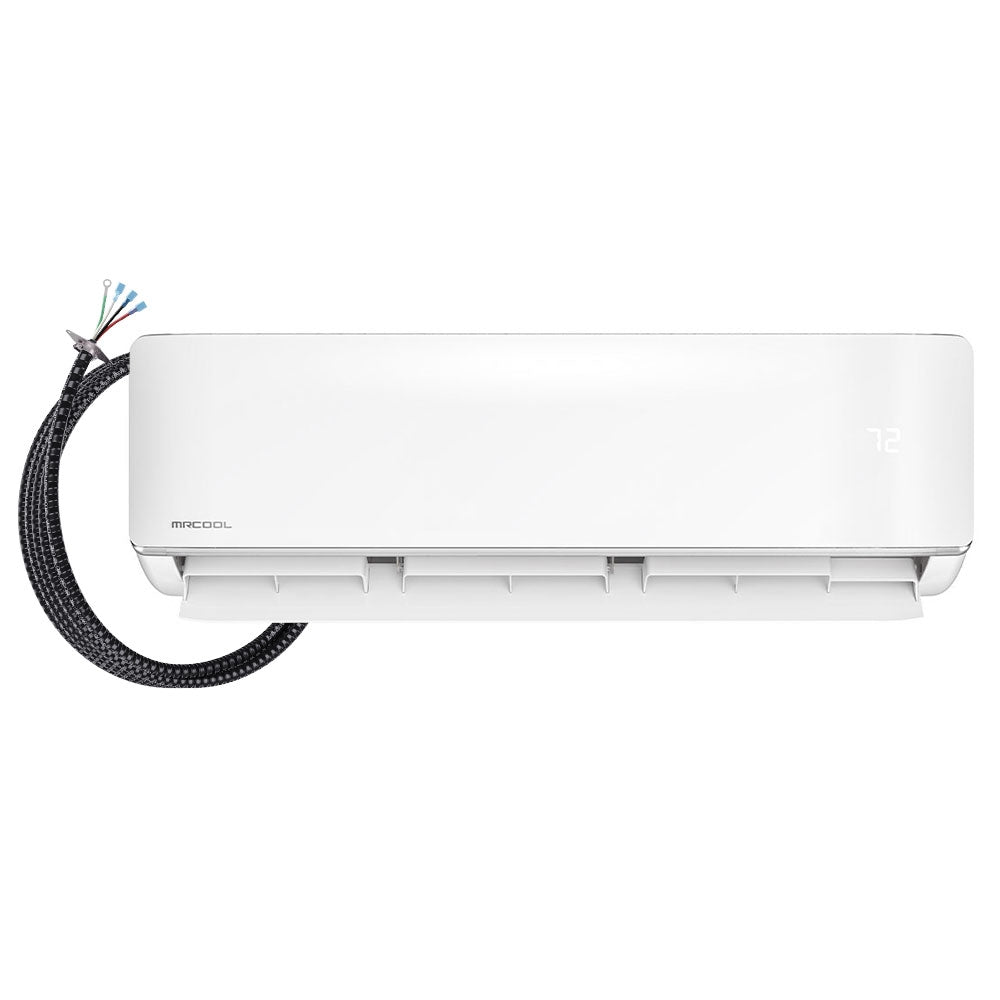

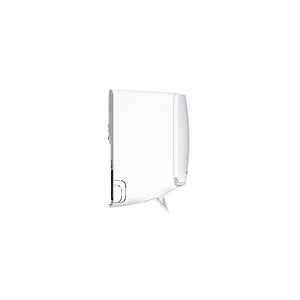

36k BTU MRCOOL DIY Ductless Wall Mounted Air Handler - 5th Generation 240V
Model: DIY-36-HP-WMAH-230D25-O
Qty: 1
1 Year Extended Labor Warranty for Ductless Mini Split System
Model: DMS1Y4+000125
Qty: 1
Specifications:
| General Product Information | |
|---|---|
| Model | DIY-36-HP-WM-230D25-O |
| UPC | 840255588577 |
| AHRI Number | 216032548 |
| Configuration | Wall Mounted |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 18 |
| Heat Pump Efficiency (HSPF2) | 11.5 |
| Series | DIY |
| Zones | 1 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
| California Residents | See Prop 65 WARNING |

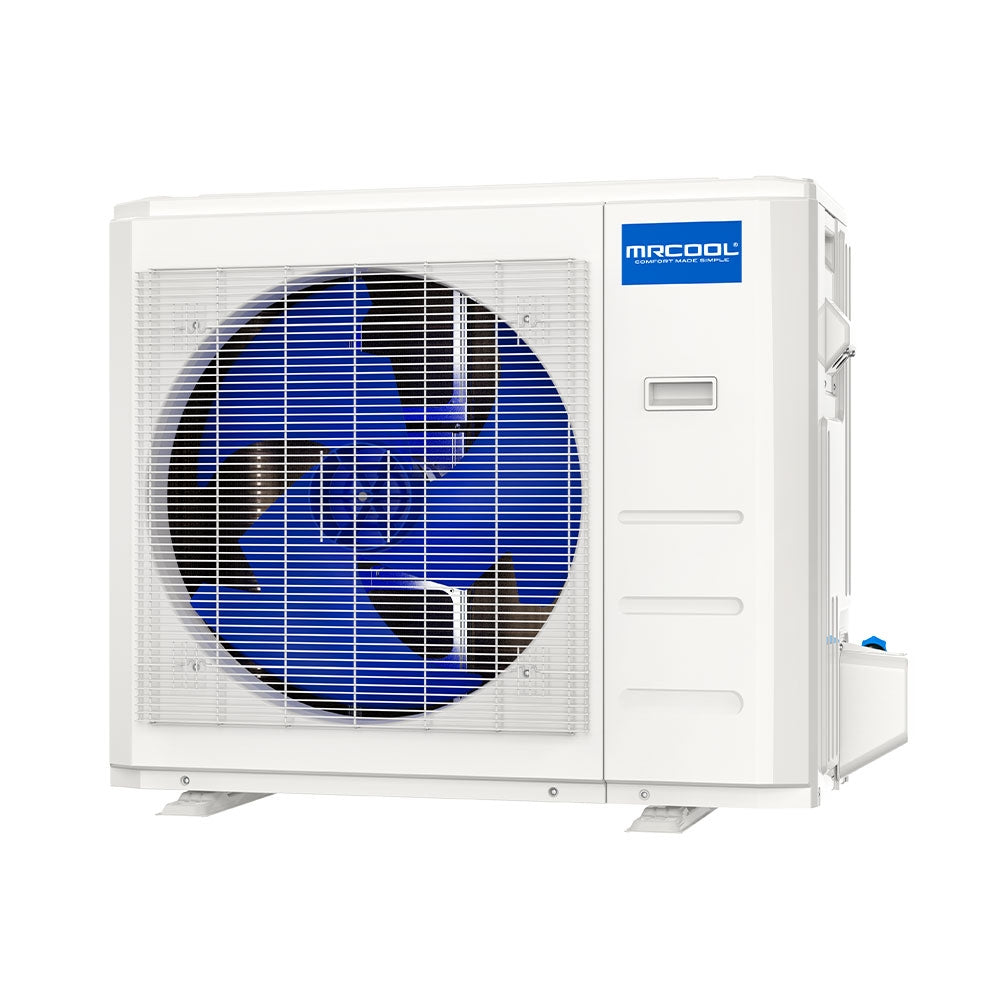

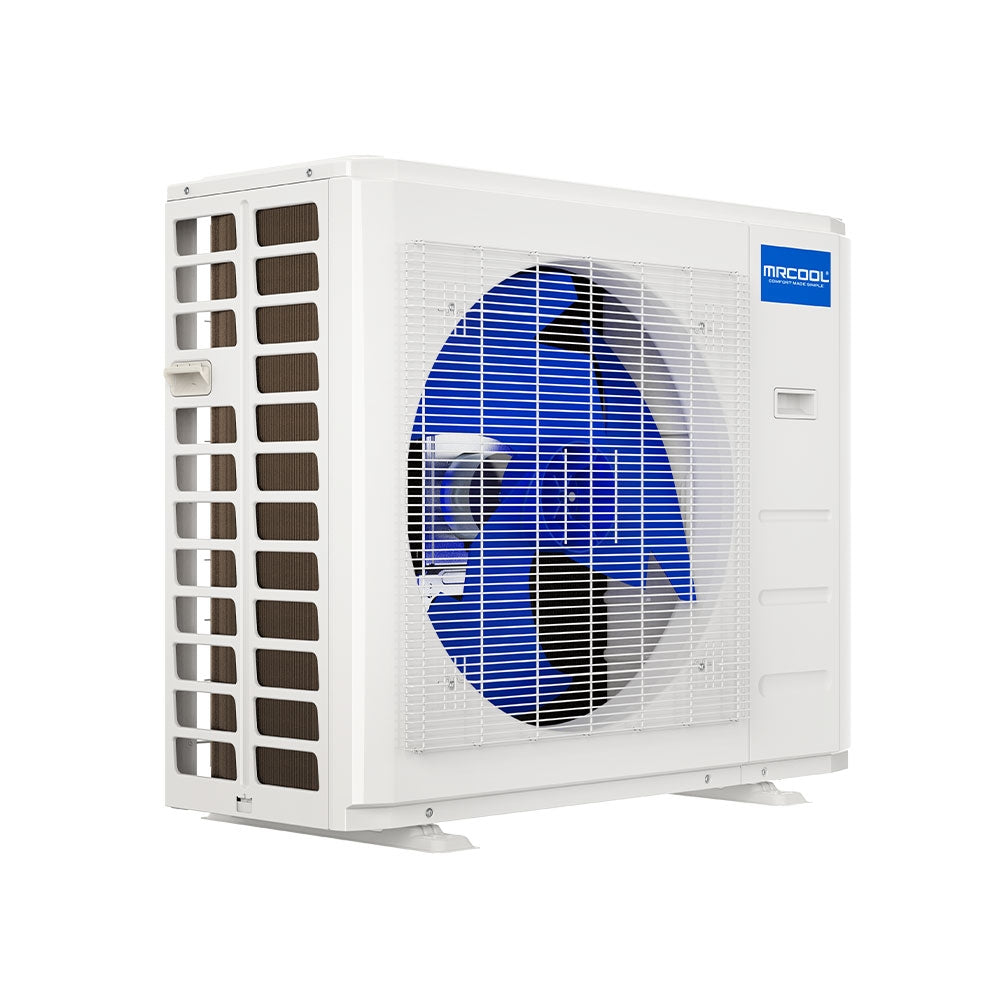

| Heat Pump Condenser (Model DIY-36-HP-C-230D25-O) | |
|---|---|
| Model | DIY-36-HP-C-230D25-O |
| UPC | 840255586986 |
| AHRI Number | 216032548 |
| Product Height (in) | 31.89 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 16.14 |
| Compressor | Inverter |
| Product Width (in) | 37.24 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 183.420000 |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 18 |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |

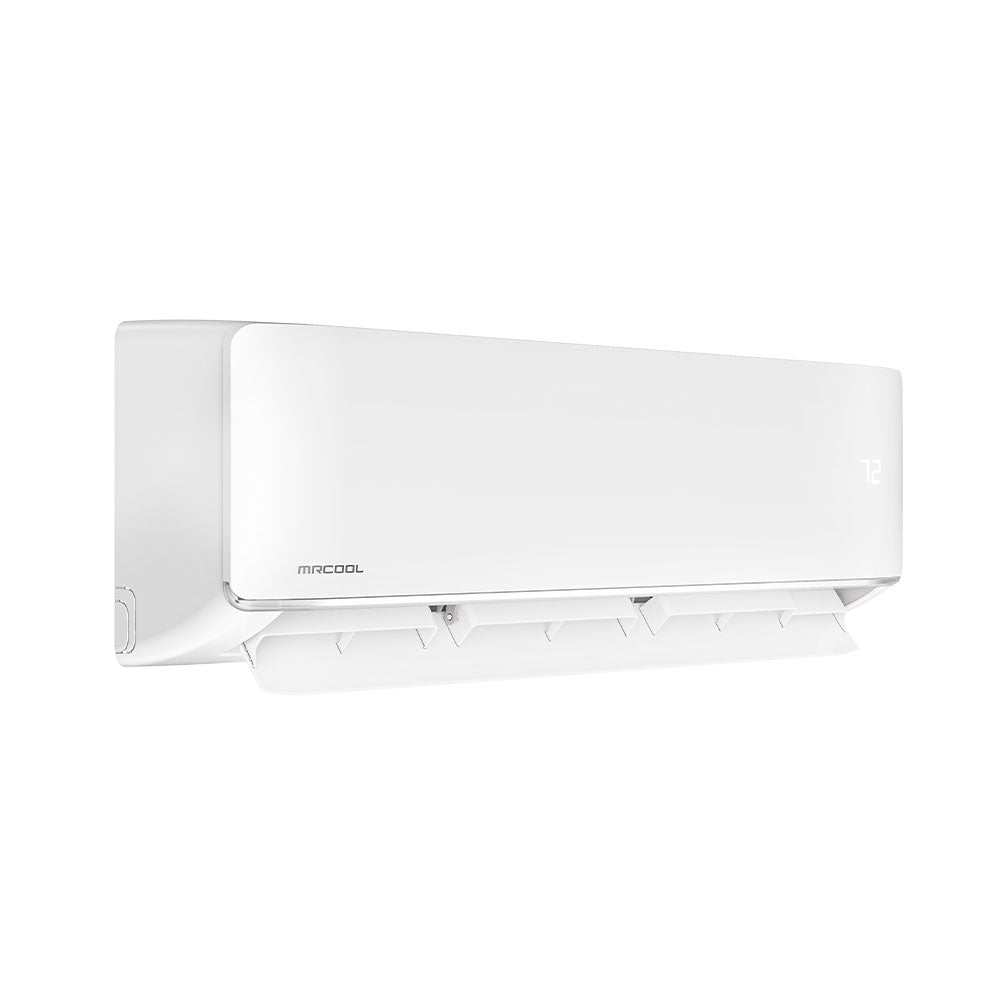

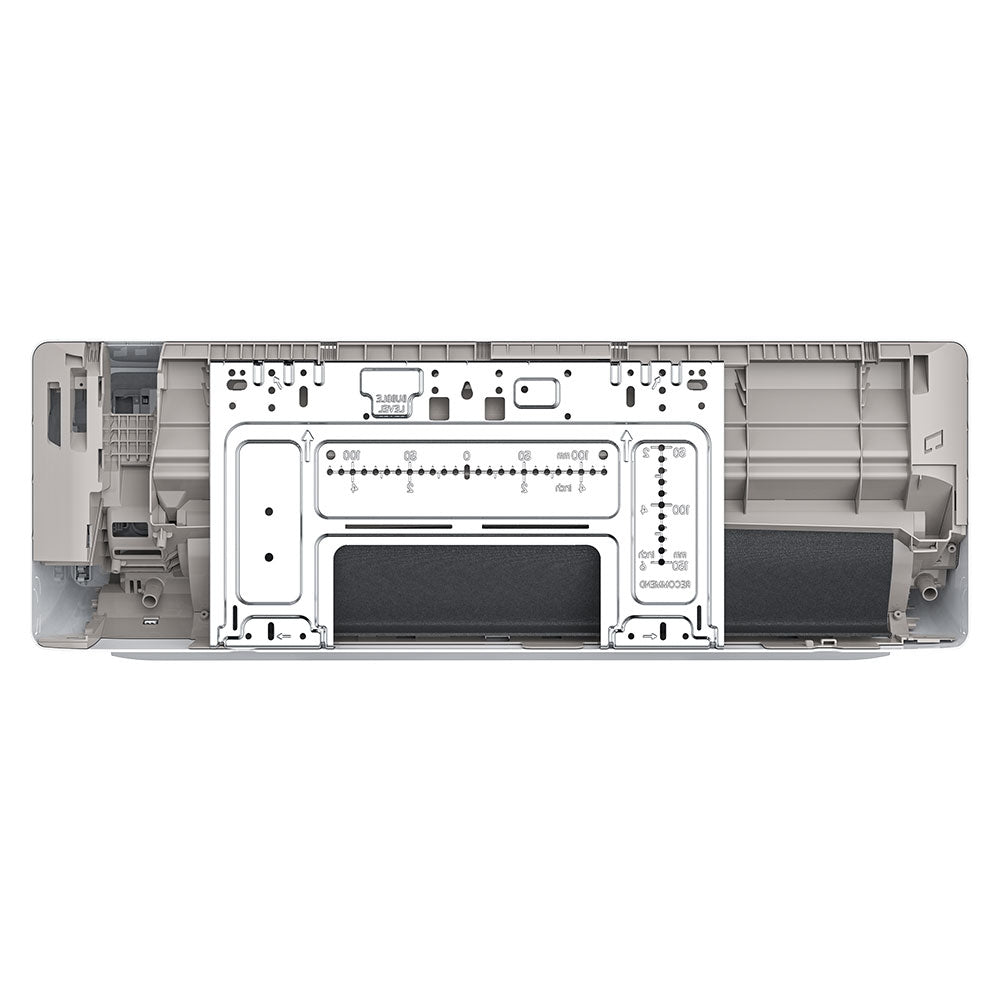

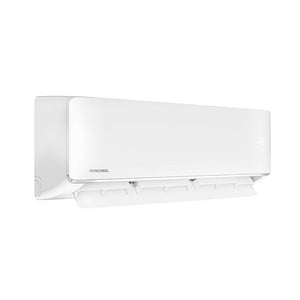

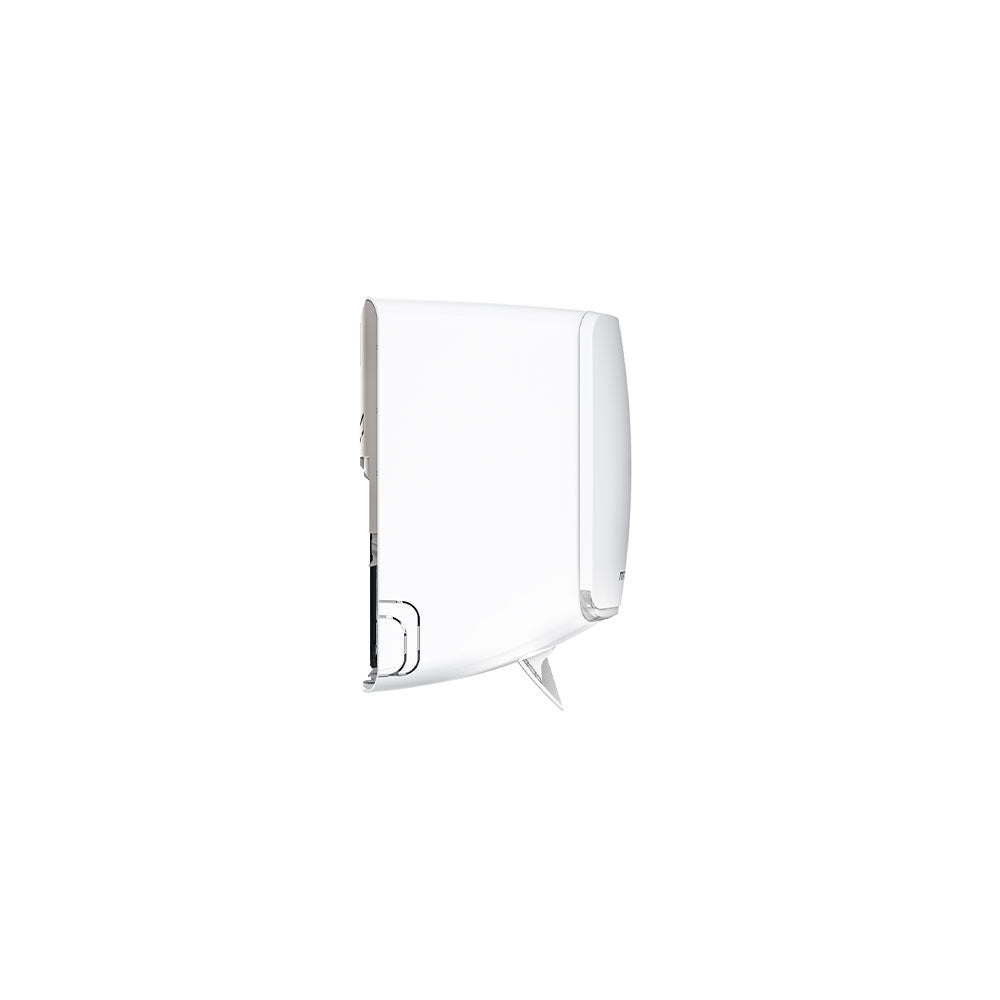

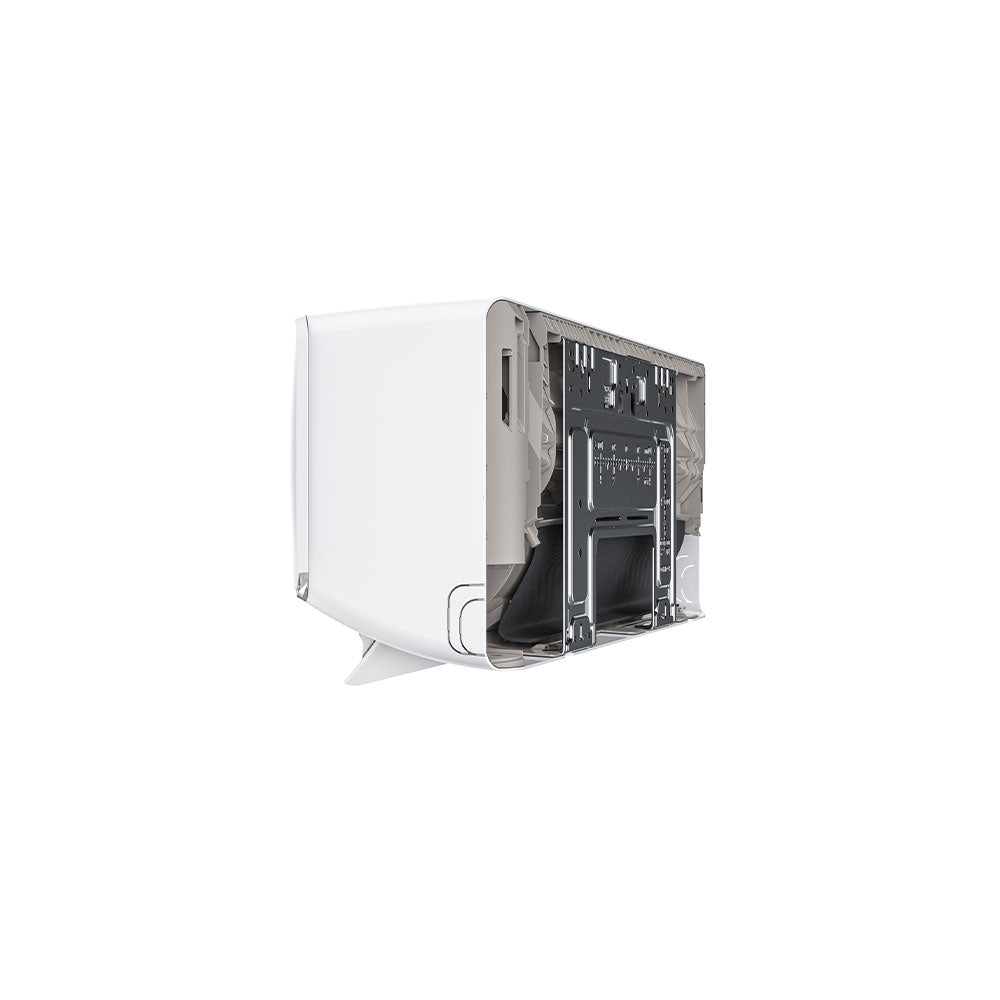

| Wall Mounted Air Handler (Model DIY-36-HP-WMAH-230D25-O) | |
|---|---|
| Model | DIY-36-HP-WMAH-230D25-O |
| UPC | 840255587068 |
| Product Height (in) | 14.25 |
| Configuration | Wall Mounted |
| Product Length (in) | 11.1 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 49.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 70.990000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Extended Labor Warranty (Model DMS1Y4+000125) | |
|---|---|
| Model | DMS1Y4+000125 |
| Weight (lbs) | 0.000000 |
Resources
- DIY5 Quick Start Guide
- DIY5 Single Zone Customer Brochure
- DIY5 Single Zone Installation Manual
- DIY5 Warranty Sheet
- Mini-Split Remote Control Owner's Manual
What’s Included
- MRCOOL DIY-36-HP-C-230D25-O
- MRCOOL DIY-36-HP-WMAH-230D25-O
- MRCOOL DMS1Y4+000125
- Owner Manual
- Lifetime Tech Support
Warranty
- Limited Lifetime Compressor*
- 7 years unit replacement (compressor)**
- 5 years parts
