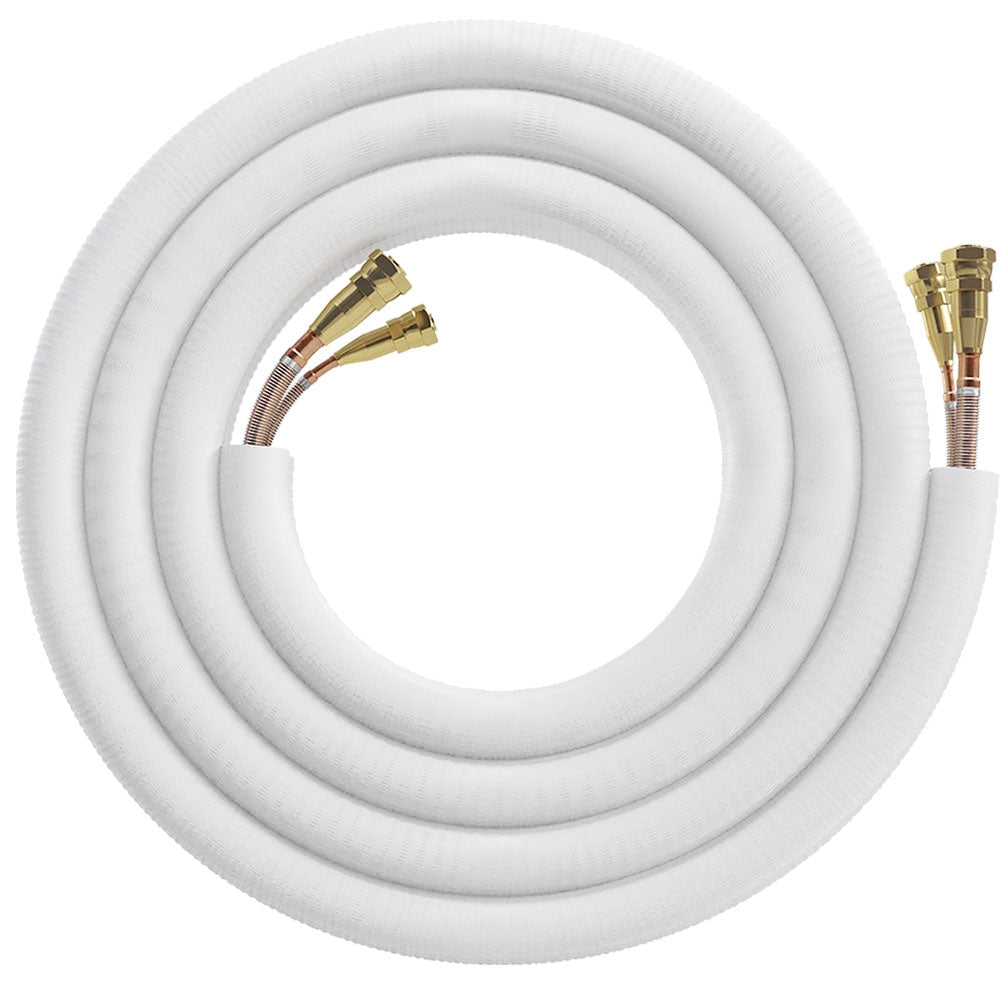

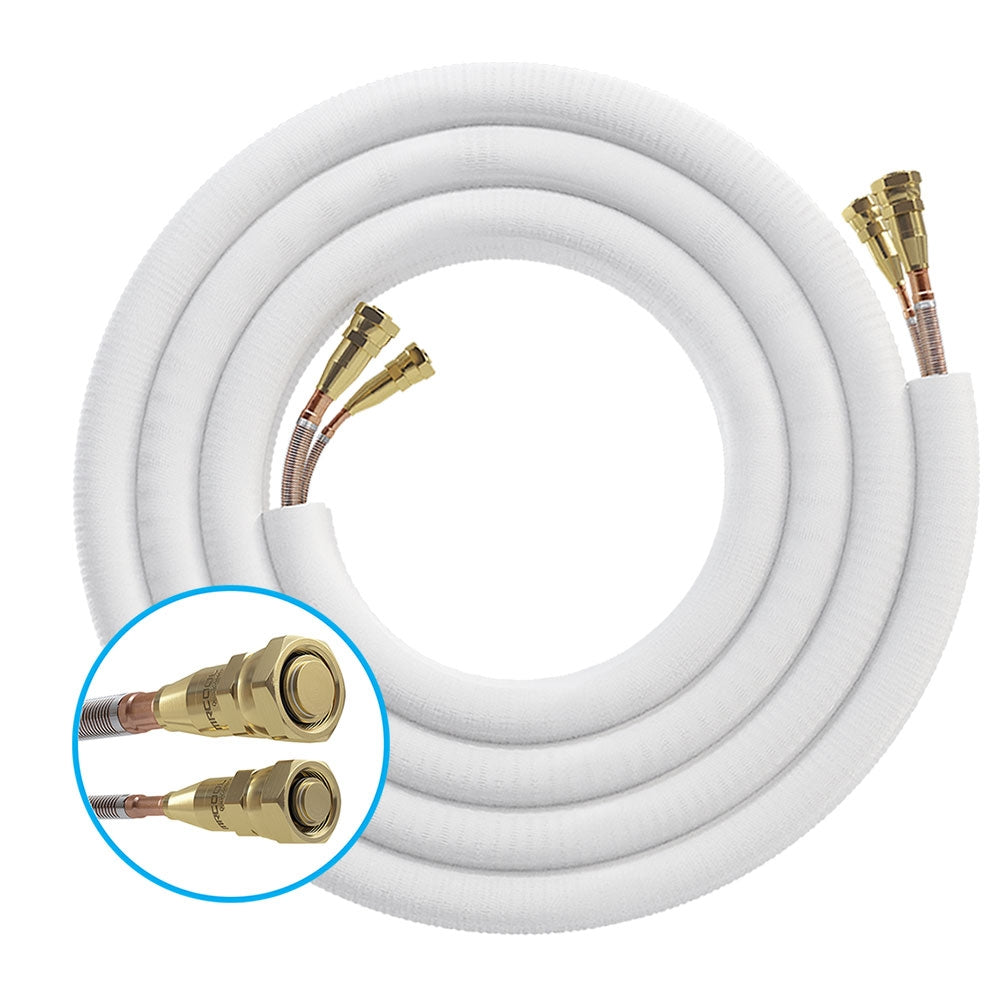

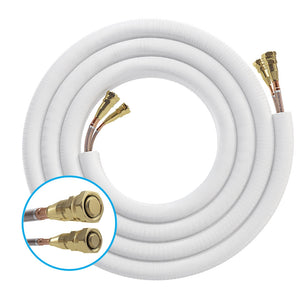

The 9k 12k & 18k BTU MrCool DIY Ductless Split System Line Set is designed exclusively for use with MrCool DIY ductless mini splits that have a 9k, 12k, or 18k air handler. It is not compatible with other MrCool products or third-party ductless mini splits. Using this line set with a non-approved system will void its warranty protection.

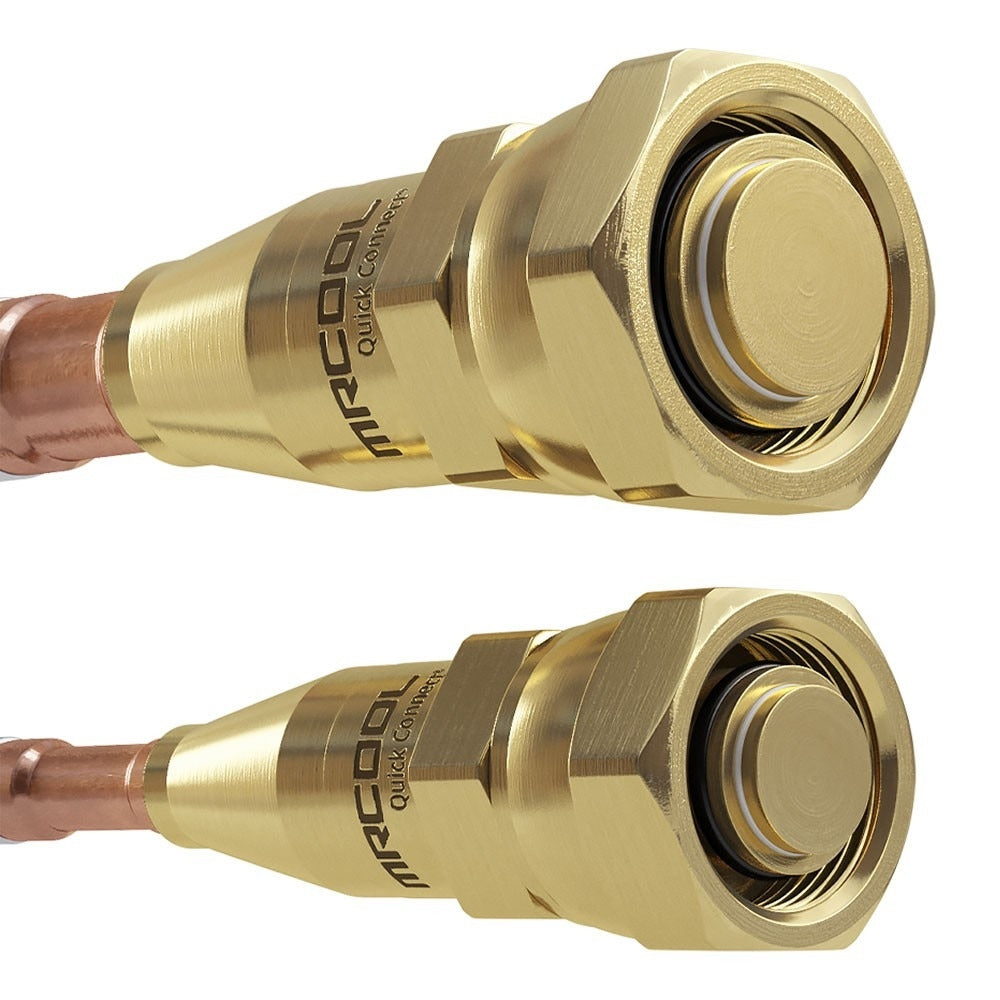

Engineered for DIY installation, this line set is pre-charged with the correct amount of R-410A refrigerant and sealed from the factory. The Quick Connect fittings allow for easy plug-in connections between the air handler and condenser while preventing charge loss or exposure to contaminants. With a 1/4 inch liquid line and a 1/2 inch suction line, it weighs approximately 10 lbs and is available in 16- and 25-foot lengths. If excess length is needed, simply bundle and store near the condenser.
Specifications:
| MrCool DIY Ductless Split System Line Set - 9k 12k & 18k BTU | |
|---|---|
| Model | DIYXX-1412 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 10.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
| California Residents | See Prop 65 WARNING |
What’s Included
- MrCool DIYXX-1412
- Owner Manual
- Lifetime Tech Support
- 75ft Vinyl Tape
- 1 Neoprene Clay
- 1 Wall Sleeve Cap
- 1 Wall Sleeve
- Condensation Drain Hose
- Line Set
- Zip Ties
