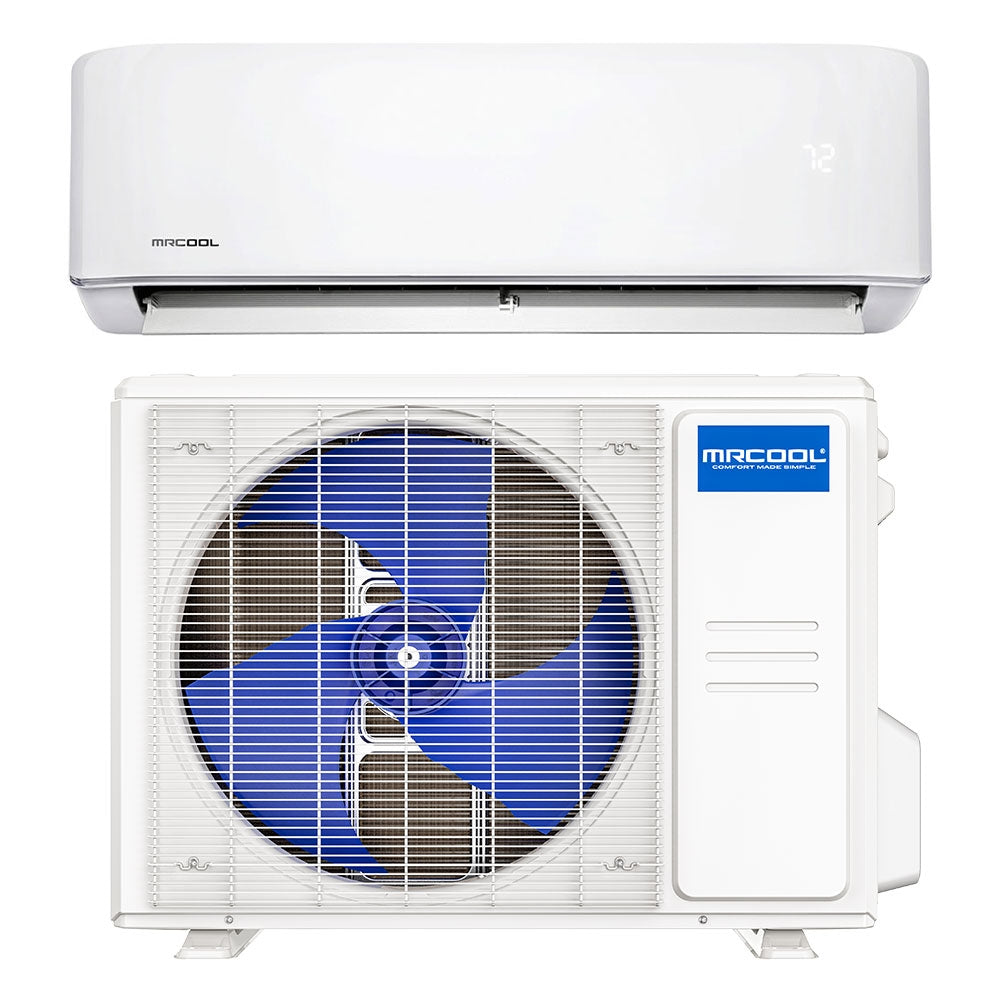

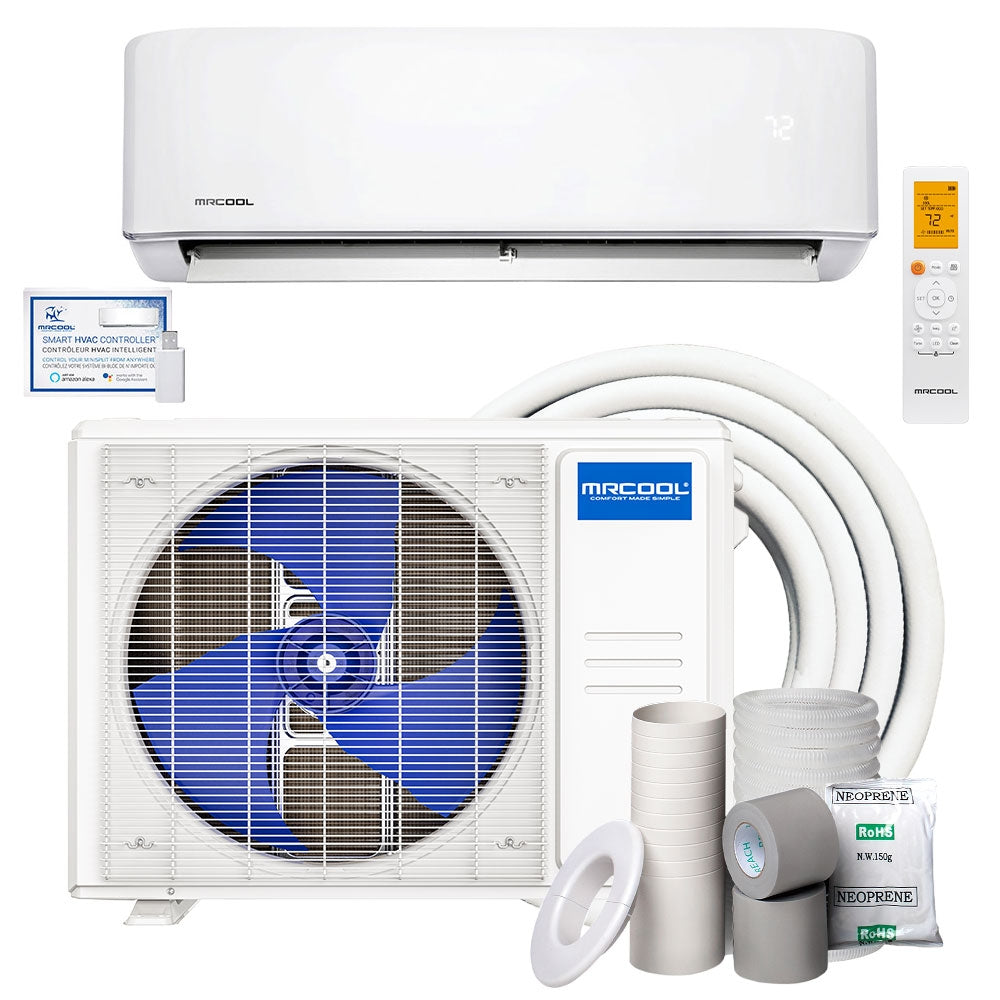

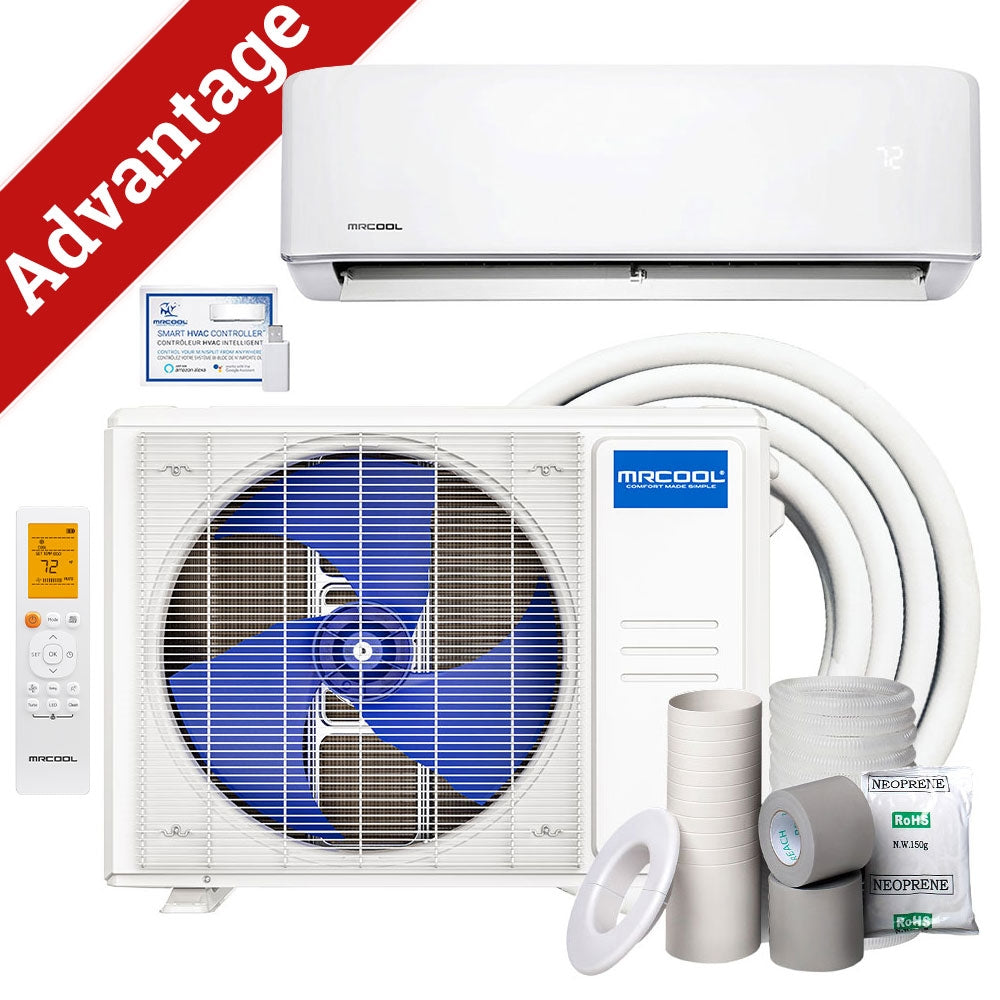

The 9k BTU 21.2 SEER2 MRCOOL Advantage Ductless Heat Pump Split System 5th Generation - 230v efficiently cools and heats rooms up to 500 sq ft, making it ideal for single rooms like game rooms, garages, or sunrooms. This eco-friendly unit uses R454B refrigerant and features a DC inverter compressor for quiet, energy-efficient operation and precise temperature control.

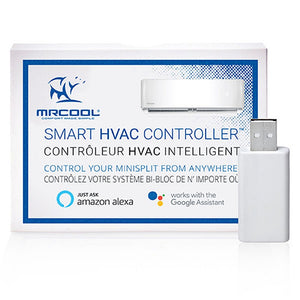

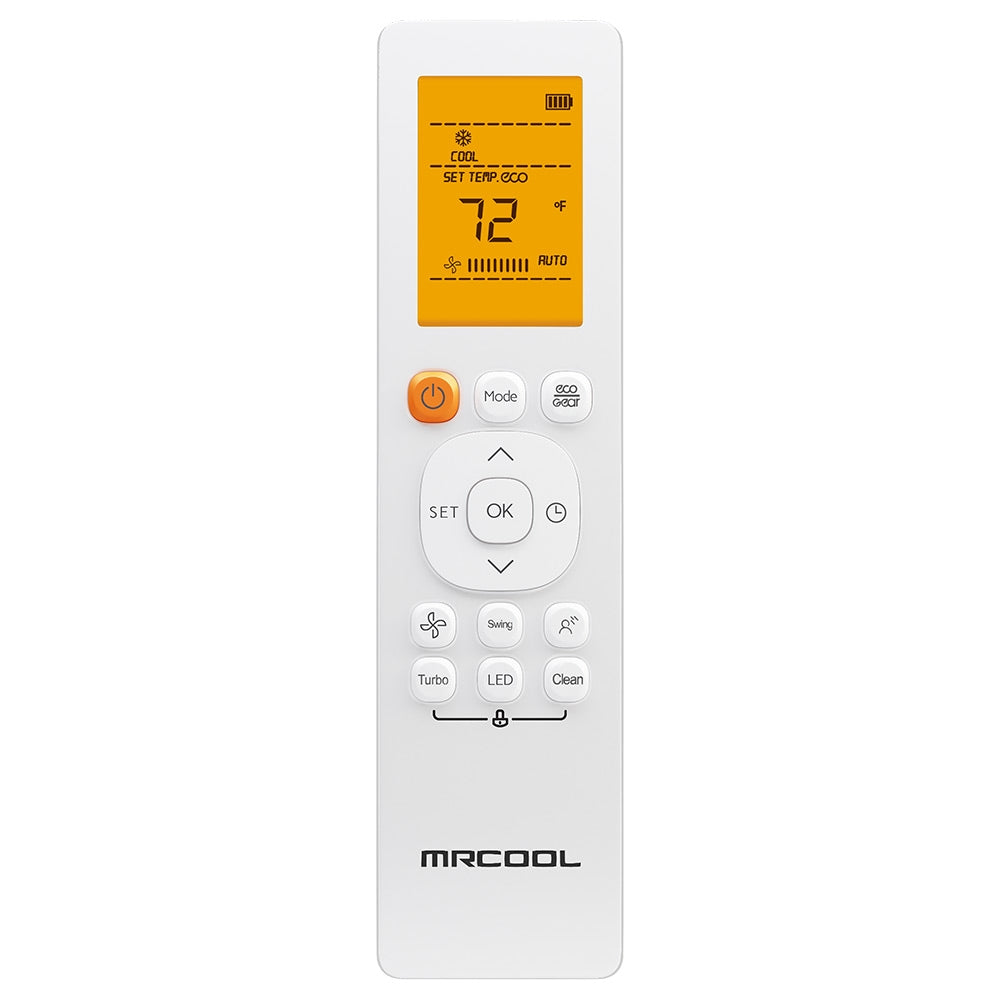

Equipped with a Gold Fin condenser for corrosion resistance and a WiFi Smart Kit compatible with Alexa and Google Assistant, this system offers convenient remote control and scheduling. Additional features include the Follow Me sensor for personalized comfort and a solid warranty with options for limited lifetime coverage upon registration.
Specifications:
| General Bundle Information | |
|---|---|
| Model | A-09-HP-230D-O |
| UPC | 840255586825 |
| Configuration | Wall Mounted |
| Average Coverage Area | Less than 500 Sq Ft |
| Cooling Capacity | Less than 1 Ton |
| Cooling Efficiency (SEER2) | 21.2 |
| Heat Pump Efficiency (HSPF2) | 7 |
| Series | Advantage |
| Zones | 1 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
| California Residents | See Prop 65 WARNING |

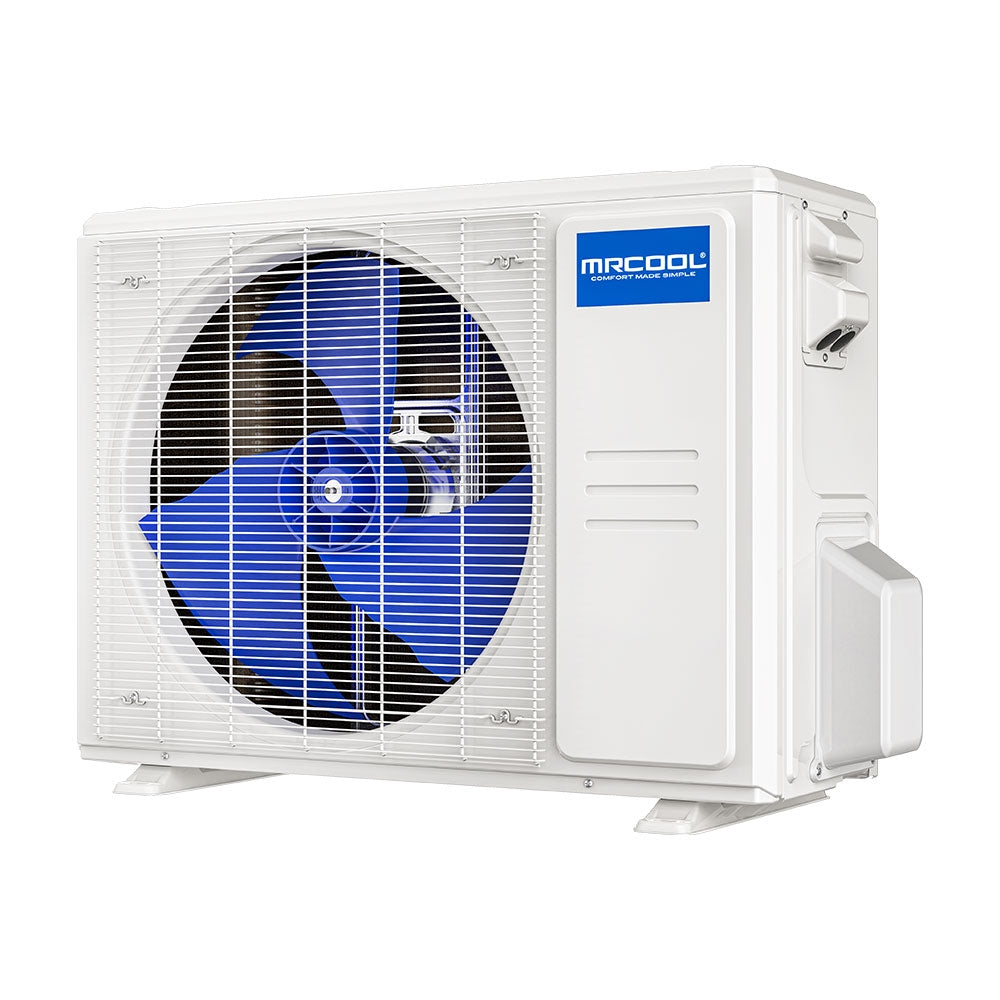

| Condenser Unit (A-09-HP-C-230D-O) | |
| Model | A-09-HP-C-230D-O |
| UPC | 840255586825 |
| Product Height | 21.85 in |
| Product Length | 11.93 in |
| Product Width | 30.12 in |
| Weight | 59.74 lbs |
| Compressor | Inverter |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Suction Line Size | 3/8 inch |
| Max Overcurrent Protection | 20 amps |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 23.6 |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |

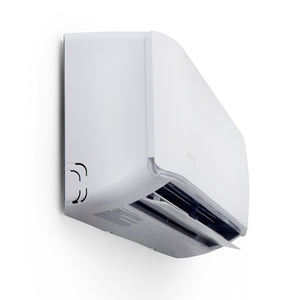

| Air Handler Unit (A-09-HP-WMAH-230D-O) | |
| Model | A-09-HP-WMAH-230D-O |
| UPC | 840255521697 |
| Product Height | 7.36 in |
| Product Length | 11.42 in |
| Product Width | 28.43 in |
| Weight | 23 lbs |
| Configuration | Wall Mounted |
| Air Flow Direction | Horizontal |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Suction Line Size | 1/2 inch |
| Max Overcurrent Protection | 20 amps |
| Refrigerant | R-454b |
| Series | Advantage |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
Resources
- 5th Generation Advantage Customer Brochure
- 5th Generation Advantage Installation Manual
- 5th Generation Advantage Specification Manual
- 5th Generation Advantage Warranty Sheet
What’s Included

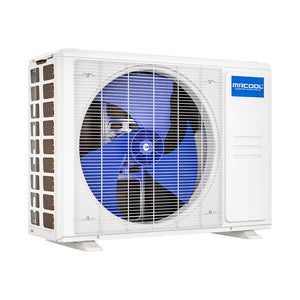

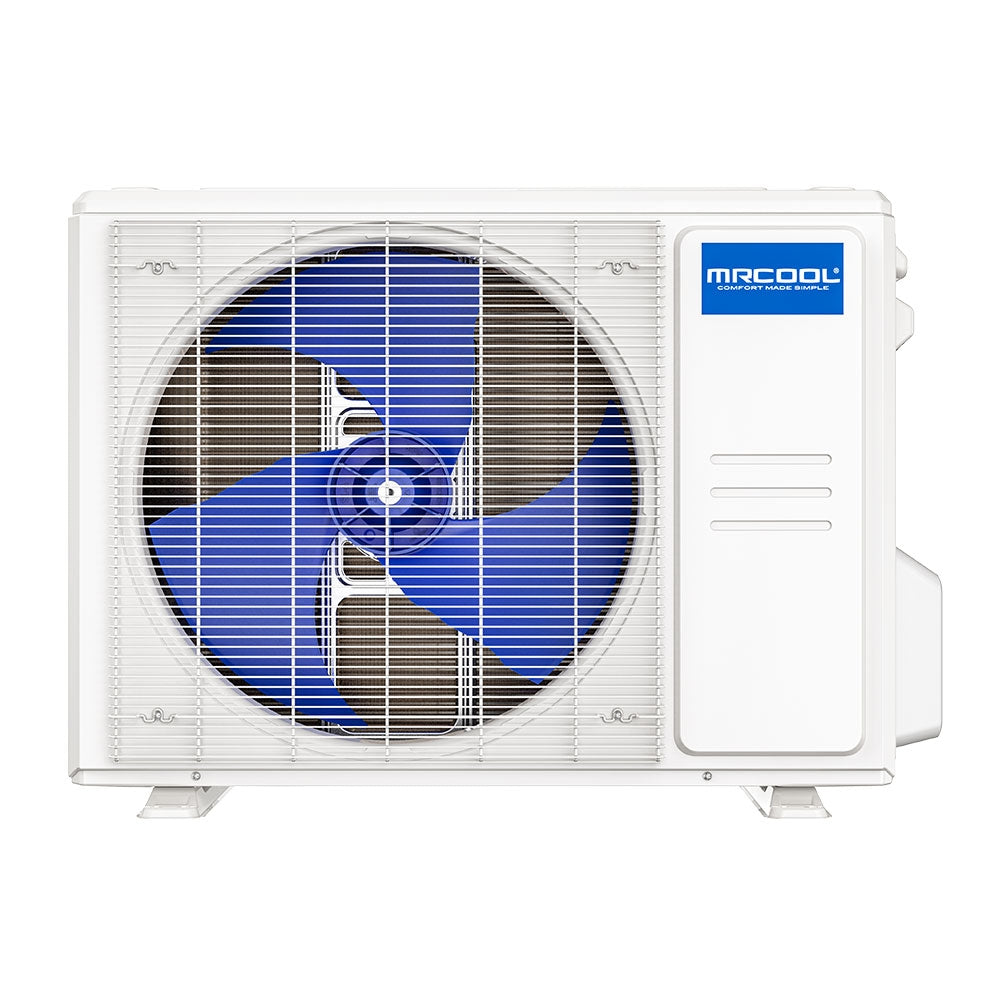

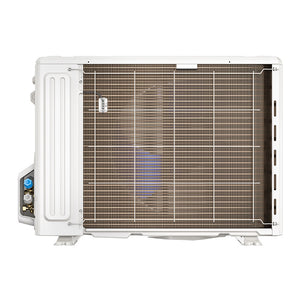

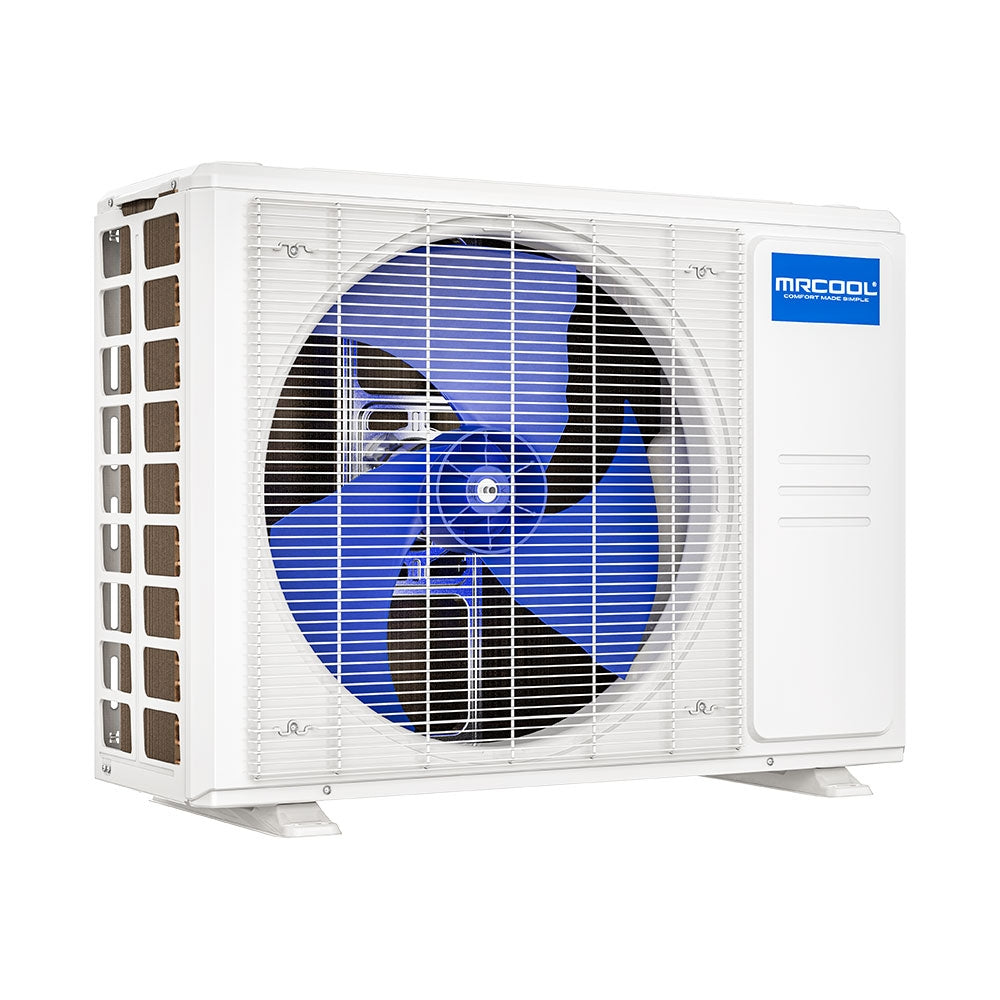

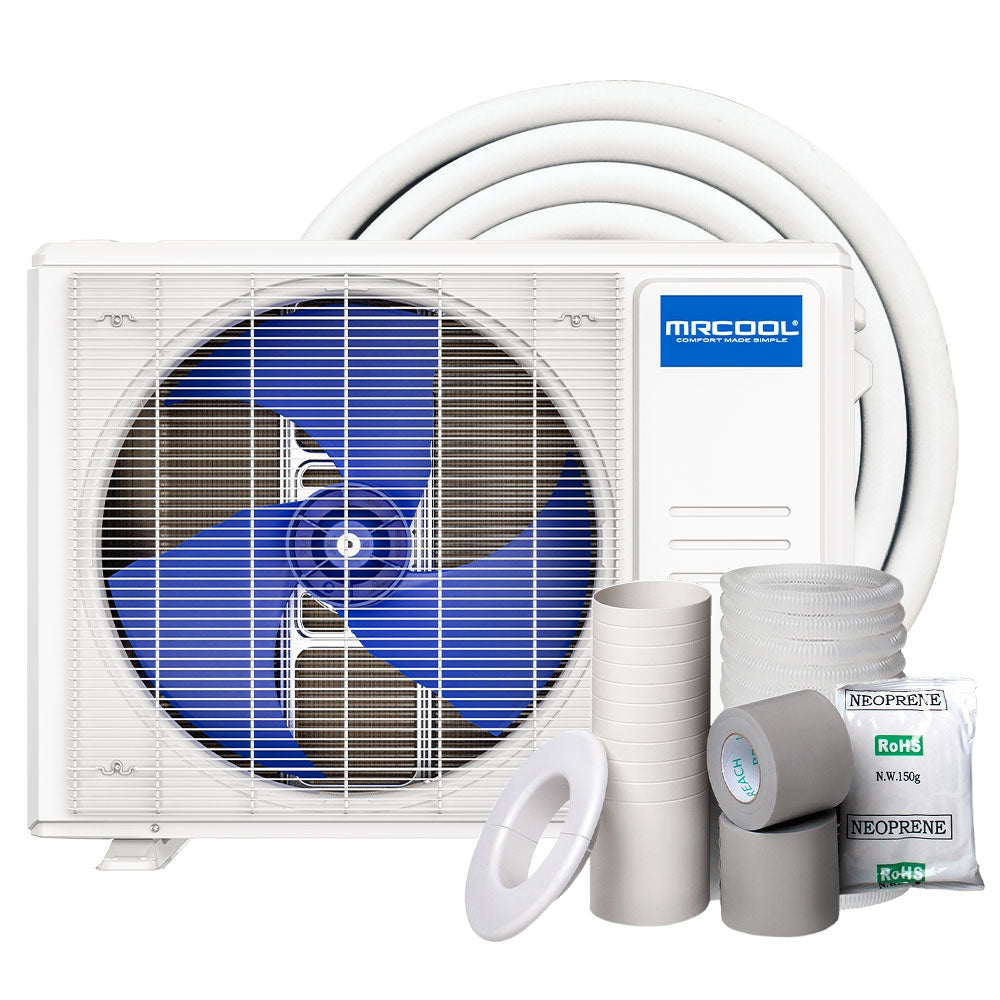

- MRCOOL A-09-HP-C-230D-O Condenser Unit

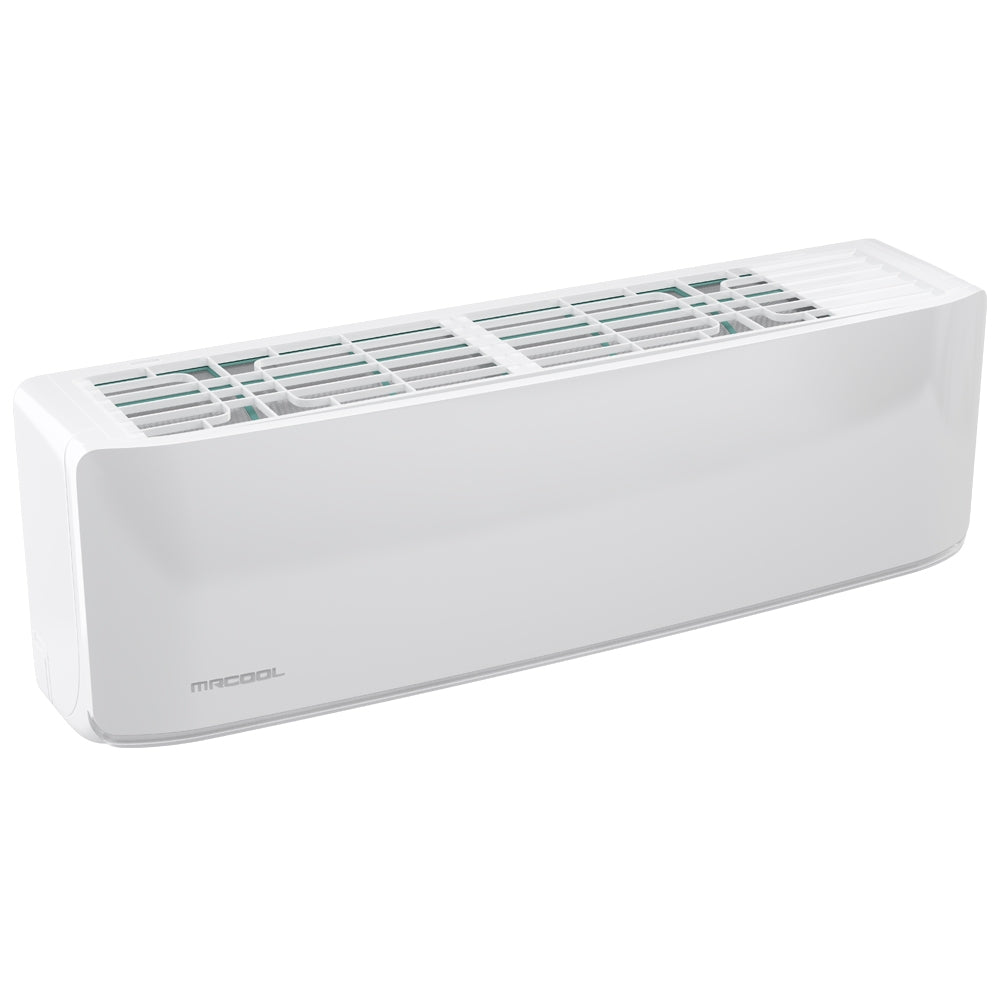

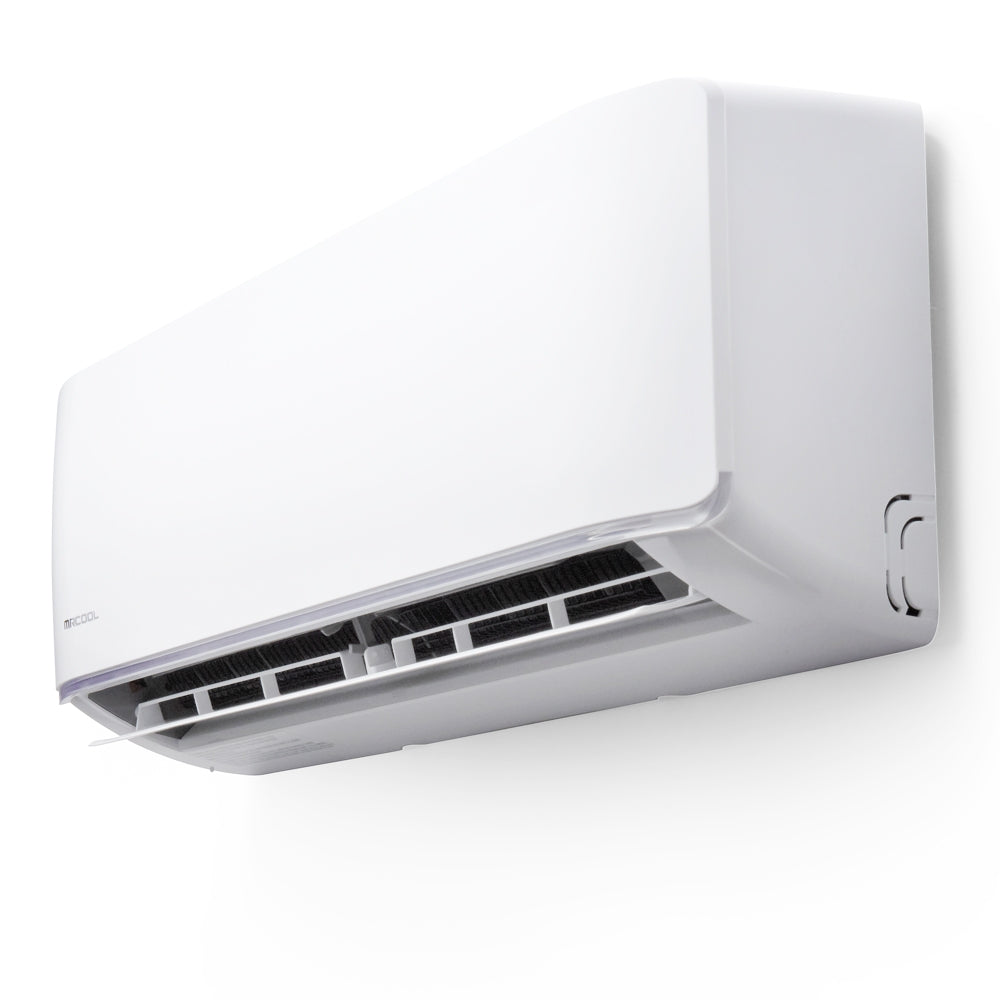

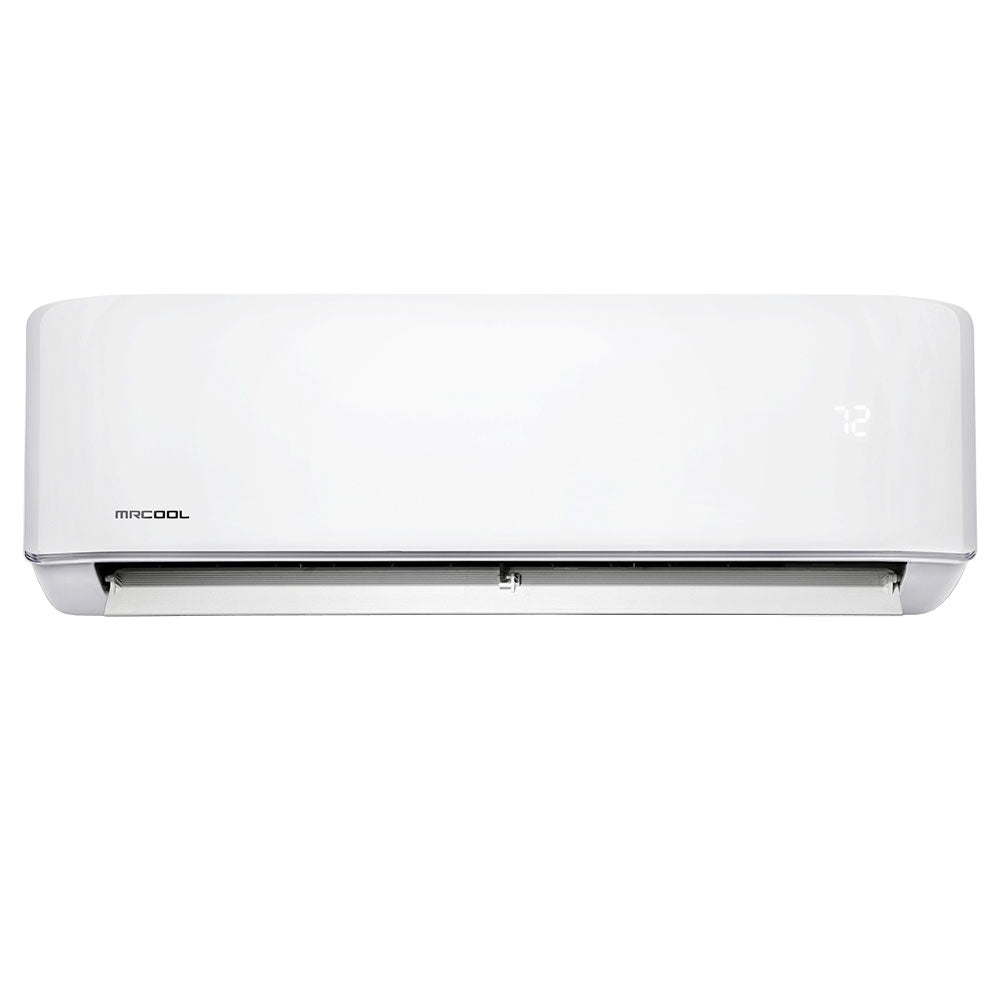

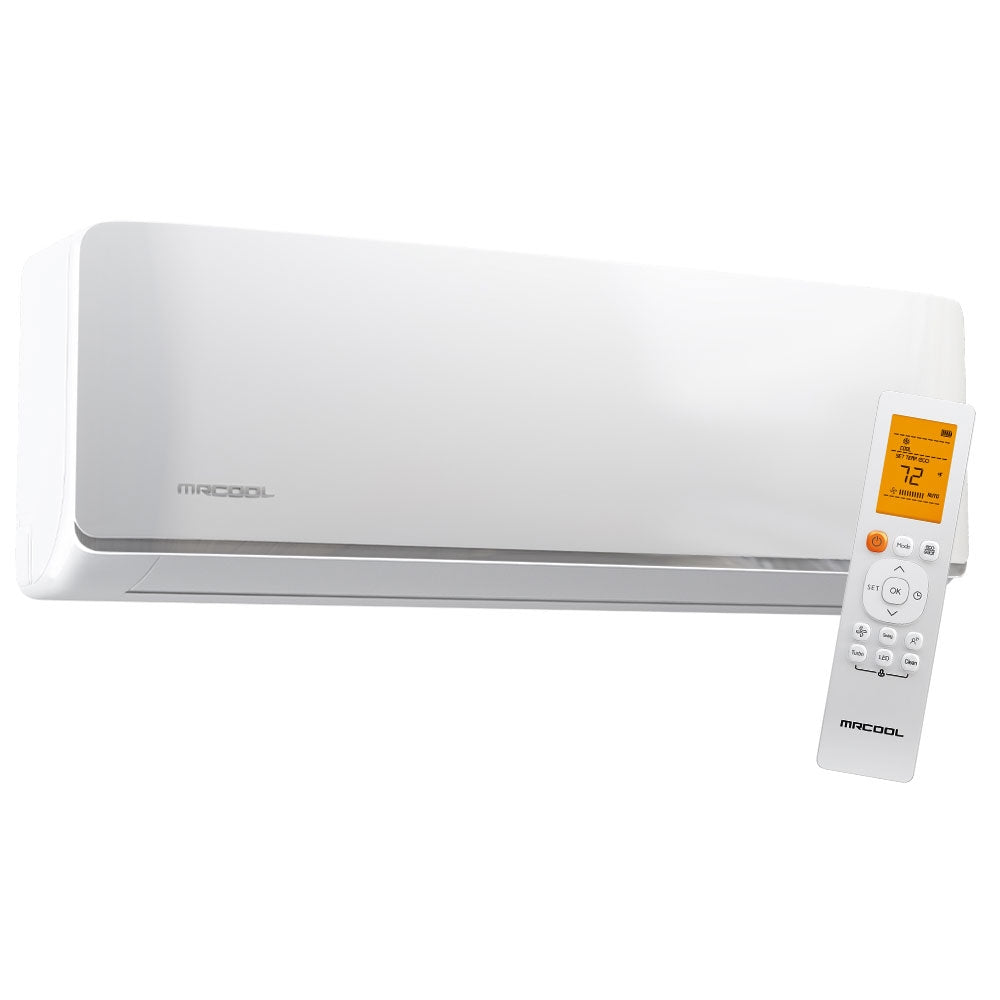

- MRCOOL A-09-HP-WMAH-230D-O Wall Mounted Air Handler
- Owner’s Manual
- Lifetime Tech Support
Warranty
- Limited Lifetime Compressor*
- 7 years unit replacement (compressor)**
- 5 years parts
