The **5th Generation MRCOOL DIY Mini Split 12k BTU 23.5 SEER2 Ductless Heat Pump & AC System** delivers **high-performance heating and cooling** for spaces up to **500 sq ft**. Featuring **Energy Star certification**, **AHRI listing**, and **UL certification**, it ensures **superior climate control year-round**.
Designed for **efficiency and DIY installation**, this MRCOOL system includes **patented Quick Connect Pre-Charged Line Sets**, allowing for **easy setup without specialized training**. Equipped with **smart controls, auto-restart, and louver position memory**, it offers **maximum convenience and reliability**.

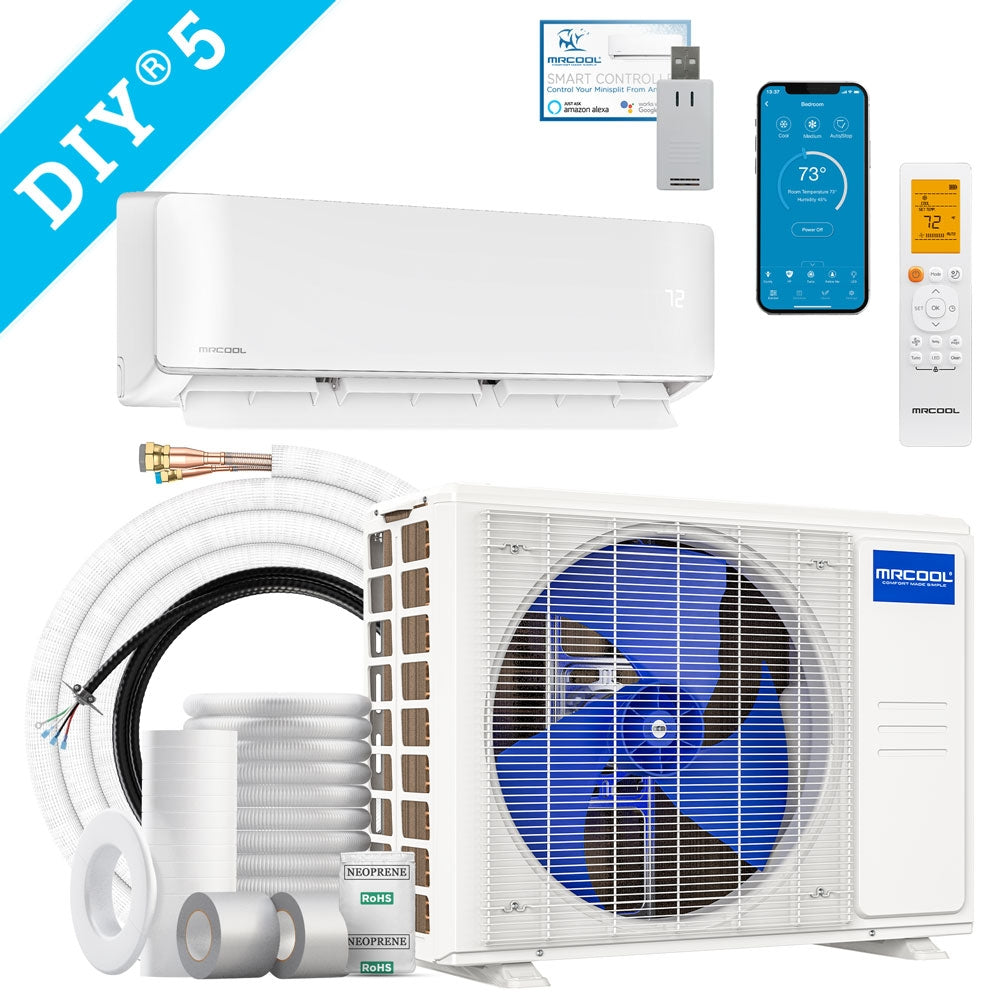

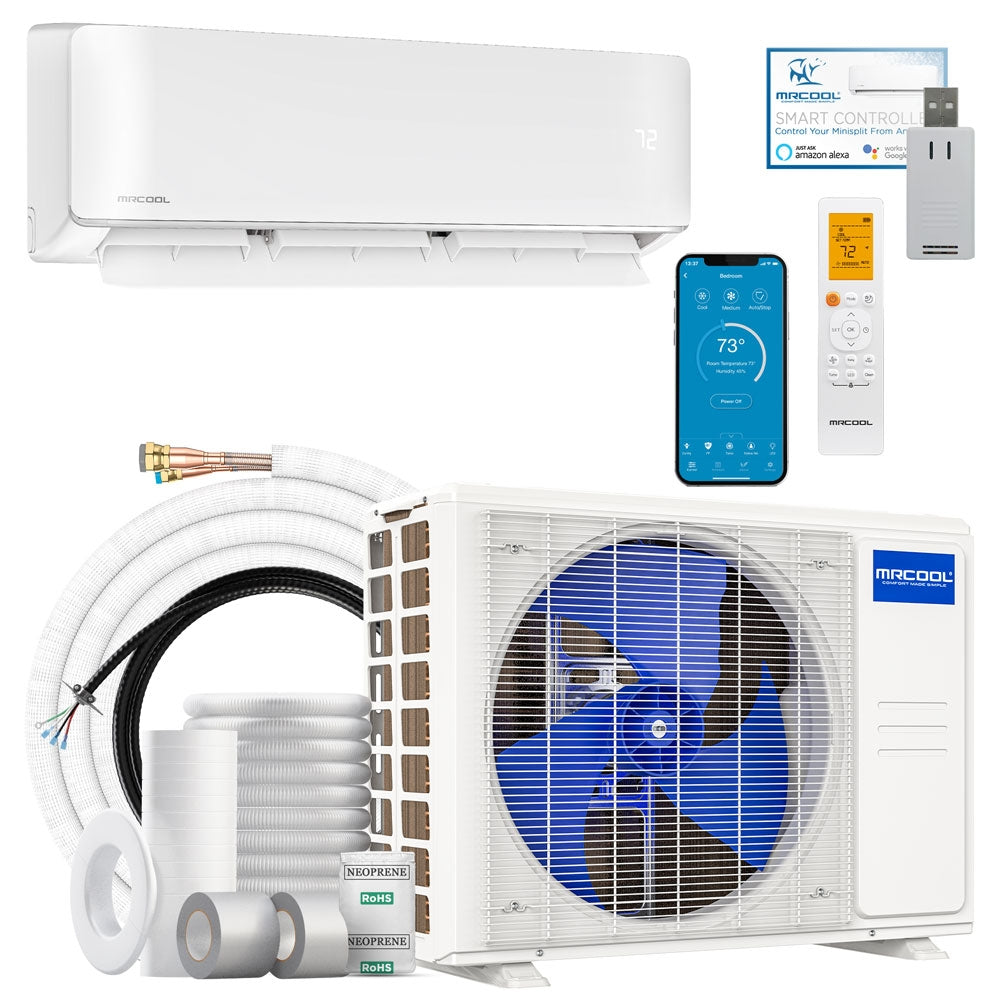

This Bundle Includes

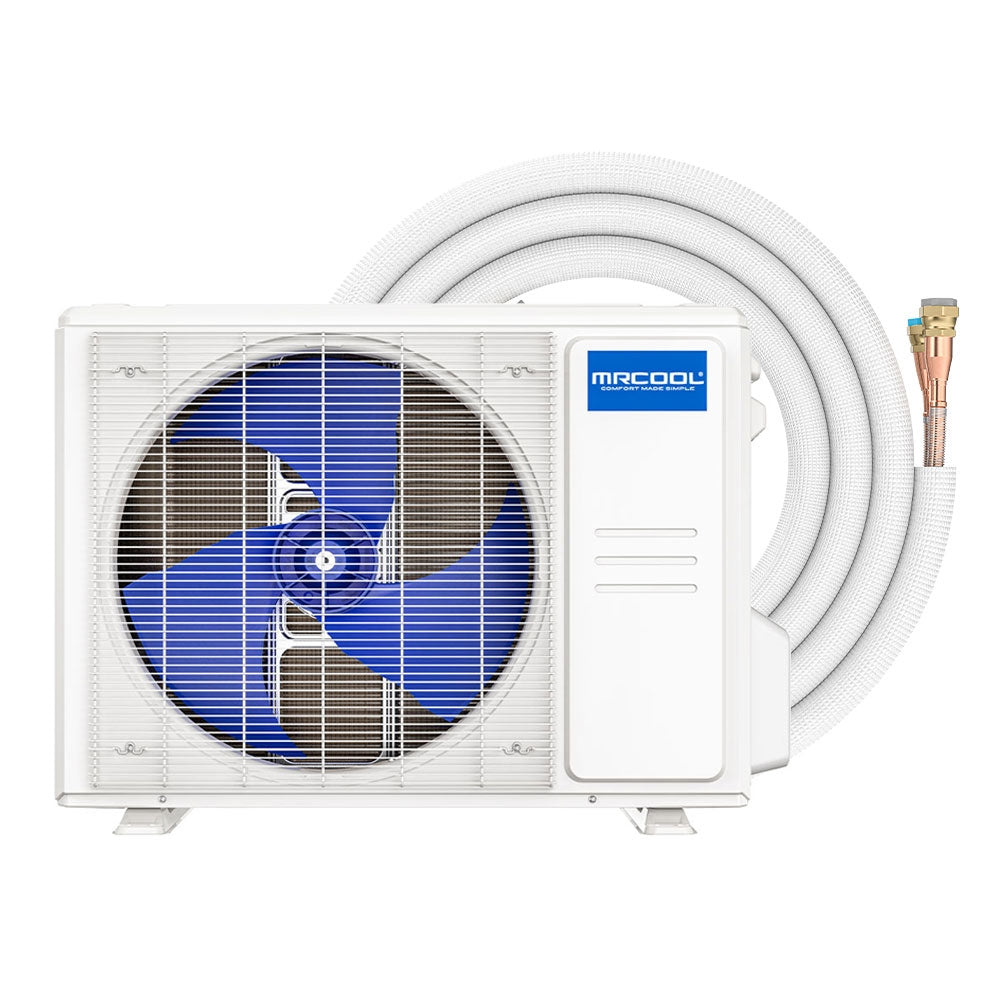

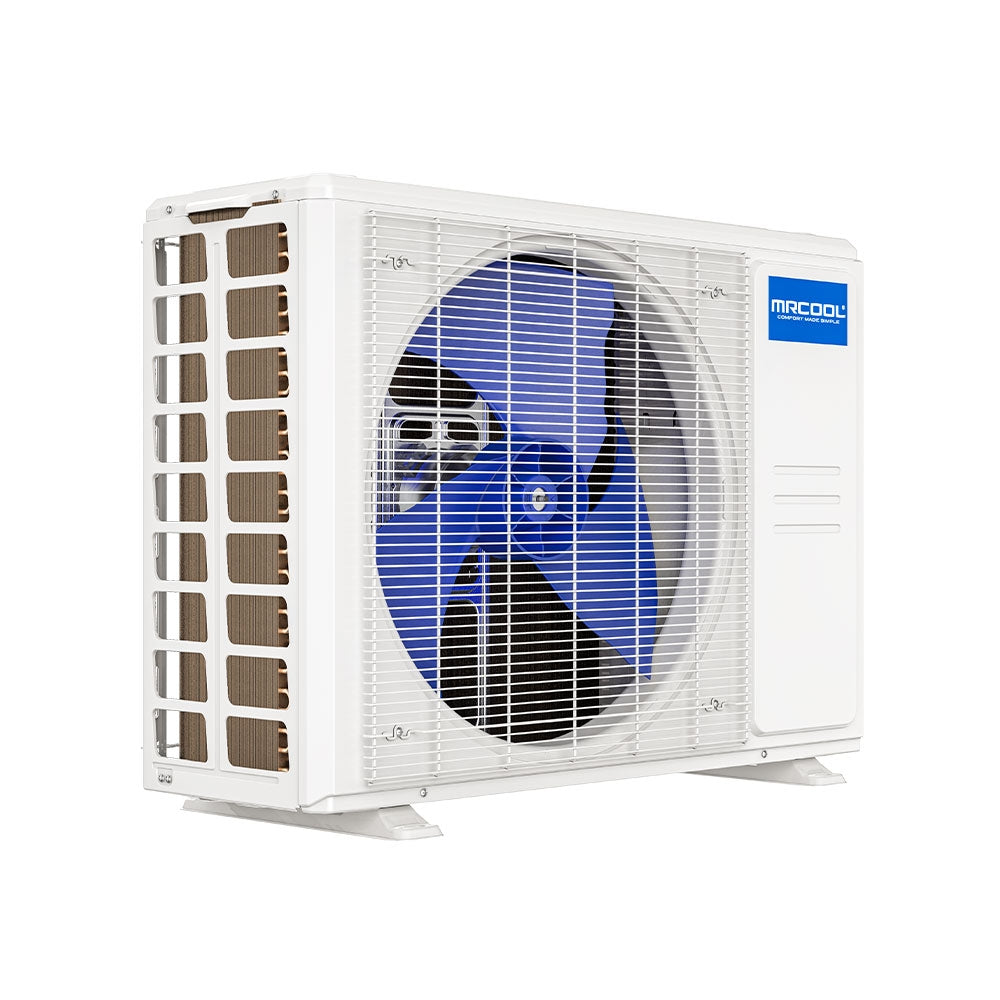

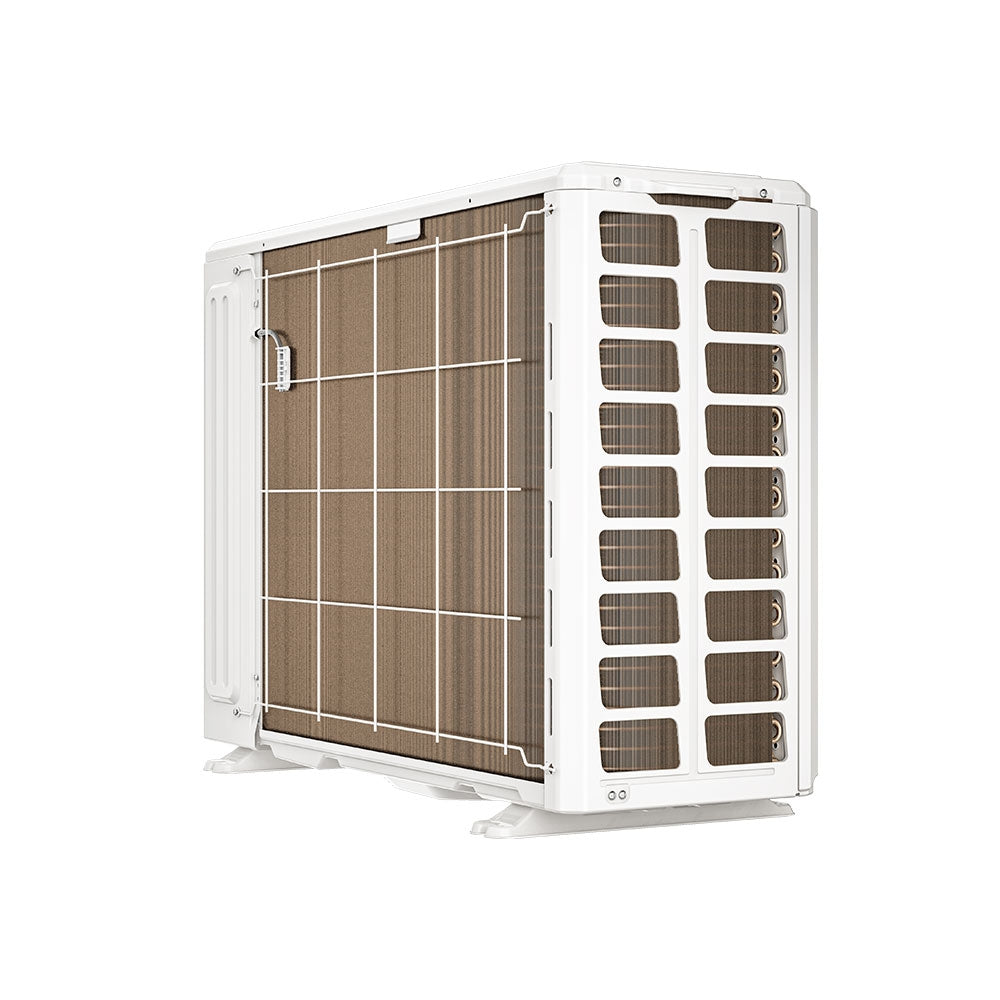

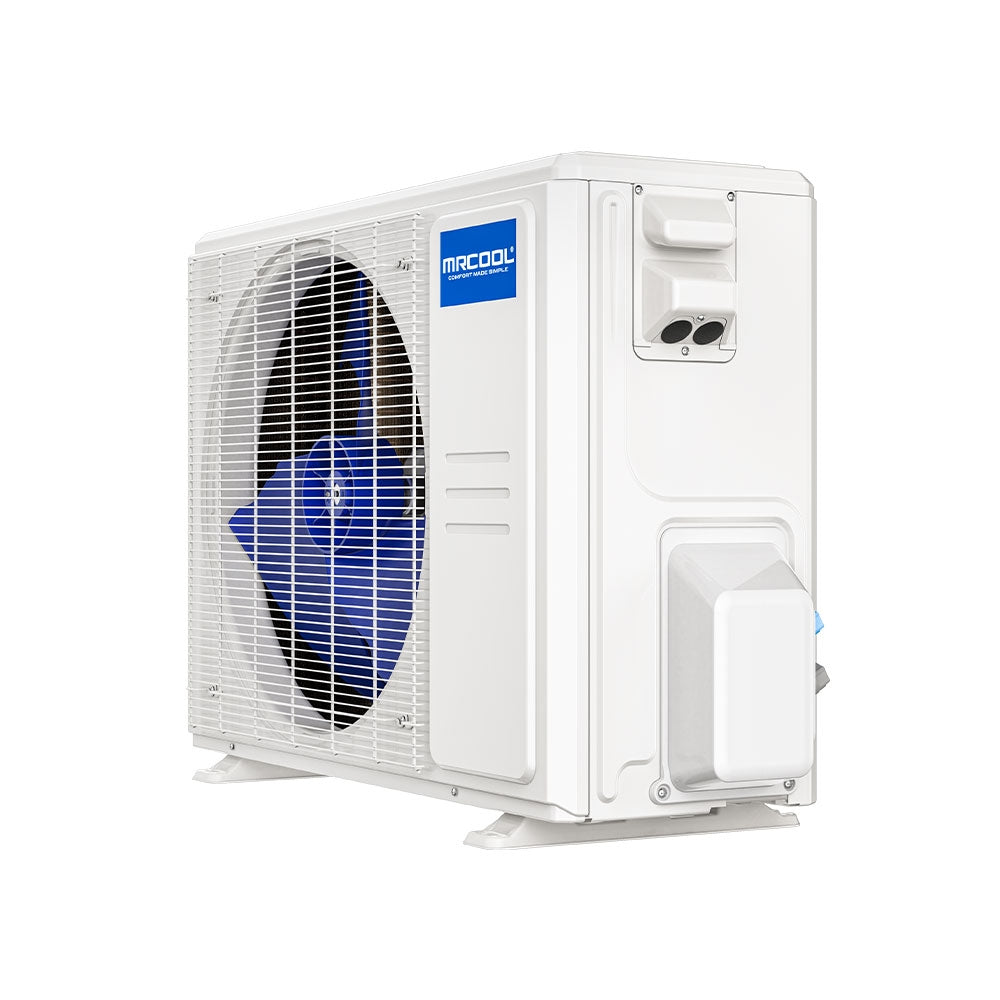

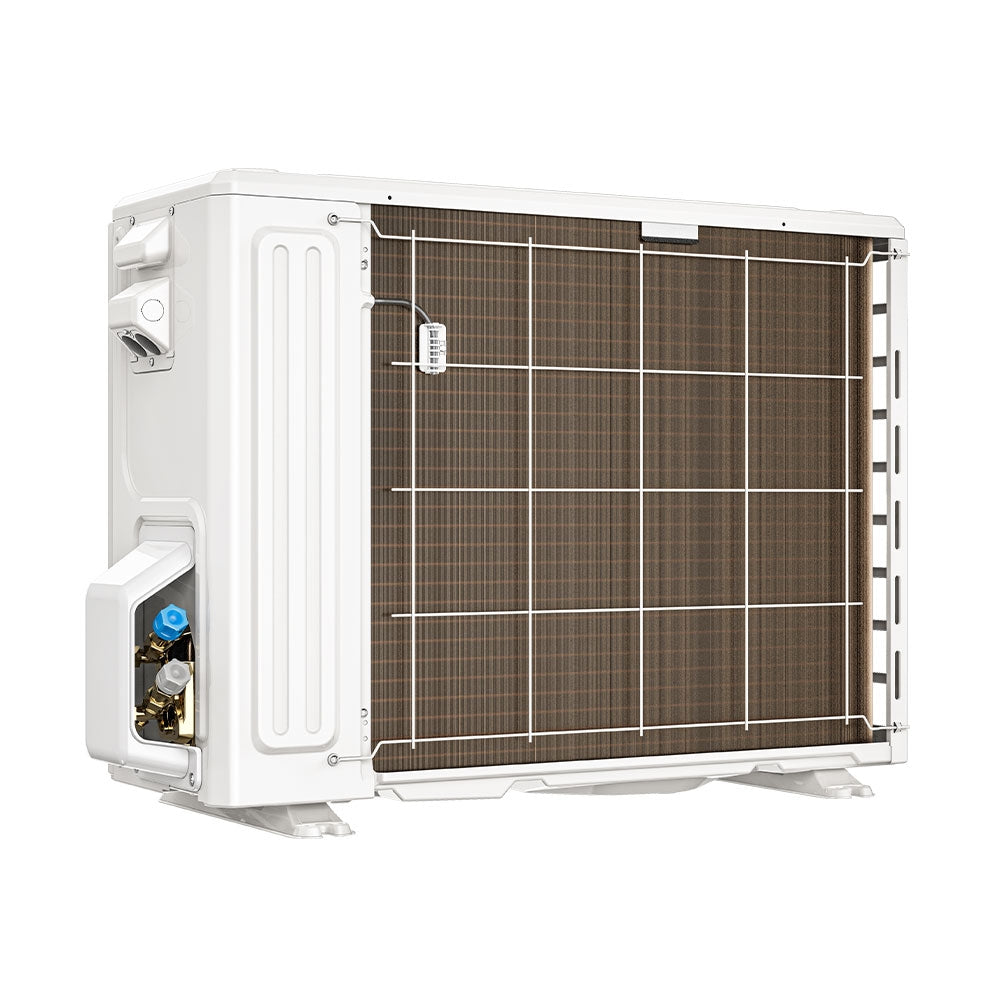

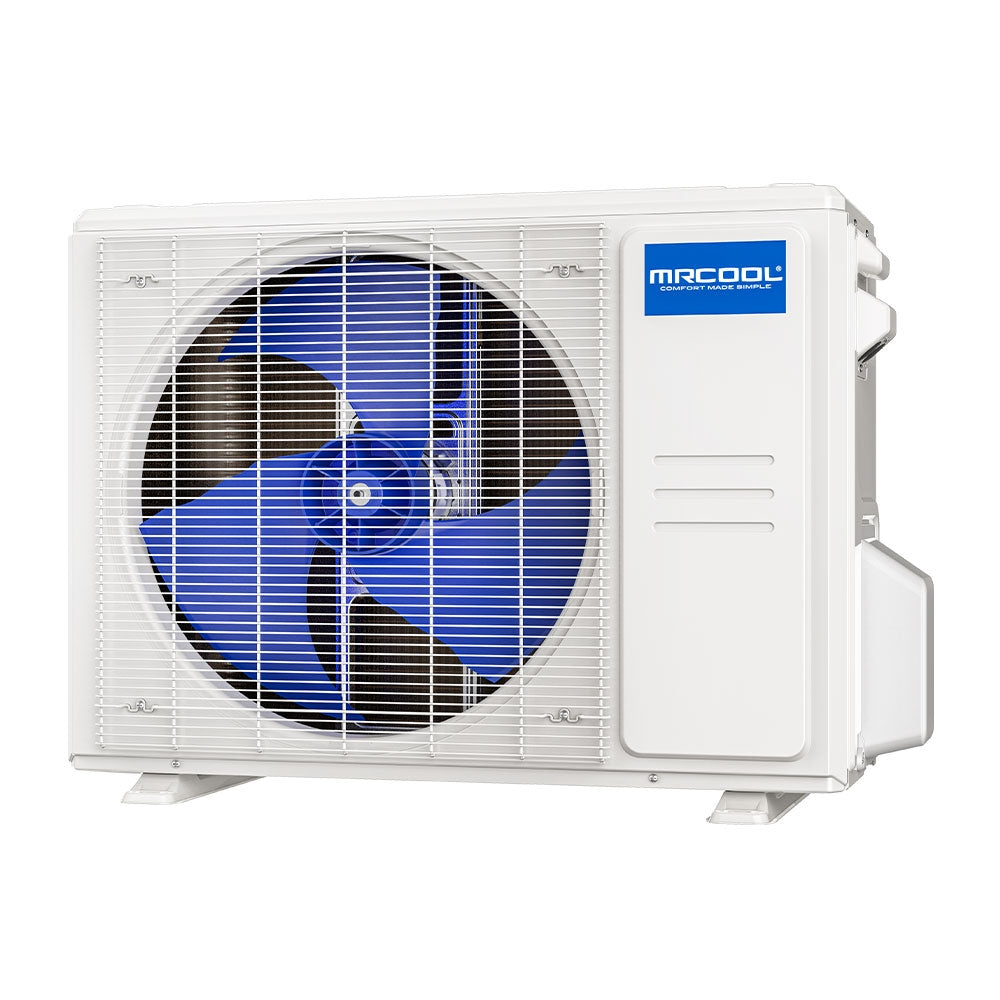

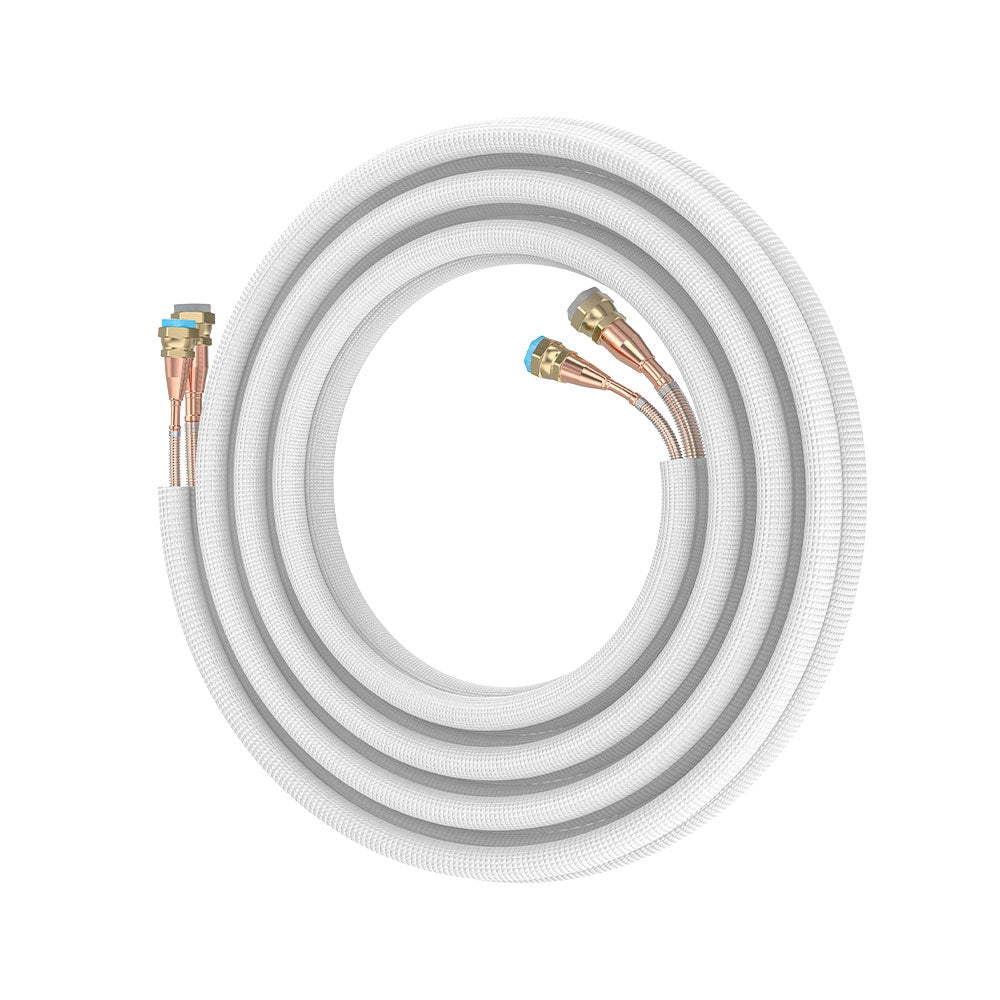

12k BTU 23.5 SEER2 MRCOOL DIY Ductless Heat Pump Condenser - 5th Generation - with 25 ft Line Set
Item: HA26222 Model: DIY-12-HP-C-115D25-O
Qty: 1

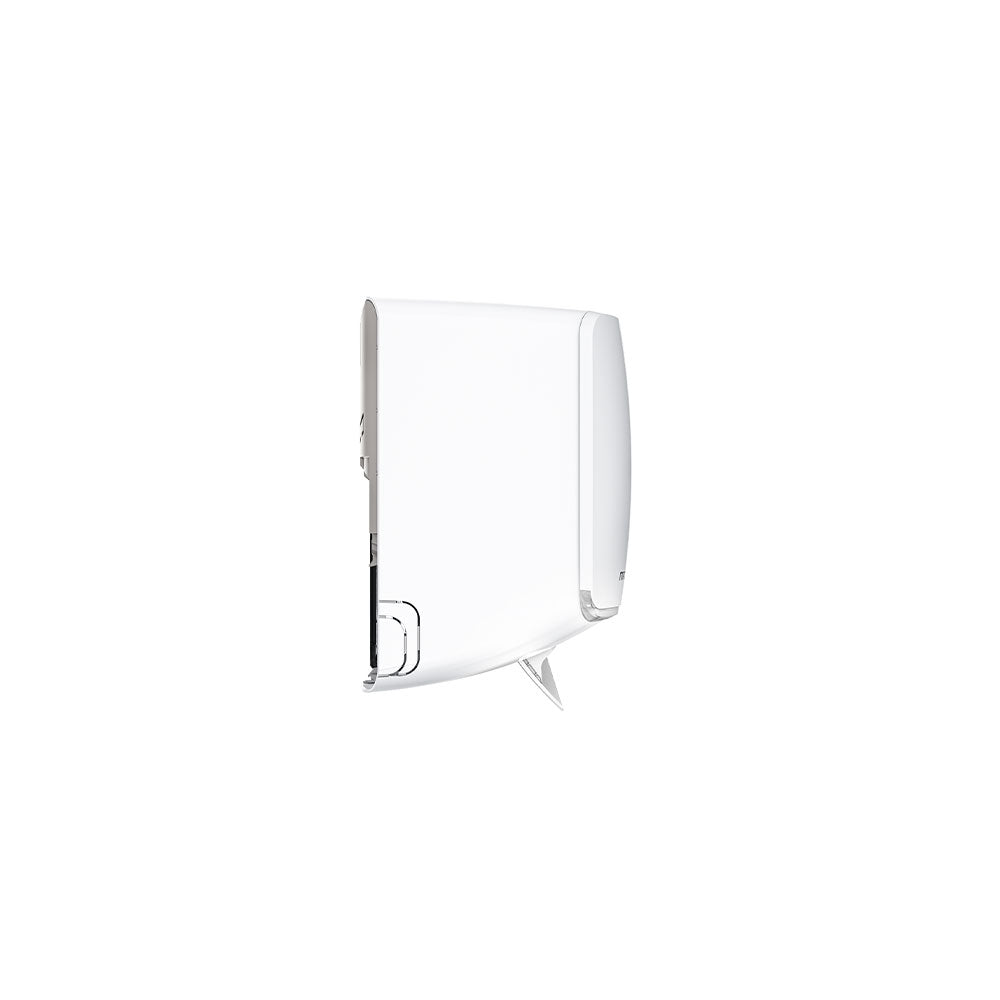

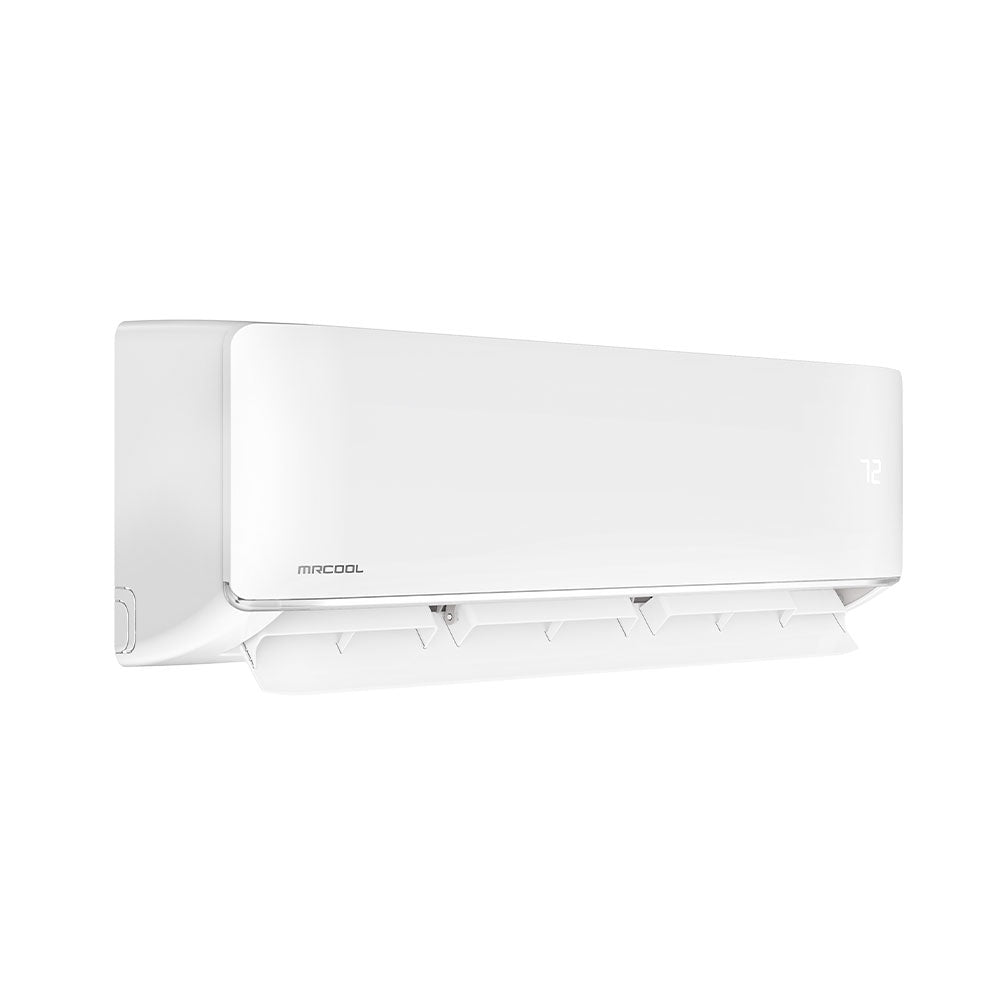

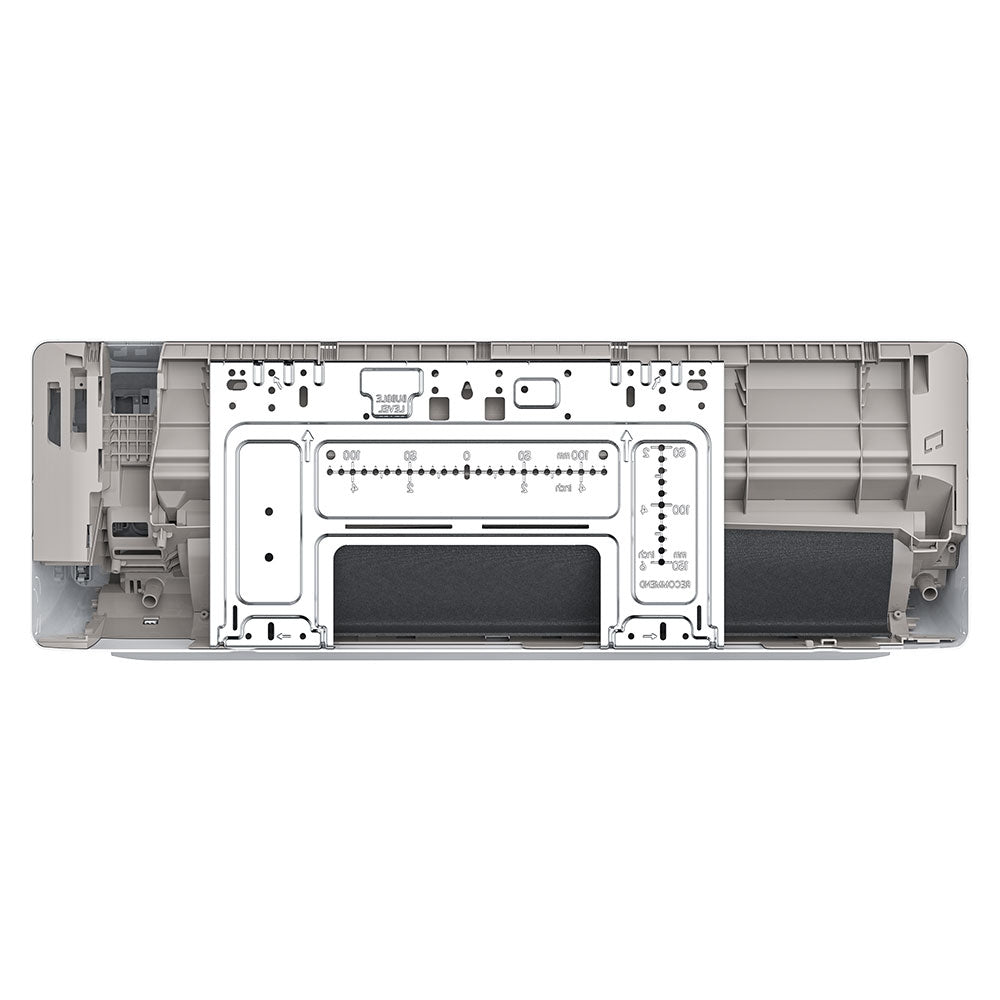

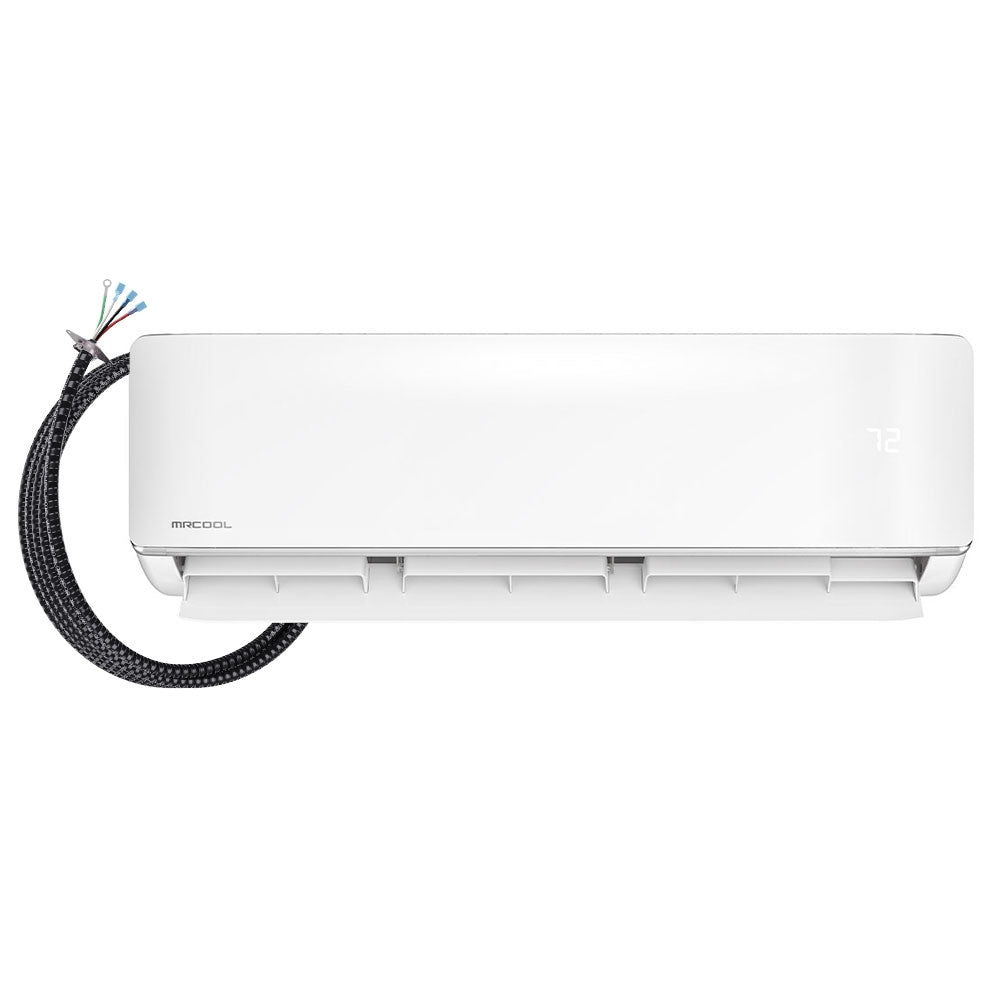

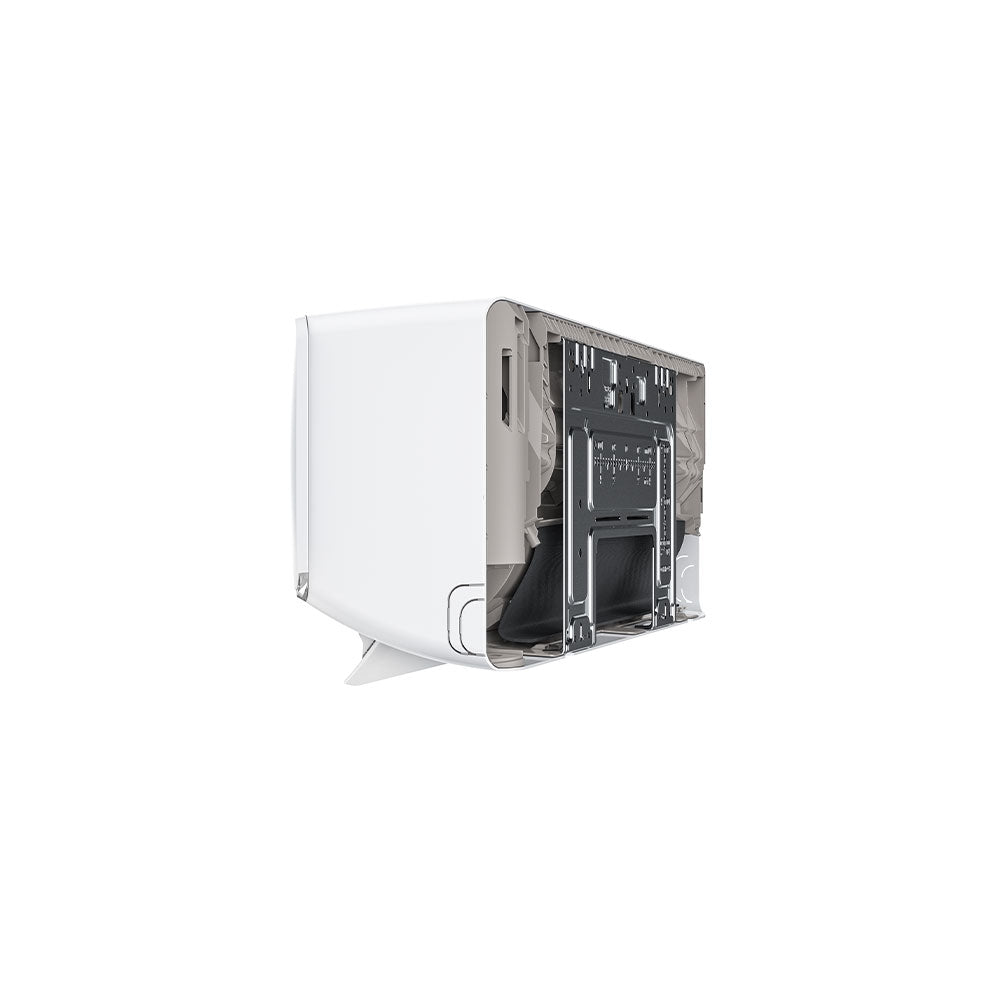

12k BTU MRCOOL DIY Ductless Wall Mounted Air Handler - 5th Generation 120V
Item: HA26227 Model: DIY-12-HP-WMAH-115D25-O
Qty: 1
1 Year Extended Labor Warranty for Ductless Mini Split System
Item: EF10015 Model: DMS1Y4+000125
Qty: 1
Specifications:
| General Product Information | |
|---|---|
| Model | DIY-12-HP-WM-115D25-O |
| UPC | 840255588546 |
| AHRI Number | 216032544 |
| Configuration | Wall Mounted |
| Bundle Avg Coverage Area | 500 - 600 Sq Ft |
| Bundle Cooling Capacity | 1 Ton |
| Bundle Cooling Efficiency (SEER2) | 23.5 |
| Heat Pump Efficiency (HSPF2) | 11.5 |
| Series | DIY |
| Zones | 1 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
| California Residents | See Prop 65 WARNING |
| Heat Pump Condenser (Model DIY-12-HP-C-115D25-O) | |
|---|---|
| Model | DIY-12-HP-C-115D25-O |
| UPC | 840255586955 |
| AHRI Number | 216032544 |
| Product Height (in) | 21.85 |
| Avg Coverage Area | 500 - 600 Sq Ft |
| Product Length (in) | 11.93 |
| Compressor | Inverter |
| Product Width (in) | 30.12 |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 65.480000 |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 23.5 |
| Series | DIY |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 120 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
| Wall Mounted Air Handler (Model DIY-12-HP-WMAH-115D25-O) | |
|---|---|
| Model | DIY-12-HP-WMAH-115D25-O |
| UPC | 840255587006 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 37.700000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 120 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Extended Labor Warranty (Model DMS1Y4+000125) | |
|---|---|
| Model | DMS1Y4+000125 |
| Weight (lbs) | 0.000000 |
Resources
- DIY5 Quick Start Guide
- DIY5 Single Zone Customer Brochure
- DIY5 Single Zone Installation Manual
- DIY5 Warranty Sheet
- Mini-Split Remote Control Owner's Manual
What’s Included
- MRCOOL DIY-12-HP-C-115D25-O
- MRCOOL DIY-12-HP-WMAH-115D25-O
- MRCOOL DMS1Y4+000125
- Owner Manual
- Lifetime Tech Support
Warranty
- Limited Lifetime Compressor*
- 7 years unit replacement (compressor)**
- 5 years parts
