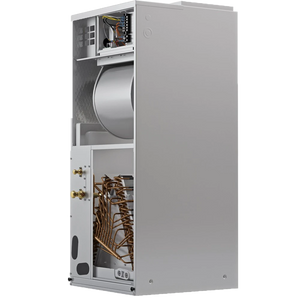

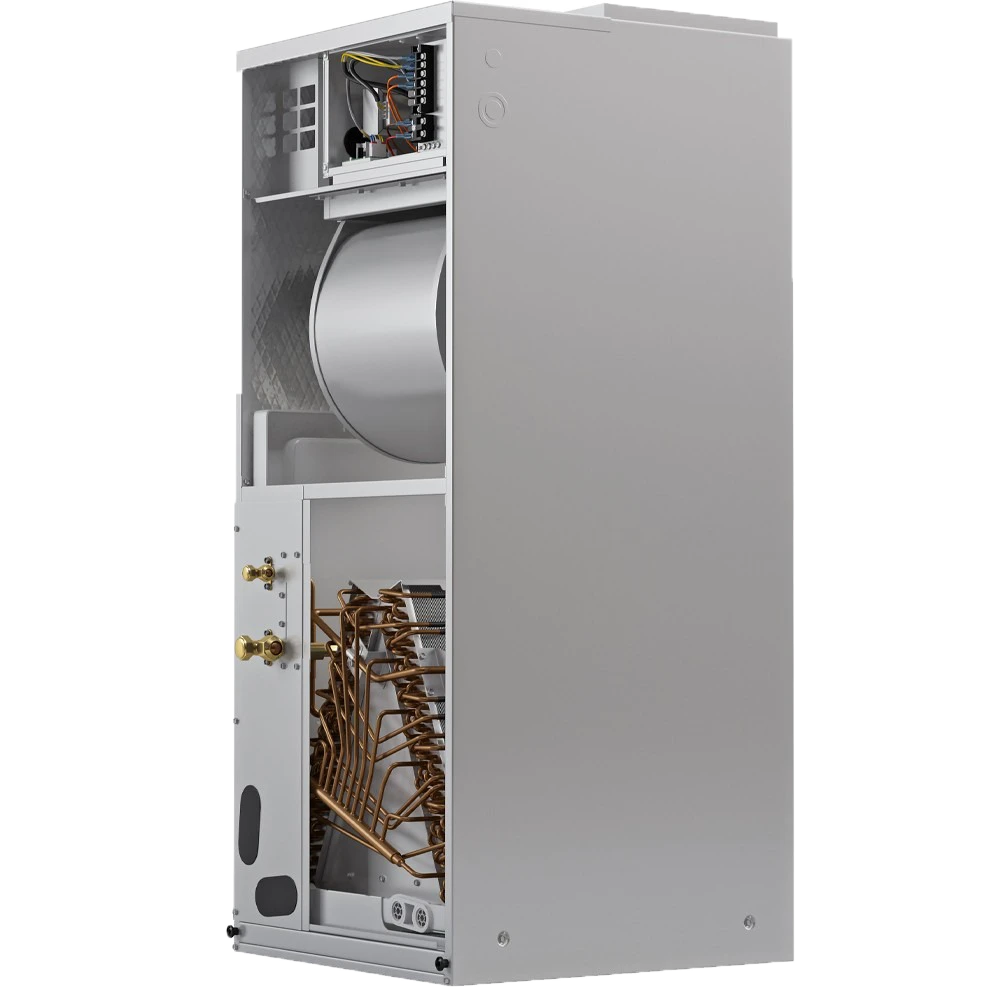

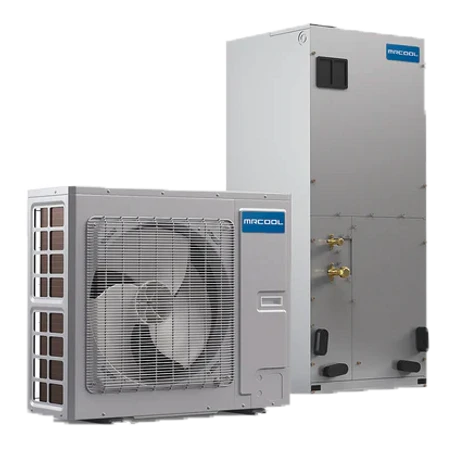

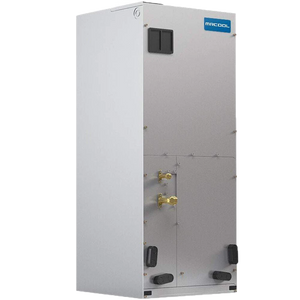

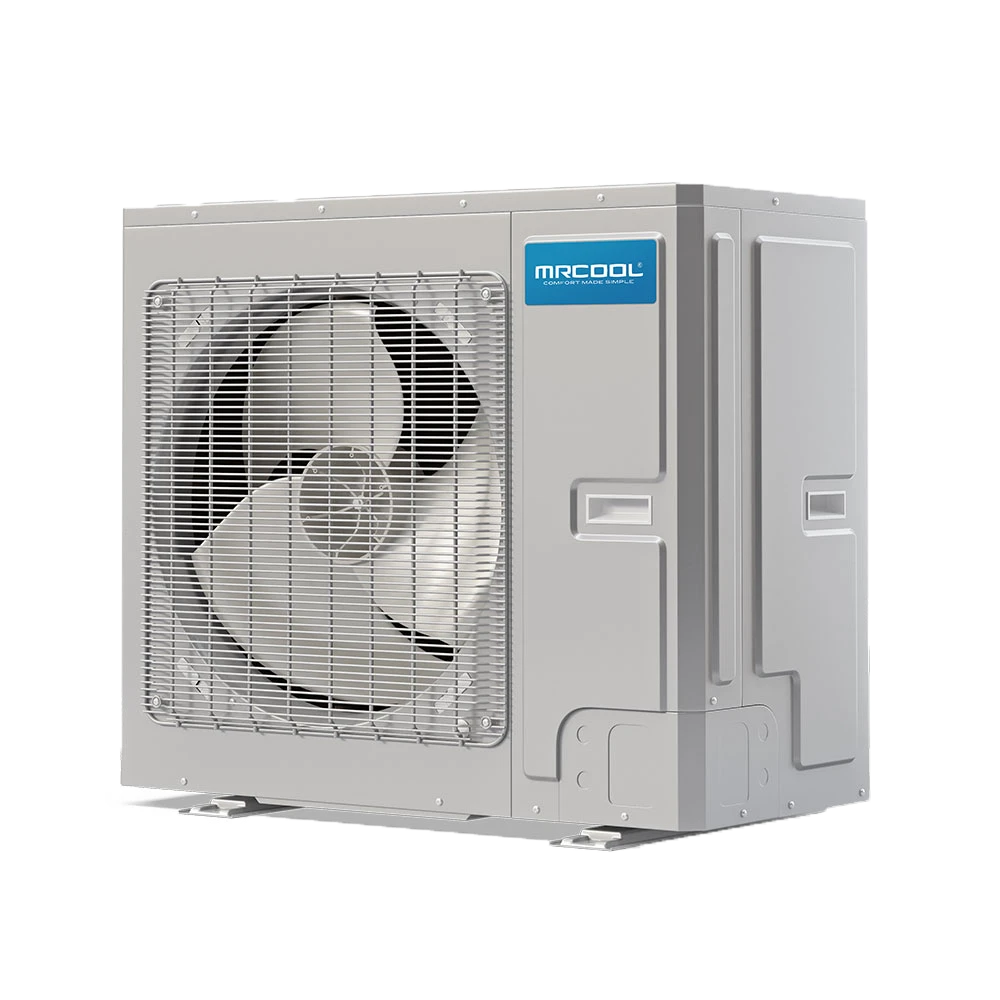

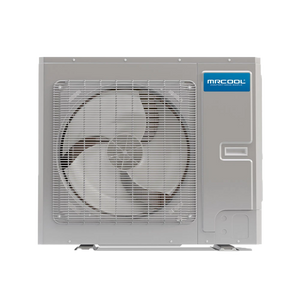

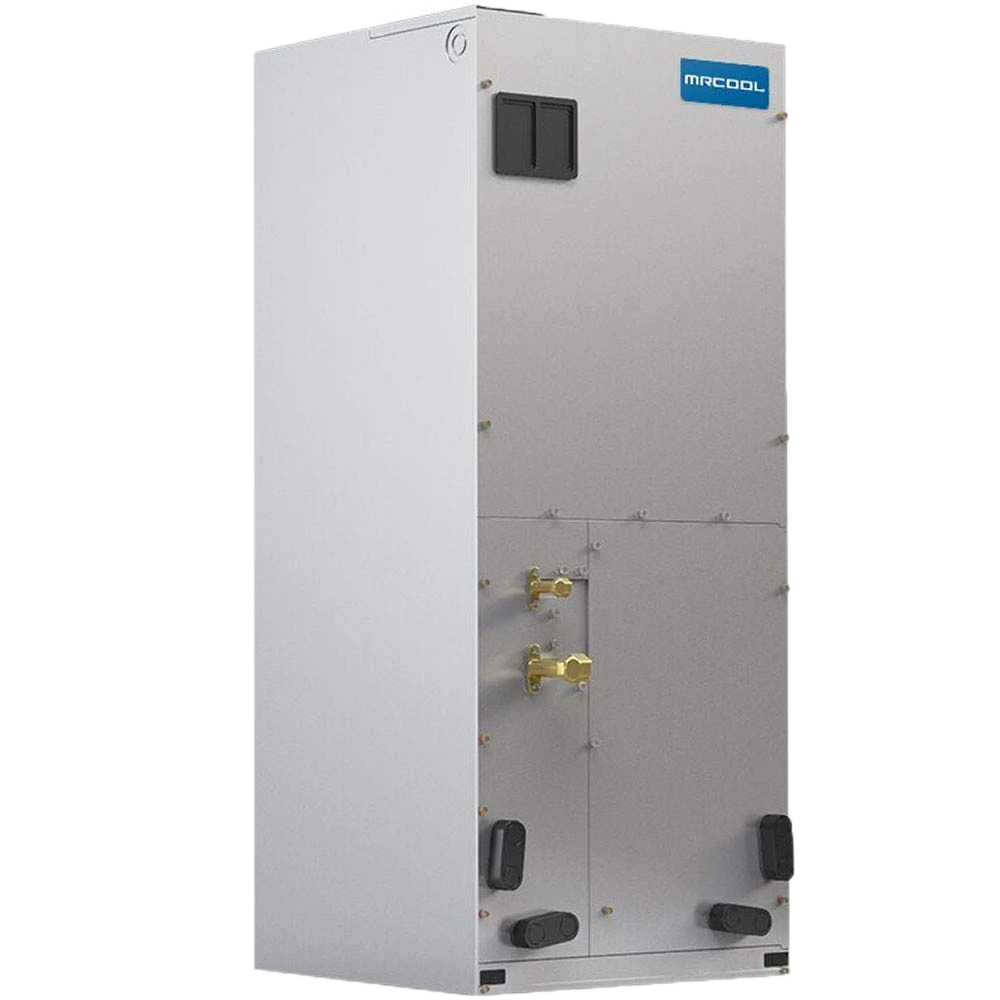

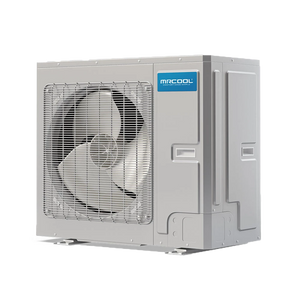

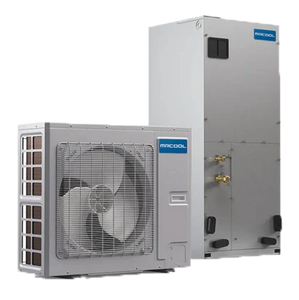

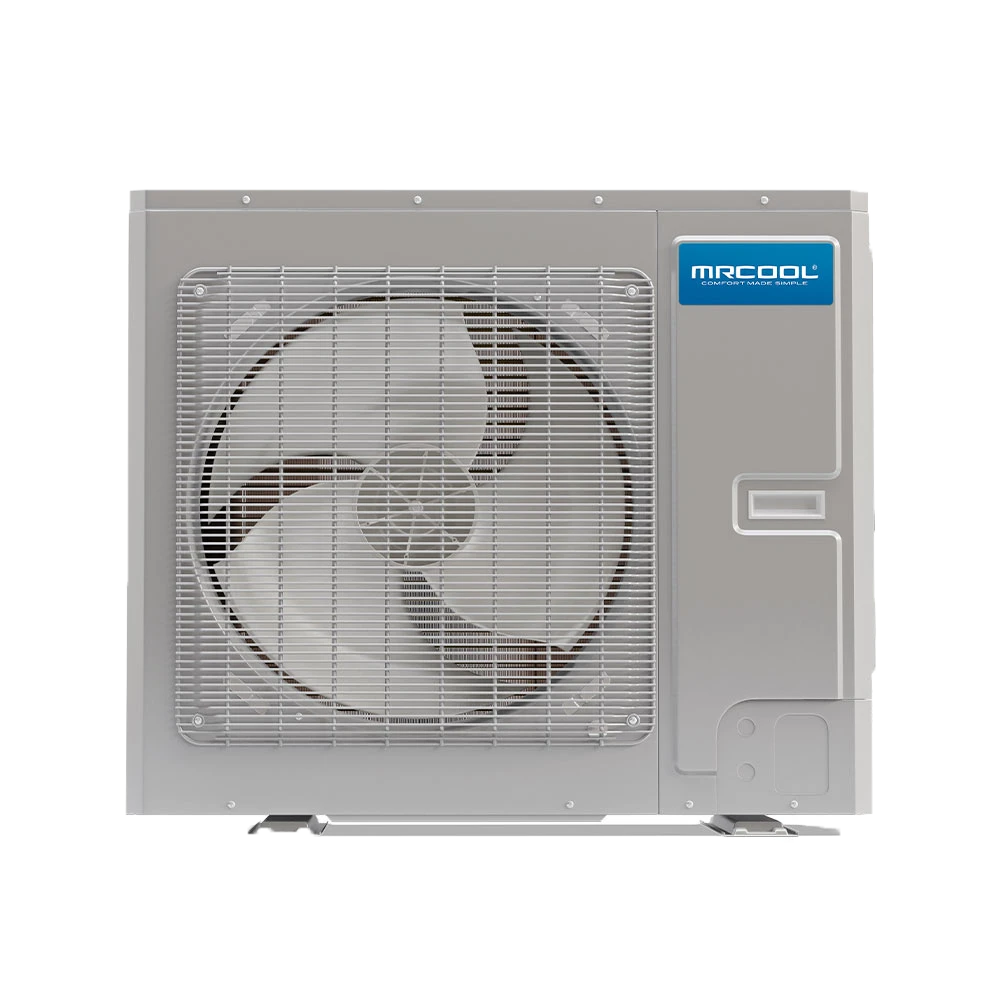

Deliver energy-efficient comfort year-round with the MRCOOL 2 to 3 Ton 20 SEER Universal Series Split System Heat Pump. This advanced system features a DC inverter compressor that intelligently adjusts capacity to optimize performance while saving energy. Capable of both cooling and heating, it provides customizable settings, allowing users to configure the unit to function as a 2-ton or 3-ton split system depending on their needs. Pre-charged with R410A refrigerant, it eliminates the need for vacuuming during installation and offers multiple line set options from 15 to 50 feet.
The MRCOOL Universal Split System is engineered for convenience and reliability, with features such as low ambient cooling for sensitive environments like server rooms, and a powerful heating capacity that functions down to -5°F. Additional enhancements include a fire-proof electrical box, an easy-to-clean metal filter for corrosion and fire protection, and internal fan blades designed for quiet operation. The system meets ETL and Energy Star certifications, ensuring efficiency and durability.
Specifications:
| MRCOOL Universal Series Split System Heat Pump | |
|---|---|
| Type | Central Split |
| Total Cooling Capacity | 36,000 BTUs |
| Total Heating Capacity | 36,000 BTUs |
| Energy Efficiency Ratio 2 (EER2) | 11 |
| Seasonal Energy Efficiency Ratio 2 (SEER2) | 17.8 |
| Energy Efficiency Ratio (EER) | 12.5 |
| Seasonal Energy Efficiency Ratio (SEER) | 20 |
| Line Set Included | Yes |
| California Residents | ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. |
| Installation Type | Professional Installation |
| Energy Star | Yes |
| Heating Seasonal Performance Factor (HSPF) | 10 |
| Remote Control | No |
| Maximum Indoor Noise Level | 47 dB |
| Minimum Operating Temperature - Cooling | 5 degrees F |
| Maximum Operating Temperature - Cooling | 129 degrees F |
| Minimum Operating Temperature - Heating | -22 degrees F |
| Maximum Operating Temperature - Heating | 75 degrees F |
| Refrigerant Type | R-410A |
| Heat Mode | Yes |
| Maximum Cubic Feet per Minute (CFM) | 1082 CFM |
| Number of Speeds | 8 |
| Compressor Type | Inverter |
| Certifications | ETL |
| Voltage | 208-230 V |
| Outdoor Unit Height | 32.25 in. |
| Outdoor Unit Width | 37 in. |
| Outdoor Unit Depth | 18.2 in. |
| Outdoor Unit Weight | 240 lbs. |
| Indoor Unit Weight | 156.5 lbs. |
| Indoor Unit Height | 48.25 in. |
| Indoor Unit Width | 21.25 in. |
| Indoor Unit Depth | 21.25 in. |
| Maximum Line Length | 164 ft. |
| Liquid Line O.D. | 0.375 in. |
| Suction Line O.D. | 0.75 in. |
Resources:

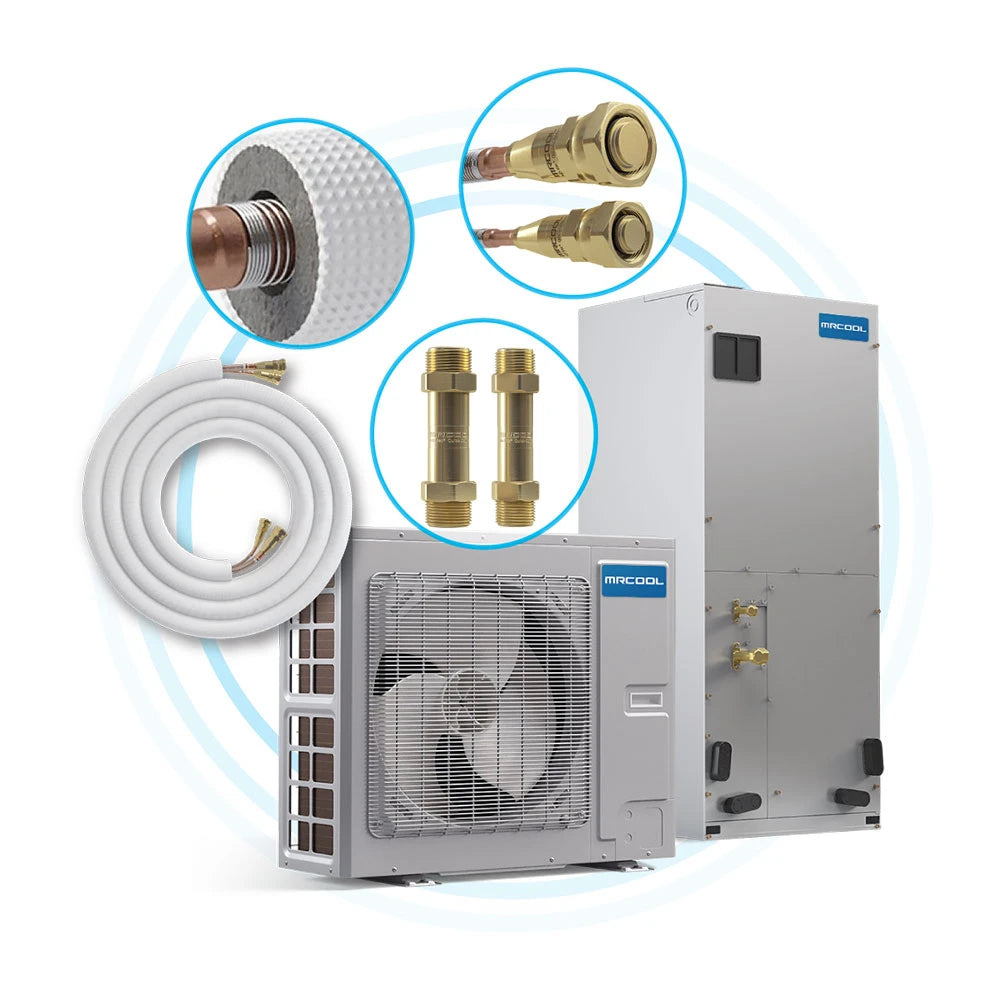

What’s Included:
- MRCOOL 2 to 3 Ton 20 Seer Universal Series Heat Pump Split System
- Owner's Manual
- Installation Instructions
- Selected Line Set
Warranty:
- Limited Lifetime Compressor*
- 7 years unit replacement (compressor)**
- 5 years parts
