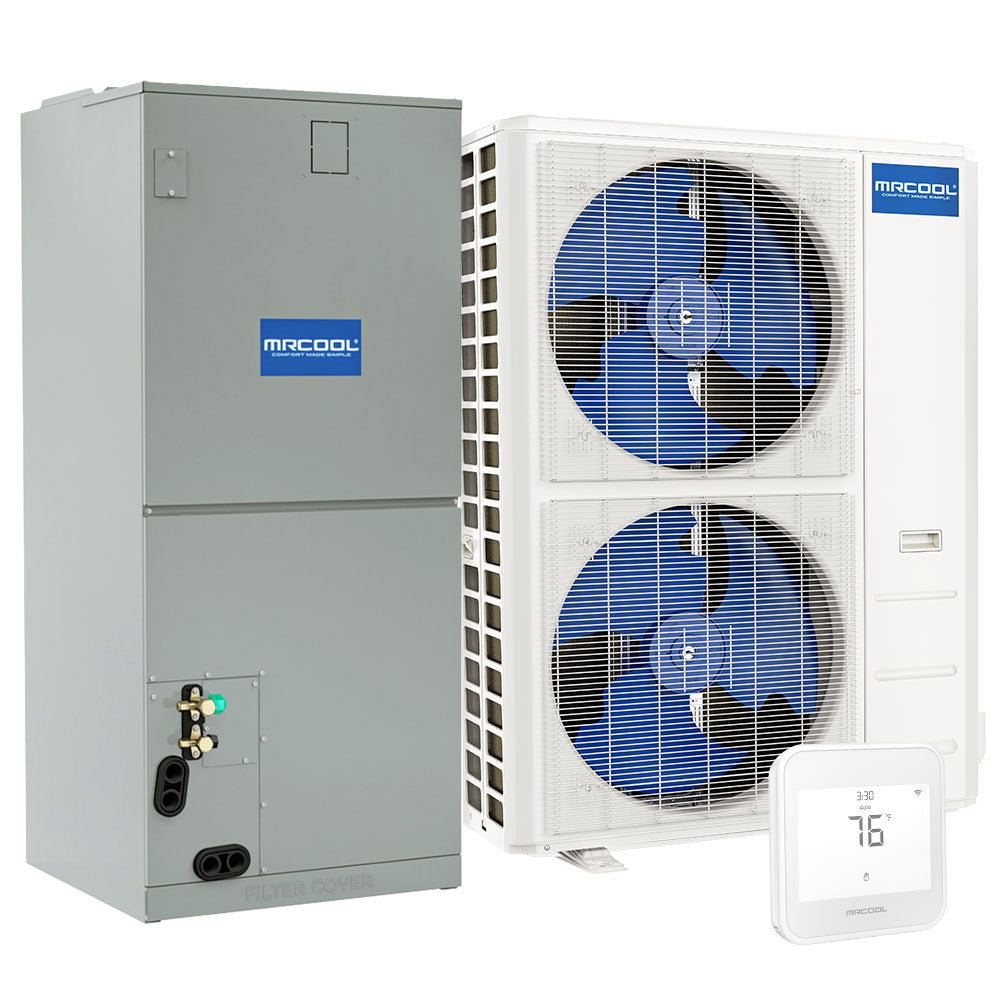

Upgrade your home's climate control with the 5 Ton 16 SEER2 MRCOOL Hyper Heat Central Ducted Heat Pump Split System 2nd Generation - Multiposition - R454B.
Designed for superior efficiency and comfort, this system is backed by ETL listing, AHRI certification, and Energy Star approval.
This 5-ton 16 SEER MRCOOL Hyper Heat Central Ducted Heat Pump System effectively regulates temperatures in spaces ranging from 2,500 to 3,000 square feet, delivering reliable performance while maximizing energy efficiency.
Equipped with an easy-to-access removable filter, self-diagnostic capabilities, and a slide-out blower, servicing and maintenance are seamless.
The included smart thermostat enhances user control, while optional accessories such as a heat kit and pre-charged line set allow customization to meet your space's unique demands.
Supporting upflow, downflow, and horizontal configurations, this system adapts effortlessly to different layouts while maintaining quiet operation and enhanced heating capacity.
This Bundle Includes:
Specifications:
| General Product Information | |
|---|---|
| Model | CENTRAL-60-HP-230B00-O |
| UPC | 840255586542 |
| AHRI Number | 216032534 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency (SEER2) | 16 |
| Series | Central Ducted |
| Region Compatibility | Nationwide |
| California Residents | See Prop 65 WARNING |

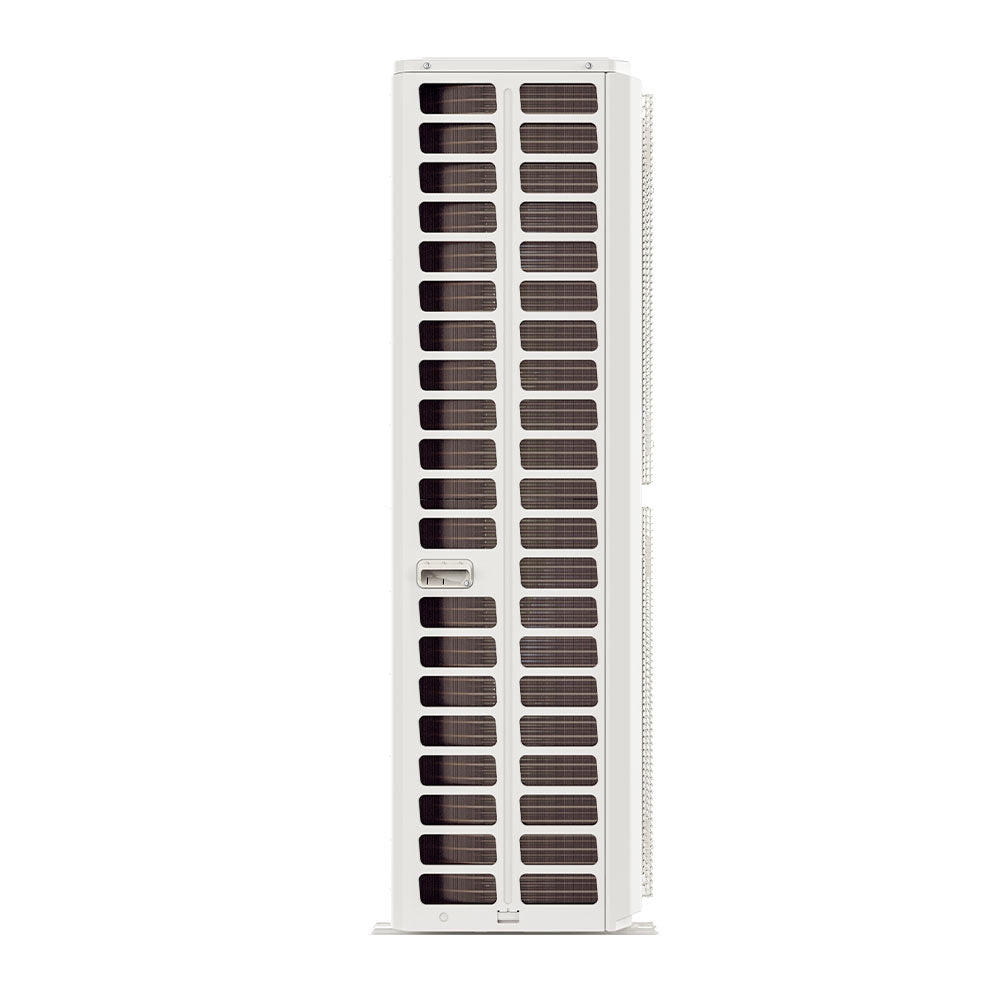

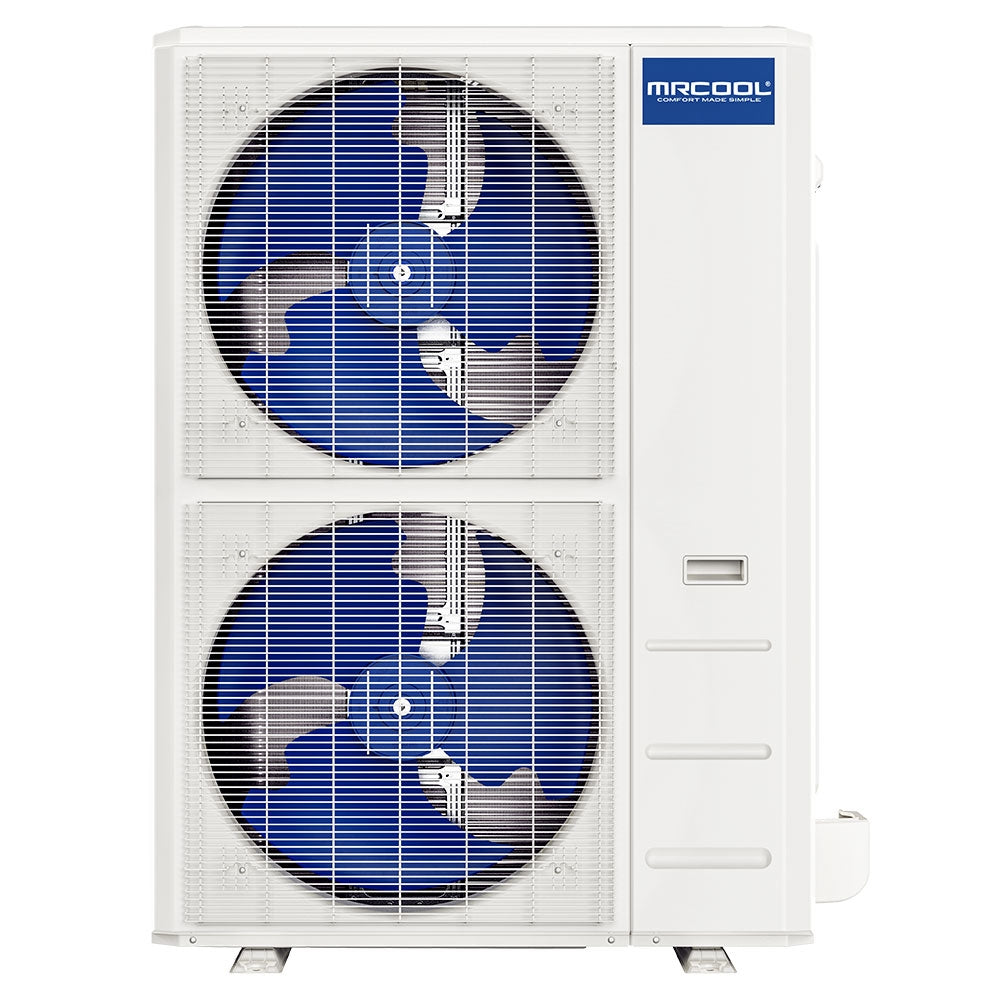

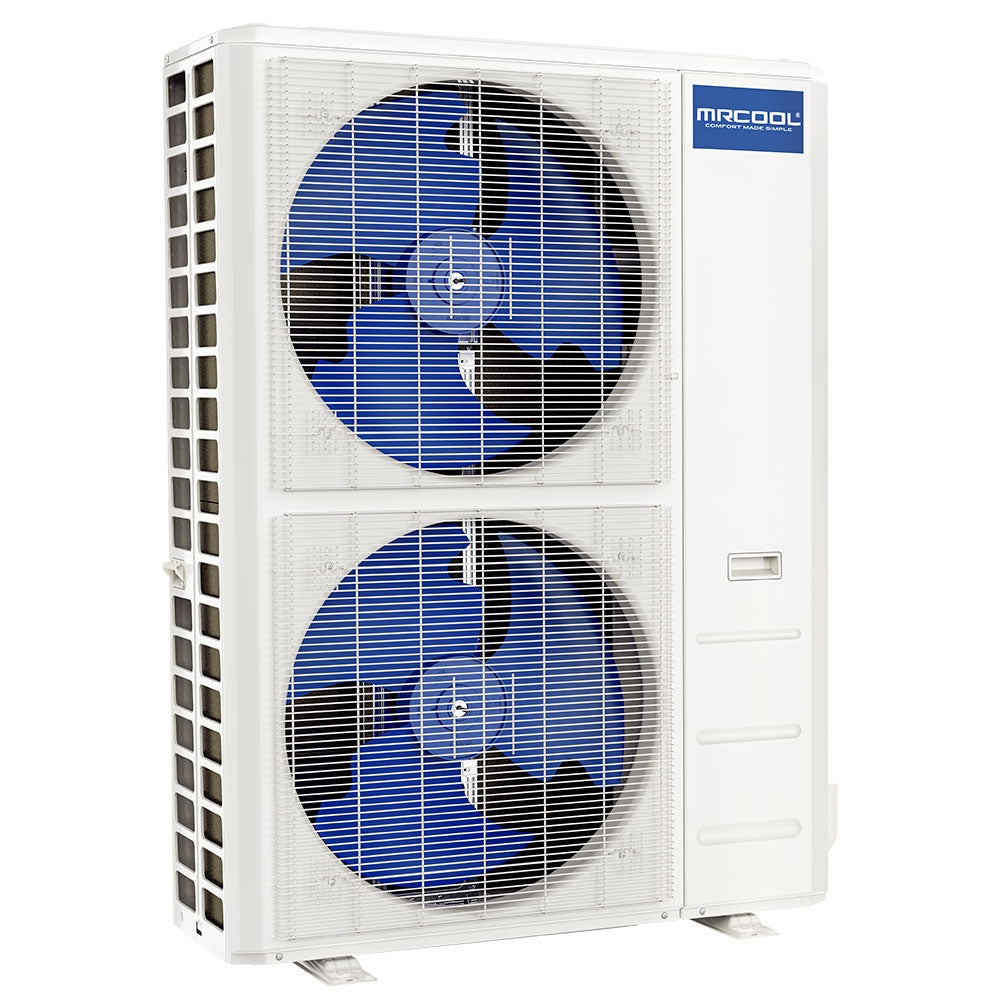

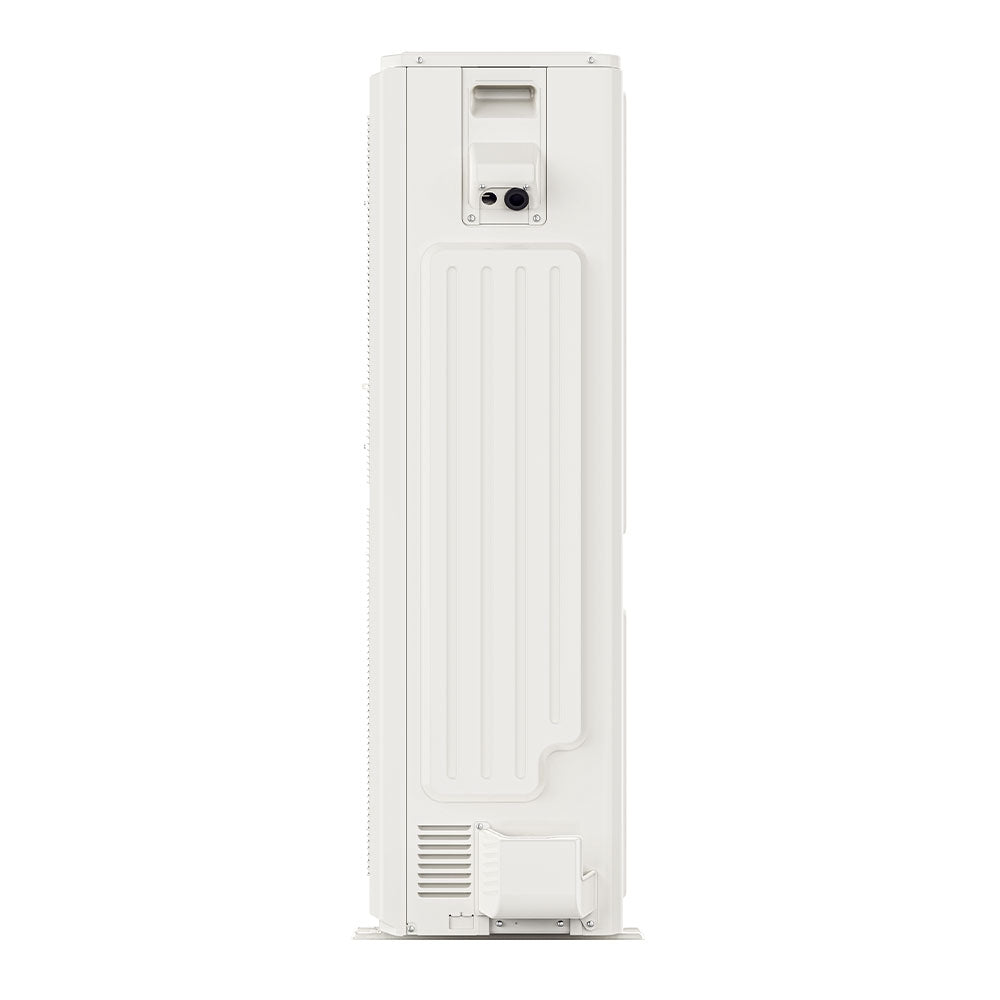

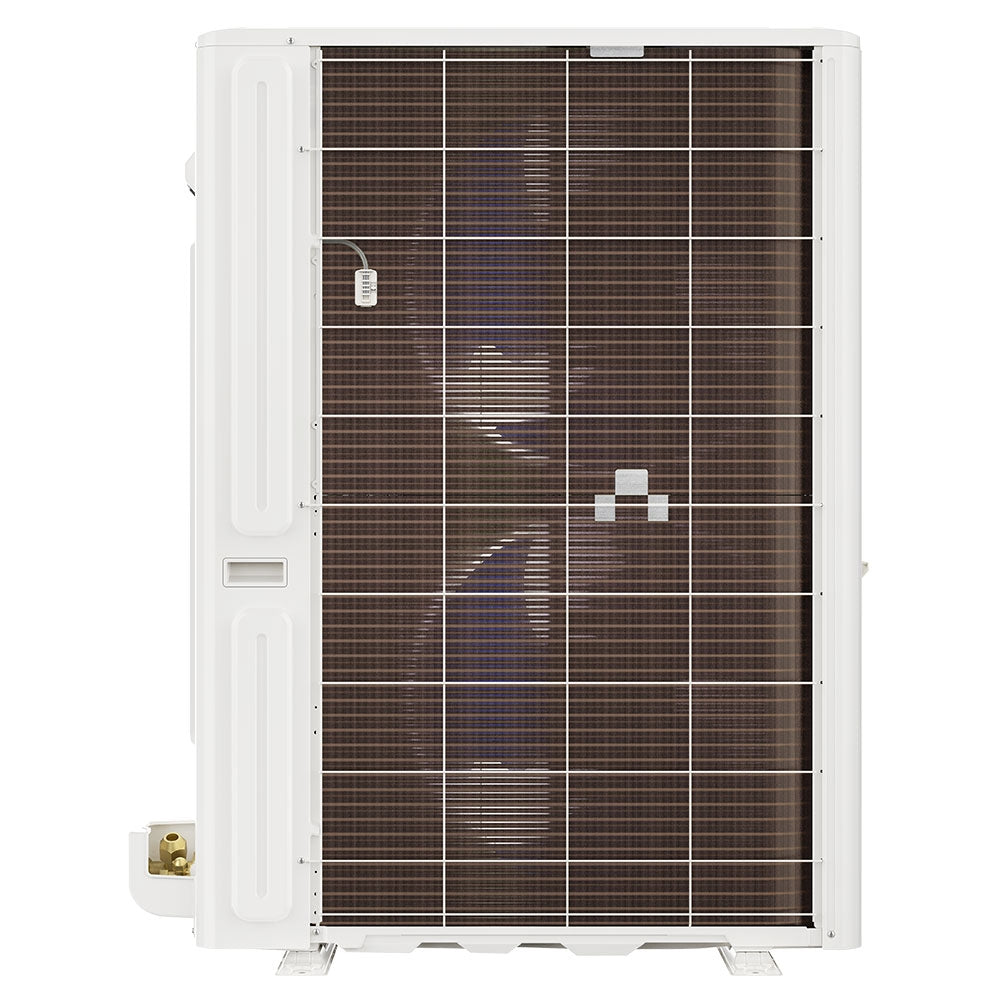

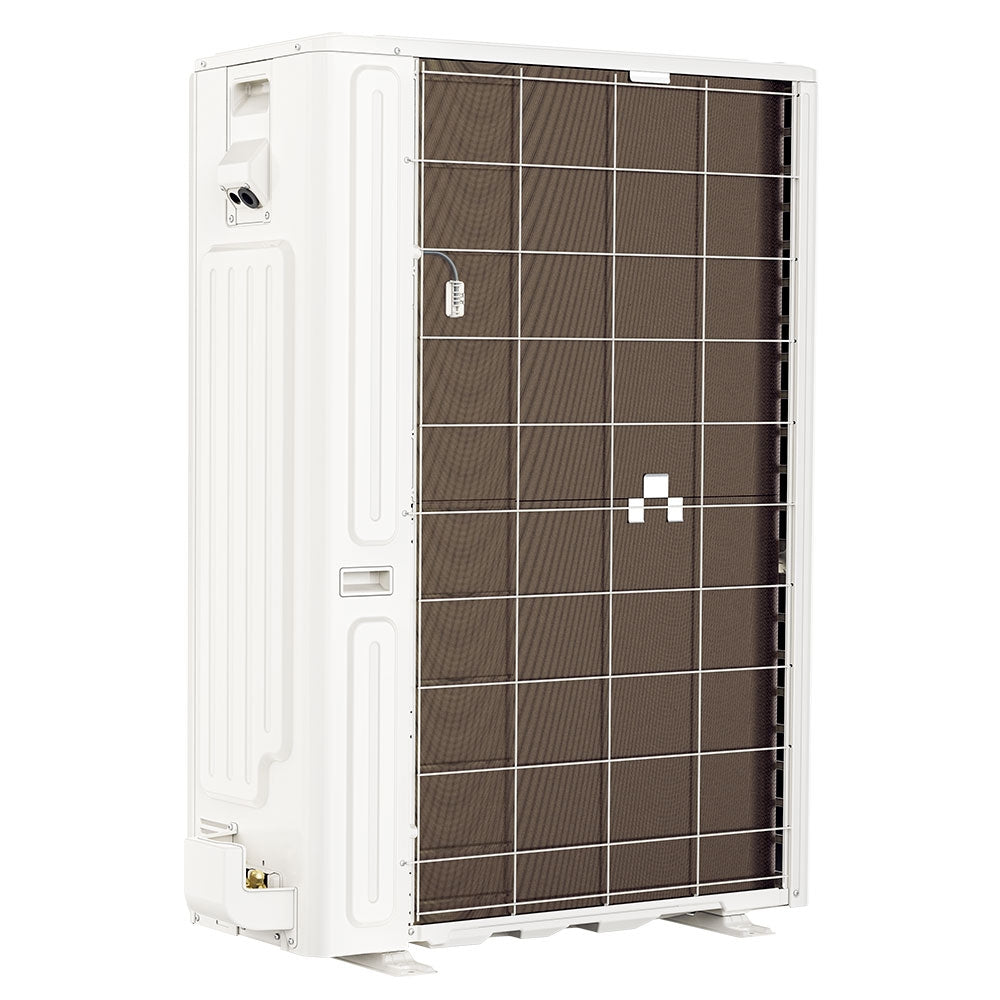

| Heat Pump Condenser (Model CENTRAL-60-HP-C-230B00-O) | |
|---|---|
| Model | CENTRAL-60-HP-C-230B00-O |
| UPC | 840255586542 |
| AHRI Number | 216032534 |
| Product Height (in) | 52.48 |
| Product Length (in) | 37.48 |
| Product Width (in) | 16.34 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9 |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 40 amps |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 16 |
| Series | Central Ducted |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Region Compatibility | Nationwide |

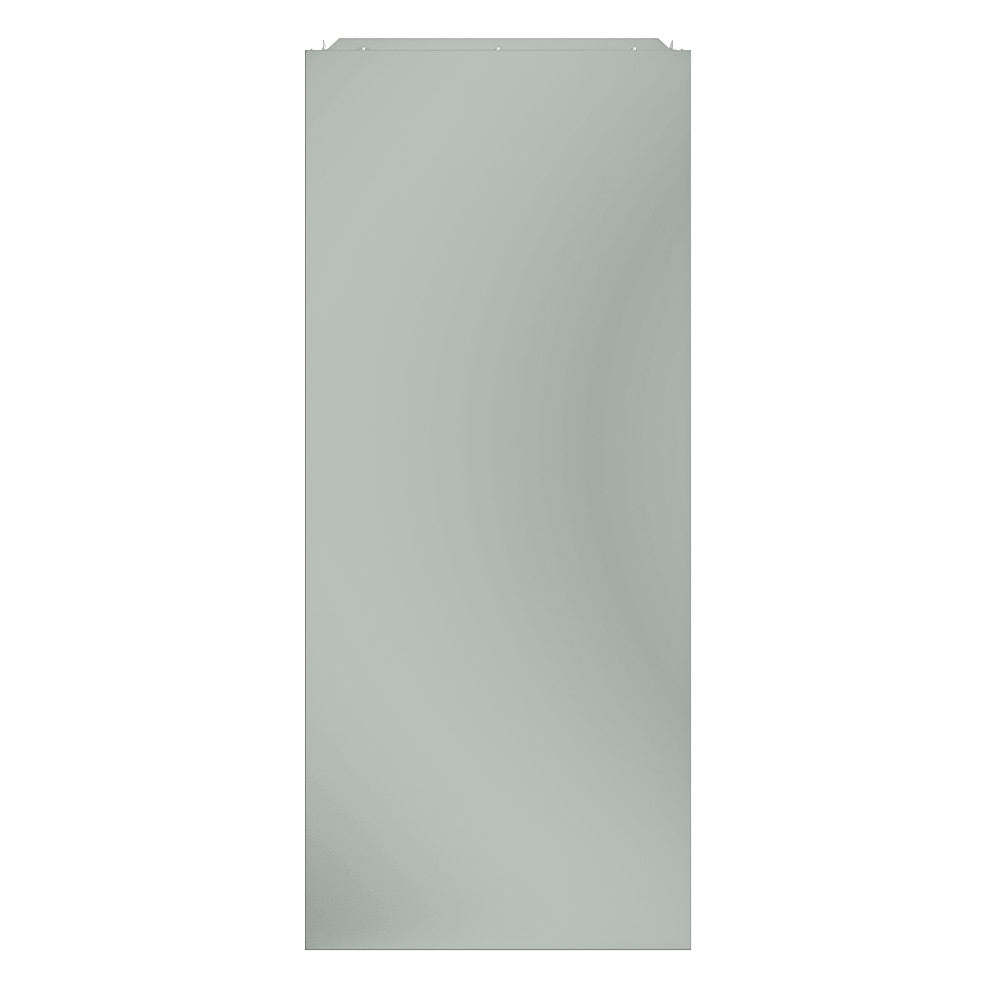

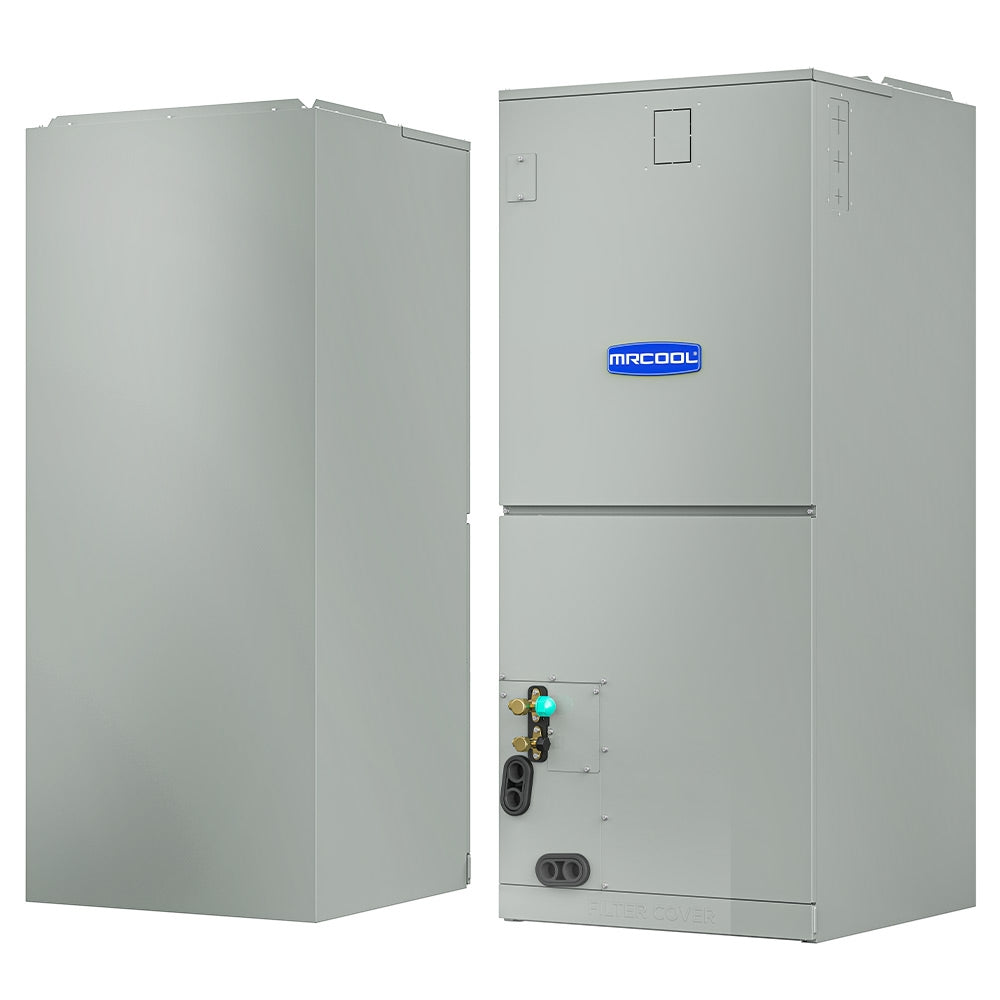

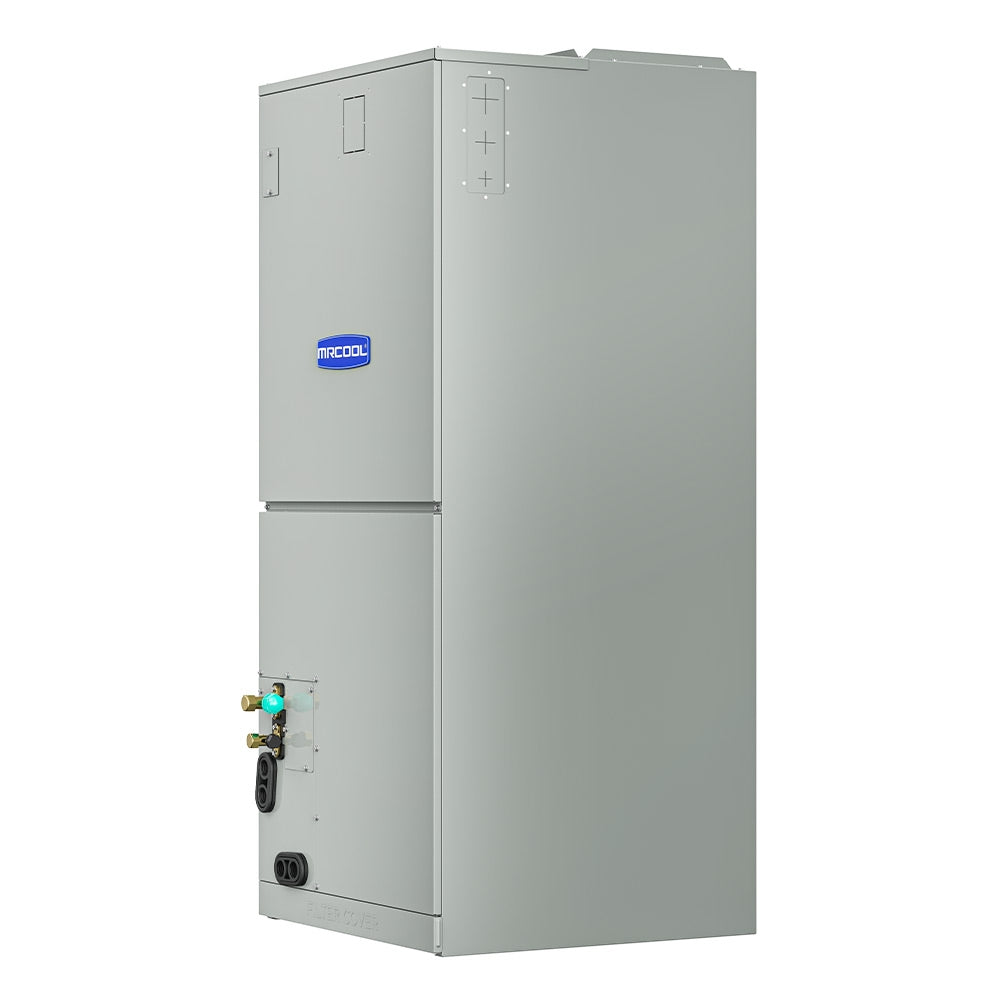

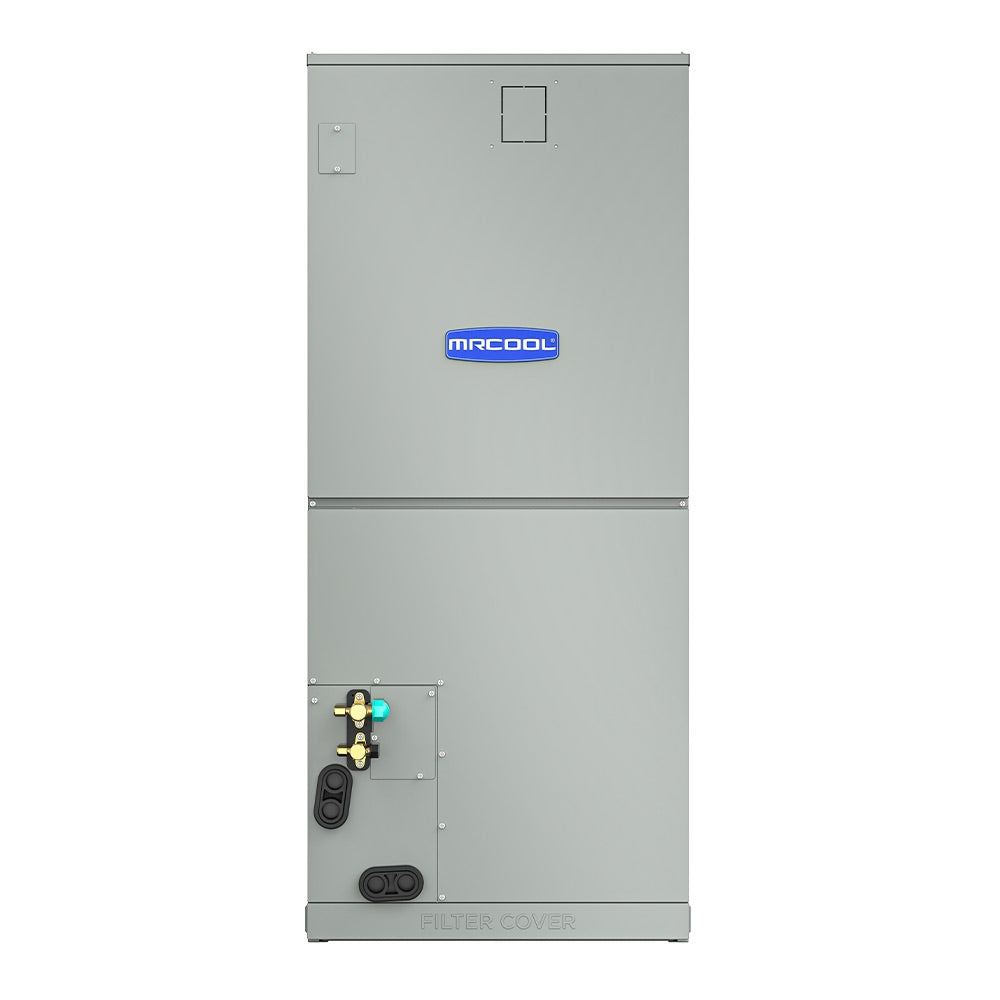

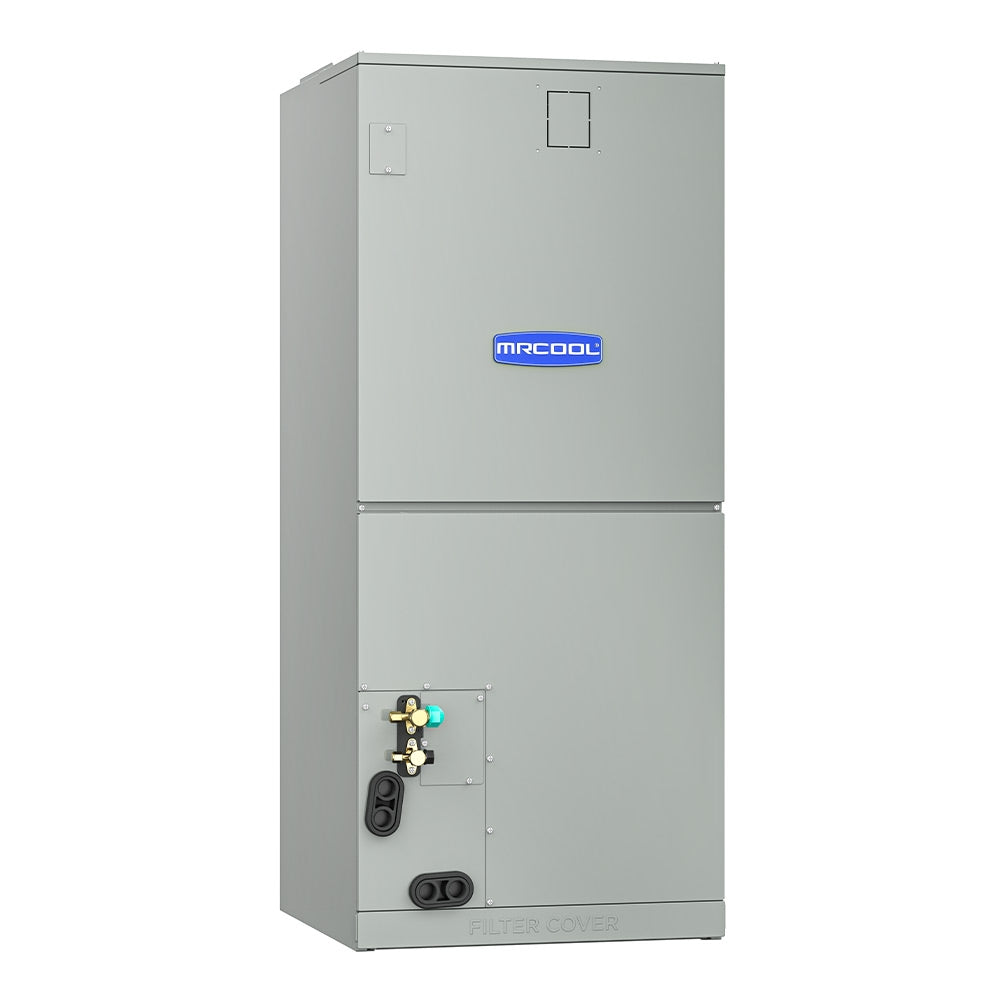

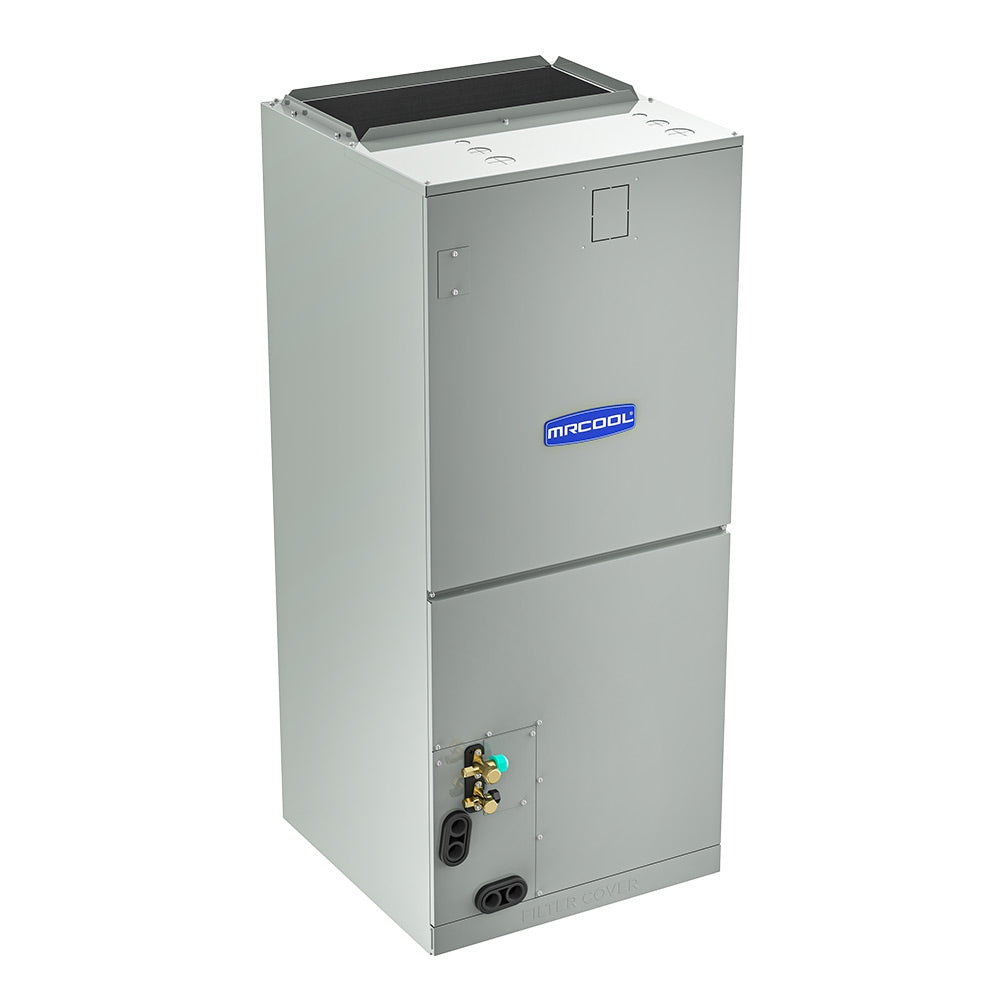

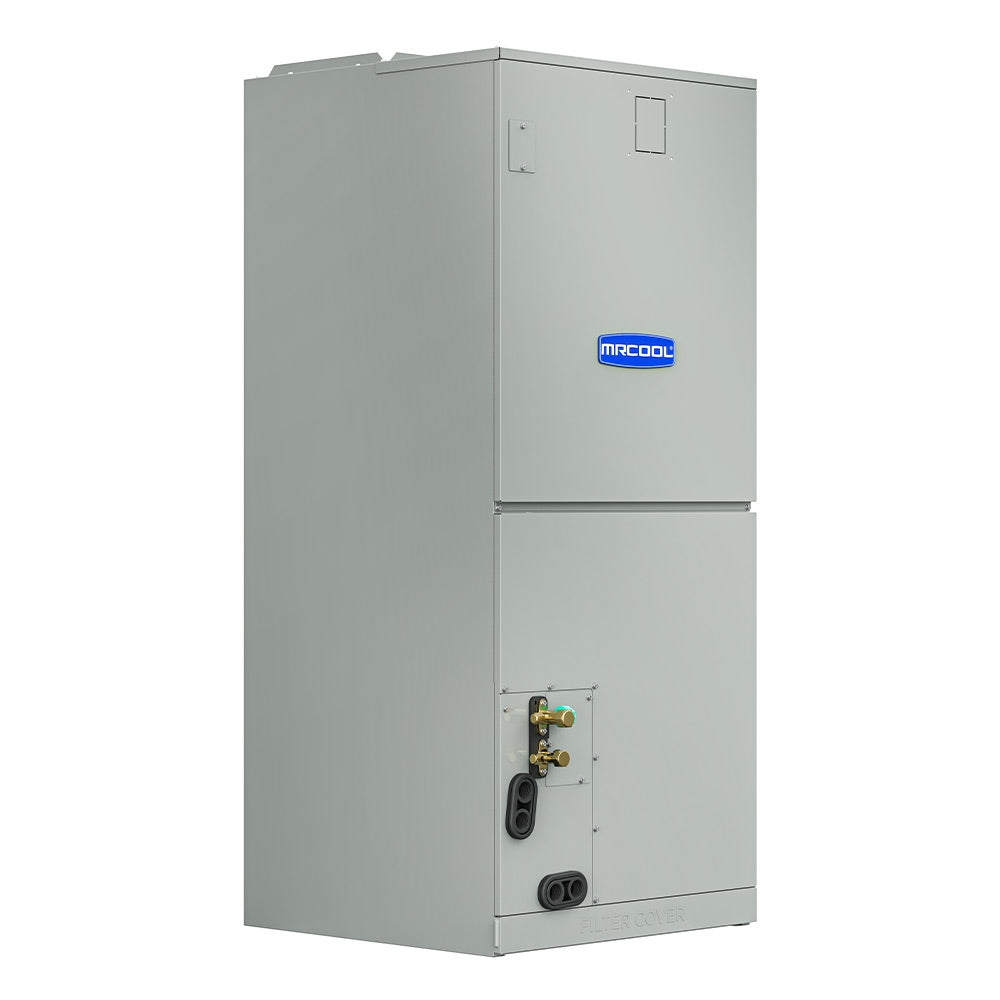

| VersaPro Central Air Handler (Model MVP-60-HP-MUAH-230A00-O) | |
|---|---|
| Model | MVP-60-HP-MUAH-230A00-O |
| UPC | 840255577588 |
| Product Height (in) | 52.99 |
| Configuration | Floor Mounted |
| Product Length (in) | 24.49 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 21.02 |
| Blower Motor | High Efficiency |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 190.48 |
| Primary Heating Capacity | 50,001 - 55,000 BTU |
| Refrigerant | R-454b |
| Series | VersaPro |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
Resources:
- Hyper Heat R454B Customer Brochure
- Hyper Heat R454B Specifications Sheet
- Hyper Heat R454B Warranty Sheet
- MVP R454B Customer Brochure
- MVP R454B Warranty
- MVP/Hyper Heat R454B Installation Manual
- VersaPro & Hyper Heat R454B Owner's Manual
What’s Included:
- MRCOOL CENTRAL-60-HP-C-230B00-O
- MRCOOL MVP-60-HP-MUAH-230A00-O
- Owner Manual
- Lifetime Tech Support
Warranty:
- Limited Lifetime Compressor*
- 7 years unit replacement (compressor)**
- 5 years parts
