The MRCOOL® DIY® 12K 4th Generation 12,000 BTU Ductless Mini Split Air Conditioner and Heat Pump provides efficient year-round comfort for spaces up to 500 square feet. With up to 22.5 SEER2 efficiency, 115V operation, and variable-speed DC inverter technology, this system is designed to deliver reliable heating and cooling while helping reduce operating costs.

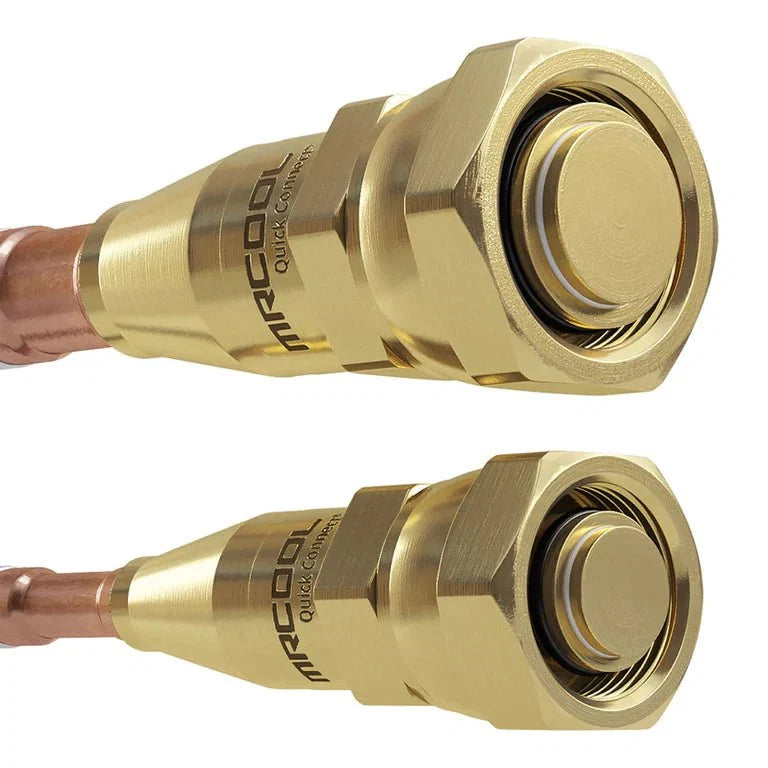

Designed specifically for simplified installation, the DIY® 12K system includes a pre-charged 25-foot Quick Connect® line set with communication wire, allowing qualifying installations to be completed without specialized HVAC tools or equipment. Its single-zone configuration makes it well suited for garages, workshops, bedrooms, sunrooms, RVs, and other spaces without existing ductwork.

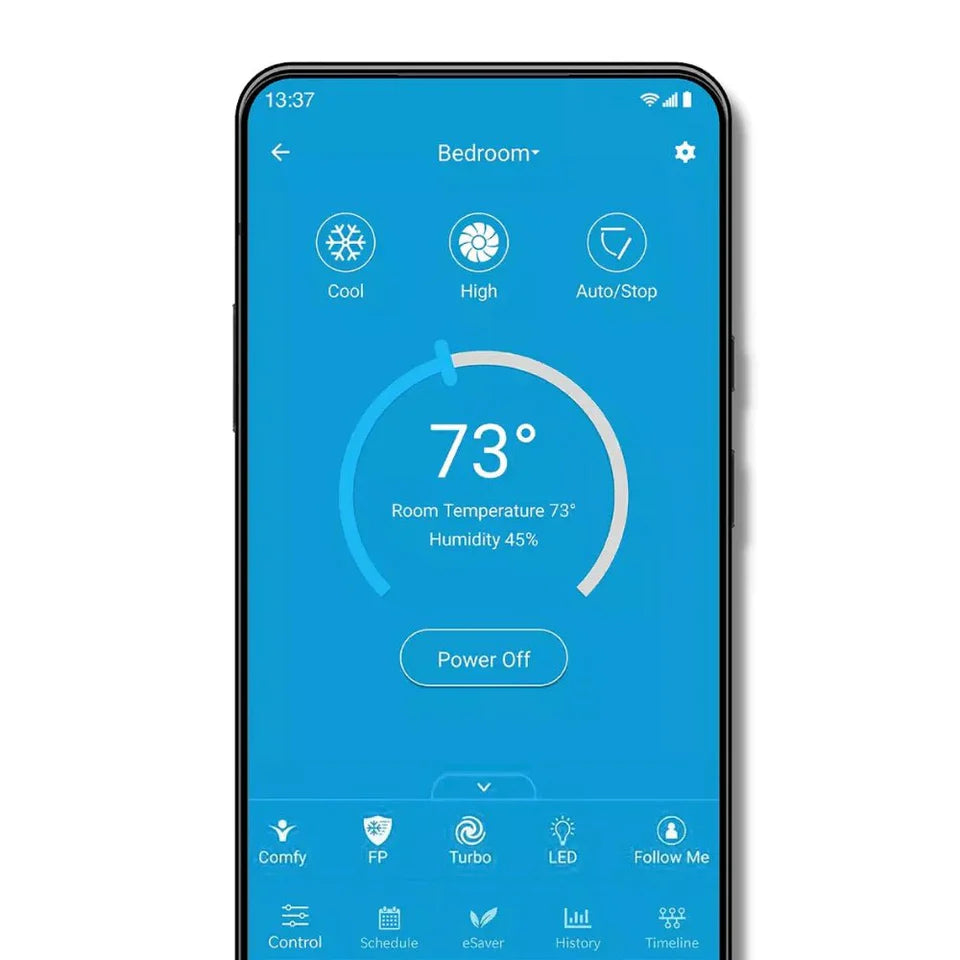

The system includes SmartHVAC Wi-Fi control for convenient operation through compatible Apple and Android devices, Amazon Alexa, and Google Assistant. Additional features include refrigerant leakage detection, a corrosion-resistant Gold Fin® condenser, quiet operation, multiple fan modes, ENERGY STAR and AHRI certification, and a standard 7-year compressor and 5-year parts warranty.

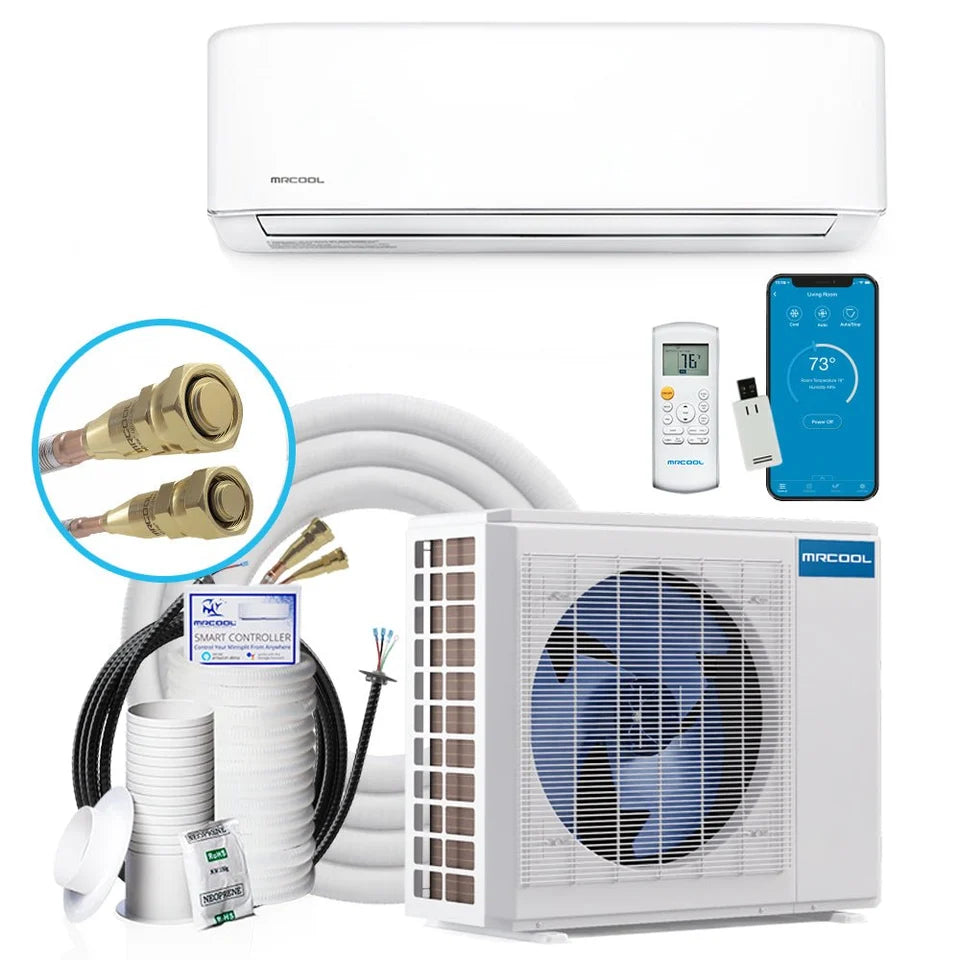

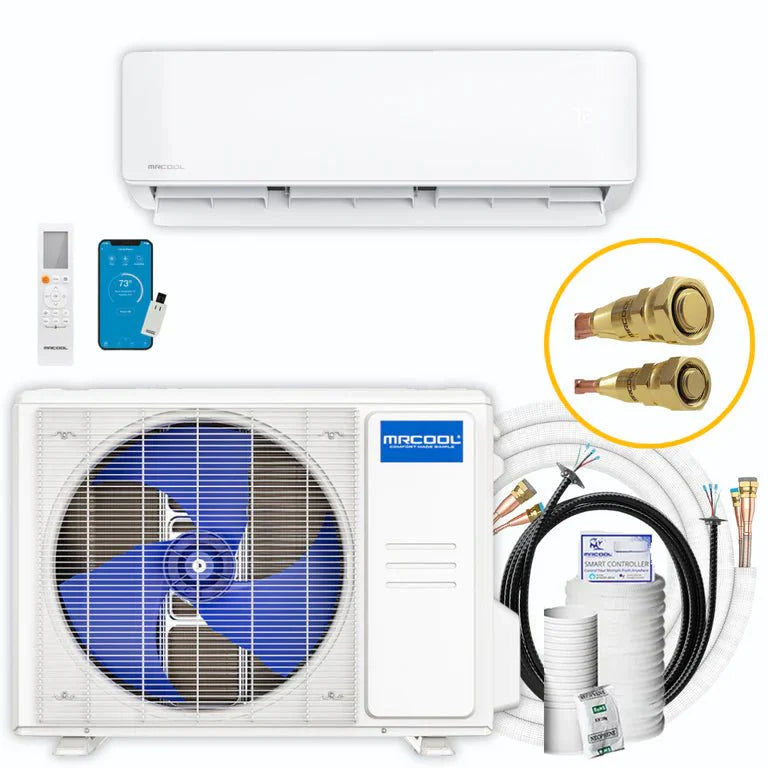

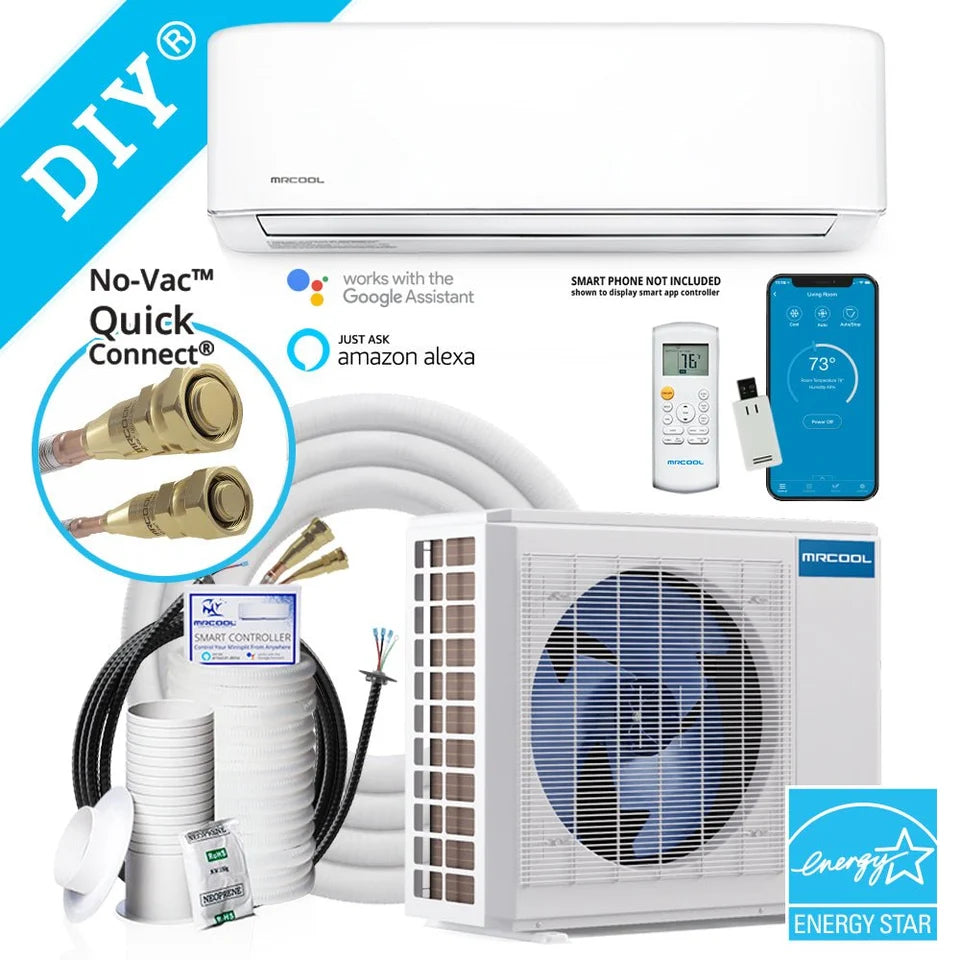

What's Included
-
-

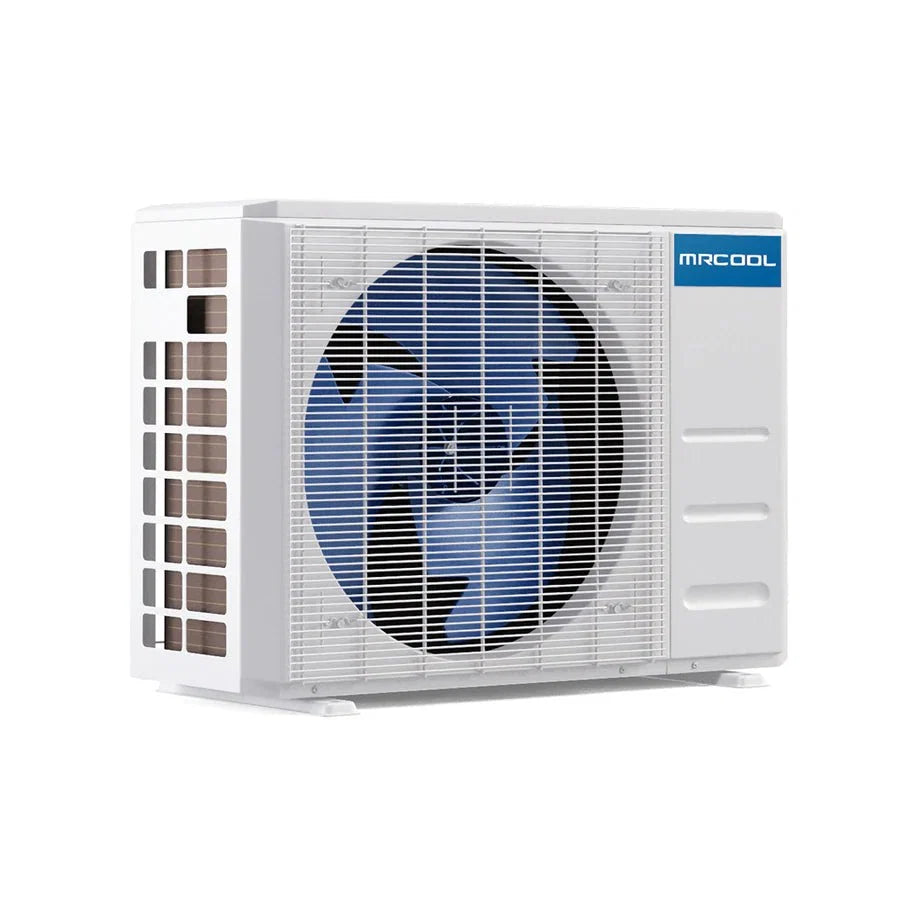

MRCOOL DIY 12,000 BTU 4th Gen Outdoor Condenser, DIY-12-HP-O — Quantity: 1 -

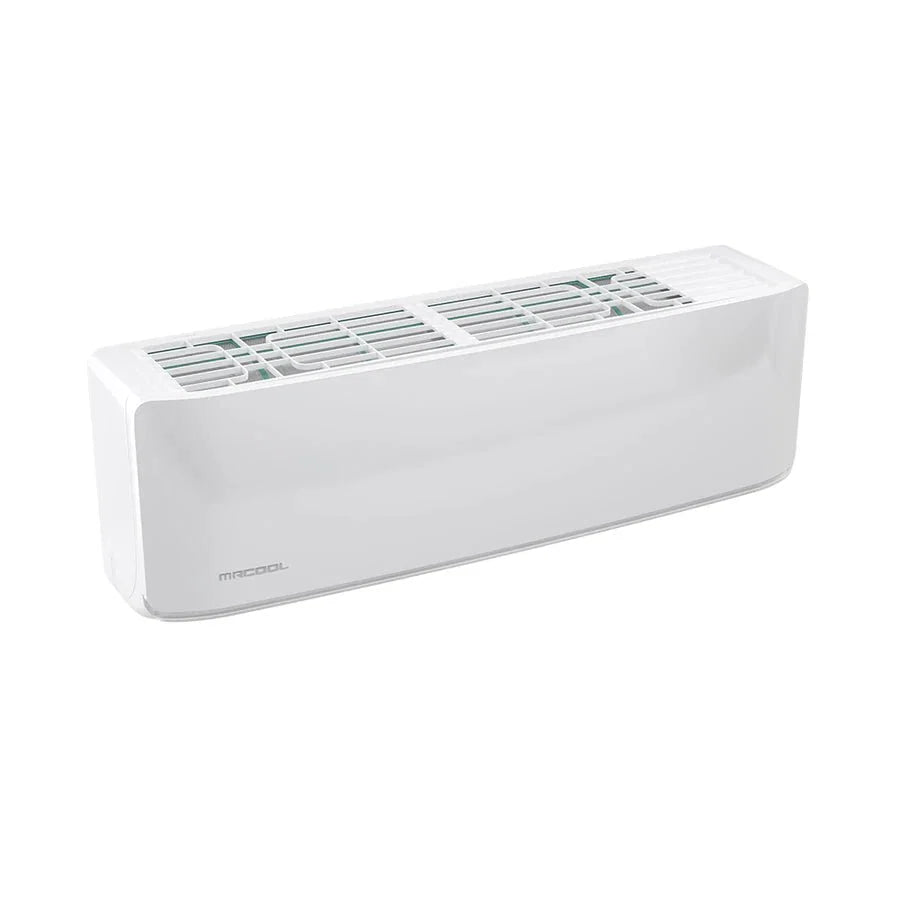

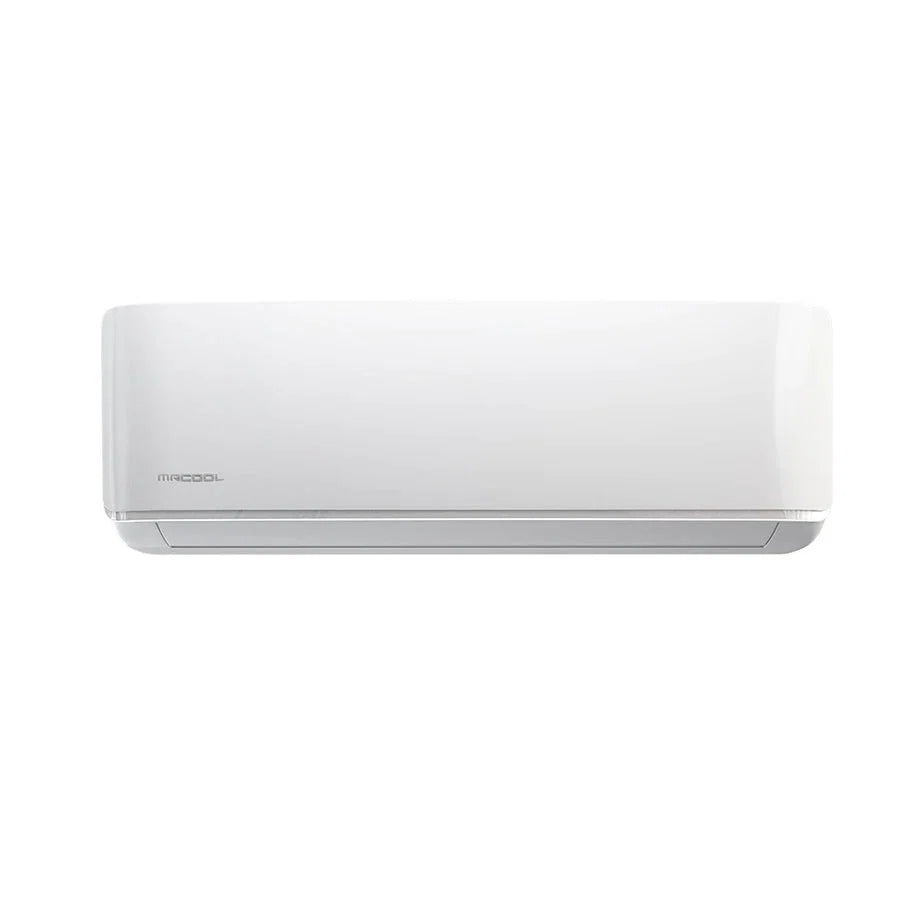

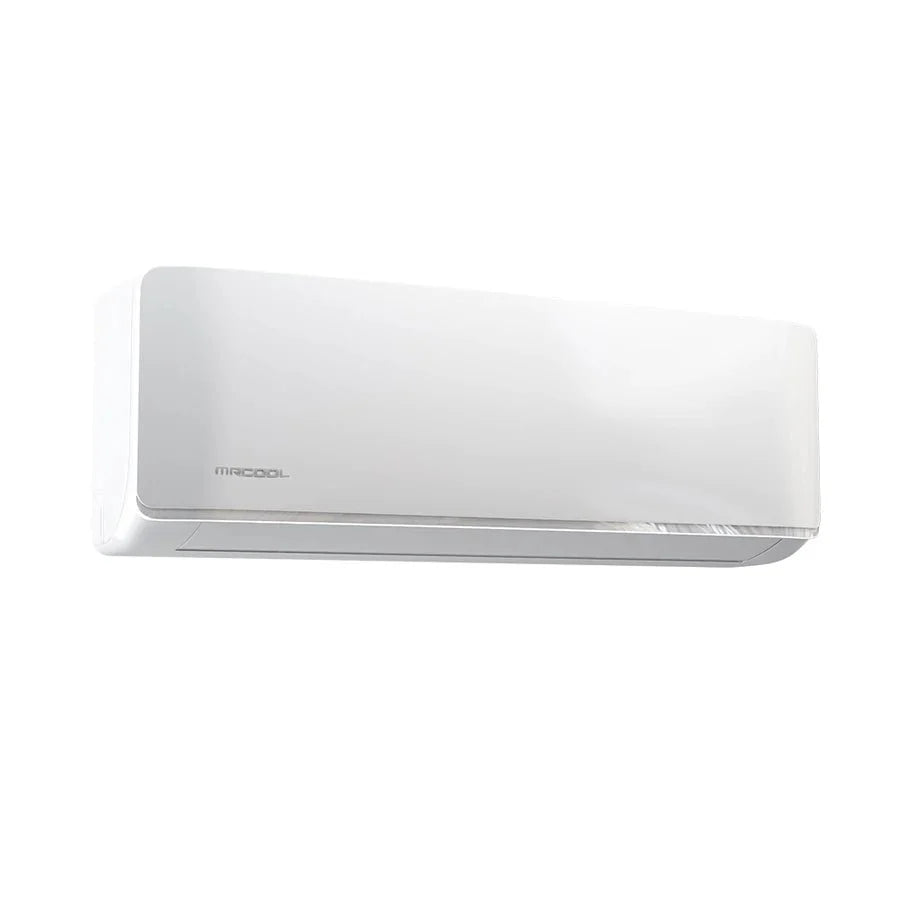

MRCOOL DIY 12,000 BTU 4th Gen Wall Mount Air Handler — Quantity: 1 -

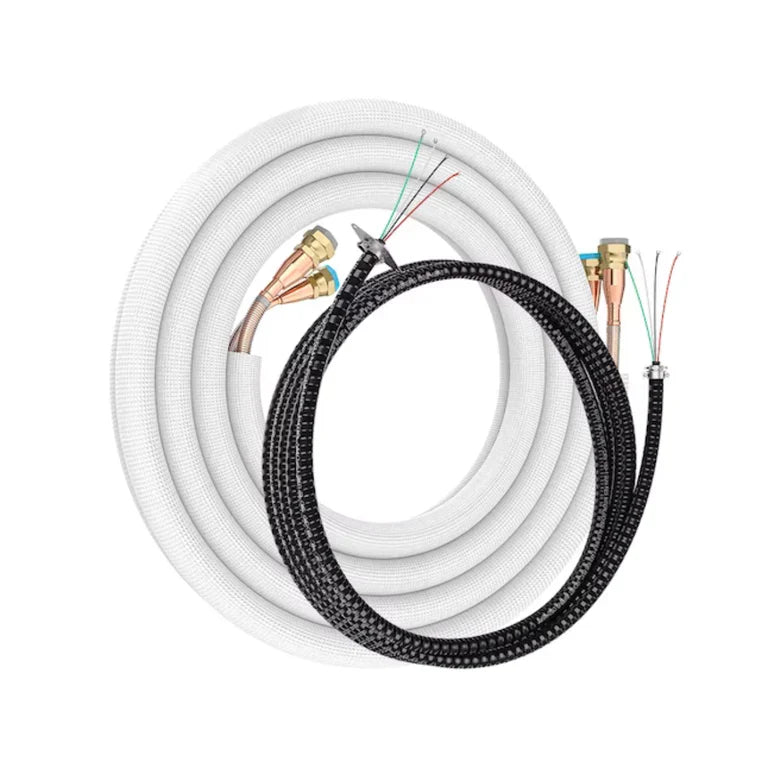

MRCOOL DIY 25 ft Pre-Charged Quick Connect Line Set with communication wire, wall sleeve, drain line extension, and UV-resistant wrap
-
Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
DIY 4th Gen E STAR |
|
MODEL |
DIY-12-HP-WM-115C25 |
|
GTIN |
810035935150 |
|
UPC |
810035935150 |
|
UNIT TYPE |
Mini-Split |
|
FEATURE LIST |
Up to 22.5 SEER2 |
|
SEER |
22 |
|
SEER2 |
22.5 |
|
EER |
12.5 |
|
EER2 |
12.5 |
|
COP 47 |
3.36 |
|
HSPF-4 |
11.5 |
|
HSPF-5 |
9 |
|
HSPF2-4 |
9 |
|
HSPF2-5 |
7 |
|
CFM |
305.88/211.76/147.06 |
|
TONNAGE |
1 |
|
COOLING CAPACITY (BTU) |
12,000 |
|
HEATING CAPACITY (BTU) |
12,000 |
|
VOLTAGE (V) |
115 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
25 |
|
MIN CIRCUIT AMPACITY (A) |
19 |
|
COLOR |
White |
|
COLOR FAMILY |
White |
|
RATED LOAD |
0.53 |
|
MAX COVERAGE AREA |
Up to 500 sq. ft. |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME (OZ) |
38.1 |
|
DECIBEL RATING (DBA) |
37/31/23.5 |
|
DECIBEL RATING LOW (DBA) |
23.5 |
|
DECIBEL RATING HIGH (DBA) |
37 |
|
AIR FLOW DIRECTION |
4-W |
|
OSCILLATION |
Yes |
|
INVERTER |
Yes |
|
MIN AMBIENT COOL (F) |
-13 ~ 122 |
|
MIN AMBIENT HEAT (F) |
-13 ~ 75 |
|
LINE SET LENGTH |
25 ft |
|
MAX LINESET LENGTH (FT) |
75 |
|
LIQUID LINE SIZE |
1/4 in |
|
SUCTION LINE SIZE |
1/2 in |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
CONDENSER FAN MOTOR RPM |
850/600 |
|
BLOWER MOTOR RPM |
1100/850/700 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
No |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
