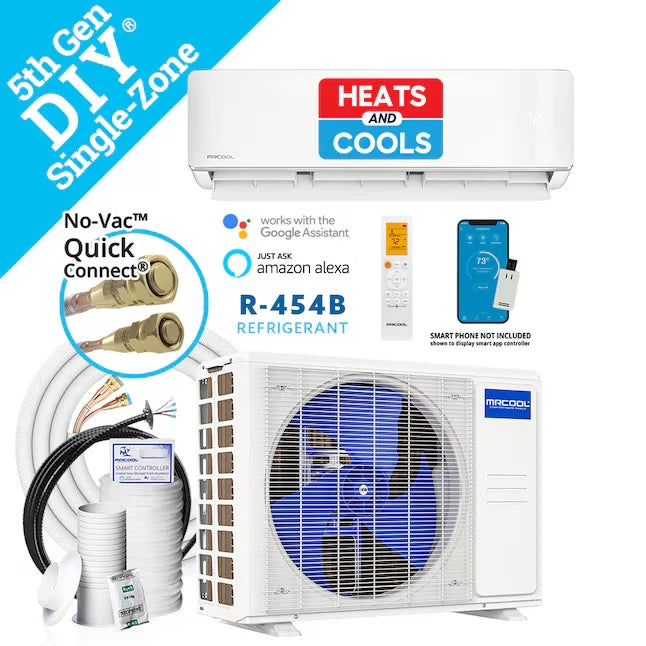

The MRCOOL® DIY® 5th Generation 18K BTU Ductless Mini Split Heat Pump System delivers efficient year-round heating and cooling for residential spaces up to approximately 750 square feet. With 18,000 BTU capacity, 22.5 SEER2 efficiency, and 208/230V operation, this single-zone system is designed to provide reliable comfort while maintaining efficient performance.

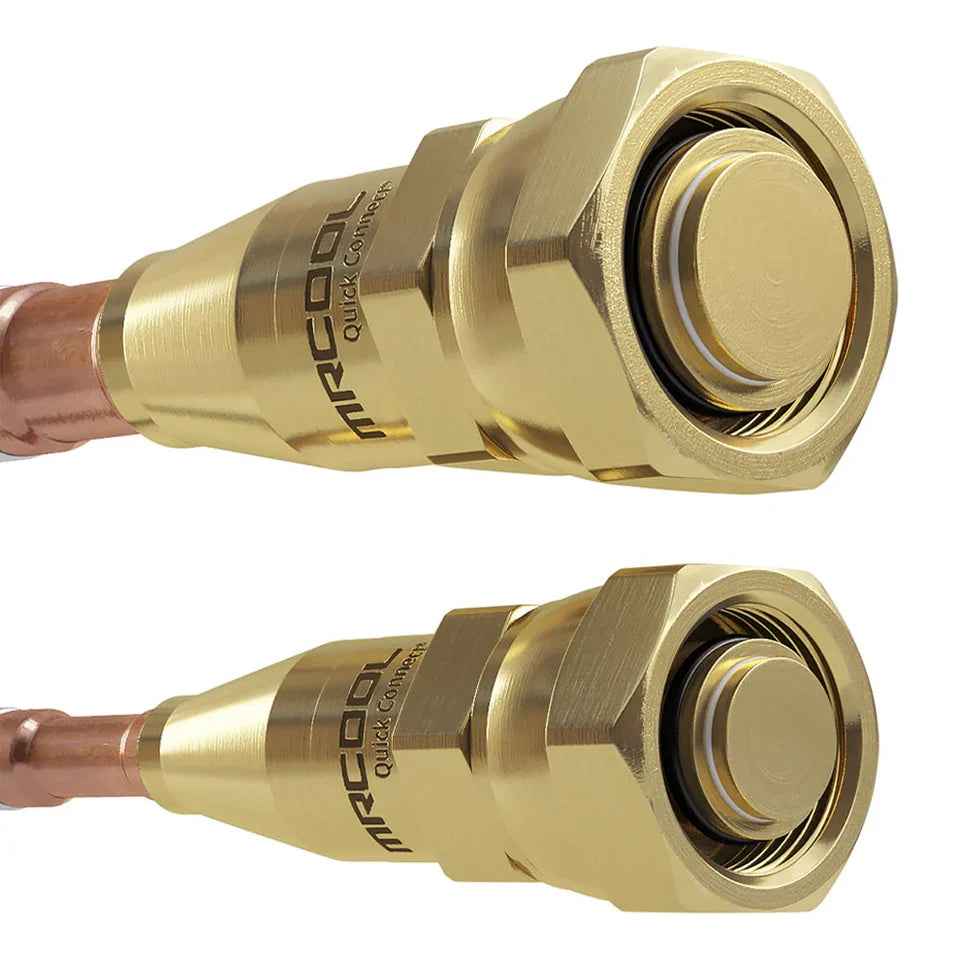

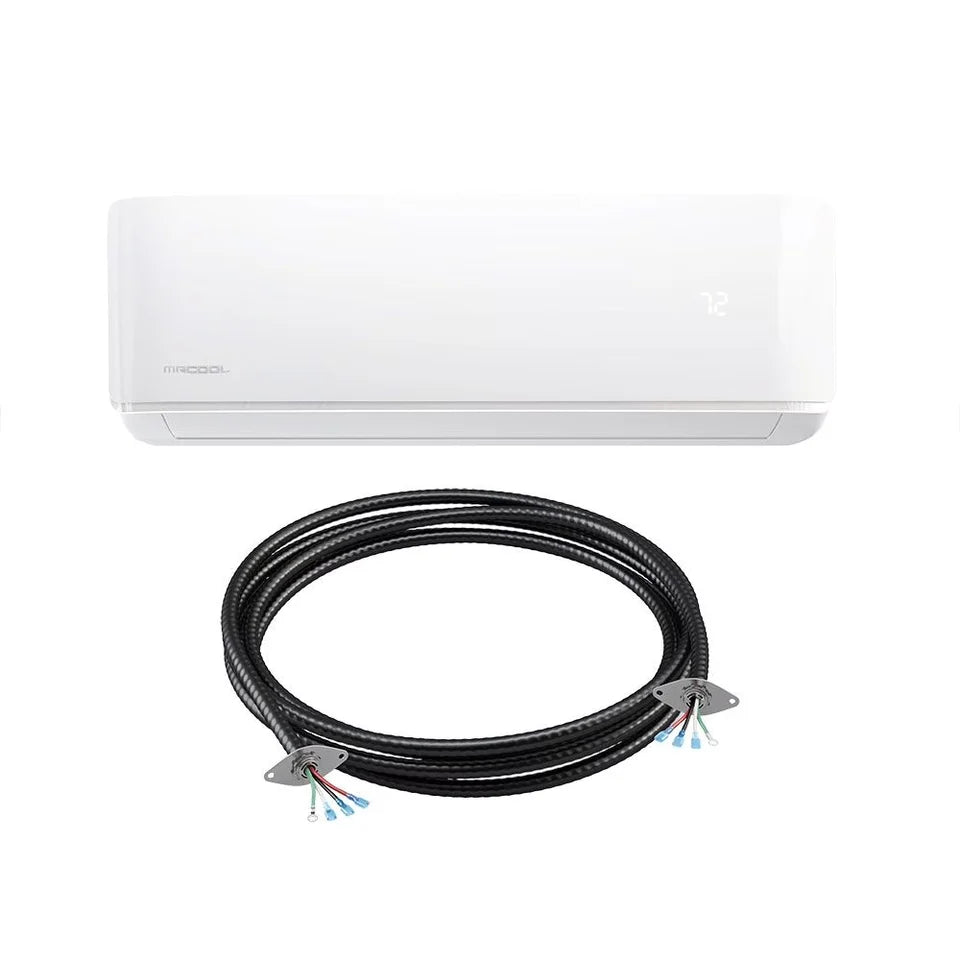

Designed for easy DIY installation, the system includes a 25-foot pre-charged QuickConnect® line set filled with R-454B refrigerant, eliminating the need for vacuuming during installation. The included DIYPRO® cable removes the need for traditional electrical conduit while providing additional protection against outdoor elements and wildlife, making installation simpler and more convenient.

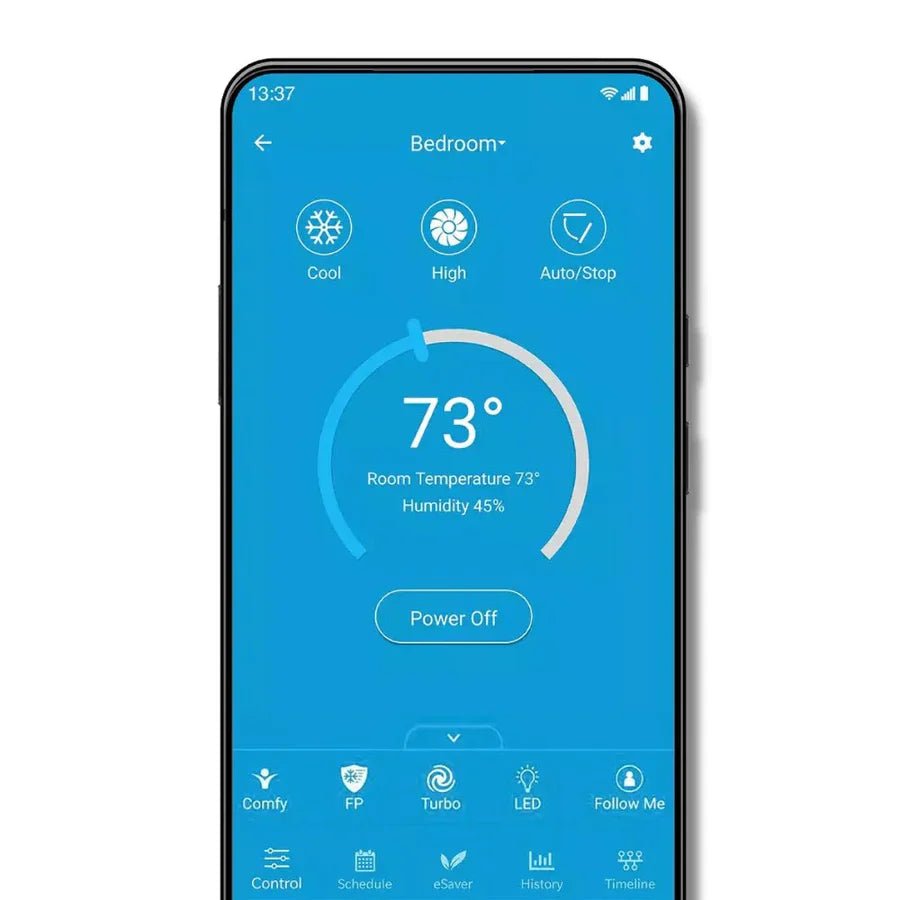

The system offers multiple control options through the included wireless remote, SmartHVAC app, Amazon Alexa, and Google Assistant. Follow Me® technology helps maintain more consistent comfort by sensing the temperature near the remote, while Dry Mode reduces excess humidity. A Gold Fin® condenser coating provides enhanced corrosion resistance, making the system suitable for demanding outdoor environments.

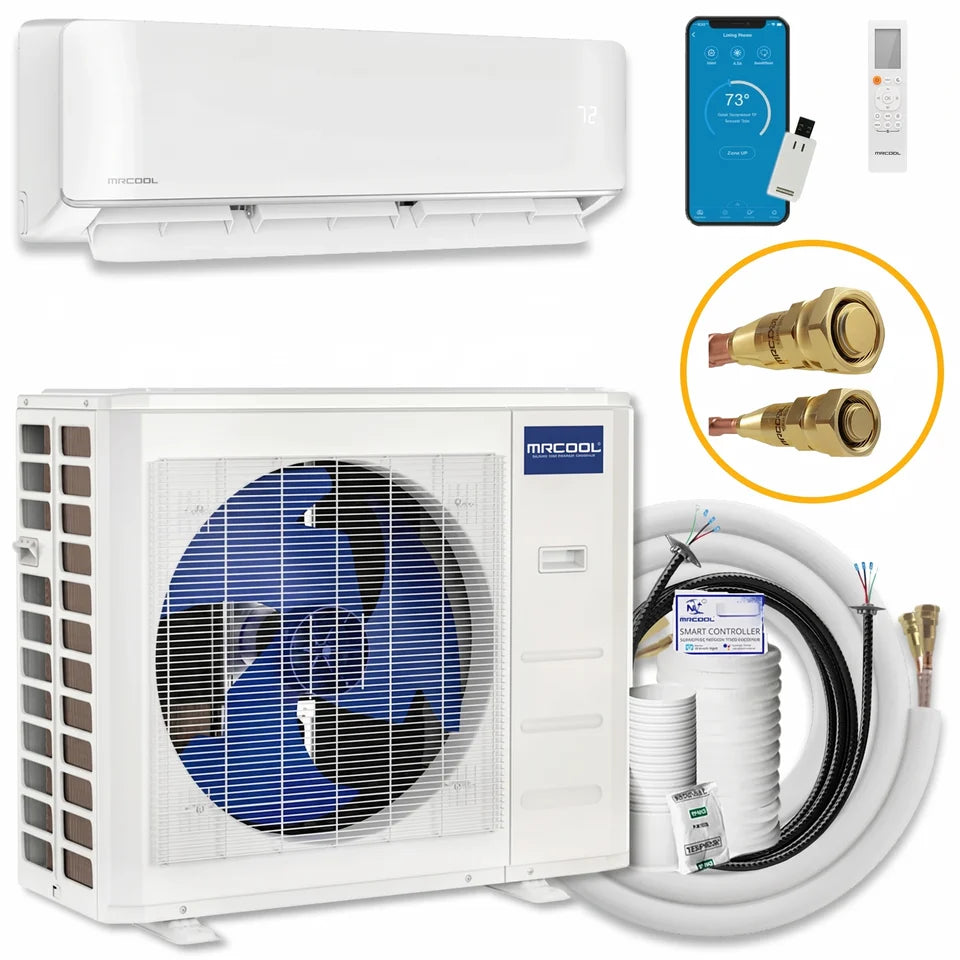

What's Included
-

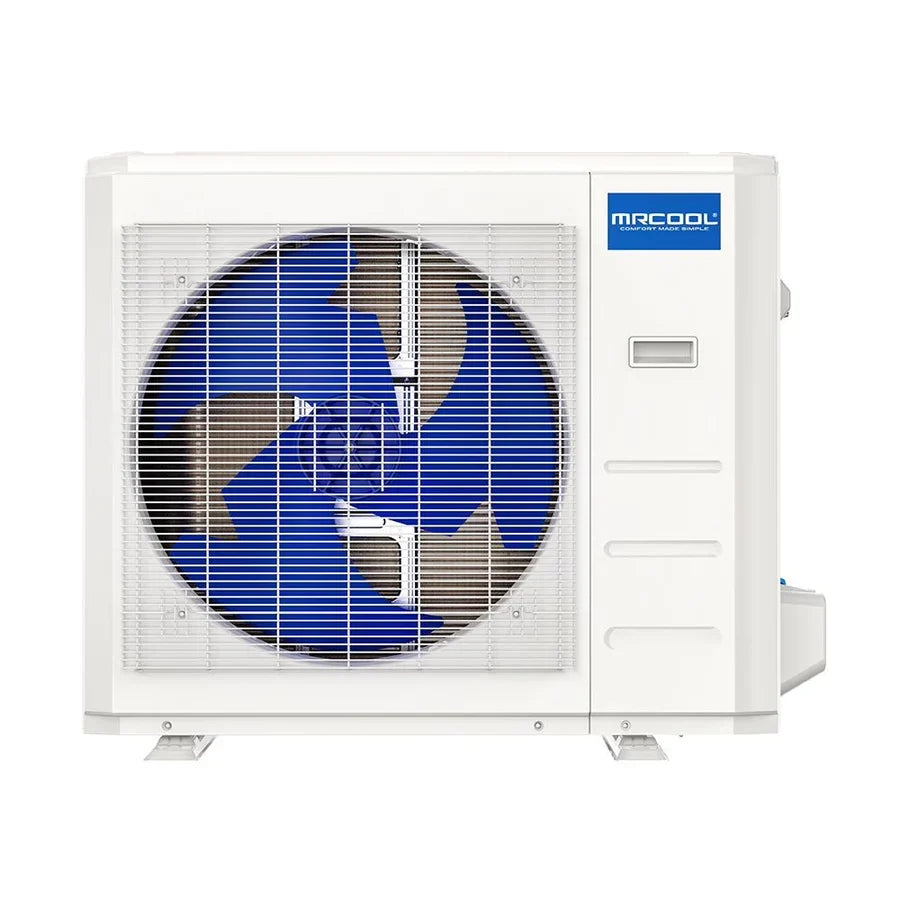

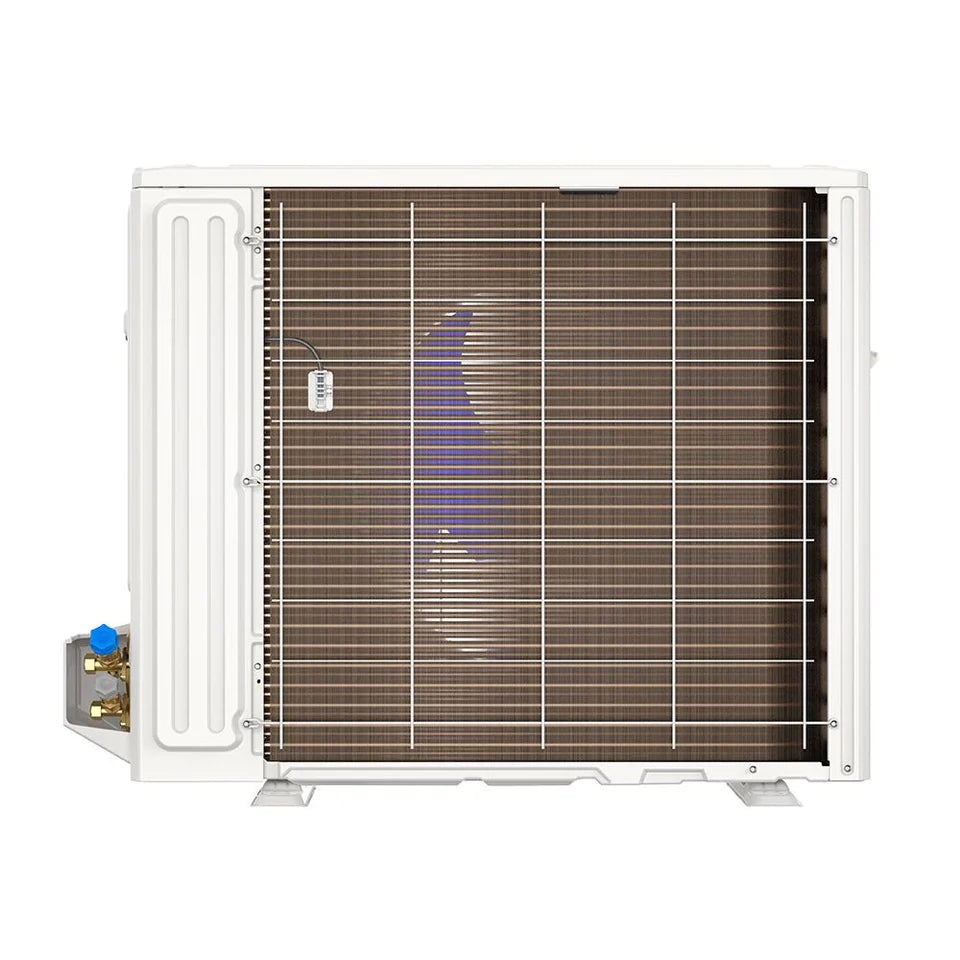

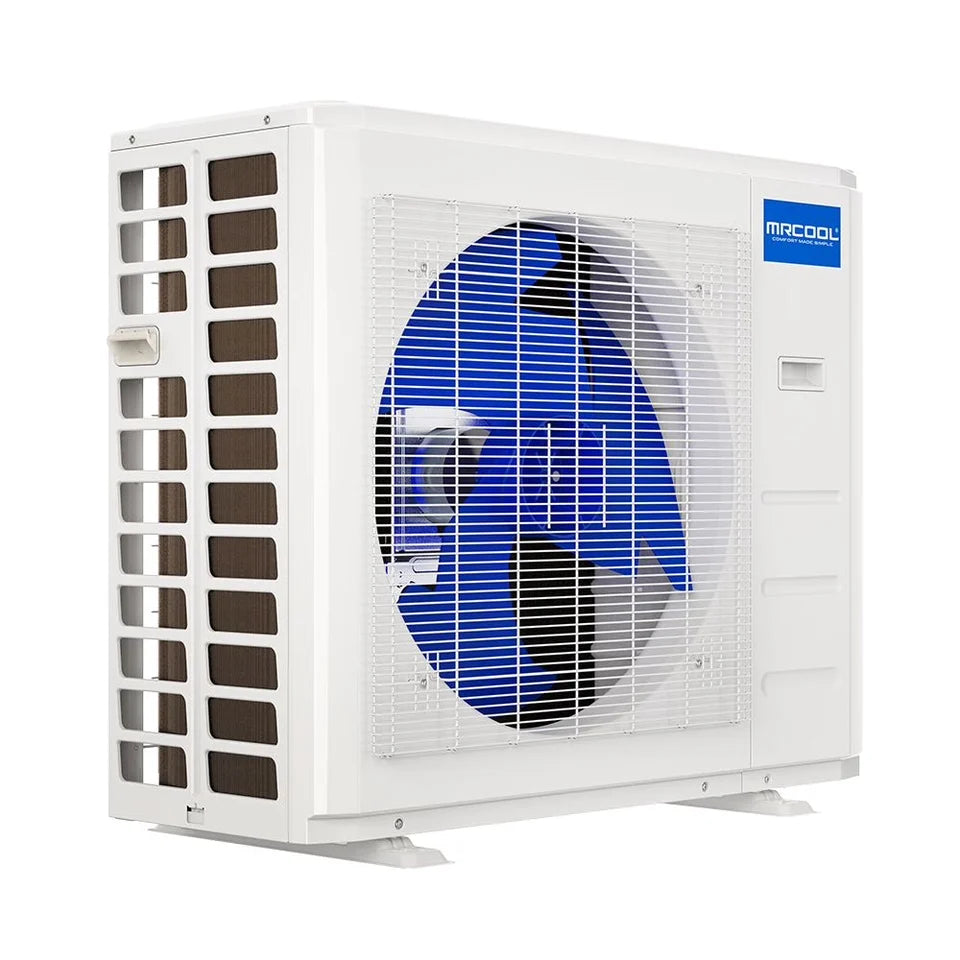

MRCOOL DIY 18K BTU 5th Gen Ductless Mini Split Condenser - 230V, DIY-18-HP-C-230D25-O -

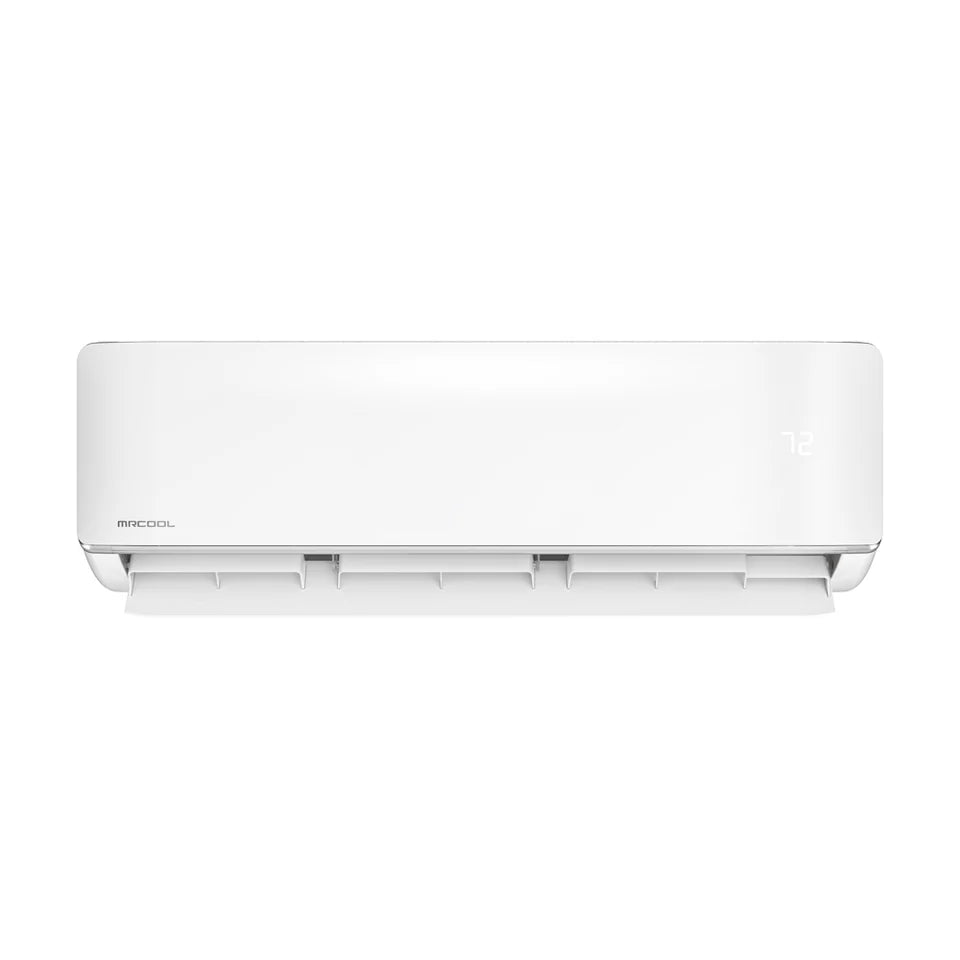

MRCOOL DIY 18K BTU 5th Generation Wall Mount Air Handler - 230V, DIY-18-HP-WMAH-230D25-O -

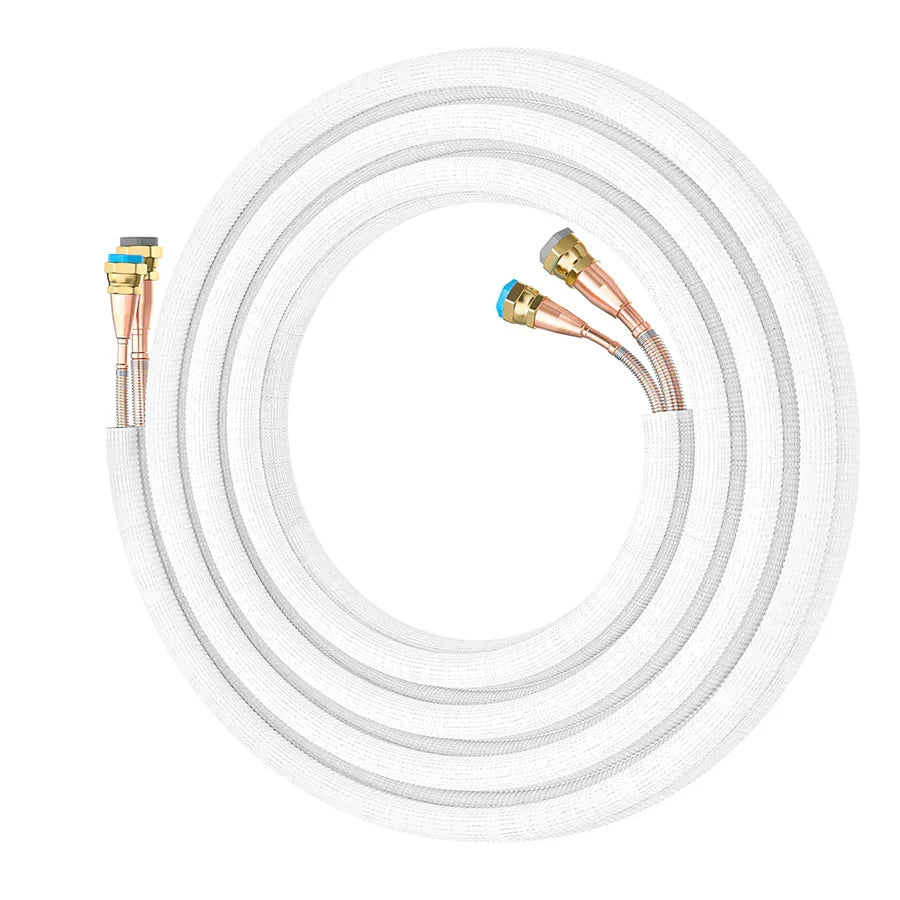

MRCOOL DIY 5th Gen Pre-Charged R-454B QuickConnect® Line Set - 25 ft
Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
DIY 5th gen Single-Zone Mini-splits |
|
CONDENSER MODEL |
DIY-18-HP-C-230D25-O |
|
AIR HANDLER MODEL |
DIY-18-HP-WMAH-230D25-O |
|
CONDENSER GTIN |
840255586962 |
|
AIR HANDLER GTIN |
840255587044 |
|
SEER2 |
22.5 |
|
EER2 |
13.7 |
|
HSPF2-4 |
11.5 |
|
HSPF2-5 |
8.5 |
|
TONNAGE |
1.5 |
|
COOLING CAPACITY (BTU) |
18,000 |
|
HEATING CAPACITY (BTU) |
18,000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
18 |
|
COLOR |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
44.8 |
|
DECIBEL RATING (DBA) |
58.5 |
|
INVERTER |
DC |
|
LINE SET LENGTH |
25 ft |
|
MAX LINESET LENGTH (FT) |
98.4 ft |
|
LIQUID LINE SIZE |
1/4 in |
|
SUCTION LINE SIZE |
1/2 in |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
No |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
MOUNT TYPE |
Wall |
|
MAX COVERAGE AREA |
800 sqft |
|
DECIBEL RATING LOW (DBA) |
19 |
|
DECIBEL RATING HIGH (DBA) |
54.5 |
|
OSCILLATION |
Yes |
|
FILTER TYPE |
Reusable |
|
REMOTE CONTROL INCLUDED |
Yes |
|
BASE PARTS WARRANTY |
5 years |
|
BASE COMPRESSOR WARRANTY |
7 years |
|
REGISTERED WARRANTY |
Extended Limited Lifetime |
|
CONDENSER NET DIMENSIONS (D X H X W) |
13.46 x 26.5 x 35.04 in |
|
CONDENSER NET WEIGHT |
93.48 lb |
|
CONDENSER GROSS DIMENSIONS (D X H X W) |
18.11 x 29.53 x 40.55 in |
|
CONDENSER GROSS WEIGHT |
114.2 lb |
|
AIR HANDLER NET DIMENSIONS (D X H X W) |
8.9 x 13.19 x 42.52 in |
|
AIR HANDLER NET WEIGHT |
35.49 lb |
|
AIR HANDLER GROSS DIMENSIONS (D X H X W) |
17.68 x 14.29 x 46.73 in |
|
AIR HANDLER GROSS WEIGHT |
49.6 lb |
