The MRCOOL® DIY® 5th Generation Multi-Zone 27,000 BTU ductless mini-split system is designed to provide efficient heating and cooling across two separate zones. With two 9,000 BTU wall-mounted air handlers and a 23 SEER2 rating, this system delivers balanced comfort and energy-efficient performance for spaces requiring independent temperature control.

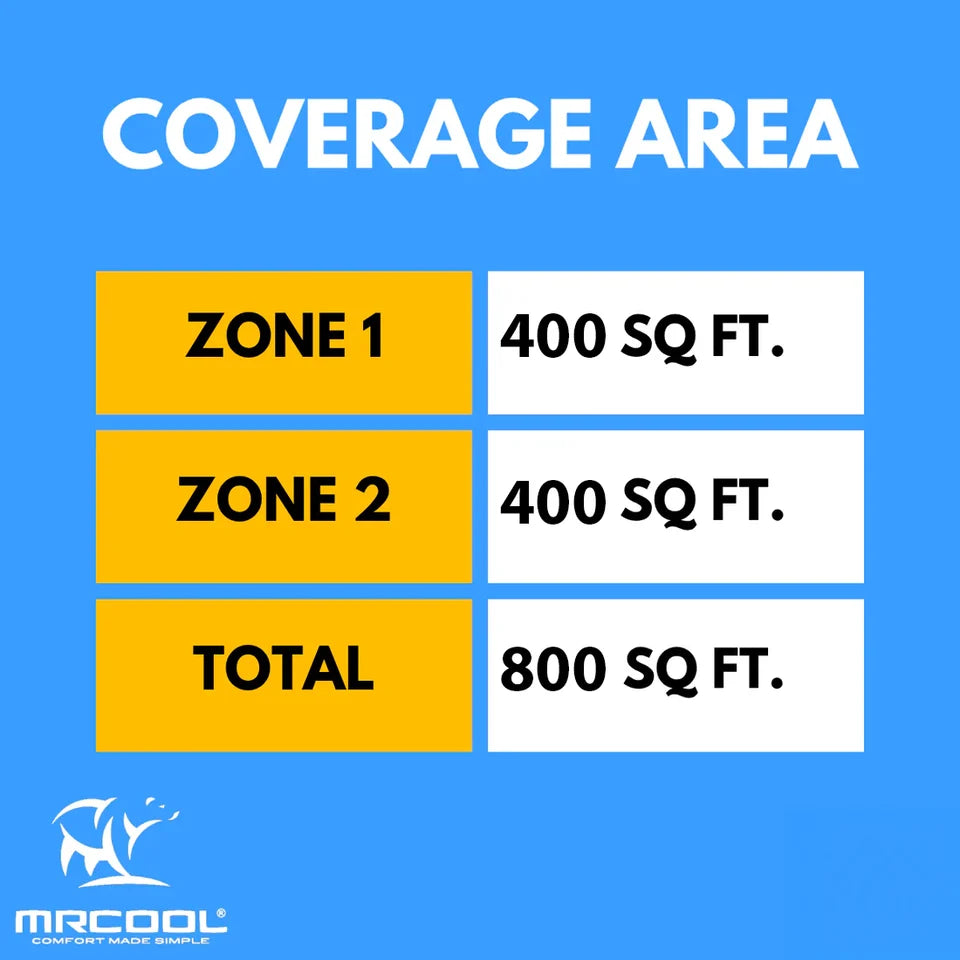

Powered by an energy-efficient DC inverter and a 27,000 BTU multi-zone condenser, the system can condition two areas of up to approximately 400 square feet each. MRCOOL® DIY® technology uses pre-charged Quick Connect® line sets and a sealed refrigerant system to simplify installation while eliminating the need for specialized HVAC tools or training.
The system includes smart control capabilities through the MRCOOL® Smart HVAC Controller® and smartphone app, with compatibility for Amazon Alexa and Google Assistant. Additional features include Follow Me®, low ambient cooling, quiet operation, Gold Fin® condenser protection, reusable filters, and R-454B refrigerant. The system includes a 5-year parts warranty and 7-year compressor warranty, with optional extended limited lifetime replacement coverage through the MRCOOL® Care Program.
What's Included
-
MRCOOL DIY 5th Gen Multi-Zone 27,000 BTU Mini Split Condenser, DIY-MULTI4-27HP230D-O -
MRCOOL DIY 5th Gen 9,000 BTU Wall Mount Air Handler, DIY-09-HP-WMAH-230D25-O
Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
DIY 5th Gen Multi-Zone Mini-Splits |
|
MODEL |
DIY-MULTI4-27HP230D-O / DIY-09-HP-WMAH-230D25-O |
|
SKU |
DIYM227HP0909 |
|
GTIN / UPC |
840255587457 / 840255587020 |
|
EQUIPMENT TYPE |
Multi-Zone Ductless Mini-Split Heat Pump |
|
CONFIGURATION |
2-Zone (9K + 9K) |
|
TONNAGE |
2.25 |
|
COOLING CAPACITY (BTU/H) |
26,000 |
|
HEATING CAPACITY (BTU/H) |
26,000 |
|
SEER2 |
23 |
|
EER2 |
12 |
|
HSPF2-4 |
9.5 |
|
HSPF2-5 |
7 |
|
VOLTAGE / PHASE / FREQUENCY |
208/230 V / 1 / 60 Hz |
|
MIN CIRCUIT AMPACITY (A) |
23 |
|
MAX FUSE / BREAKER (A) |
25 |
|
COLOR |
White |
|
ZONE CAPACITY |
4 |
|
REFRIGERANT |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
84.66 |
|
SOUND LEVEL (DBA) |
61 condenser / 20-54 air handler |
|
INVERTER |
DC |
|
LINE SET LENGTH (FT) |
16 / 25 / 35 / 50 / 75 |
|
MAX LINE SET LENGTH (FT) |
221.4 |
|
LIQUID / SUCTION LINE SIZE |
1/4 in / 3/8 in |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
AUXILIARY HEATER INCLUDED / AVAILABLE |
No / No |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI / APP COMPATIBILITY |
Yes / Yes |
|
WORKS WITH IOS / ANDROID |
Yes / Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
CERTIFICATIONS |
UL / ETL / ENERGY STAR / AHRI |
|
WARRANTY |
5-year Parts / 7-year Compressor / Extended Limited Lifetime* |
|
CONDENSER NET DIMENSIONS (D X H X W) |
16.14 x 31.89 x 37.24 in |
|
CONDENSER NET / GROSS WEIGHT |
140.21 / 151.02 lb |
|
AIR HANDLER MODEL |
DIY-09-HP-WMAH-230D25-O |
|
AIR HANDLER VOLTAGE / PHASE / FREQUENCY |
208/230 V / 1 / 60 Hz |
|
AIR HANDLER MOUNT TYPE |
Wall |
|
AIR HANDLER MAX COVERAGE AREA |
400 sqft each |
|
AIR HANDLER FILTER TYPE |
Reusable |
|
AIR HANDLER OSCILLATION |
Yes |
|
AIR HANDLER FEATURES |
Fan Only, Quiet Mode, Auto Cool, WiFi, App, iOS, Android |
|
AIR HANDLER REMOTE CONTROL |
Included |
|
AIR HANDLER CERTIFICATIONS |
UL / ETL / AHRI |
|
AIR HANDLER WARRANTY |
5-year Parts / 7-year Compressor |
|
AIR HANDLER NET DIMENSIONS (D X H X W) |
7.44 x 11.69 x 31.57 in |
|
AIR HANDLER NET / GROSS WEIGHT |
24.47 / 35.05 lb each |
