The MRCOOL® DIY® 5th Generation Multi-Zone 36,000 BTU ductless mini-split system is designed to provide efficient heating and cooling for two separate living spaces. Featuring an 18,000 BTU and 24,000 BTU wall-mounted air handler combination with up to 23 SEER2 efficiency, this system delivers flexible zone control and dependable year-round comfort.

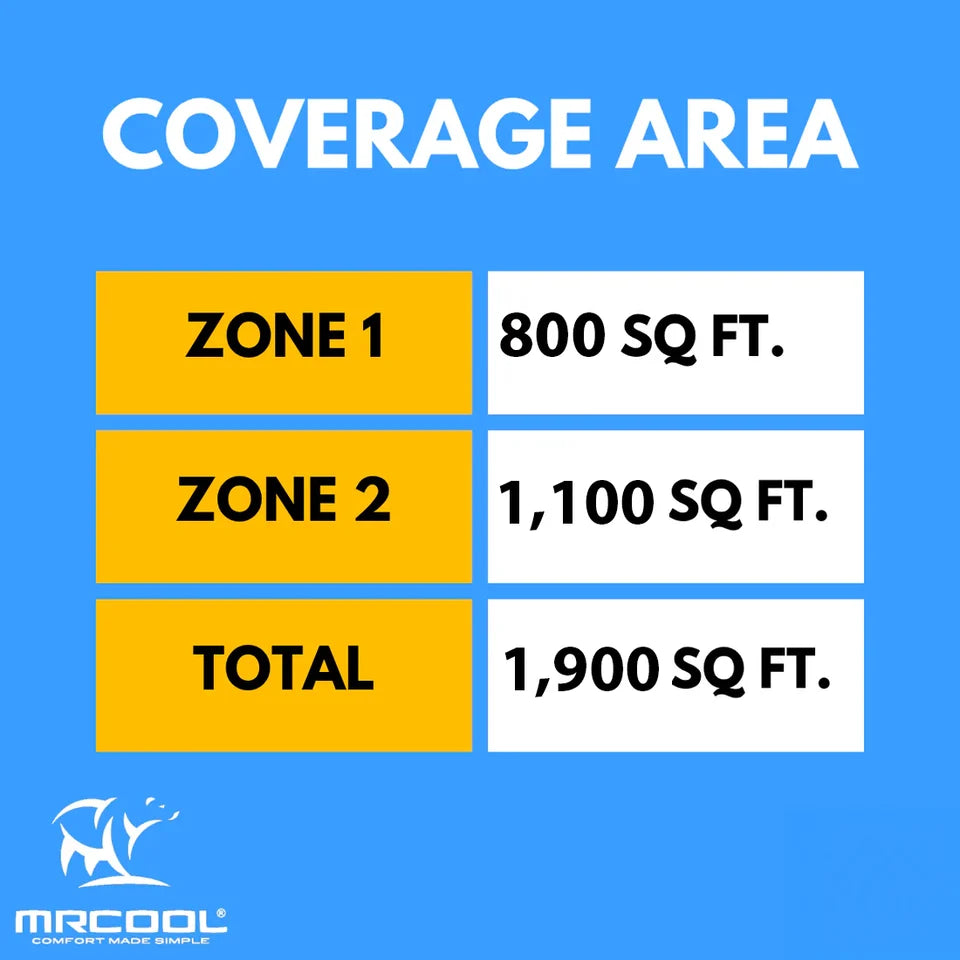

The system pairs a 36,000 BTU multi-zone condenser with two indoor air handlers capable of covering approximately 800 and 1,050 square feet respectively. MRCOOL® DIY® Quick Connect® technology uses compatible pre-charged line sets to simplify installation by eliminating the traditional evacuation and refrigerant charging process, making it a convenient solution for DIY installations.
Powered by DC inverter technology and using R-454B refrigerant, the system features a 100% sealed design, Gold Fin® condenser protection, Follow Me®, Low Ambient Cooling, Quiet Mode, Auto Cool, reusable filters, and smartphone app controls. Wi-Fi connectivity also supports Google Assistant and Amazon Alexa integration. The system is ENERGY STAR® and AHRI certified and includes a 5-year parts warranty and 7-year compressor warranty, with an Extended Limited Lifetime warranty available through the MRCOOL® Care Program.
What's Included
-
MRCOOL DIY 5th Gen Multi-Zone 36,000 BTU Mini Split Condenser, DIY-MULTI5-36HP230D-O -
MRCOOL DIY 5th Gen 18,000 BTU Wall Mount Air Handler, DIY-18-HP-WMAH-230D25-O -
MRCOOL DIY 5th Gen 24,000 BTU Wall Mount Air Handler, DIY-24-HP-WMAH-230D25-O
Specifications:
BRAND NAME |
MRCOOL |
SERIES |
DIY 5th Gen Multi-Zone Mini-Splits |
MODEL |
DIY-MULTI5-36HP230D-O / DIY-18-HP-WMAH-230D25-O / DIY-24-HP-WMAH-230D25-O |
CONFIGURATION |
2-Zone (18K + 24K) |
TONNAGE |
3 |
COOLING CAPACITY (BTU) |
34,000 |
HEATING CAPACITY (BTU) |
36,000 |
SEER2 |
23 |
EER2 |
12 |
HSPF2-4 |
9.9 |
HSPF2-5 |
7.5 |
VOLTAGE / PHASE / FREQUENCY |
208/230 V / 1 / 60 Hz |
MIN CIRCUIT AMPACITY (A) |
30.5 |
MAX FUSE / BREAKER (A) |
35 |
COLOR |
White |
ZONE CAPACITY |
5 |
REFRIGERANT |
R-454B |
REFRIGERANT VOLUME (OZ) |
104.75 |
OUTDOOR SOUND LEVEL (DBA) |
64 |
INVERTER |
DC |
LINE SET LENGTH |
25 ft |
MAX LINE SET LENGTH |
221.4 ft |
LIQUID LINE SIZE |
1/4 in |
SUCTION LINE SIZE |
3/8 in x 4 / 1/2 in x 1 |
COMPRESSOR MOTOR TYPE |
Rotary |
AUXILIARY HEATER |
Not Included / Not Available |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
AUTO COOL |
Yes |
WI-FI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
IOS / ANDROID COMPATIBILITY |
Yes / Yes |
SMART HOME COMPATIBILITY |
Google Assistant / Amazon Alexa |
CERTIFICATIONS |
UL / ETL / ENERGY STAR / AHRI |
BASE PARTS WARRANTY |
5 years |
BASE COMPRESSOR WARRANTY |
7 years |
REGISTERED WARRANTY |
Extended Limited Lifetime* |
CONDENSER DIMENSIONS (W X D X H) |
37.24 x 16.14 x 31.89 in |
CONDENSER NET / GROSS WEIGHT |
169.24 / 181.88 lb |
18K AIR HANDLER MODEL |
DIY-18-HP-WMAH-230D25-O |
18K AIR HANDLER TONNAGE |
1.5 |
18K AIR HANDLER VOLTAGE / PHASE / FREQUENCY |
208/230 V / 1 / 60 Hz |
18K AIR HANDLER MAX FUSE / BREAKER (A) |
15 |
18K AIR HANDLER MIN CIRCUIT AMPACITY (A) |
3 |
18K AIR HANDLER MOUNT TYPE |
Wall |
18K AIR HANDLER MAX COVERAGE AREA |
800 sq. ft. |
18K AIR HANDLER SOUND LEVEL |
19 - 54.5 dBA |
18K AIR HANDLER NUMBER OF SPEEDS |
5 |
18K AIR HANDLER LIQUID / SUCTION LINE SIZE |
1/4 in / 1/2 in |
18K AIR HANDLER FILTER TYPE |
Reusable |
18K AIR HANDLER FEATURES |
Oscillation / Fan Only / Quiet Mode / Auto Cool / Wi-Fi / App / Remote |
18K AIR HANDLER DIMENSIONS (W X D X H) |
42.52 x 8.90 x 13.19 in |
18K AIR HANDLER NET / GROSS WEIGHT |
35.49 / 49.60 lb |
24K AIR HANDLER MODEL |
DIY-24-HP-WMAH-230D25-O |
24K AIR HANDLER TONNAGE |
2 |
24K AIR HANDLER VOLTAGE / PHASE / FREQUENCY |
208/230 V / 1 / 60 Hz |
24K AIR HANDLER MAX FUSE / BREAKER (A) |
15 |
24K AIR HANDLER MIN CIRCUIT AMPACITY (A) |
3 |
24K AIR HANDLER MOUNT TYPE |
Wall |
24K AIR HANDLER MAX COVERAGE AREA |
1,050 sq. ft. |
24K AIR HANDLER SOUND LEVEL |
20 - 54 dBA |
24K AIR HANDLER NUMBER OF SPEEDS |
5 |
24K AIR HANDLER LIQUID / SUCTION LINE SIZE |
3/8 in / 5/8 in |
24K AIR HANDLER FILTER TYPE |
Reusable |
24K AIR HANDLER FEATURES |
Oscillation / Fan Only / Quiet Mode / Auto Cool / Wi-Fi / App / Remote |
24K AIR HANDLER DIMENSIONS (W X D X H) |
42.52 x 8.90 x 13.19 in |
24K AIR HANDLER NET / GROSS WEIGHT |
35.93 / 49.82 lb |
