The MRCOOL® DIY® 5th Gen Multi-Zone 48,000 BTU Ductless Mini-Split Heat Pump System delivers efficient year-round comfort across two separate living spaces. This 4-ton configuration pairs 12,000 BTU and 24,000 BTU wall-mounted air handlers with a multi-zone inverter condenser, providing flexible room-by-room temperature control and energy-efficient operation with up to 22 SEER2 efficiency.
Designed for convenient DIY installation, the system uses MRCOOL® pre-charged Quick Connect® line sets with R-454B refrigerant, eliminating the need for traditional refrigerant charging and vacuuming during qualifying installations. SmartHVAC app compatibility, Follow Me® functionality, low ambient cooling, and multiple operating modes provide convenient control and consistent comfort throughout the year.

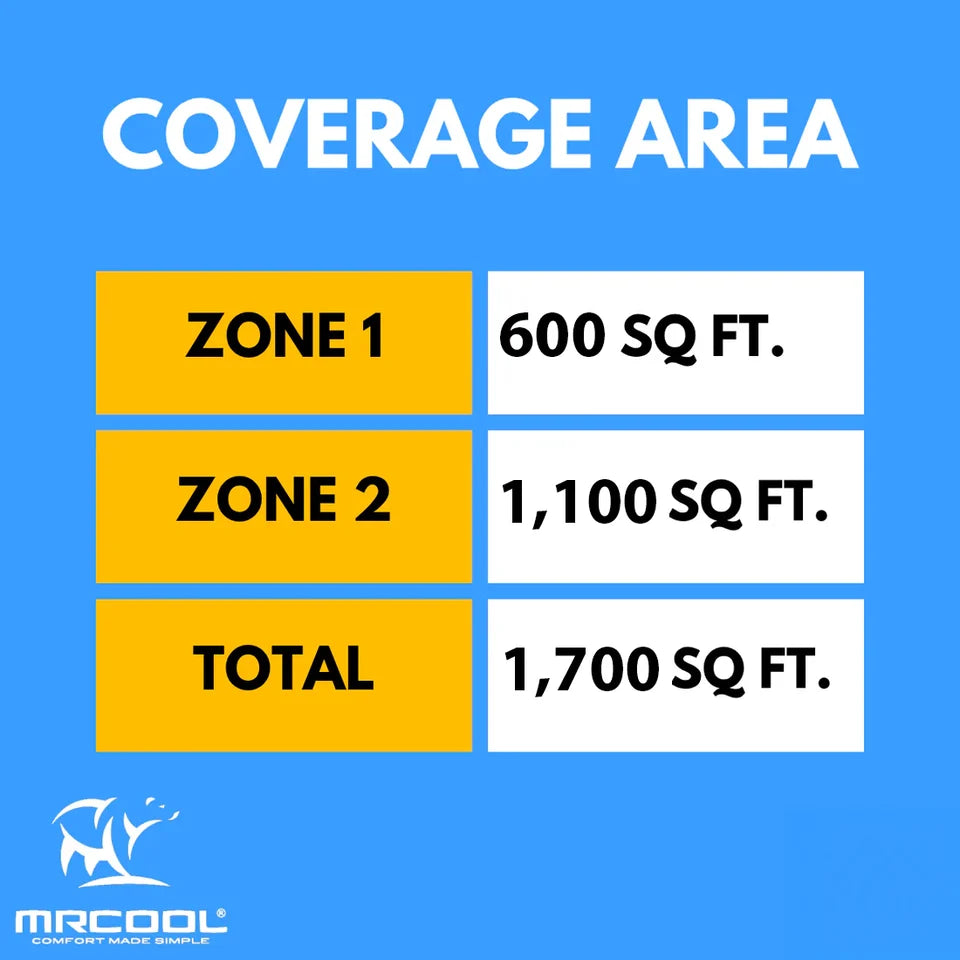

The system includes a 12,000 BTU wall-mounted air handler for spaces up to approximately 550 square feet and a 24,000 BTU air handler for spaces up to approximately 1,050 square feet. The 48,000 BTU condenser provides 43,000 BTU cooling and 48,000 BTU heating capacity, with ENERGY STAR® and AHRI certifications, a 5-year parts warranty, and a 7-year compressor warranty.
What's Included
-
MRCOOL DIY 5th Gen Multi-Zone 48,000 BTU Mini Split Condenser, DIY-MULTI6-48HP230D-O -
MRCOOL DIY 5th Gen 12,000 BTU Wall Mount Air Handler, DIY-12-HP-WMAH-230D25-O -
MRCOOL DIY 5th Gen 24,000 BTU Wall Mount Air Handler, DIY-24-HP-WMAH-230D25-O
Specifications:
BRAND NAME |
MRCOOL |
SERIES |
DIY 5th Gen Multi-Zone Mini-Splits |
MODEL |
DIY-MULTI6-48HP230D-O / DIY-12-HP-WMAH-230D25-O / DIY-24-HP-WMAH-230D25-O |
EQUIPMENT TYPE |
Multi-Zone Inverter Condenser / Wall-Mounted Air Handlers |
TOTAL SYSTEM CAPACITY |
48,000 BTU |
AIR HANDLER CONFIGURATION |
12,000 BTU + 24,000 BTU |
TONNAGE |
4 |
COOLING CAPACITY (BTU) |
43,000 |
HEATING CAPACITY (BTU) |
48,000 |
SEER2 |
21.8 |
EER2 |
12 |
HSPF2-4 |
10 |
HSPF2-5 |
7.8 |
VOLTAGE / PHASE / FREQUENCY |
208/230 V / 1 / 60 Hz |
MAX FUSE / BREAKER (A) |
45 |
MIN CIRCUIT AMPACITY (A) |
40 |
REFRIGERANT |
R-454B |
REFRIGERANT VOLUME (OZ) |
148.15 |
COMPRESSOR MOTOR TYPE |
Rotary |
INVERTER |
DC |
ZONE CAPACITY |
6 |
MAX LINE SET LENGTH (FT) |
221.4 |
LIQUID LINE SIZE |
1/4 in |
SUCTION LINE SIZE |
3/8 x 4 / 1/2 x 2 |
DECIBEL RATING (DBA) |
64 |
COLOR |
White |
AIR HANDLER MOUNT TYPE |
Wall |
AIR HANDLER COVERAGE |
550 sqft / 1,050 sqft |
AIR HANDLER VOLTAGE |
208/230 V |
AIR HANDLER FILTER |
Reusable |
REMOTE CONTROL INCLUDED |
Yes |
WIFI / APP COMPATIBILITY |
Yes |
IOS / ANDROID COMPATIBILITY |
Yes / Yes |
FAN ONLY / QUIET MODE / AUTO COOL |
Yes / Yes / Yes |
UL / ETL / AHRI CERTIFIED |
Yes / Yes / Yes |
ENERGY STAR CERTIFIED |
Yes |
BASE PARTS WARRANTY |
5 years |
BASE COMPRESSOR WARRANTY |
7 years |
NET DIMENSIONS (W X D X H) |
37.48 x 16.34 x 52.48 in / 31.57 x 7.44 x 11.63 in / 42.52 x 8.90 x 13.19 in |
NET WEIGHT |
223.77 lb / 24.47 lb / 35.93 lb |
GROSS DIMENSIONS (W X D X H) |
43.11 x 19.49 x 58.27 in / 36.02 x 16.34 x 14.37 in / 46.73 x 17.68 x 14.29 in |
GROSS WEIGHT |
256.39 lb / 35.05 lb / 49.82 lb |
