The MRCOOL® DIY® 5th Gen Multi-Zone 48,000 BTU Ductless Mini-Split System provides efficient heating and cooling for two separate spaces with an 18,000 BTU and 36,000 BTU wall-mounted air handler combination. Designed for homeowners who want flexible multi-room comfort, this system combines powerful inverter technology with an easy DIY installation design.
With a 48,000 BTU multi-zone condenser, the system can independently condition two rooms while allowing each indoor unit to provide directional airflow and individual temperature control. The pre-charged Quick Connect® line set system simplifies installation by eliminating the need for traditional evacuation and refrigerant charging procedures when the compatible line sets are used.
The system uses R-454B refrigerant, DC inverter technology, Gold Fin® condenser protection, and smart controls through the MRCOOL® Smart HVAC app. The included 18K and 36K wall-mounted air handlers provide coverage for medium to large spaces, while features such as Follow Me®, low ambient cooling, quiet operation, and automatic filter-cleaning alerts provide convenient year-round comfort.
What's Included
-
MRCOOL DIY 5th Gen Multi-Zone 48,000 BTU Mini Split Condenser, DIY-MULTI6-48HP230D-O -
MRCOOL DIY 5th Gen 18,000 BTU Wall Mount Air Handler, DIY-18-HP-WMAH-230D25-O -
MRCOOL DIY 5th Gen 36,000 BTU Wall Mount Air Handler, DIY-36-HP-WMAH-230D25-O
Specifications:
BRAND NAME |
MRCOOL |
SERIES |
DIY 5th Gen Multi-Zone Mini-Splits |
SYSTEM TYPE |
Ductless Mini-Split Air Conditioner and Heat Pump |
ZONE CONFIGURATION |
2-Zone |
SYSTEM CAPACITY |
48,000 BTU |
INDOOR UNIT CONFIGURATION |
18,000 BTU + 36,000 BTU |
CONDENSER MODEL |
DIY-MULTI6-48HP230D-O |
AIR HANDLER MODELS |
DIY-18-HP-WMAH-230D25-O / DIY-36-HP-WMAH-230D25-O |
SEER2 |
21.8 |
EER2 |
12 |
HSPF2-4 |
10 |
HSPF2-5 |
7.8 |
COOLING CAPACITY |
43,000 BTU |
HEATING CAPACITY |
48,000 BTU |
TONNAGE |
4 |
VOLTAGE / PHASE / FREQUENCY |
208/230 V / 1 / 60 Hz |
MAX FUSE / BREAKER |
45 A |
MIN CIRCUIT AMPACITY |
40 A |
REFRIGERANT |
R-454B |
REFRIGERANT CHARGE |
148.15 oz |
COMPRESSOR MOTOR TYPE |
Rotary |
INVERTER |
DC |
ZONE CAPACITY |
Up to 6 zones |
DECIBEL RATING |
64 dBA condenser / 19-55.5 dBA air handlers |
LINE SET LENGTH |
25 ft factory line set |
MAX LINE SET LENGTH |
221.4 ft |
LIQUID LINE SIZE |
1/4 in condenser / 1/4 in 18K air handler / 3/8 in 36K air handler |
SUCTION LINE SIZE |
3/8 in x4 and 1/2 in x2 condenser / 1/2 in 18K air handler / 5/8 in 36K air handler |
AIR HANDLER MOUNT TYPE |
Wall Mount |

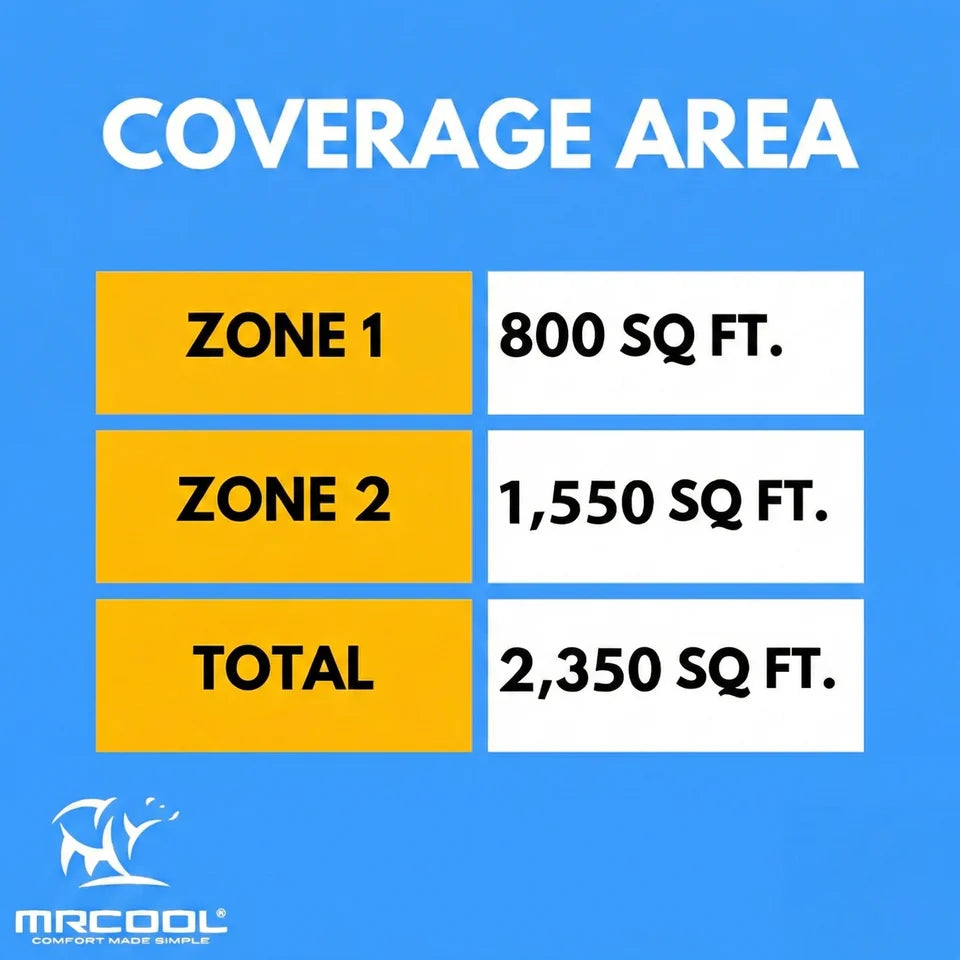

AIR HANDLER COVERAGE |
18K: up to 800 sq. ft. / 36K: up to 1,550 sq. ft. |
AIR HANDLER FAN SPEEDS |
5 |
AIR HANDLER OSCILLATION |
Yes |
FILTER TYPE |
Reusable |
REMOTE CONTROL |
Included |
WIFI / APP COMPATIBILITY |
Yes |
SMART HOME COMPATIBILITY |
Amazon Alexa and Google Assistant |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
AUTO COOL |
Yes |
LOW AMBIENT COOLING |
Yes |
UL / ETL LISTED |
Yes |
ENERGY STAR CERTIFIED |
Yes |
AHRI CERTIFIED |
Yes |
BASE PARTS WARRANTY |
5 years |
BASE COMPRESSOR WARRANTY |
7 years |
EXTENDED WARRANTY |
Limited Lifetime with MRCOOL Care Program |
CONDENSER DIMENSIONS |
37.48 W x 16.34 D x 52.48 H in |
AIR HANDLER DIMENSIONS |
18K: 42.52 W x 8.9 D x 13.19 H in / 36K: 49.57 W x 11.1 D x 14.25 H in |
CONDENSER NET WEIGHT |
223.77 lb |
AIR HANDLER NET WEIGHT |
18K: 35.49 lb / 36K: 48.72 lb |
