The MRCOOL® DIY® 5th Gen Multi-Zone 27,000 BTU Ductless Mini Split is designed to provide independent heating and cooling across three separate rooms with two 9,000 BTU wall-mounted air handlers and one 18,000 BTU air handler. This configuration combines smaller zones with a larger living area while allowing each indoor unit to operate independently from a single outdoor condenser.
Each 9,000 BTU air handler is rated for spaces up to approximately 400 square feet, while the 18,000 BTU air handler can condition up to approximately 800 square feet. This flexible combination is well suited for bedrooms, offices, living areas, additions, and other spaces that require different levels of heating and cooling capacity.
With a 23 SEER2 rating, DC inverter technology, R-454B refrigerant, smartphone app controls, Follow Me® functionality, low ambient cooling, and pre-charged Quick Connect® line set technology, this system delivers efficient multi-zone comfort with a simplified DIY installation approach.
What's Included
-
MRCOOL DIY 5th Gen Multi-Zone 27,000 BTU Mini Split Condenser, DIY-MULTI4-27HP230D-O — Quantity: 1 -
MRCOOL DIY 5th Gen 9,000 BTU Wall Mount Air Handler, DIY-09-HP-WMAH-230D25-O — Quantity: 2 -
MRCOOL DIY 5th Gen 18,000 BTU Wall Mount Air Handler, DIY-18-HP-WMAH-230D25-O — Quantity: 1
-
MRCOOL DIY 5th Gen R-454B Quick Connect Line Sets — Choose the required line set length for each air handler
Specifications:
BRAND NAME |
MRCOOL |
SERIES |
DIY 5th Gen Multi-Zone Mini-Splits |
EQUIPMENT TYPE |
Ductless Mini Split Heat Pump |
ZONE CONFIGURATION |
3-Zone |
CONDENSER CAPACITY |
27,000 BTU |
SEER2 |
23 |
EER2 |
12 |
HSPF2-4 |
9.5 |
HSPF2-5 |
7 |
COOLING CAPACITY |
26,000 BTU |
HEATING CAPACITY |
26,000 BTU |
TONNAGE |
2.25 Tons |
AIR HANDLER CONFIGURATION |
9,000 BTU + 9,000 BTU + 18,000 BTU |
AIR HANDLER COVERAGE |

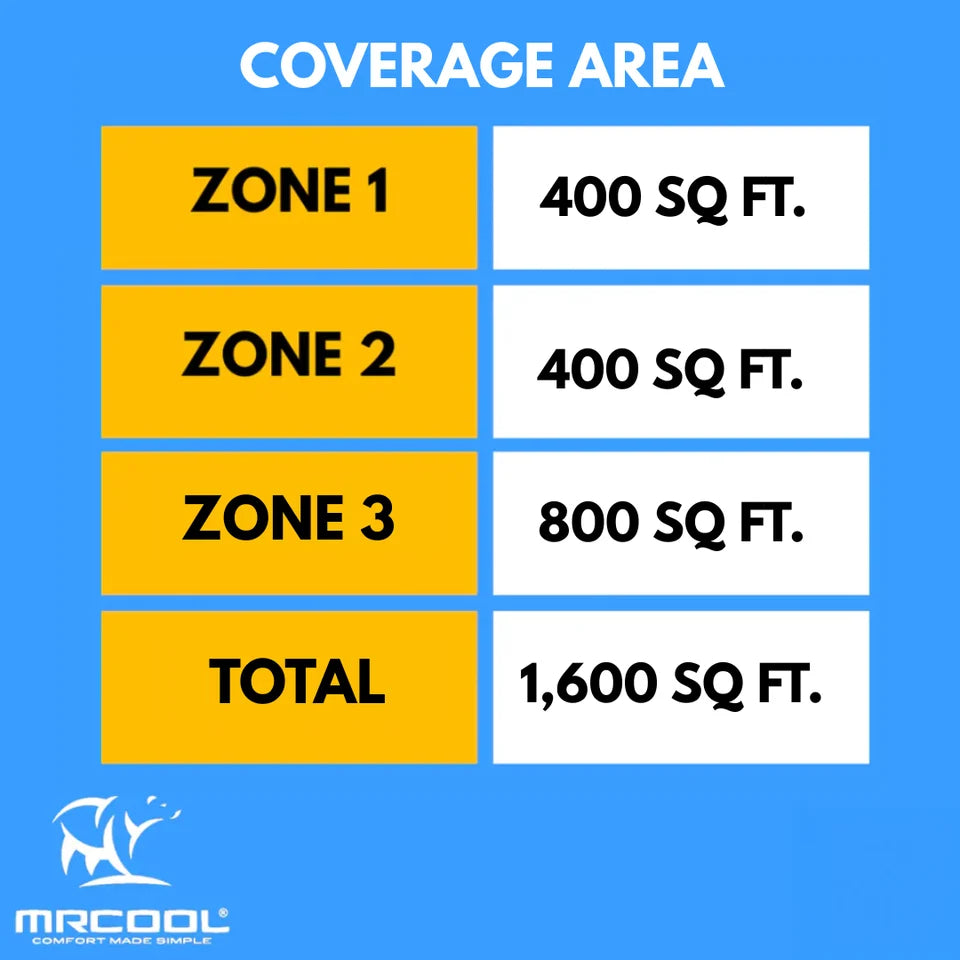

9,000 BTU: Up to 400 sq. ft. each; 18,000 BTU: Up to 800 sq. ft. |
TOTAL COVERAGE |
Up to 1,600 sq. ft. based on listed air handler coverage |
VOLTAGE |
208/230V |
PHASE |
1 |
CYCLE |
60 Hz |
REFRIGERANT |
R-454B |
INVERTER |
DC Inverter |
LINE SET |
Pre-Charged Quick Connect® |
MAX LINE SET LENGTH |
221.4 ft. |
LIQUID LINE SIZE |
1/4 in. |
SUCTION LINE SIZE |
9K: 3/8 in.; 18K: 1/2 in. |
MAX FUSE BREAKER |
25A |
MIN CIRCUIT AMPACITY |
23A |
CONDENSER NOISE |
61 dBA |
CONDENSER MODEL |
DIY-MULTI4-27HP230D-O |
AIR HANDLER MODEL |
DIY-09-HP-WMAH-230D25-O × 2; DIY-18-HP-WMAH-230D25-O × 1 |
AIR HANDLER MOUNT TYPE |
Wall Mount |
AIR HANDLER FILTER |
Reusable |
WI-FI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
IOS COMPATIBILITY |
Yes |
ANDROID COMPATIBILITY |
Yes |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
AUTO COOL |
Yes |
FOLLOW ME® FEATURE |
Yes |
LOW AMBIENT COOLING |
Yes |
CERTIFICATIONS |
UL, ETL, ENERGY STAR®, AHRI |
BASE PARTS WARRANTY |
5 Years |
BASE COMPRESSOR WARRANTY |
7 Years |
SKU |
DIYM327HPW12D124 |
GTIN |
840255587457 |
UPC |
840255587457 |
