The MRCOOL® DIY® 5th Gen Multi-Zone 36,000 BTU Ductless Mini Split is designed to provide independent heating and cooling across three separate rooms. This configuration combines one 6,000 BTU and two 18,000 BTU wall-mounted air handlers with a single 36,000 BTU outdoor condenser for flexible multi-zone comfort.
The 6,000 BTU air handler is suited for spaces up to 200 square feet, while each 18,000 BTU air handler can condition areas up to approximately 800 square feet. This makes the system a practical solution for bedrooms, offices, living areas, additions, and other spaces requiring different comfort levels from one outdoor unit.
With a 23 SEER2 rating, DC inverter technology, R-454B refrigerant, smartphone app controls, Follow Me® functionality, and MRCOOL's pre-charged Quick Connect® technology, this system delivers efficient year-round heating and cooling with a simplified DIY installation approach.
What's Included
-
MRCOOL DIY 5th Gen Multi-Zone 36,000 BTU Mini Split Condenser, DIY-MULTI5-36HP230D-O -
MRCOOL DIY 5th Gen 6,000 BTU Wall Mount Air Handler, DIY-06-HP-WMAH-230D25-O -
MRCOOL DIY 5th Gen 18,000 BTU Wall Mount Air Handler, DIY-18-HP-WMAH-230D25-O
-
MRCOOL DIY 5th Gen 18,000 BTU Wall Mount Air Handler, DIY-18-HP-WMAH-230D25-O
Specifications:
BRAND NAME |
MRCOOL |
SERIES |
DIY 5th Gen Multi-Zone Mini-Splits |
EQUIPMENT TYPE |
Ductless Mini Split Heat Pump |
ZONE CONFIGURATION |
3-Zone |
CONDENSER CAPACITY |
36,000 BTU |
SEER2 |
23 |
EER2 |
12 |
HSPF2-4 |
9.9 |
HSPF2-5 |
7.5 |
TONNAGE |
3 Ton |
COOLING CAPACITY |
34,000 BTU |
HEATING CAPACITY |
36,000 BTU |
AIR HANDLER CONFIGURATION |
6,000 BTU + 18,000 BTU + 18,000 BTU |

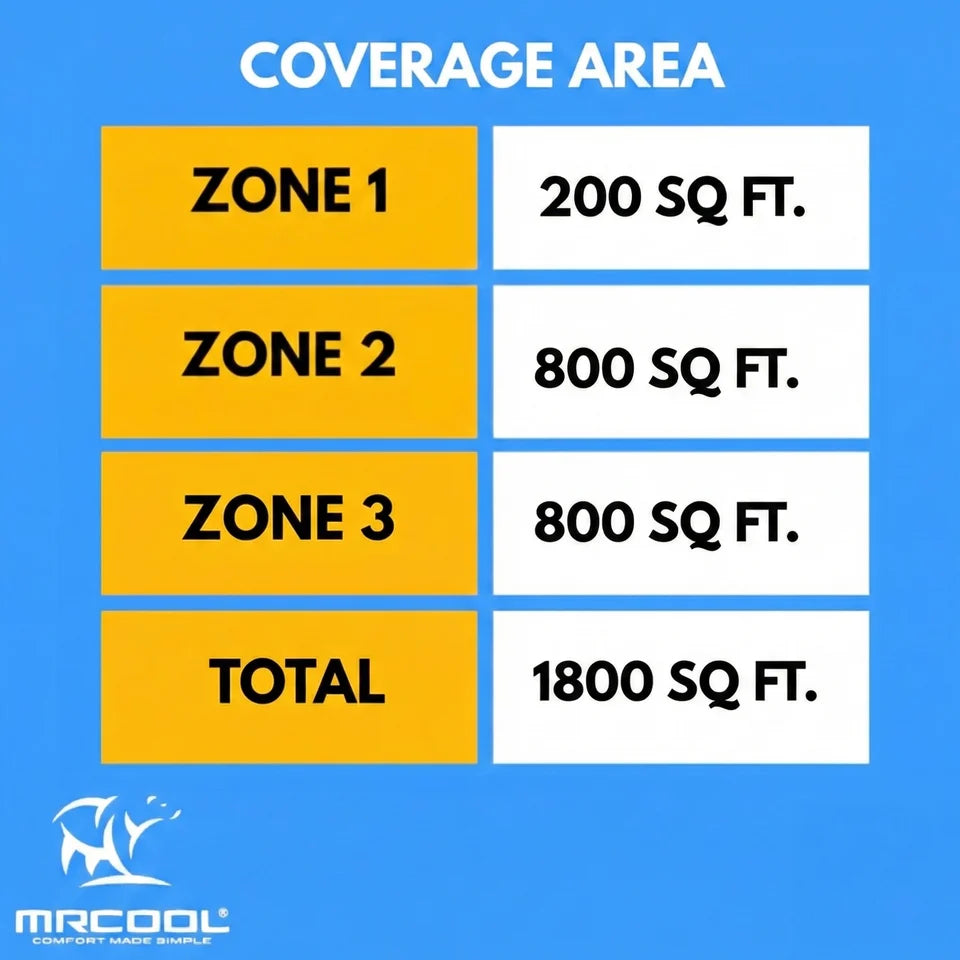

AIR HANDLER COVERAGE |
Up to 200 sq. ft. + 800 sq. ft. + 800 sq. ft. |
TOTAL COVERAGE |
Up to 1,800 sq. ft. |
VOLTAGE |
208/230V |
PHASE |
1 |
CYCLE |
60 Hz |
REFRIGERANT |
R-454B |
INVERTER |
DC Inverter |
LINE SET |
Pre-Charged Quick Connect® |
MAX LINE SET LENGTH |
221.4 ft. |
LIQUID LINE SIZE |
1/4 in. |
SUCTION LINE SIZE |
3/8 in. × 4; 1/2 in. × 1 |
MAX FUSE BREAKER |
35A |
MIN CIRCUIT AMPACITY |
30.5A |
CONDENSER NOISE |
64 dBA |
CONDENSER MODEL |
DIY-MULTI5-36HP230D-O |
AIR HANDLER MODEL |
DIY-06-HP-WMAH-230D25-O × 1; DIY-18-HP-WMAH-230D25-O × 2 |
AIR HANDLER MOUNT TYPE |
Wall Mount |
AIR HANDLER FILTER |
Reusable |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
IOS COMPATIBILITY |
Yes |
ANDROID COMPATIBILITY |
Yes |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
AUTO COOL |
Yes |
FOLLOW ME® FEATURE |
Yes |
LOW AMBIENT COOLING |
Yes |
COMPRESSOR MOTOR TYPE |
Rotary |
AUXILIARY HEATER |
No |
CERTIFICATIONS |
UL, ETL, ENERGY STAR®, AHRI |
BASE PARTS WARRANTY |
5 Years |
BASE COMPRESSOR WARRANTY |
7 Years |
SKU |
DIYM336HPW18D124 |
GTIN |
840255587464 |
UPC |
840255587464 |
