The MRCOOL® DIY® 5th Gen Multi-Zone 36,000 BTU Ductless Mini Split is designed to provide independent heating and cooling across three separate rooms. This configuration combines one 9,000 BTU and two 18,000 BTU wall-mounted air handlers for flexible room-by-room comfort.
The 9,000 BTU air handler is suited for smaller spaces, while the two 18,000 BTU units provide additional capacity for larger bedrooms, living areas, offices, additions, or other residential spaces. The three-zone configuration allows each indoor unit to provide targeted comfort from a single outdoor condenser.
With 23 SEER2 efficiency, DC inverter technology, R-454B refrigerant, smartphone app controls, Follow Me® functionality, and MRCOOL's pre-charged Quick Connect® installation design, this system delivers efficient year-round heating and cooling with convenient multi-zone operation.
What's Included
-
MRCOOL DIY 5th Gen Multi-Zone 36,000 BTU Mini Split Condenser, DIY-MULTI5-36HP230D-O -
MRCOOL DIY 5th Gen 9,000 BTU Wall Mount Air Handler, DIY-09-HP-WMAH-230D25-O -
MRCOOL DIY 5th Gen 18,000 BTU Wall Mount Air Handler, DIY-18-HP-WMAH-230D25-O
-
MRCOOL DIY 5th Gen 18,000 BTU Wall Mount Air Handler, DIY-18-HP-WMAH-230D25-O
Specifications:
BRAND NAME |
MRCOOL |
SERIES |
DIY 5th Gen Multi-Zone Mini-Splits |
EQUIPMENT TYPE |
Ductless Mini Split Heat Pump |
ZONE CONFIGURATION |
3-Zone |
CONDENSER CAPACITY |
36,000 BTU |
SEER2 |
23 |
COOLING CAPACITY |
36,000 BTU |
HEATING CAPACITY |
36,000 BTU |
AIR HANDLER CONFIGURATION |
9,000 BTU + 18,000 BTU + 18,000 BTU |

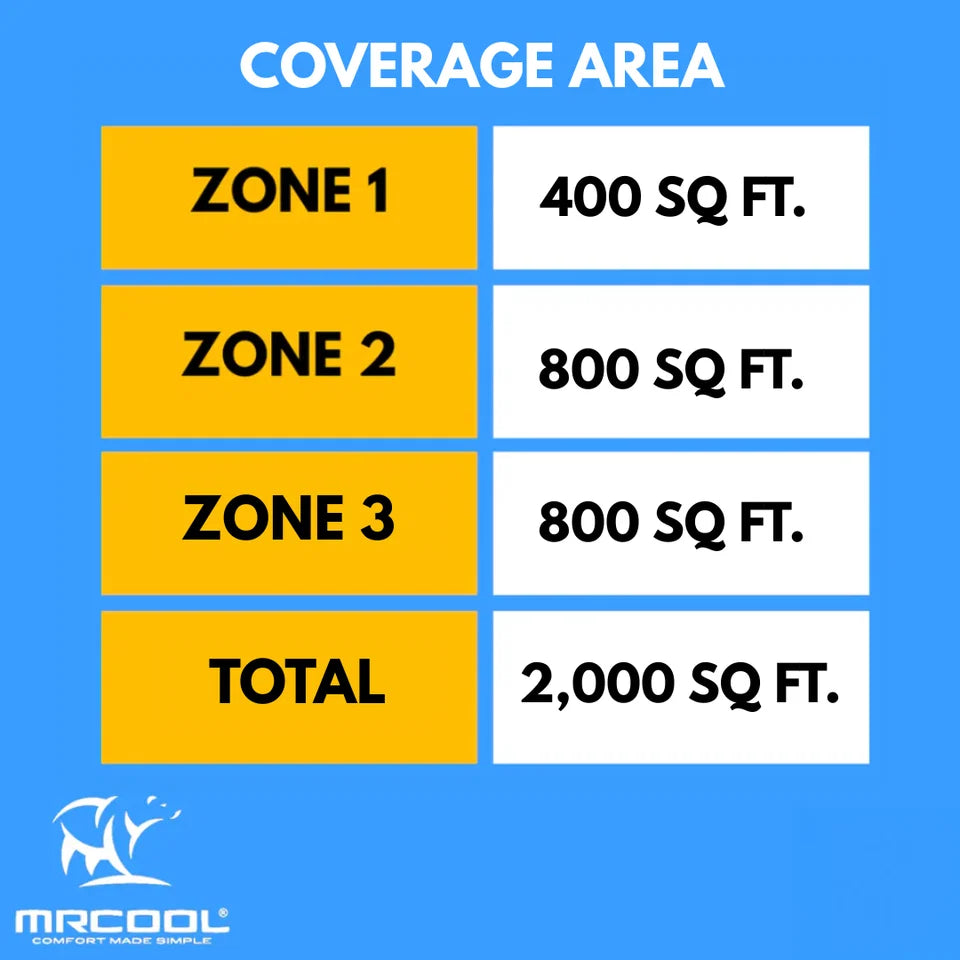

AIR HANDLER COVERAGE |
Up to 400 sq. ft. for 9K; up to 800 sq. ft. for each 18K |
TOTAL COVERAGE |
Up to 2,000 sq. ft. |
VOLTAGE |
208/230V |
PHASE |
1 |
CYCLE |
60 Hz |
REFRIGERANT |
R-454B |
INVERTER |
DC Inverter |
LINE SET |
Pre-Charged Quick Connect® |
MAX LINE SET LENGTH |
172 ft. total |
LIQUID LINE SIZE |
1/4 in. |
SUCTION LINE SIZE |
1/2 in. |
MAX FUSE BREAKER |
40A |
MIN CIRCUIT AMPACITY |
26A |
CONDENSER NOISE |
61 dBA |
CONDENSER MODEL |
DIY-MULTI5-36HP230D-O |
9K AIR HANDLER MODEL |
DIY-09-HP-WMAH-230D25-O |
18K AIR HANDLER MODEL |
DIY-18-HP-WMAH-230D25-O |
AIR HANDLER MOUNT TYPE |
Wall Mount |
AIR HANDLER FILTER |
Reusable |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
IOS COMPATIBILITY |
Yes |
ANDROID COMPATIBILITY |
Yes |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
AUTO COOL |
Yes |
FOLLOW ME® FEATURE |
Yes |
LOW AMBIENT COOLING |
Yes |
COMPRESSOR MOTOR TYPE |
Twin Rotary |
AUXILIARY HEATER |
No |
CERTIFICATIONS |
UL, ETL, ENERGY STAR®, AHRI |
BASE PARTS WARRANTY |
5 Years |
BASE COMPRESSOR WARRANTY |
7 Years |
SKU |
DIYM336HPW22D124 |
