The MRCOOL® DIY® 5th Gen Multi-Zone 48,000 BTU Ductless Mini Split provides efficient heating and cooling for three separate areas. This configuration pairs a 48,000 BTU outdoor condenser with three matching 18,000 BTU wall-mounted air handlers for balanced multi-room comfort.

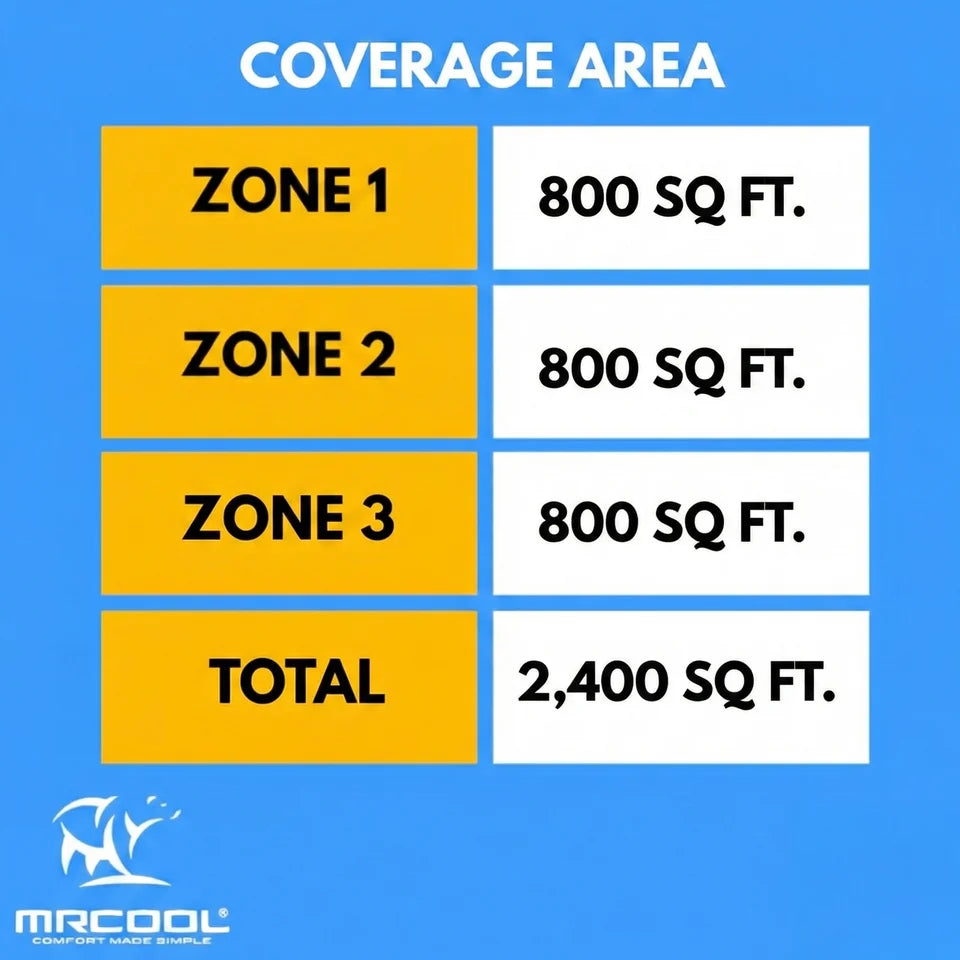

Each 18,000 BTU air handler is designed to provide comfort for spaces up to approximately 800 square feet. The independent indoor units allow different rooms to be managed while the multi-zone condenser efficiently coordinates system operation.
Featuring 21.8 SEER2 efficiency, DC inverter technology, R-454B refrigerant, smartphone app controls, Follow Me® functionality, and pre-charged Quick Connect® technology, this system combines flexible comfort with a convenient DIY-friendly installation design.
What's Included
-
MRCOOL DIY 5th Gen Multi-Zone 48,000 BTU Mini Split Condenser, DIY-MULTI6-48HP230D-O
Quantity: 1 -
MRCOOL DIY 5th Gen 18,000 BTU Wall Mount Air Handler, DIY-18-HP-WMAH-230D25-O
Quantity: 3
Specifications:
BRAND NAME |
MRCOOL |
SERIES |
DIY 5th Gen Multi-Zone Mini-Splits |
EQUIPMENT TYPE |
Ductless Mini Split Heat Pump |
ZONE CONFIGURATION |
3-Zone |
CONDENSER CAPACITY |
48,000 BTU |
SEER2 |
21.8 |
EER2 |
12 |
HSPF2-4 |
10 |
HSPF2-5 |
7.8 |
TONNAGE |
4 Ton |
COOLING CAPACITY |
43,000 BTU |
HEATING CAPACITY |
48,000 BTU |
AIR HANDLER CONFIGURATION |
18,000 BTU + 18,000 BTU + 18,000 BTU |
18K AIR HANDLER COVERAGE |
Up to 800 sq. ft. each |
VOLTAGE |
208/230V |
PHASE |
1 |
CYCLE |
60 Hz |
REFRIGERANT |
R-454B |
INVERTER |
DC Inverter |
LINE SET |
Pre-Charged Quick Connect® |
MAX LINE SET LENGTH |
221.4 ft. |
LIQUID LINE SIZE |
1/4 in. |
SUCTION LINE SIZE |
3/8 in. × 4; 1/2 in. × 2 |
MAX FUSE BREAKER |
45A |
MIN CIRCUIT AMPACITY |
40A |
CONDENSER NOISE |
64 dBA |
CONDENSER MODEL |
DIY-MULTI6-48HP230D-O |
18K AIR HANDLER MODEL |
DIY-18-HP-WMAH-230D25-O |
AIR HANDLER MOUNT TYPE |
Wall Mount |
AIR HANDLER FILTER |
Reusable |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
IOS COMPATIBILITY |
Yes |
ANDROID COMPATIBILITY |
Yes |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
AUTO COOL |
Yes |
LOW AMBIENT COOLING |
Yes |
COMPRESSOR MOTOR TYPE |
Rotary |
AUXILIARY HEATER |
No |
CERTIFICATIONS |
UL, ETL, ENERGY STAR®, AHRI |
BASE PARTS WARRANTY |
5 Years |
BASE COMPRESSOR WARRANTY |
7 Years |
SKU |
DIYM348HPW34D124 |
CONDENSER GTIN |
840255587471 |
UPC |
840255587471 |
