The MRCOOL® DIY® 5th Gen Multi-Zone 48,000 BTU Ductless Mini Split is designed to deliver independent heating and cooling across three separate rooms. This configuration combines 6,000 BTU, 18,000 BTU, and 24,000 BTU wall-mounted air handlers with a single 48,000 BTU outdoor condenser.
The 6,000 BTU air handler is designed for spaces up to approximately 200 square feet, while the 18,000 BTU and 24,000 BTU units provide coverage for larger areas of up to approximately 800 and 1,050 square feet respectively. This combination offers flexible comfort for rooms with different size and capacity requirements.
With 21.8 SEER2 efficiency, DC inverter technology, R-454B refrigerant, smartphone app controls, Follow Me® functionality, and MRCOOL's pre-charged Quick Connect® technology, this system provides efficient year-round comfort with a simplified DIY installation approach.
What's Included
-
MRCOOL DIY 5th Gen Multi-Zone 48,000 BTU Mini Split Condenser, DIY-MULTI6-48HP230D-O
Quantity: 1 -
MRCOOL DIY 5th Gen 6,000 BTU Wall Mount Air Handler, DIY-06-HP-WMAH-230D25-O
Quantity: 1 -
MRCOOL DIY 5th Gen 18,000 BTU Wall Mount Air Handler, DIY-18-HP-WMAH-230D25-O
Quantity: 1 -
MRCOOL DIY 5th Gen 24,000 BTU Wall Mount Air Handler, DIY-24-HP-WMAH-230D25-O
Quantity: 1
Specifications:
BRAND NAME |
MRCOOL |
SERIES |
DIY 5th Gen Multi-Zone Mini-Splits |
EQUIPMENT TYPE |
Ductless Mini Split Heat Pump |
ZONE CONFIGURATION |
3-Zone |
CONDENSER CAPACITY |
48,000 BTU |
SEER2 |
21.8 |
EER2 |
12 |
HSPF2-4 |
10 |
HSPF2-5 |
7.8 |
TONNAGE |
4 Ton |
COOLING CAPACITY |
43,000 BTU |
HEATING CAPACITY |
48,000 BTU |
AIR HANDLER CONFIGURATION |
6,000 BTU + 18,000 BTU + 24,000 BTU |

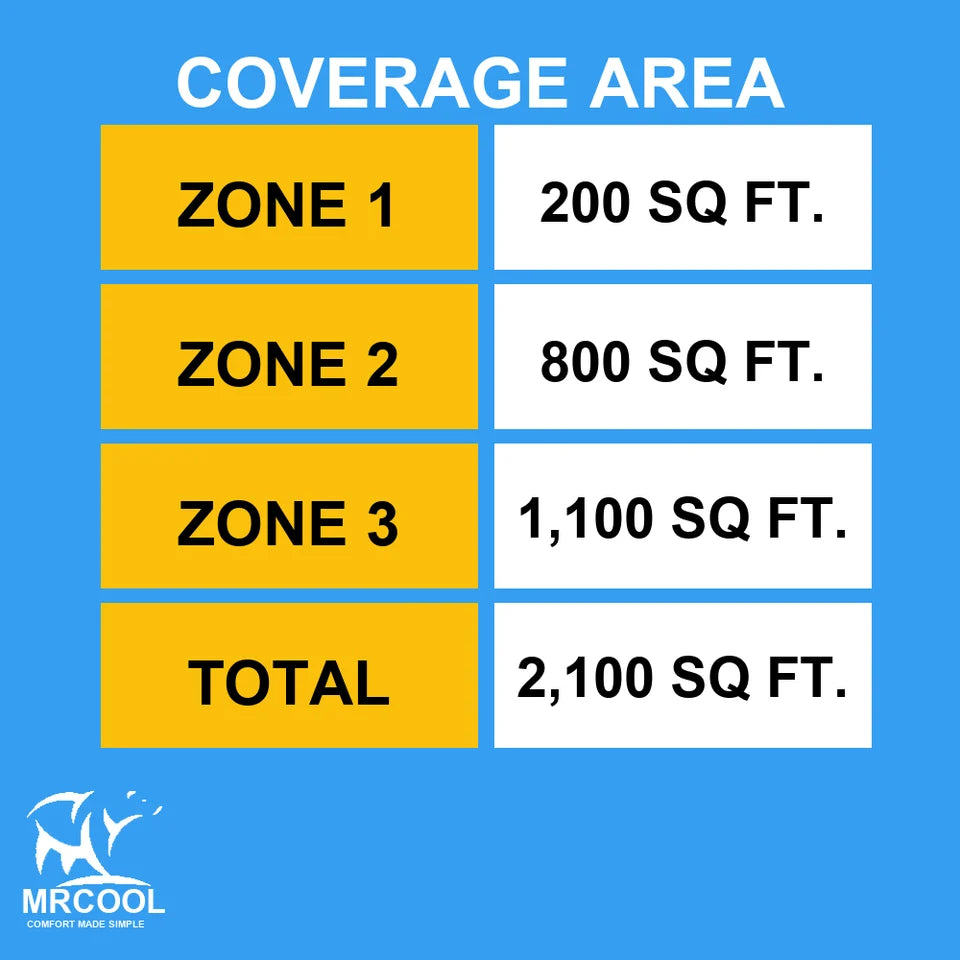

6K AIR HANDLER COVERAGE |
Up to 200 sq. ft. |
18K AIR HANDLER COVERAGE |
Up to 800 sq. ft. |
24K AIR HANDLER COVERAGE |
Up to 1,050 sq. ft. |
TOTAL SYSTEM COVERAGE |
Up to 2,000 sq. ft. |
VOLTAGE |
208/230V |
PHASE |
1 |
CYCLE |
60 Hz |
REFRIGERANT |
R-454B |
INVERTER |
DC Inverter |
LINE SET |
Pre-Charged Quick Connect® |
MAX LINE SET LENGTH |
221.4 ft. |
LIQUID LINE SIZE |
1/4 in. |
SUCTION LINE SIZE |
3/8 in. × 4; 1/2 in. × 2 |
MAX FUSE BREAKER |
45A |
MIN CIRCUIT AMPACITY |
40A |
CONDENSER NOISE |
64 dBA |
CONDENSER MODEL |
DIY-MULTI6-48HP230D-O |
6K AIR HANDLER MODEL |
DIY-06-HP-WMAH-230D25-O |
18K AIR HANDLER MODEL |
DIY-18-HP-WMAH-230D25-O |
24K AIR HANDLER MODEL |
DIY-24-HP-WMAH-230D25-O |
AIR HANDLER MOUNT TYPE |
Wall Mount |
AIR HANDLER FILTER |
Reusable |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
IOS COMPATIBILITY |
Yes |
ANDROID COMPATIBILITY |
Yes |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
AUTO COOL |
Yes |
FOLLOW ME® FEATURE |
Yes |
LOW AMBIENT COOLING |
Yes |
COMPRESSOR MOTOR TYPE |
Rotary |
AUXILIARY HEATER |
No |
CERTIFICATIONS |
UL, ETL, ENERGY STAR®, AHRI |
BASE PARTS WARRANTY |
5 Years |
BASE COMPRESSOR WARRANTY |
7 Years |
SKU |
DIYM348HPW07D |
CONDENSER GTIN |
840255587471 |
UPC |
840255587471 |
