The MRCOOL® DIY® 5th Gen Multi-Zone 48,000 BTU Ductless Mini Split is designed to provide independent heating and cooling across three separate rooms. This configuration combines two 6,000 BTU wall-mounted air handlers with one 36,000 BTU wall-mounted air handler, all powered by a single 48,000 BTU outdoor condenser.

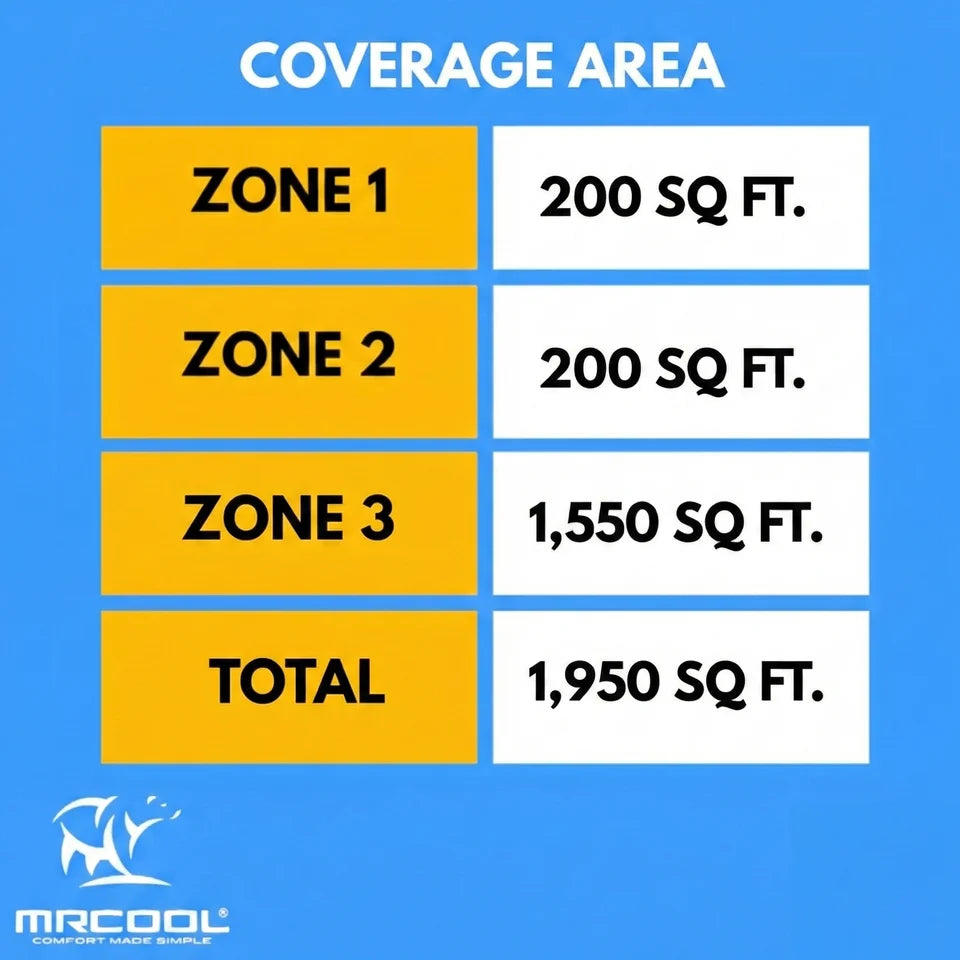

Each 6,000 BTU air handler can condition approximately 200 square feet, while the 36,000 BTU air handler provides coverage for up to approximately 1,550 square feet. This combination provides flexible zoning for smaller bedrooms, offices, living areas, and larger spaces while allowing each zone to be controlled independently.
With a 21.8 SEER2 rating, DC inverter technology, R-454B refrigerant, smartphone app controls, Follow Me® functionality, and MRCOOL's pre-charged Quick Connect® technology, this system combines efficient year-round comfort with a simplified DIY installation approach.
What's Included
-
MRCOOL DIY 5th Gen Multi-Zone 48,000 BTU Mini Split Condenser, DIY-MULTI6-48HP230D-O
Quantity: 1 -
MRCOOL DIY 5th Gen 6,000 BTU Wall Mount Air Handler, DIY-06-HP-WMAH-230D25-O
Quantity: 2 -
MRCOOL DIY 5th Gen 36,000 BTU Wall Mount Air Handler, DIY-36-HP-WMAH-230D25-O
Quantity: 1
Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
DIY 5th Gen Multi-Zone Mini-Splits |
|
EQUIPMENT TYPE |
Ductless Mini Split Heat Pump |
|
ZONE CONFIGURATION |
3-Zone |
|
CONDENSER CAPACITY |
48,000 BTU |
|
SEER2 |
21.8 |
|
EER2 |
12 |
|
HSPF2-4 |
10 |
|
HSPF2-5 |
7.8 |
|
TONNAGE |
4 Ton |
|
COOLING CAPACITY |
43,000 BTU |
|
HEATING CAPACITY |
48,000 BTU |
|
AIR HANDLER CONFIGURATION |
6,000 BTU + 6,000 BTU + 36,000 BTU |
|
6K AIR HANDLER COVERAGE |
Up to 200 sq. ft. each |
|
36K AIR HANDLER COVERAGE |
Up to 1,550 sq. ft. |
|
VOLTAGE |
208/230V |
|
PHASE |
1 |
|
CYCLE |
60 Hz |
|
REFRIGERANT |
R-454B |
|
REFRIGERANT VOLUME |
148.15 oz. |
|
INVERTER |
DC Inverter |
|
LINE SET |
Pre-Charged Quick Connect® |
|
MAX LINE SET LENGTH |
221.4 ft. |
|
LIQUID LINE SIZE |
1/4 in. |
|
SUCTION LINE SIZE |
3/8 in. × 4; 1/2 in. × 2 |
|
MAX FUSE BREAKER |
45A |
|
MIN CIRCUIT AMPACITY |
40A |
|
CONDENSER NOISE |
64 dBA |
|
CONDENSER MODEL |
DIY-MULTI6-48HP230D-O |
|
6K AIR HANDLER MODEL |
DIY-06-HP-WMAH-230D25-O |
|
36K AIR HANDLER MODEL |
DIY-36-HP-WMAH-230D25-O |
|
AIR HANDLER MOUNT TYPE |
Wall Mount |
|
36K AIR HANDLER TONNAGE |
3 Ton |
|
36K AIR HANDLER COVERAGE |
1,550 sq. ft. |
|
36K AIR HANDLER LIQUID LINE SIZE |
3/8 in. |
|
36K AIR HANDLER SUCTION LINE SIZE |
5/8 in. |
|
AIR HANDLER FILTER |
Reusable |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
IOS COMPATIBILITY |
Yes |
|
ANDROID COMPATIBILITY |
Yes |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
FOLLOW ME® FEATURE |
Yes |
|
LOW AMBIENT COOLING |
Yes |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
AUXILIARY HEATER |
No |
|
CERTIFICATIONS |
UL, ETL, ENERGY STAR®, AHRI |
|
BASE PARTS WARRANTY |
5 Years |
|
BASE COMPRESSOR WARRANTY |
7 Years |
|
SKU |
DIYM348HPW01D |
|
GTIN |
840255587471 |
|
UPC |
840255587471 |
