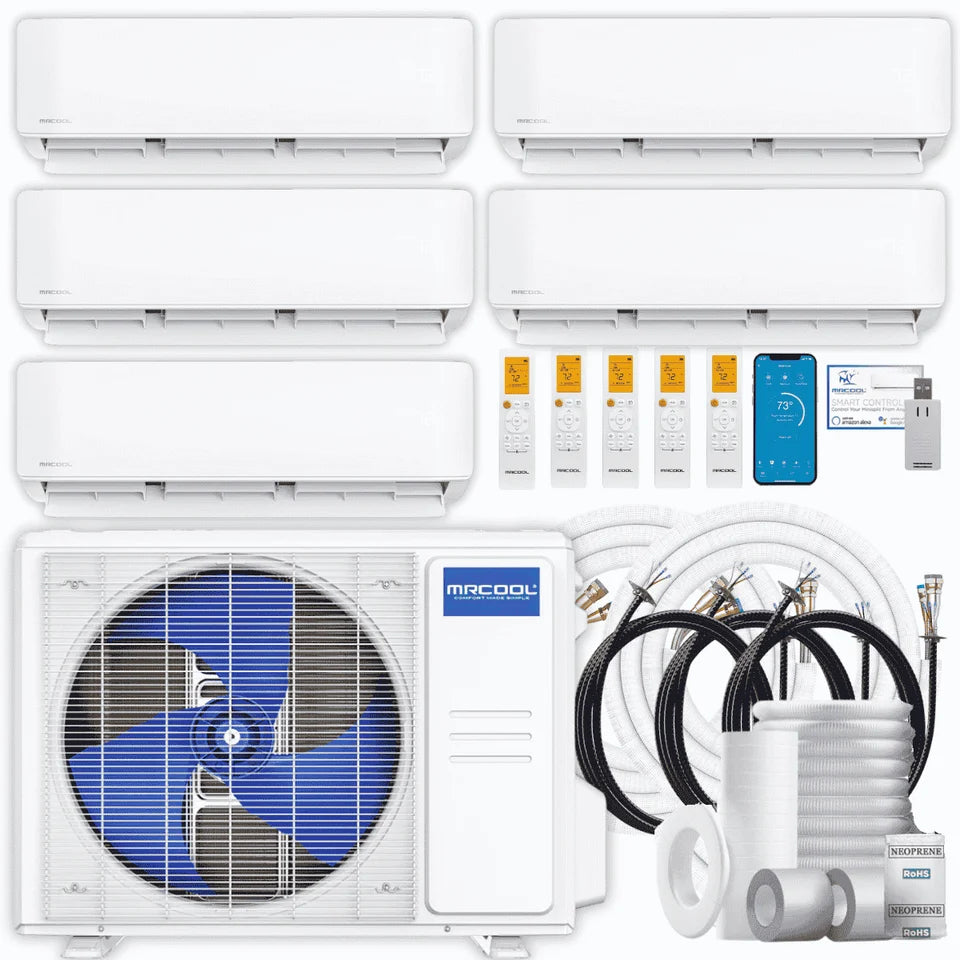

The MRCOOL® DIY® 5th Gen Multi-Zone 36,000 BTU ductless mini split system delivers efficient heating and cooling across five independently controlled rooms. This configuration combines two 6,000 BTU and three 9,000 BTU wall-mounted air handlers, making it suitable for spaces with different comfort and capacity requirements.
With a 23 SEER2 rating and DC inverter technology, the system is designed to provide dependable year-round comfort while adjusting output to changing demand. Each 6,000 BTU unit covers up to approximately 200 square feet, and each 9,000 BTU unit covers up to approximately 400 square feet.

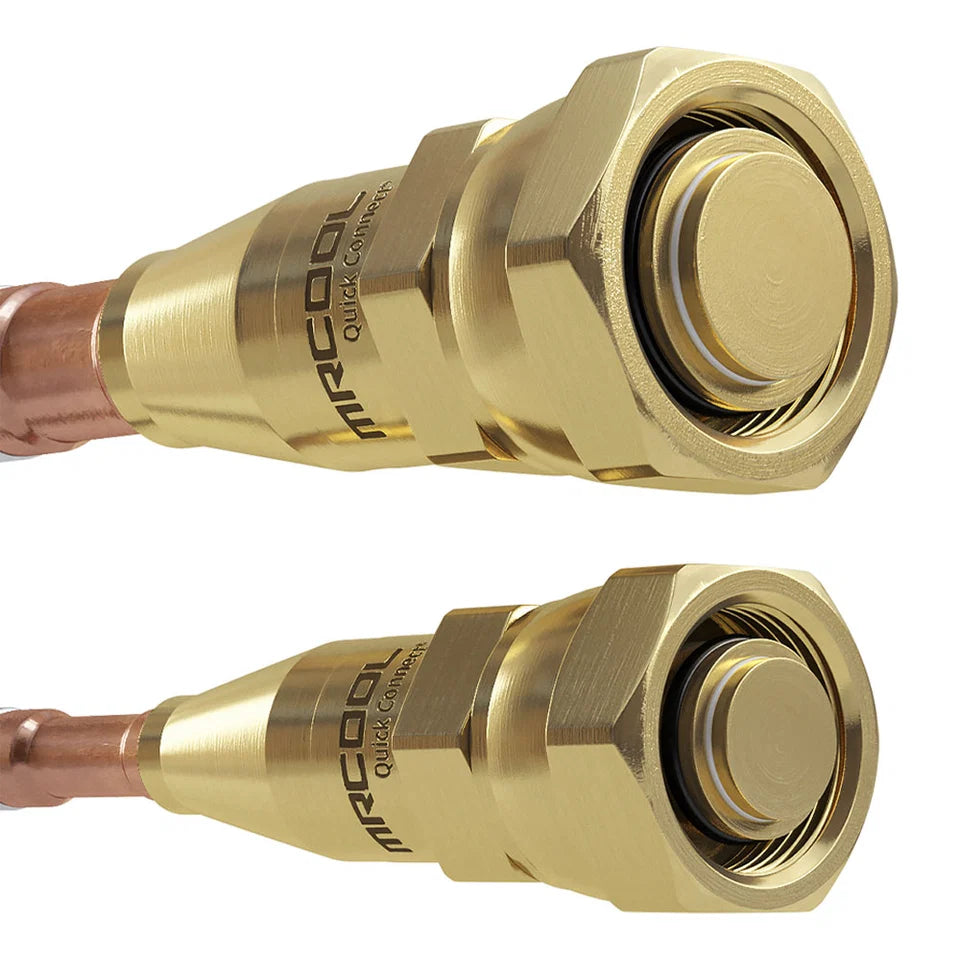

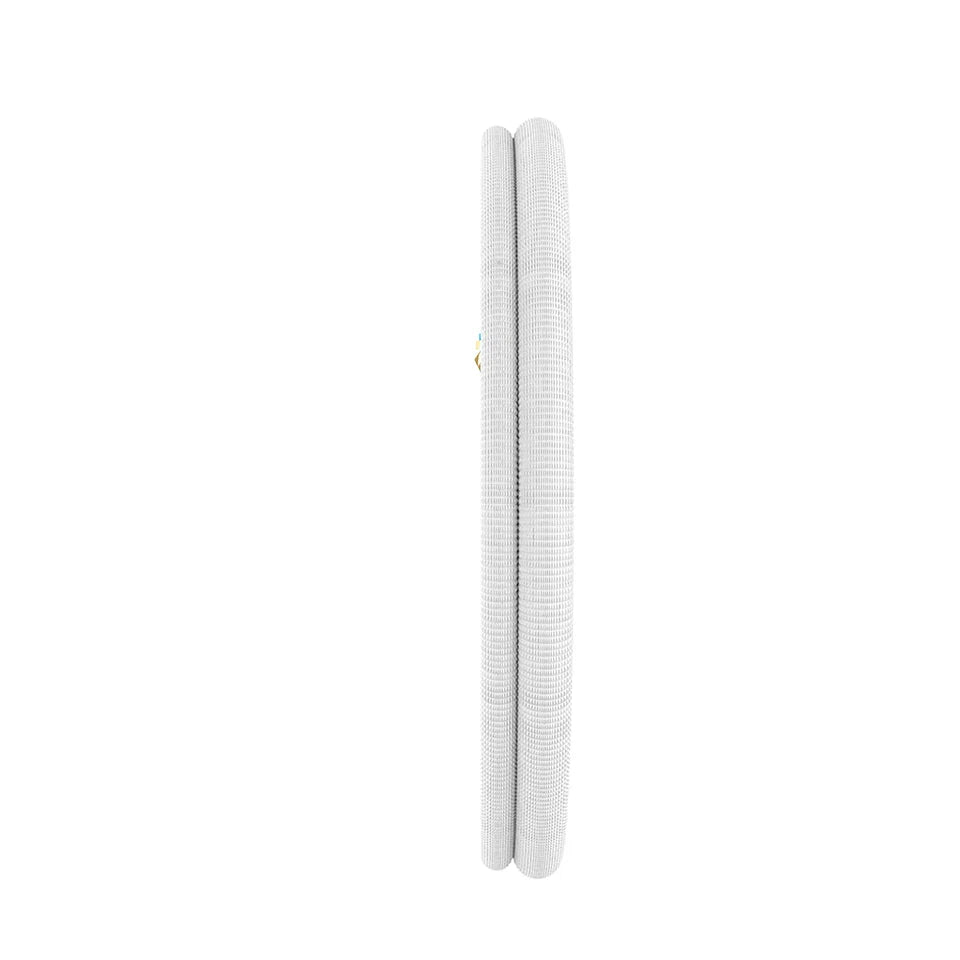

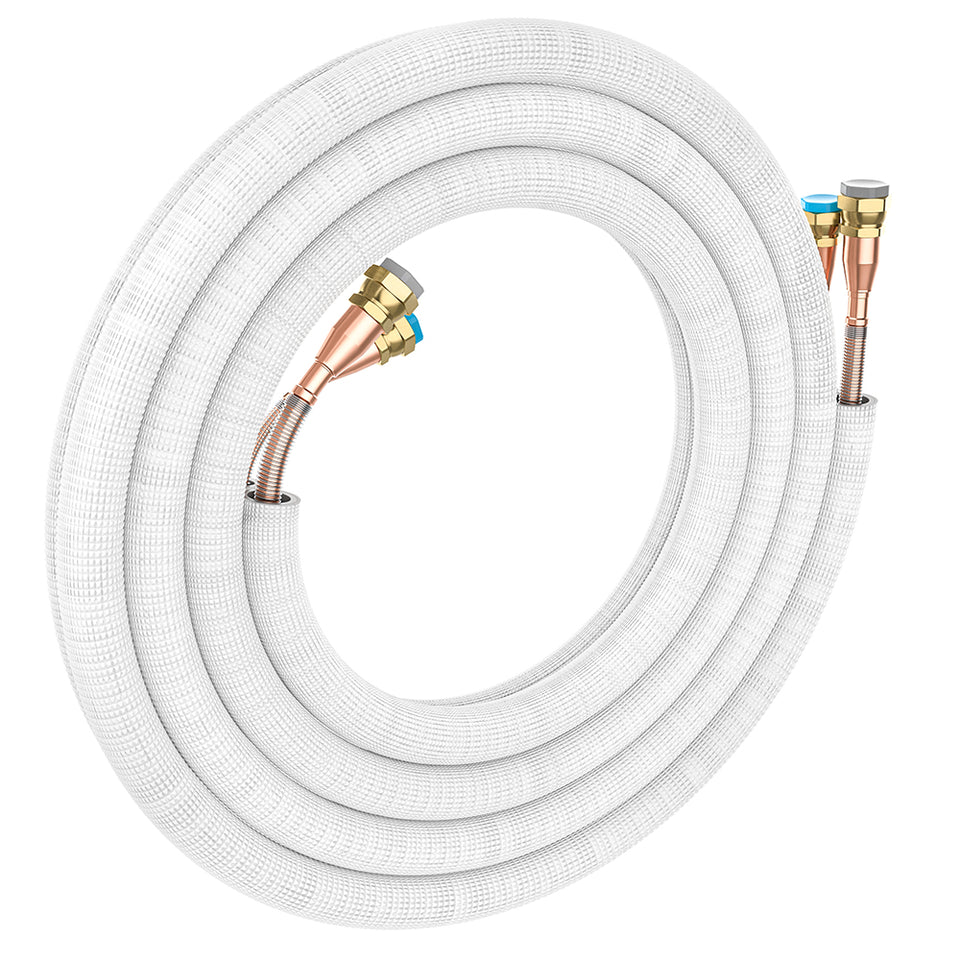

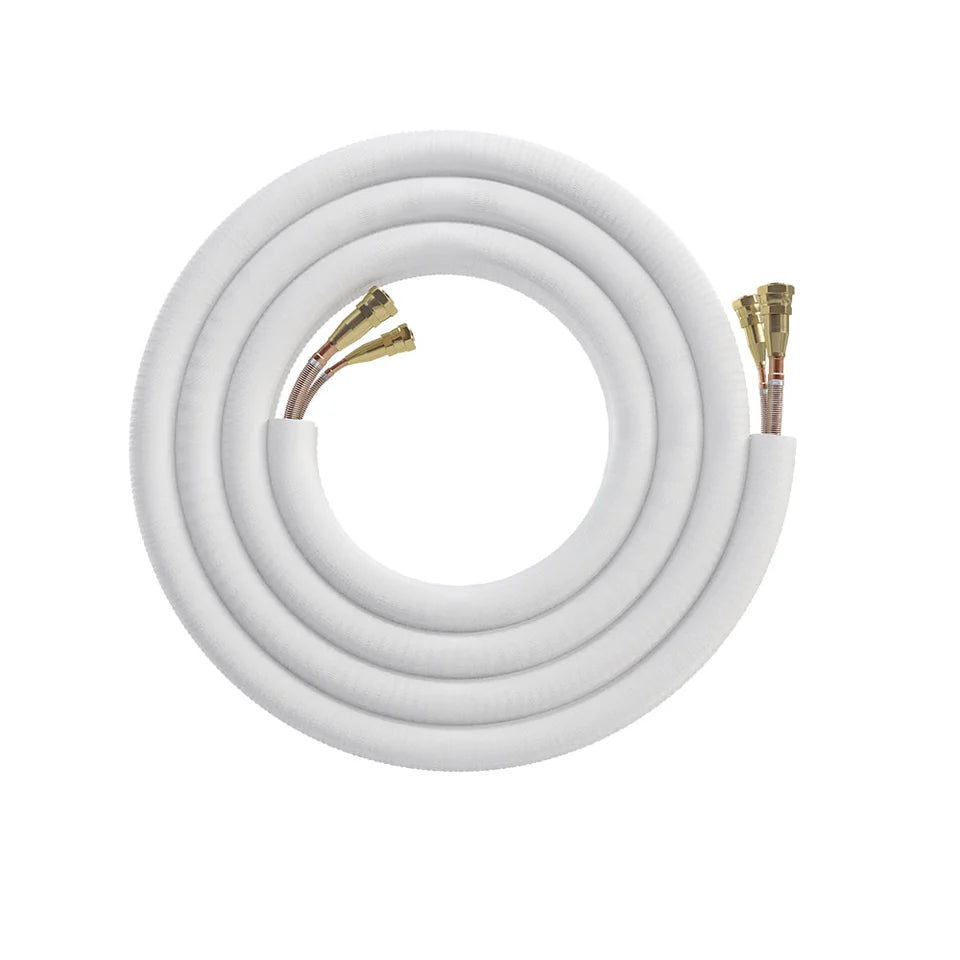

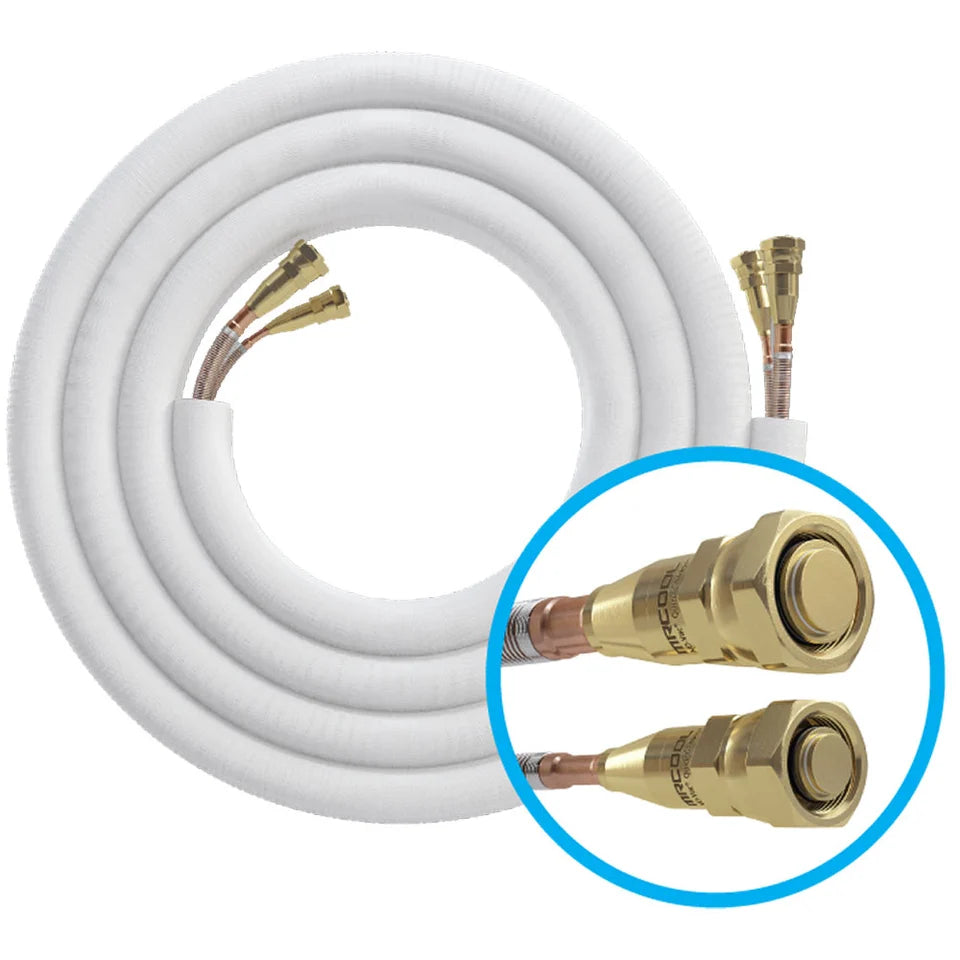

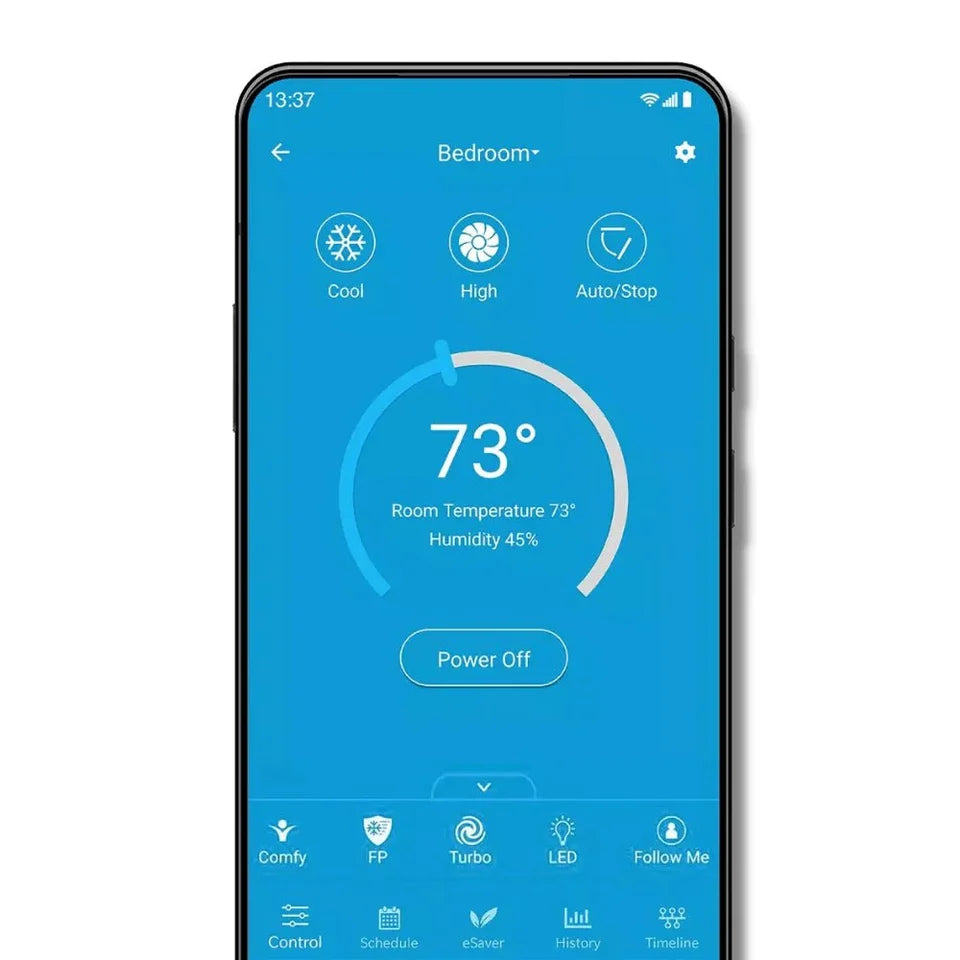

MRCOOL DIY Quick Connect® technology uses pre-charged R-454B line sets to simplify installation by eliminating the traditional evacuation and refrigerant charging process. Each wall-mounted air handler includes Wi-Fi and app compatibility, a remote control, reusable filter, and multiple comfort settings. The 36,000 BTU condenser can support up to five zones, maximizing the system's potential for whole-home comfort.
What's Included
-

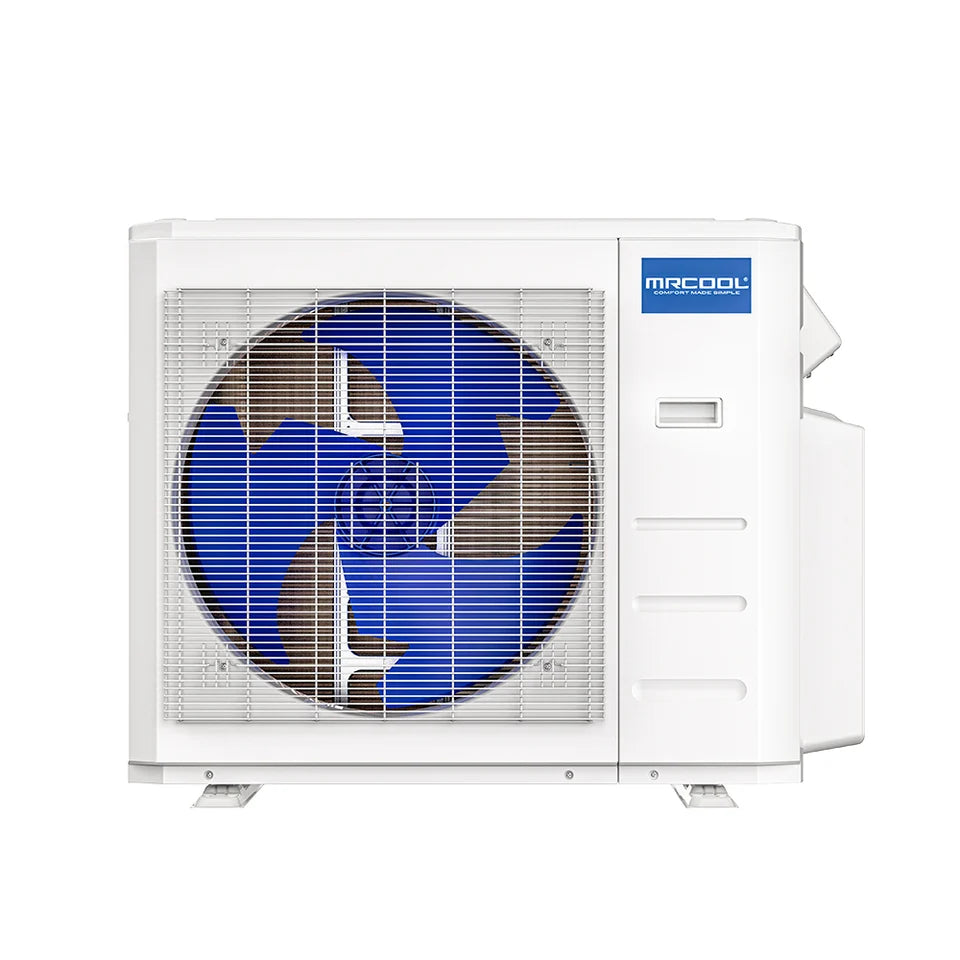

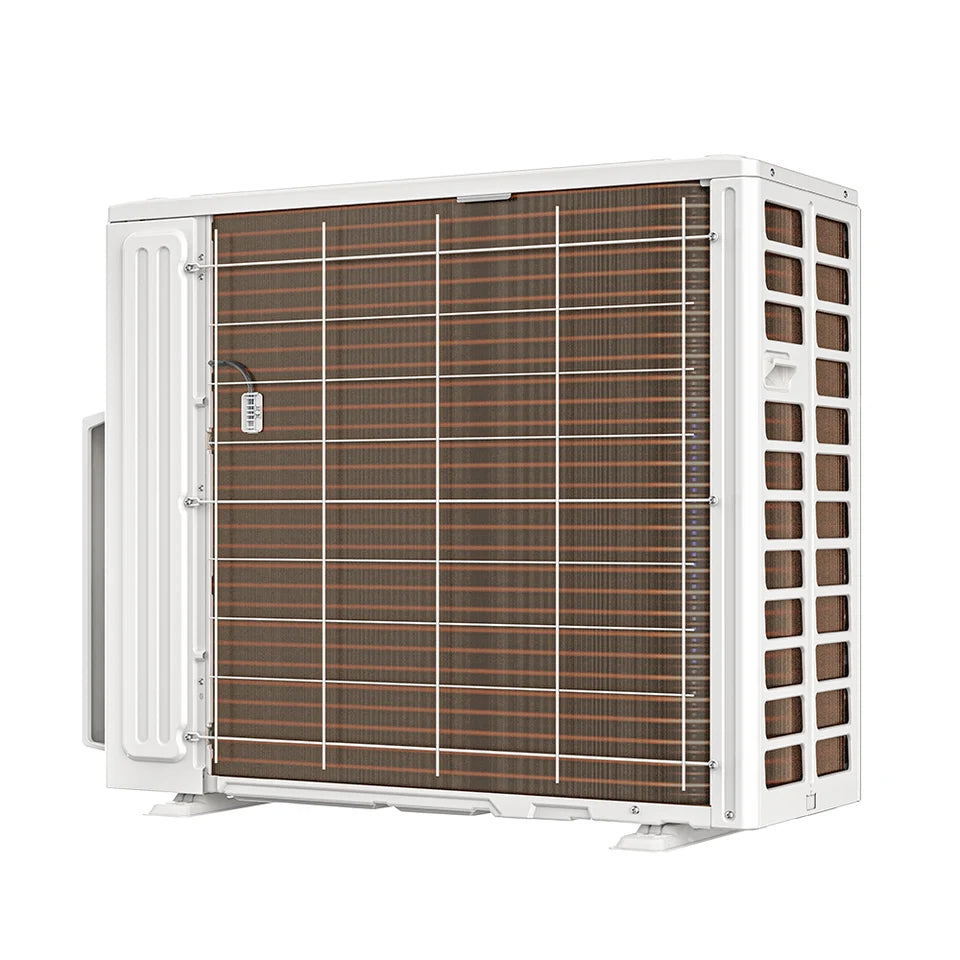

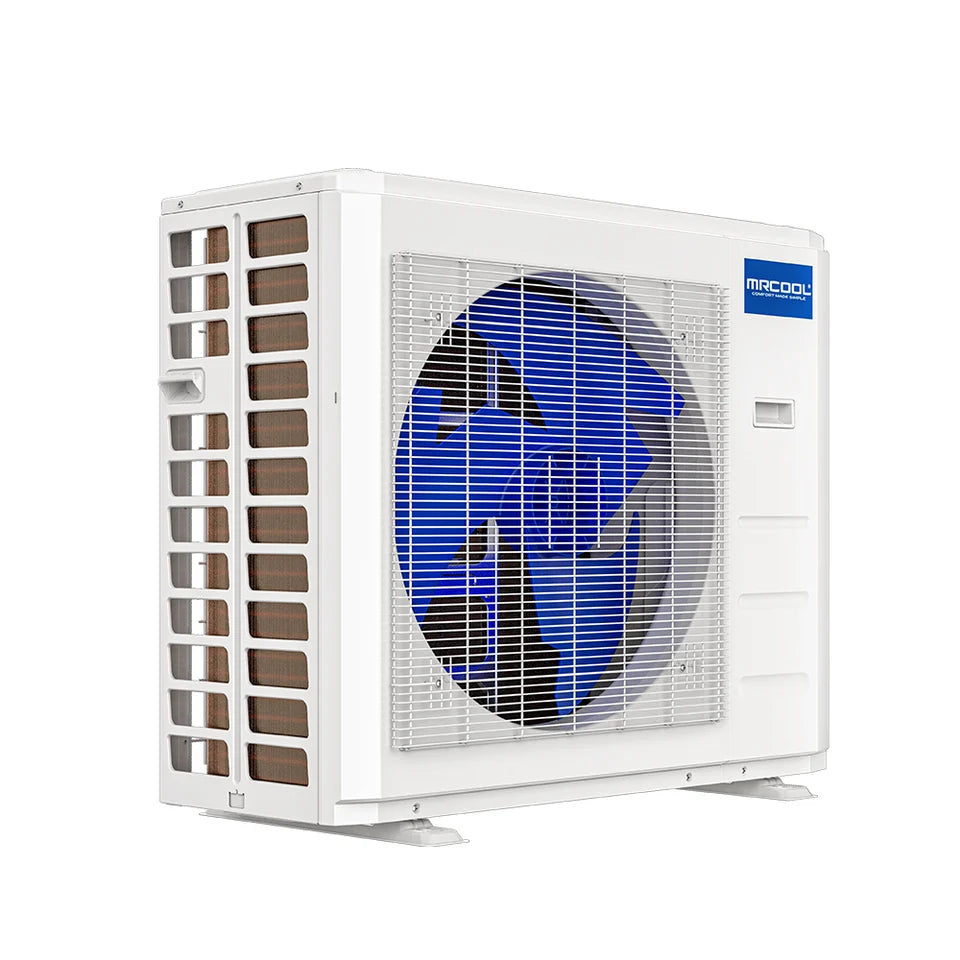

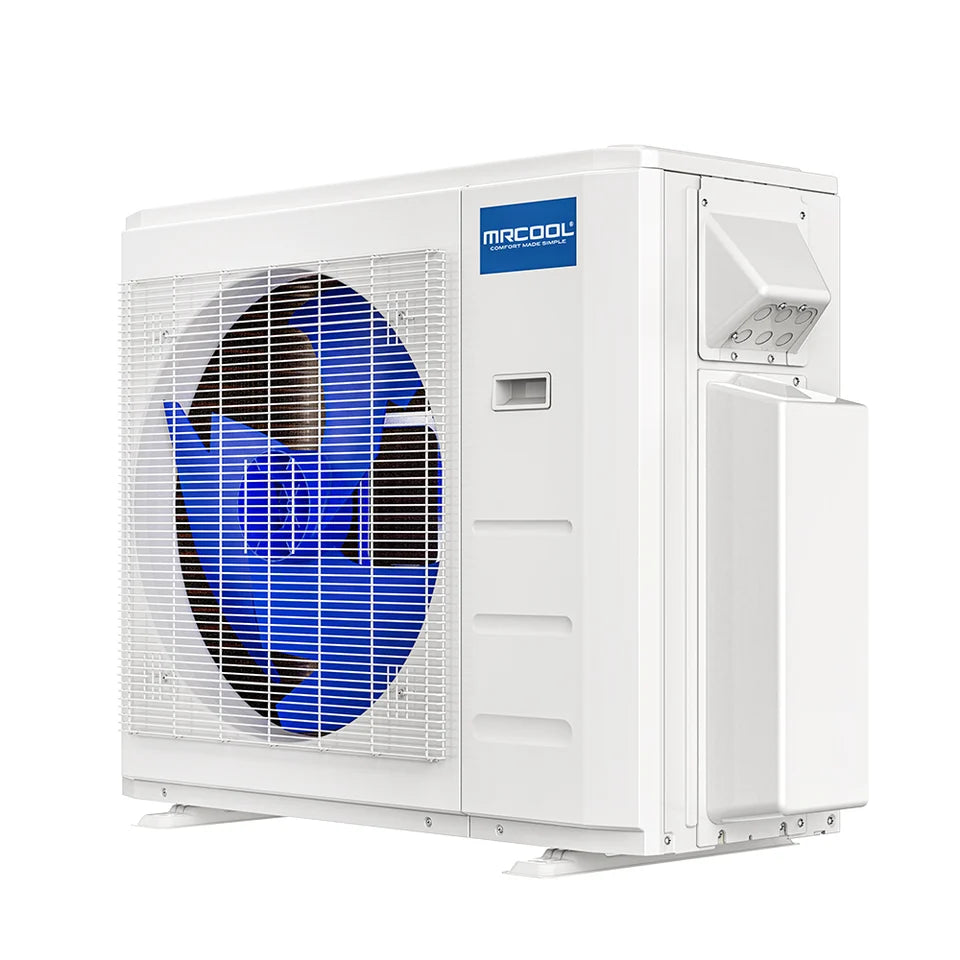

MRCOOL DIY 5th Gen Multi-Zone 36,000 BTU Mini Split Condenser, DIY-MULTI5-36HP230D-O
Quantity: 1 -

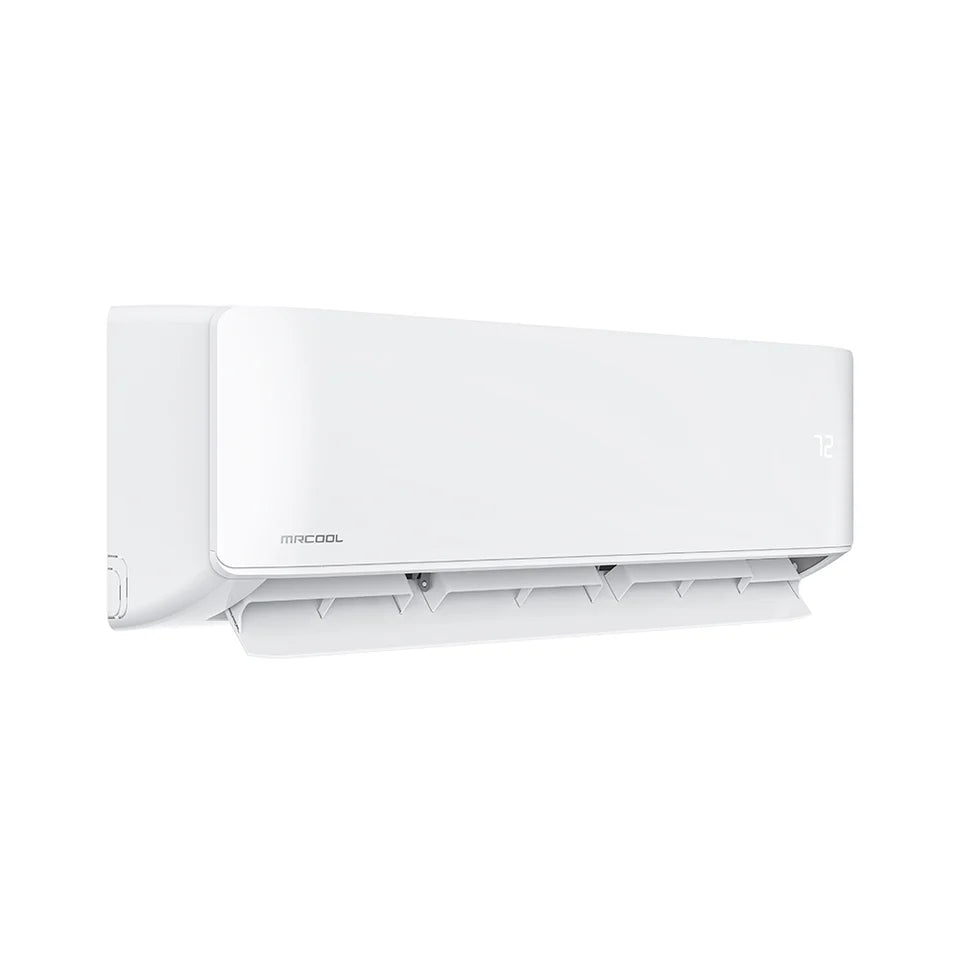

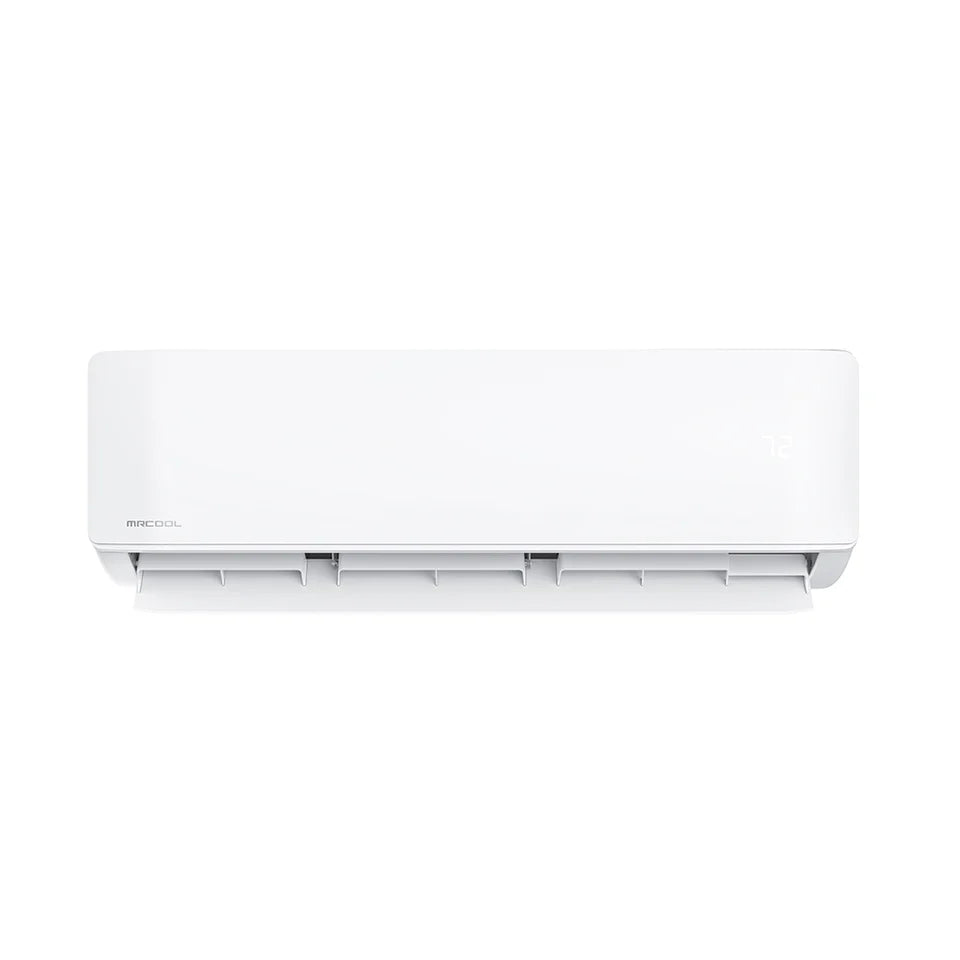

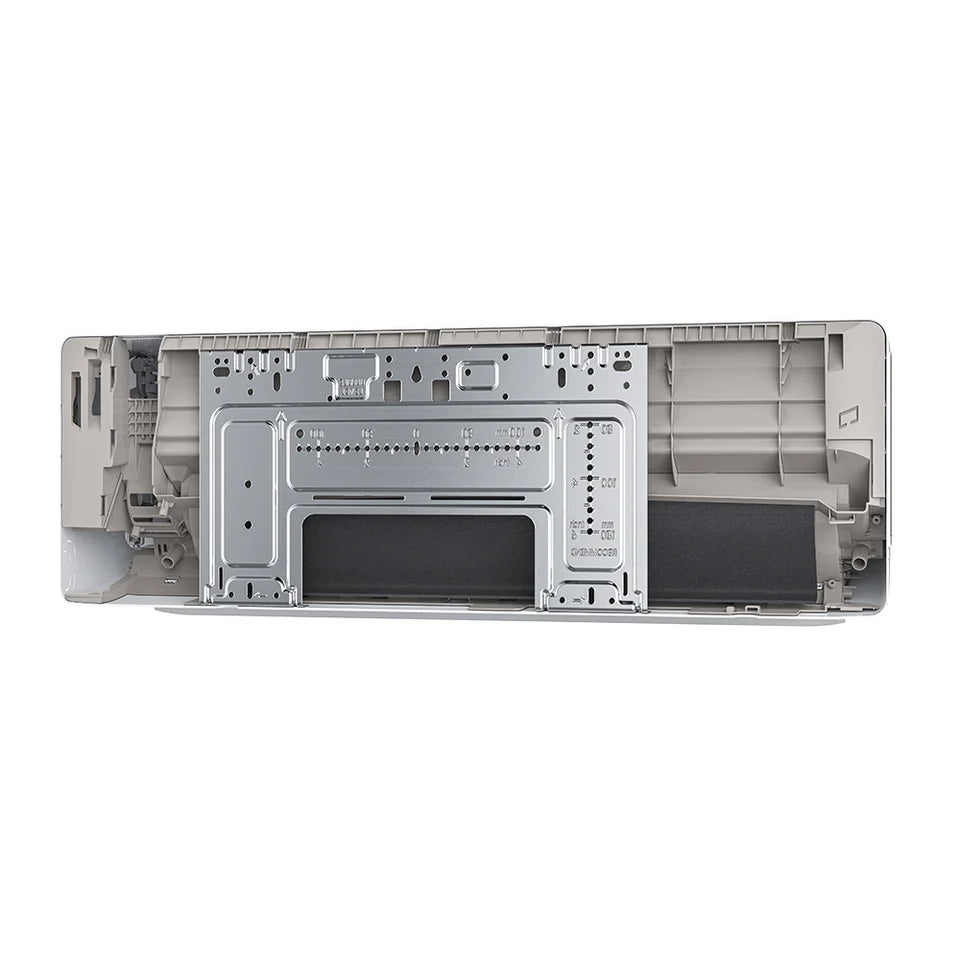

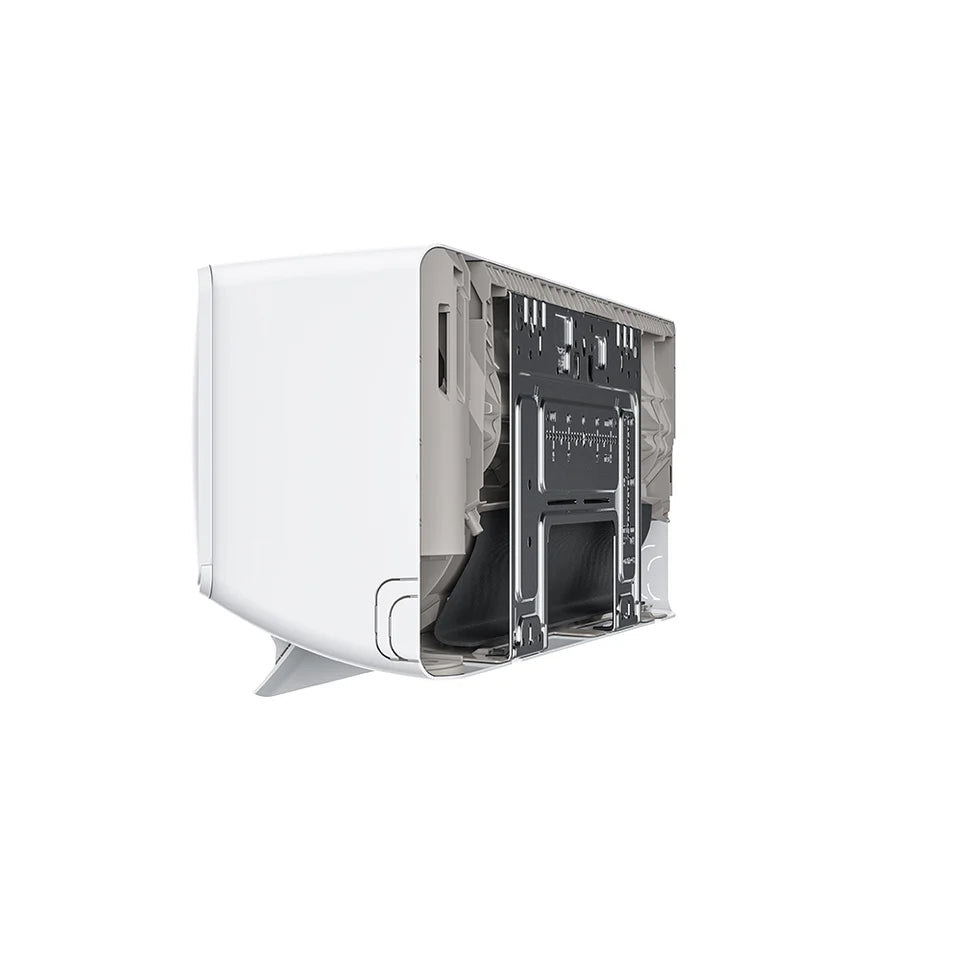

MRCOOL DIY 5th Gen 6,000 BTU Wall Mount Air Handler, DIY-06-HP-WMAH-230D25-O
Quantity: 2 -

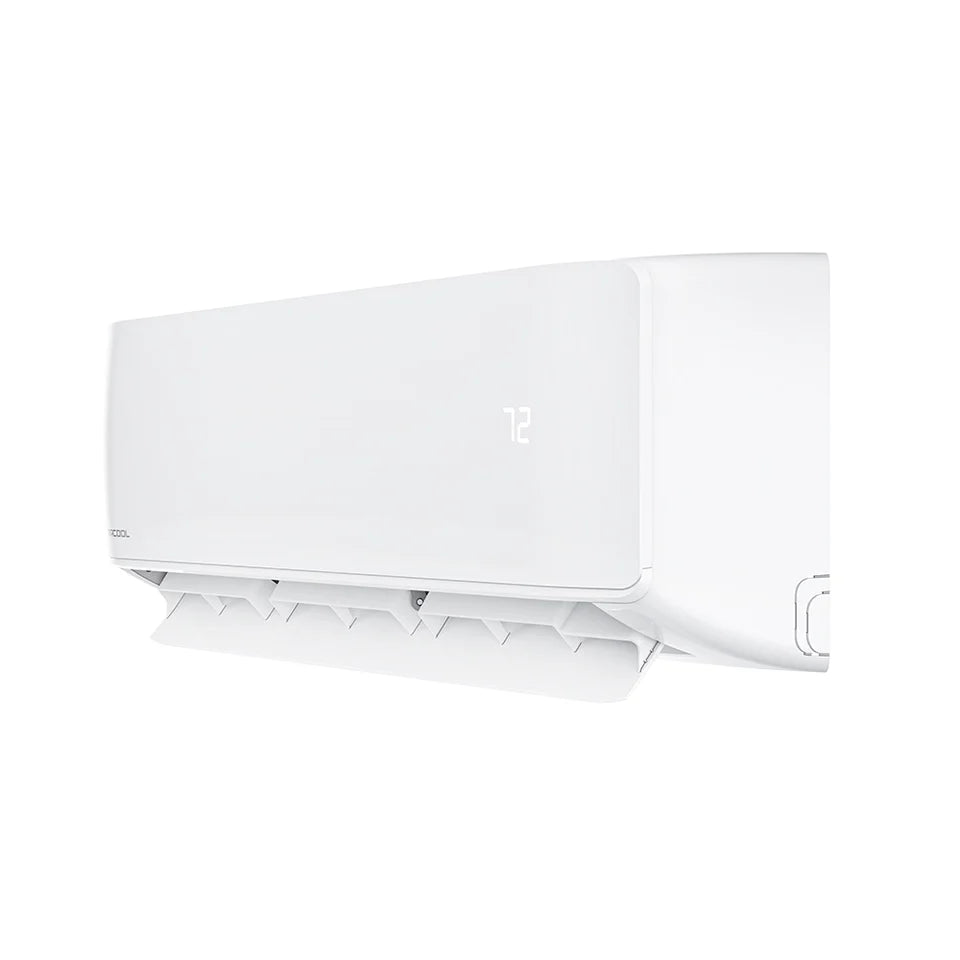

MRCOOL DIY 5th Gen 9,000 BTU Wall Mount Air Handler, DIY-09-HP-WMAH-230D25-O
Quantity: 3
Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
DIY 5th gen Multi-Zone Mini-splits |
|
MODEL |
DIY-MULTI5-36HP230D-O |
|
GTIN |
840255587464 |
|
UPC |
840255587464 |
|
EQUIPMENT TYPE |
Ductless Mini Split Heat Pump |
|
ZONE CONFIGURATION |
5-Zone |
|
CONDENSER CAPACITY |
36,000 BTU |
|
SEER2 |
23 |
|
EER2 |
12 |
|
HSPF2-4 |
9.9 |
|
HSPF2-5 |
7.5 |
|
TONNAGE |
3 Ton |
|
COOLING CAPACITY |
34,000 BTU |
|
HEATING CAPACITY |
36,000 BTU |
|
AIR HANDLER CONFIGURATION |
6,000 BTU + 6,000 BTU + 9,000 BTU + 9,000 BTU + 9,000 BTU |
|
6K AIR HANDLER MODEL |
DIY-06-HP-WMAH-230D25-O |
|
6K AIR HANDLER QUANTITY |
2 |
|
6K AIR HANDLER COVERAGE |
200 sq. ft. |
|
9K AIR HANDLER MODEL |
DIY-09-HP-WMAH-230D25-O |
|
9K AIR HANDLER QUANTITY |
3 |
|
9K AIR HANDLER COVERAGE |
400 sq. ft. |
|
VOLTAGE |
208/230V |
|
PHASE |
1 |
|
CYCLE |
60 Hz |
|
MAX FUSE BREAKER |
35A |
|
MIN CIRCUIT AMPACITY |
30.5A |
|
ZONE CAPACITY |
5 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME |
104.75 oz. |
|
DECIBEL RATING |
64 dBA |
|
INVERTER |
DC |
|
MAX LINE SET LENGTH |
221.4 ft. |
|
LIQUID LINE SIZE |
1/4 in. |
|
SUCTION LINE SIZE |
3/8 in. x 4 + 1/2 in. x 1 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
No |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
IOS COMPATIBILITY |
Yes |
|
ANDROID COMPATIBILITY |
Yes |
|
CERTIFICATIONS |
UL, ETL, ENERGY STAR®, AHRI |
|
BASE PARTS WARRANTY |
5 Years |
|
BASE COMPRESSOR WARRANTY |
7 Years |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
