The MRCOOL® DIY Easy Pro® 9K Ductless Mini-Split Heat Pump System provides efficient heating and cooling for spaces up to approximately 400 square feet. With a 9,000 BTU cooling capacity, 10,000 BTU heating capacity, and 20.2 SEER2 efficiency, this 115V single-zone system is designed to deliver dependable comfort while maintaining efficient operation.

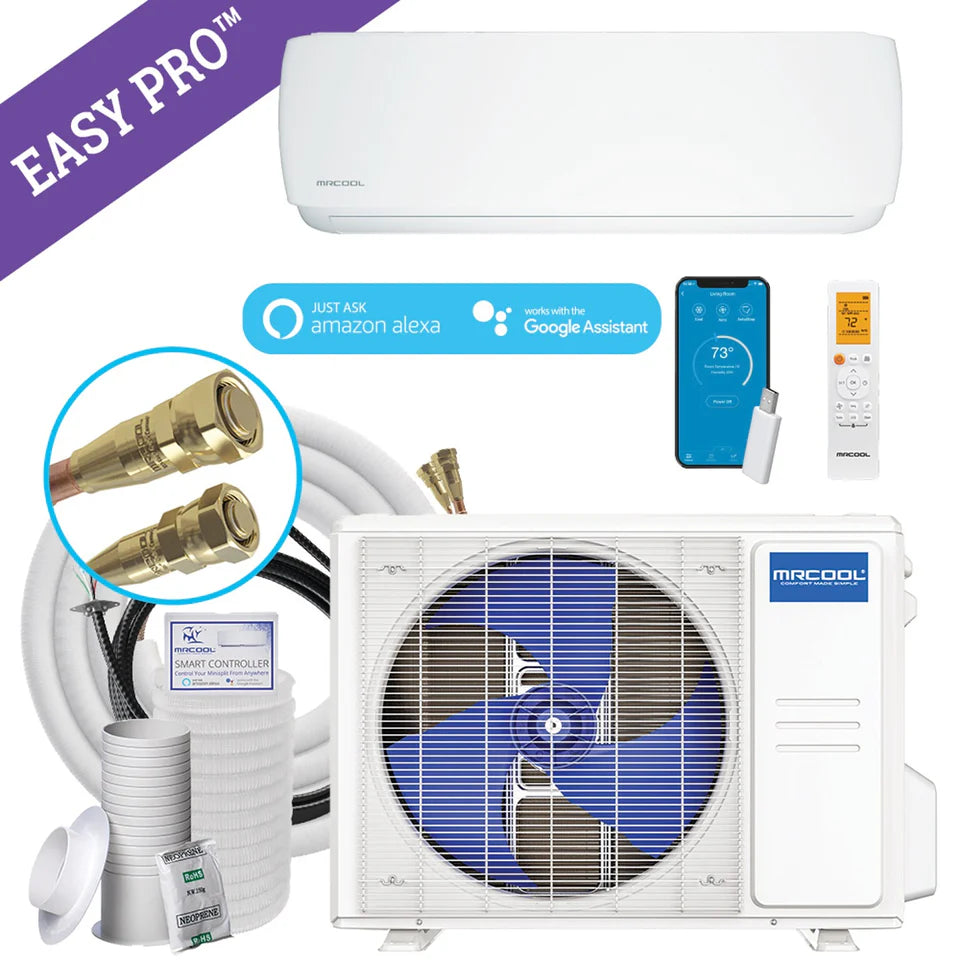

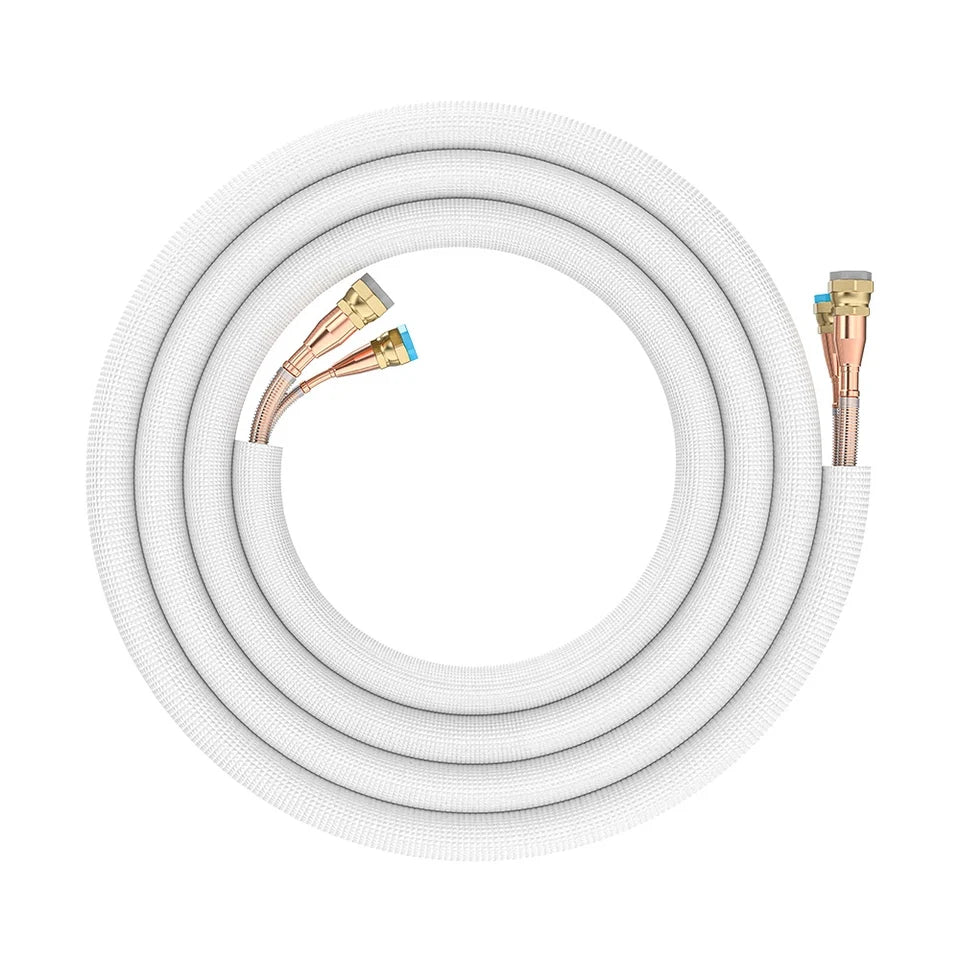

The Easy Pro® system is designed for simplified installation and includes an 11.5-foot pre-charged Fast Connection® line set. Its Follow Me® feature helps maintain the desired temperature based on the remote control's location, while the anti-mildew function, washable filter, and LED display provide convenient operation and maintenance.
The system also supports smart control through the SmartHVAC app and compatibility with Apple, Android, Amazon Alexa, and Google Assistant. With inverter technology, Energy Star and AHRI certifications, and a 5-year compressor warranty with a 3-year parts warranty, the Easy Pro® 9K is designed for reliable long-term performance.

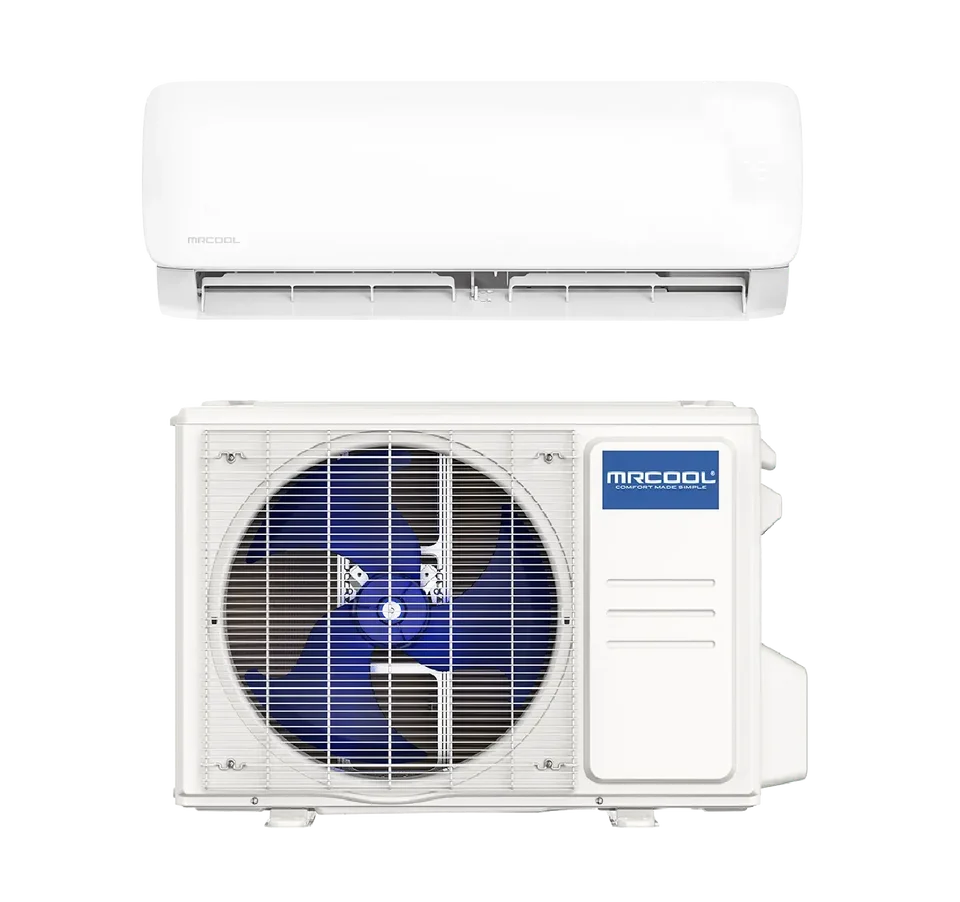

What's Included
-

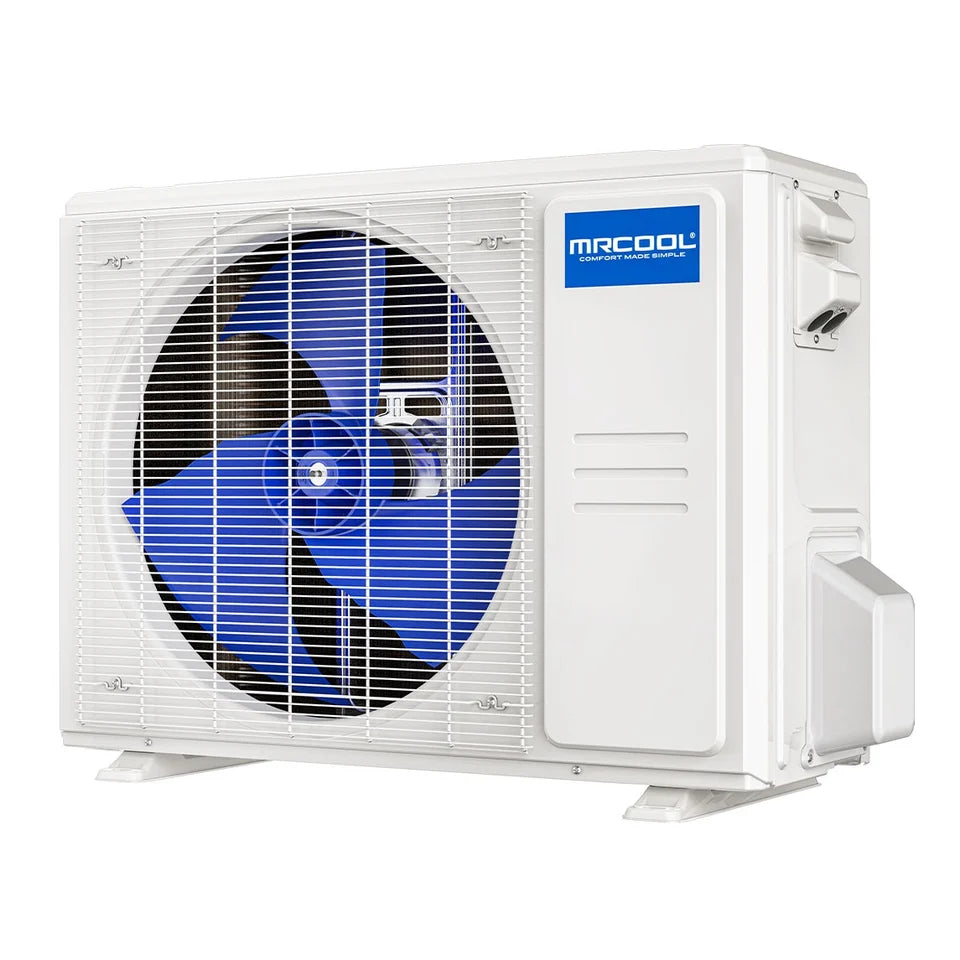

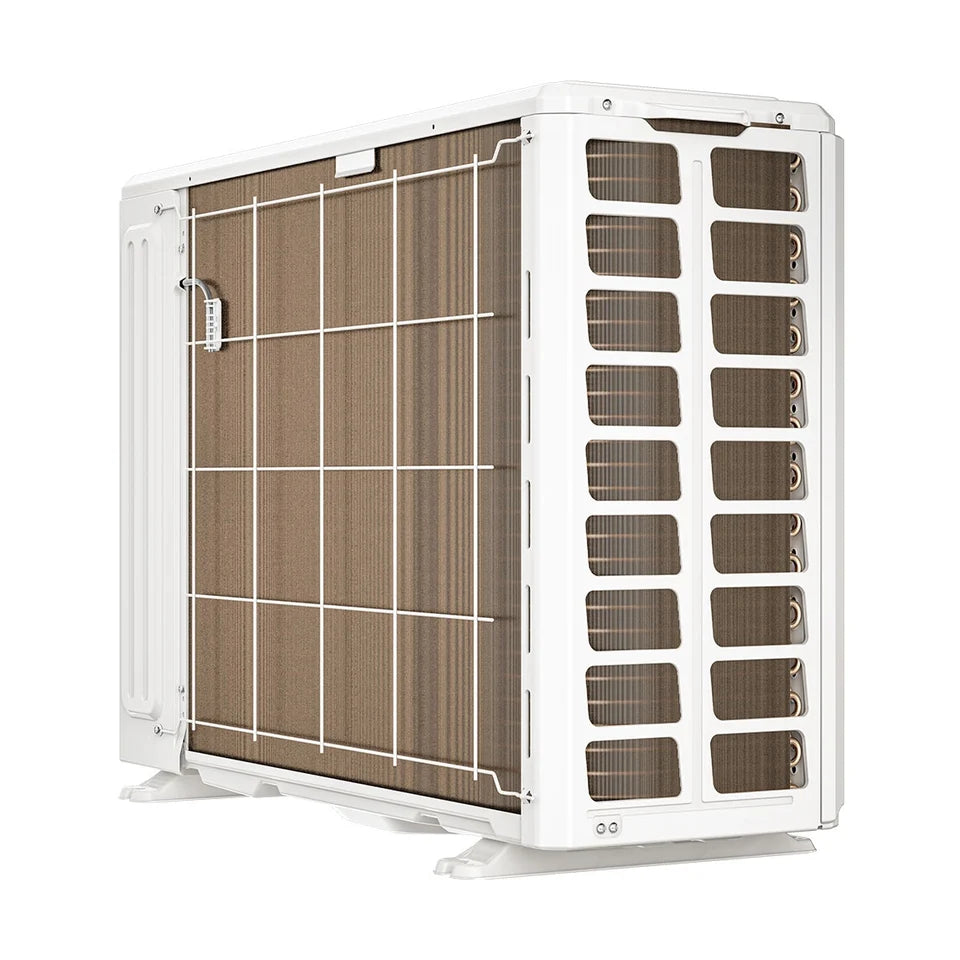

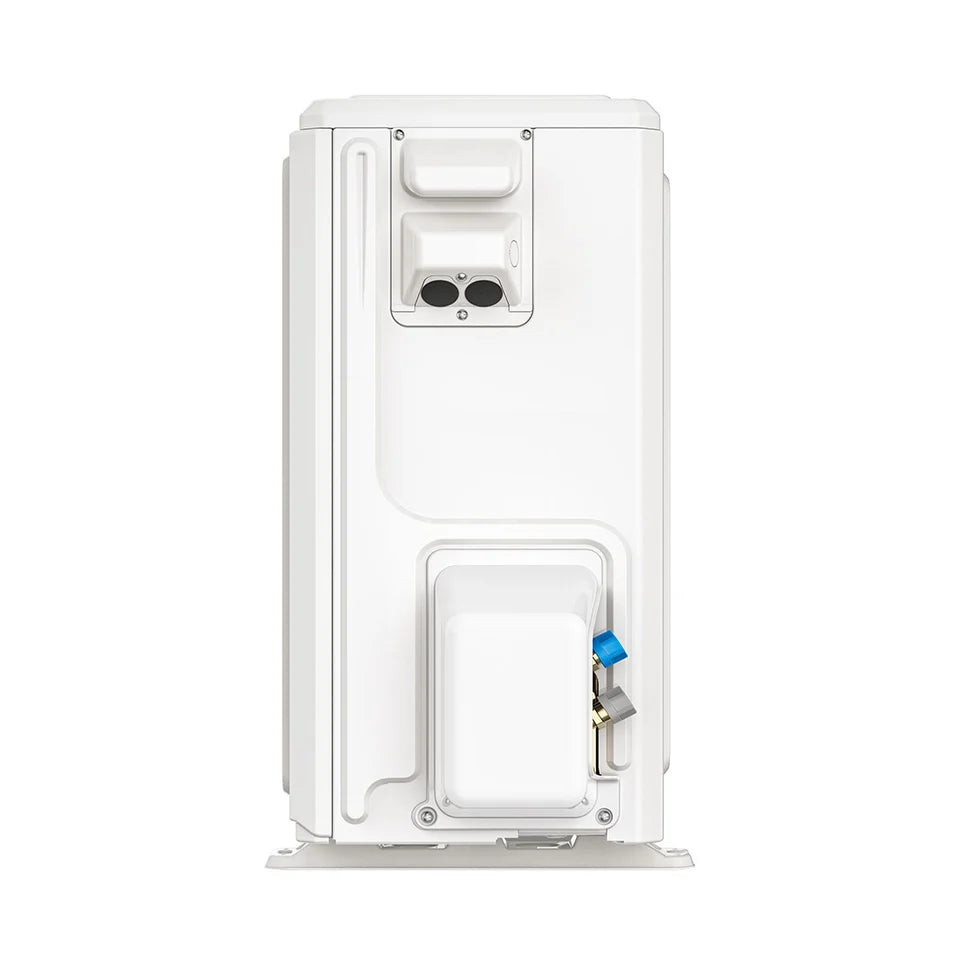

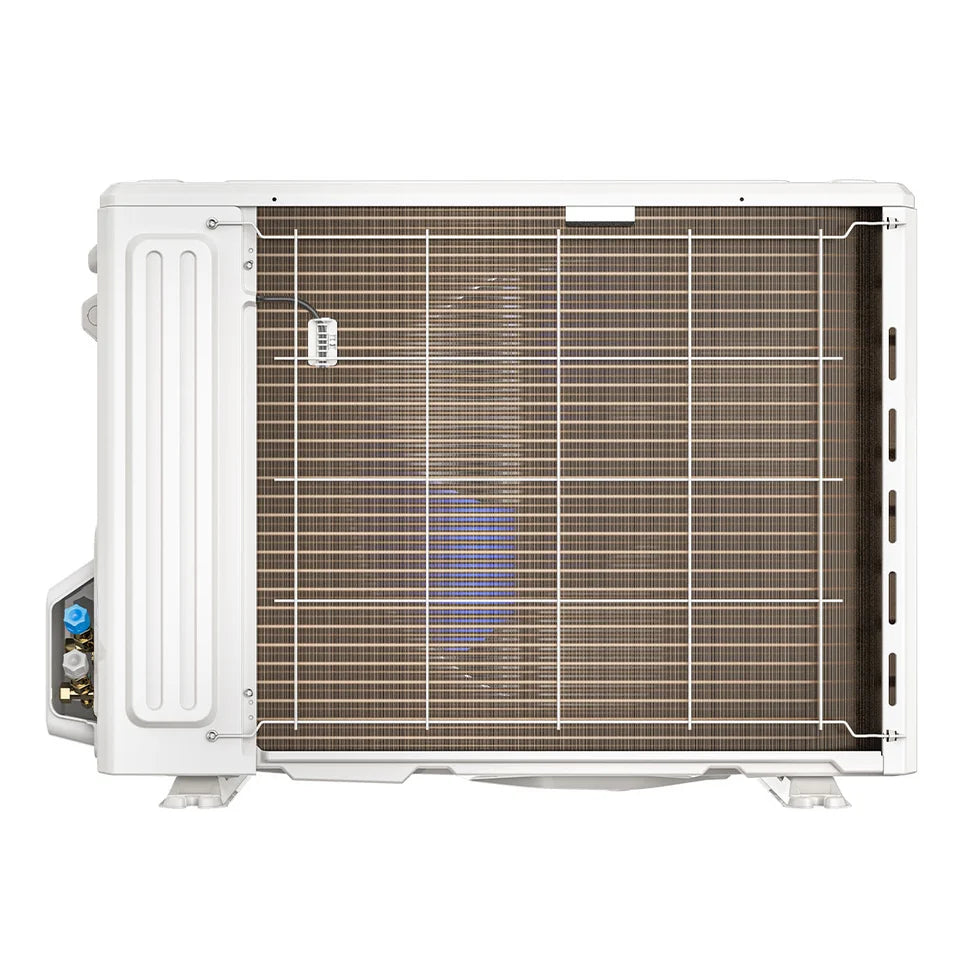

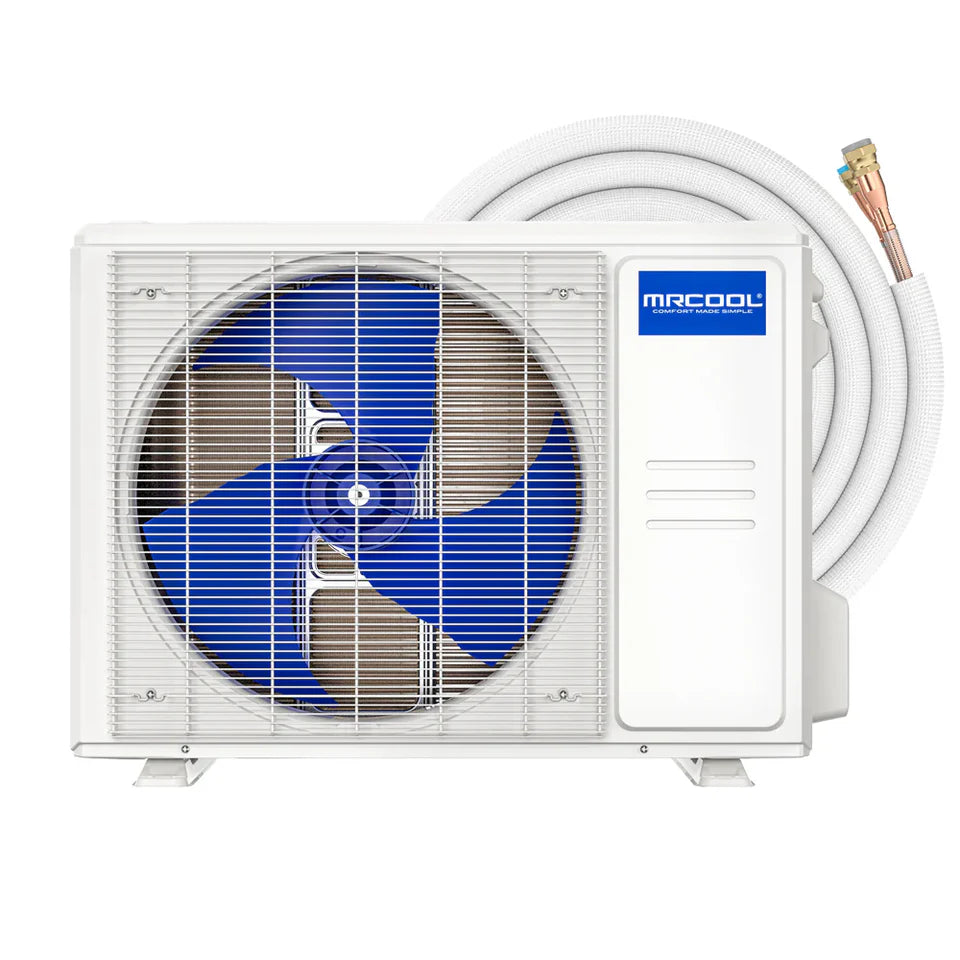

MRCOOL DIY 5th Gen Easy Pro 9K BTU Single Zone Condenser 115V with 11.5 ft. DIY Quick Connect Line Set -

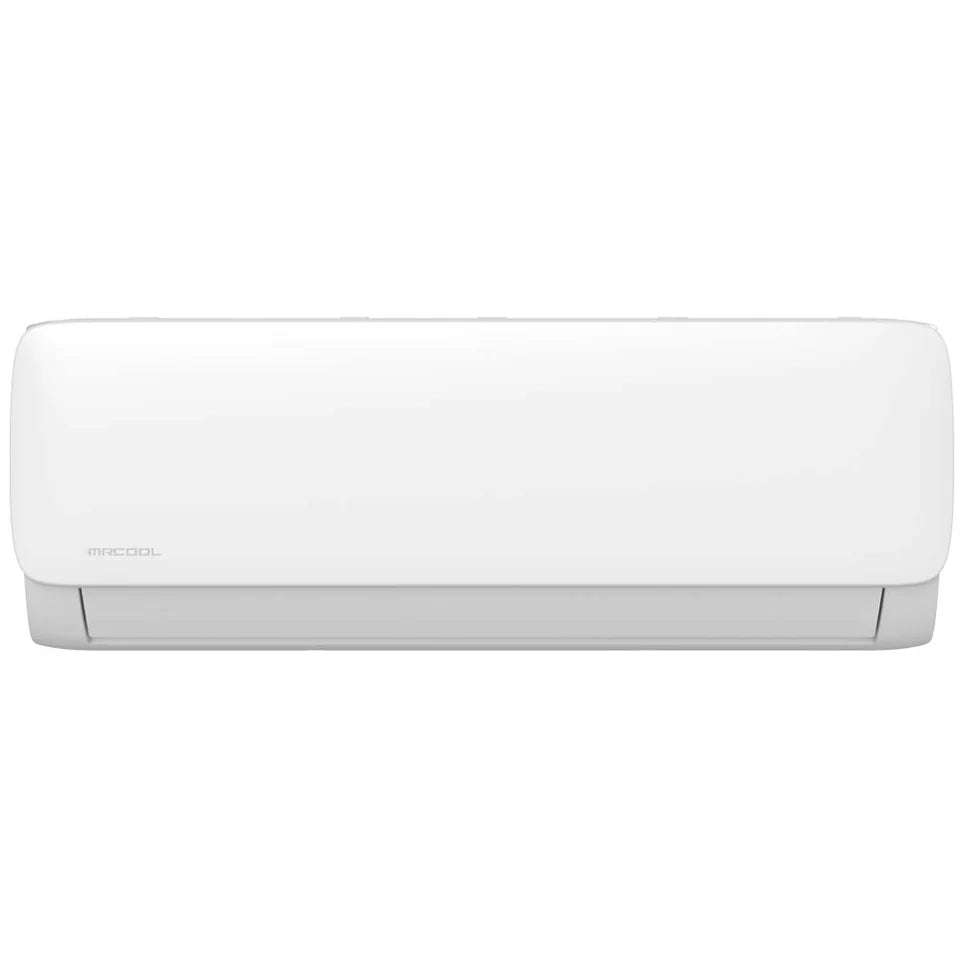

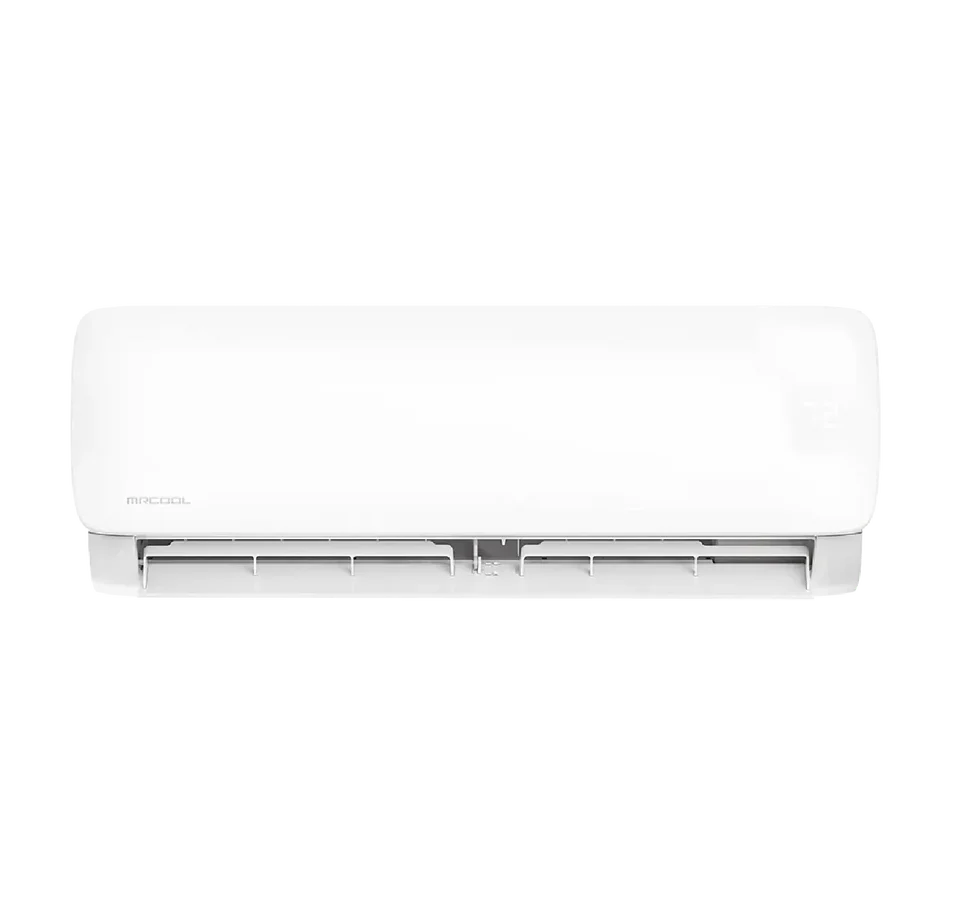

MRCOOL DIY Easy Pro 9K BTU Single Zone Air Handler - 115V
Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
DIY EasyPro |
|
CONDENSER MODEL |
EZPRO-09-HP-C-11511DE-O |
|
AIR HANDLER MODEL |
EZPRO-09-HP-WMAH-115DE-O |
|
GTIN / UPC |
840255595964 / 840255596008 |
|
SHORT DESCRIPTION |
DIY Easy Pro® - R454B DIY 9K BTU Ductless Mini-Split Heat Pump, 115V, with 11.5 ft Install Kit |
|
SEER2 |
20.2 |
|
EER2 |
11.3 |
|
HSPF2-4 |
9.2 |
|
HSPF2-5 |
7.1 |
|
TONNAGE |
0.75 |
|
COOLING CAPACITY (BTU) |
9,000 |
|
HEATING CAPACITY (BTU) |
10,000 |
|
VOLTAGE (V) |
115 |
|
PHASE / CYCLE |
1 / 60 Hz |
|
MAX FUSE / BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
17 |
|
COLOR |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
17.28 |
|
DECIBEL RATING (DBA) |
54 |
|
INVERTER |
Yes |
|
LINESET INCLUDED |
Yes |
|
LINE SET LENGTH |
11.5 ft |
|
MAX LINESET LENGTH (FT) |
75 ft |
|
LIQUID LINE SIZE |
1/4 in |
|
SUCTION LINE SIZE |
3/8 in |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
CONDENSER FAN MOTOR TYPE |
DC |
|
METERING DEVICE |
EEV |
|
CERTIFICATIONS |
UL Listed, CSA Listed, ETL Listed, Energy Star Certified, AHRI Certified |
|
MAX COVERAGE AREA |
400 sq. ft. |
|
AIR HANDLER CFM |
312.0 / 235.4 / 170.7 / 135.4 |
|
AIR HANDLER MAX FUSE / BREAKER (A) |
15 |
|
AIR HANDLER MIN CIRCUIT AMPACITY (A) |
3 |
|
AIR HANDLER LOW SOUND LEVEL (DBA) |
18 |
|
AIR HANDLER HIGH SOUND LEVEL (DBA) |
43 |
|
OSCILLATION |
Yes |
|
BLOWER MOTOR TYPE |
DC |
|
FILTER TYPE |
Reusable |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
FAN ONLY OPTION |
Yes |
|
SLEEP MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
IOS / ANDROID COMPATIBILITY |
Yes / Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
BASE WARRANTY |
3 Year Parts, 5 Year Compressor |
|
NET DIMENSIONS |
28.35 W x 10.63 D x 19.49 H in / 28.7 W x 7.87 D x 11.5 H in |
|
NET WEIGHT |
54.67 lb / 23.81 lb |
|
GROSS DIMENSIONS |
32.87 W x 10.63 D x 21.26 H in / 32.68 W x 16.14 D x 13.58 H in |
|
GROSS WEIGHT |
66.58 lb / 33.95 lb |
