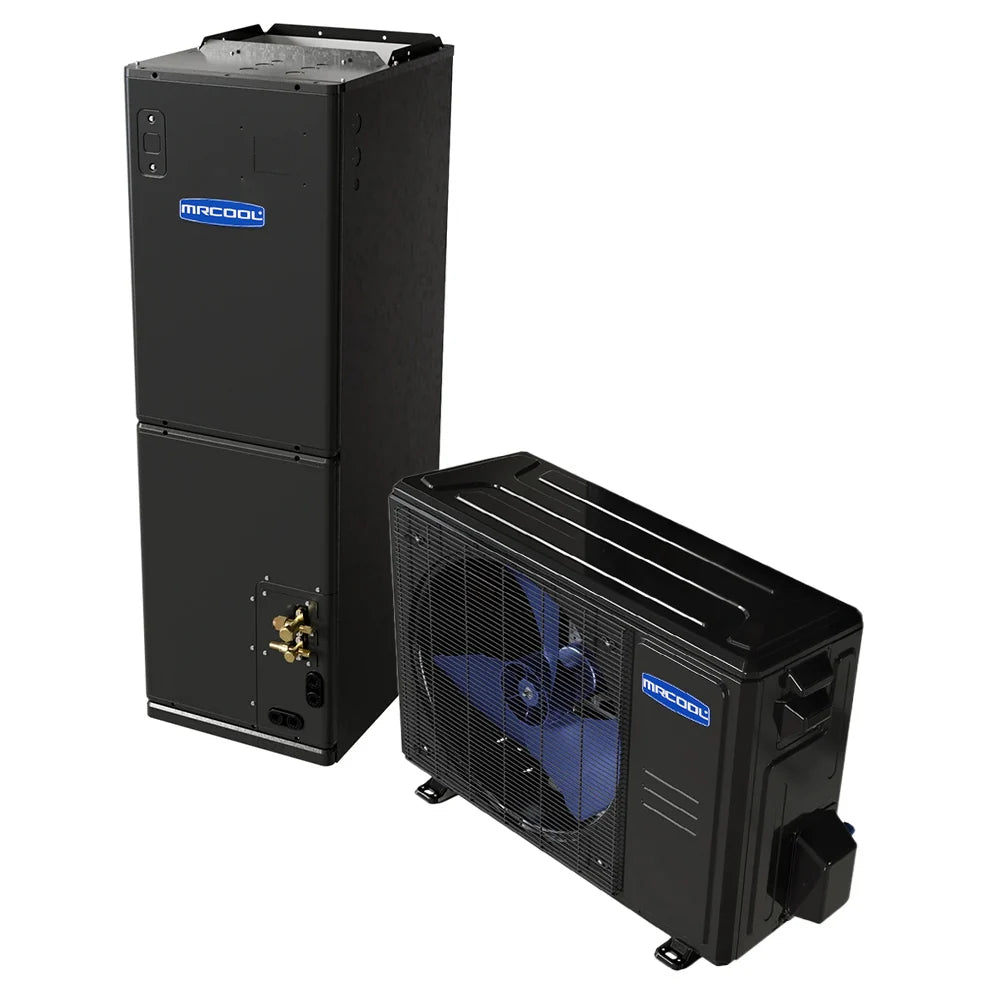

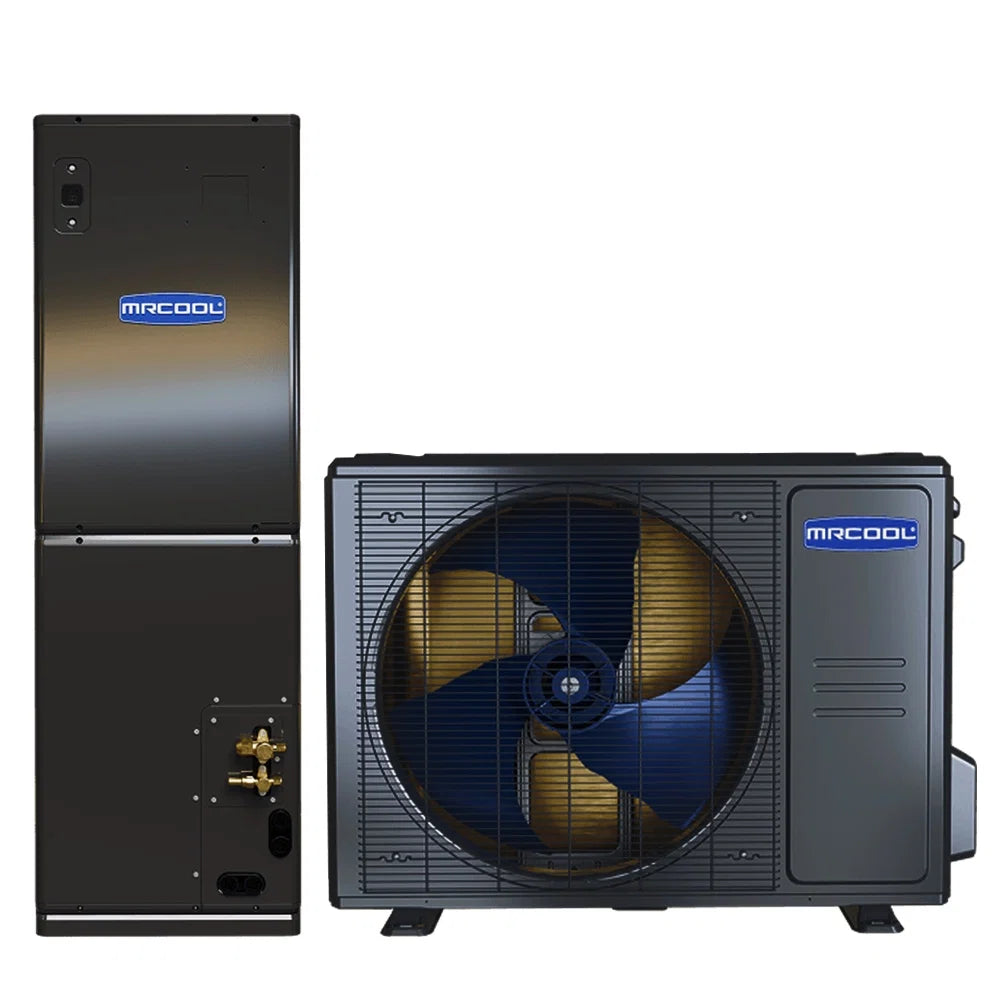

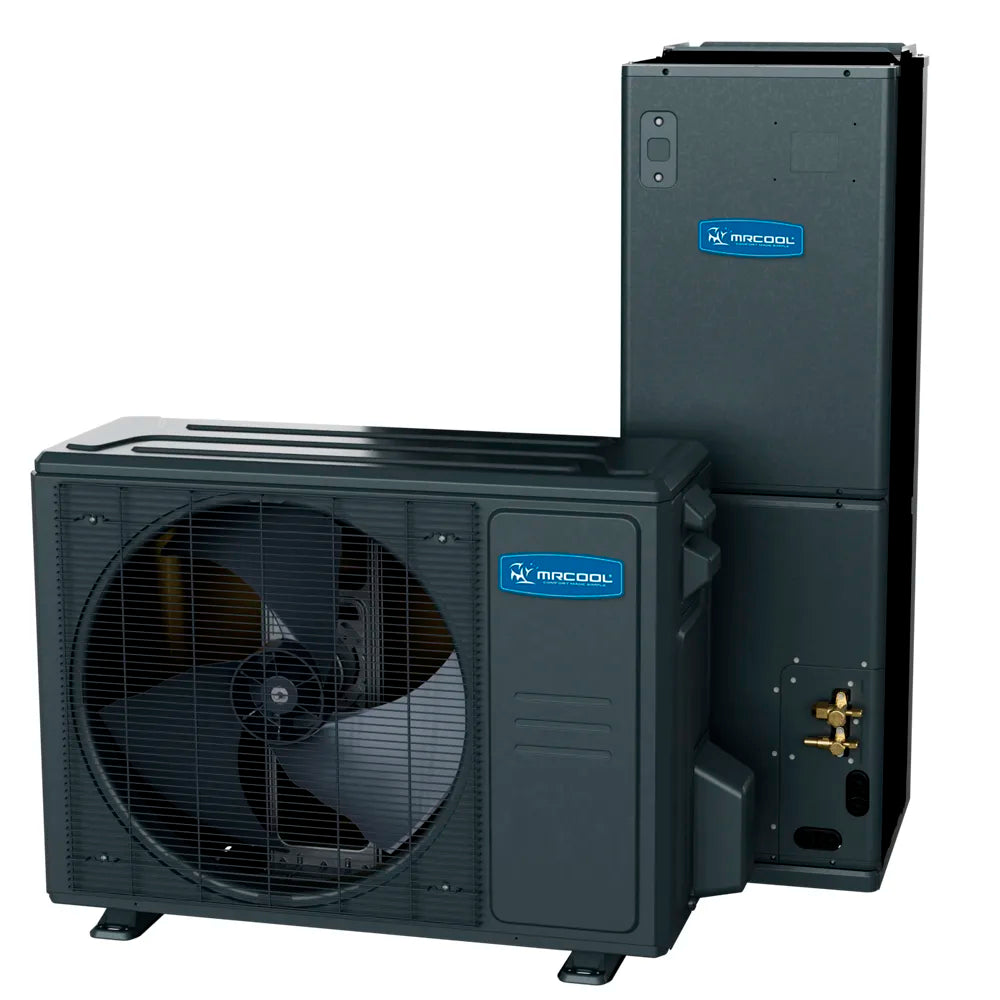

The MRCOOL® Universal® Series 24K DC Inverter Heat Pump System is designed to provide dependable heating and cooling throughout the year. With a 24,000 BTU capacity and up to 18.6 SEER2 efficiency, this 2-ton system delivers consistent indoor comfort while supporting efficient energy use across different outdoor conditions.

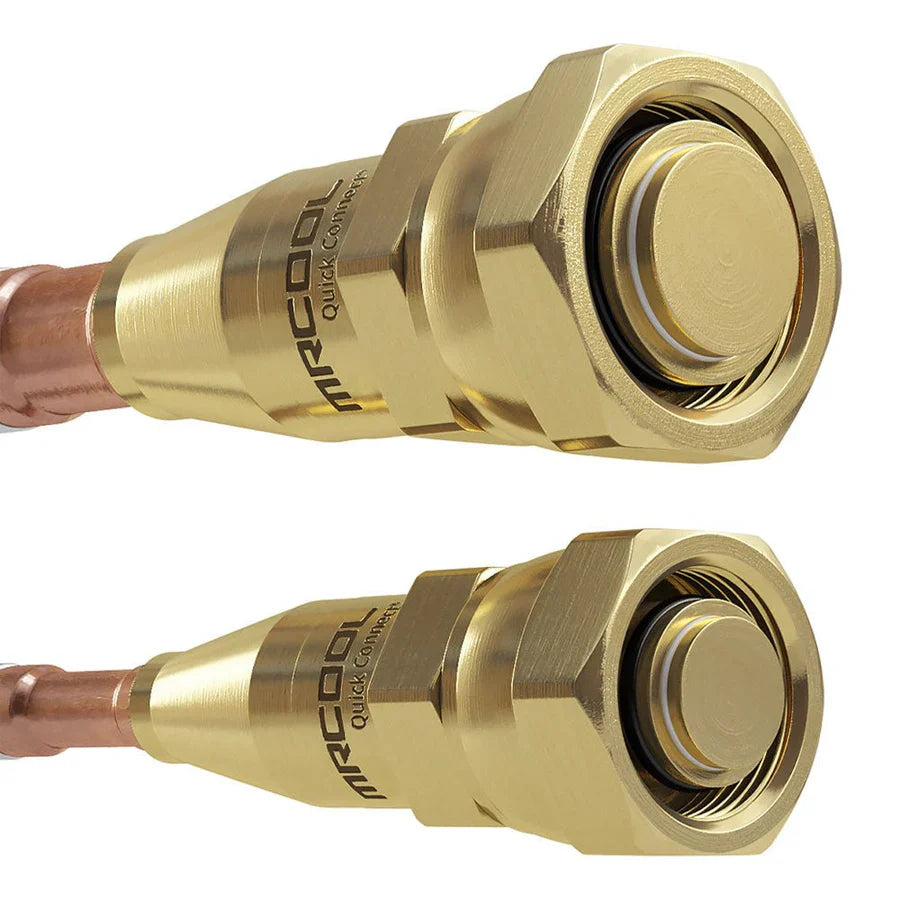

The Universal® 24K system includes a multi-position air handler that supports upflow, downflow, and horizontal installation configurations, making it suitable for a variety of installation environments. Its design allows flexible placement in areas such as closets, attics, and crawlspaces, while compatibility with MRCOOL® NO-VAC® Quick Connect® line sets can help simplify installation for qualifying applications.
Built with an M-shaped all-aluminum coil and compatible with optional Universal® Series electric heat kits, the system provides additional flexibility for different heating requirements. The unit is backed by a 10-year parts warranty and a 2-year limited labor warranty when professionally installed by a licensed contractor.
What's Included
-

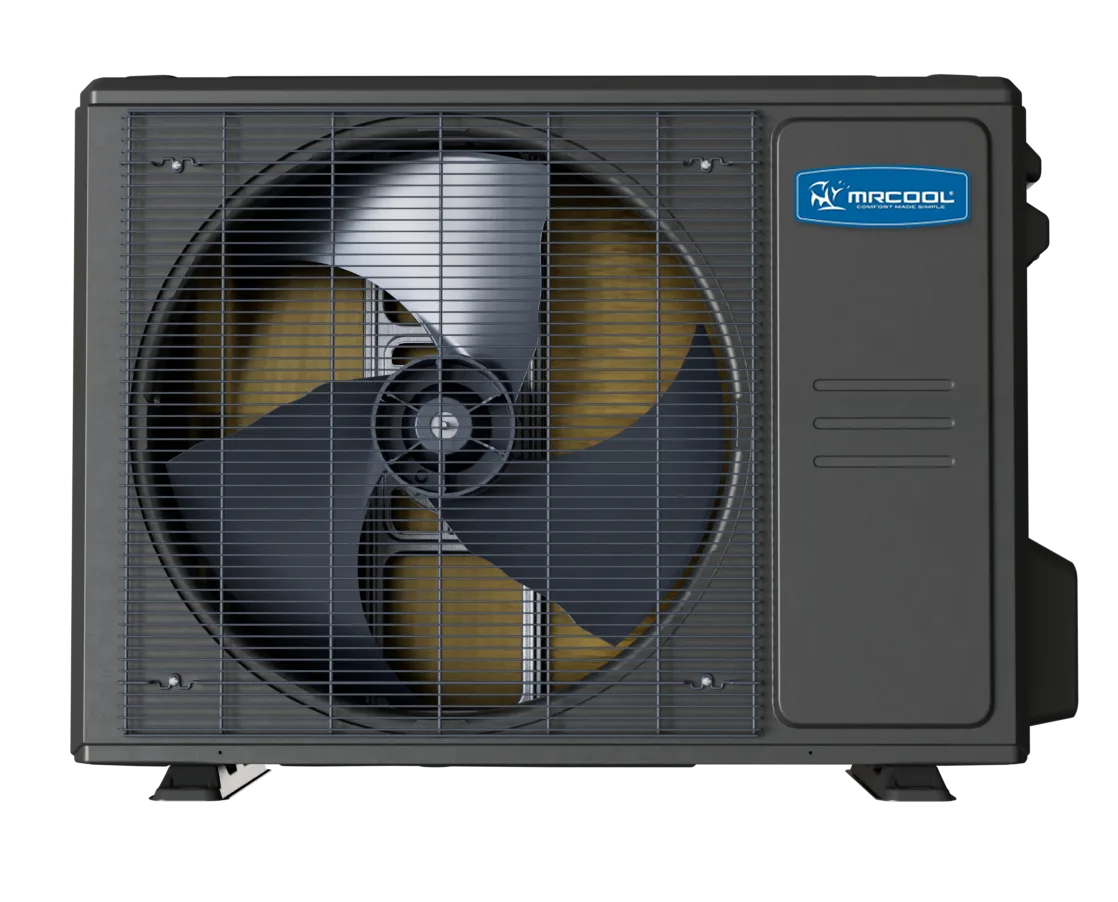

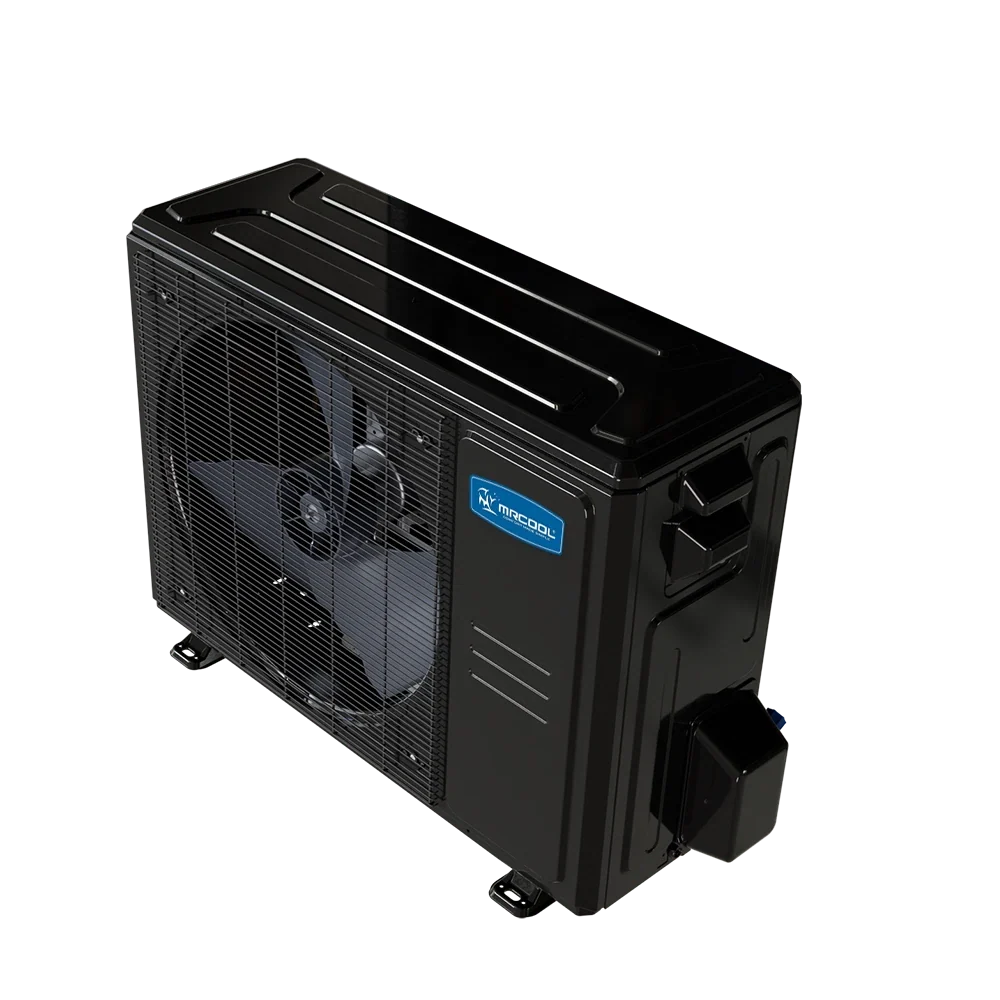

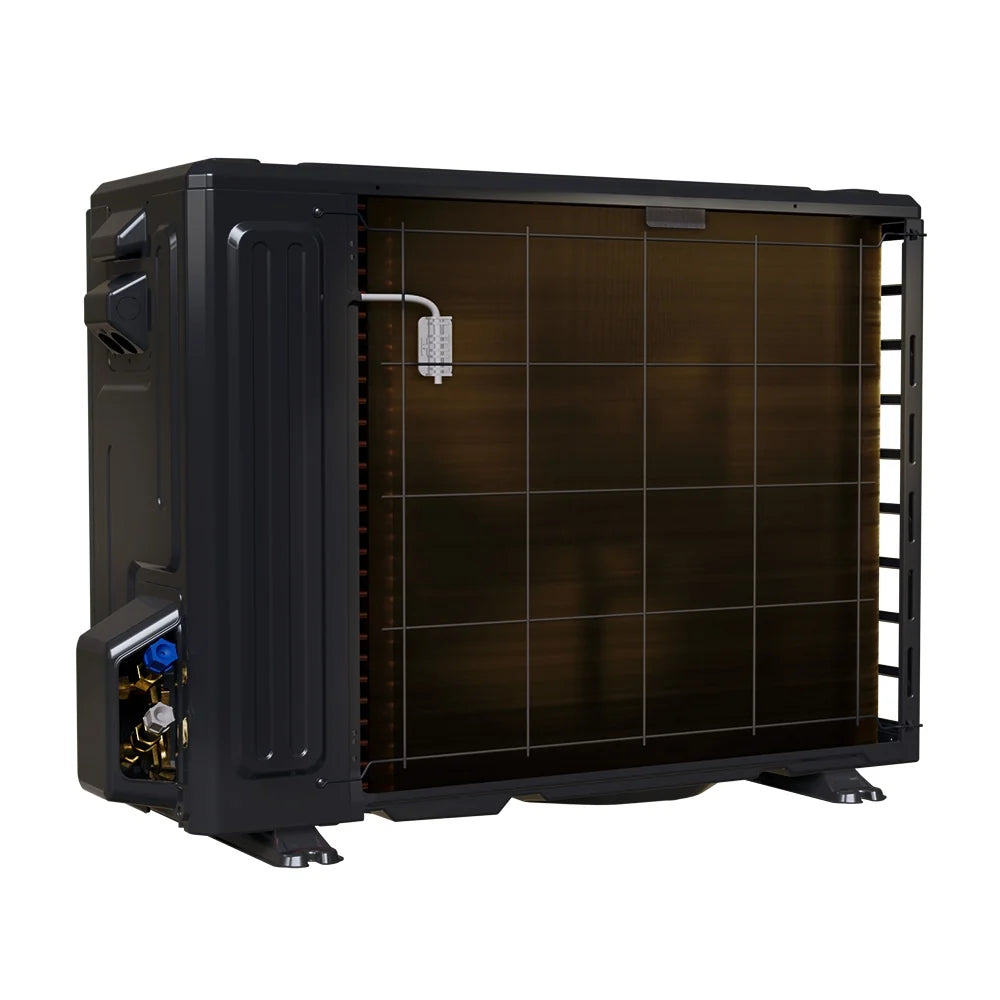

MRCOOL Universal Series 2 Ton Heat Pump Inverter Condenser, UHP18024-O -

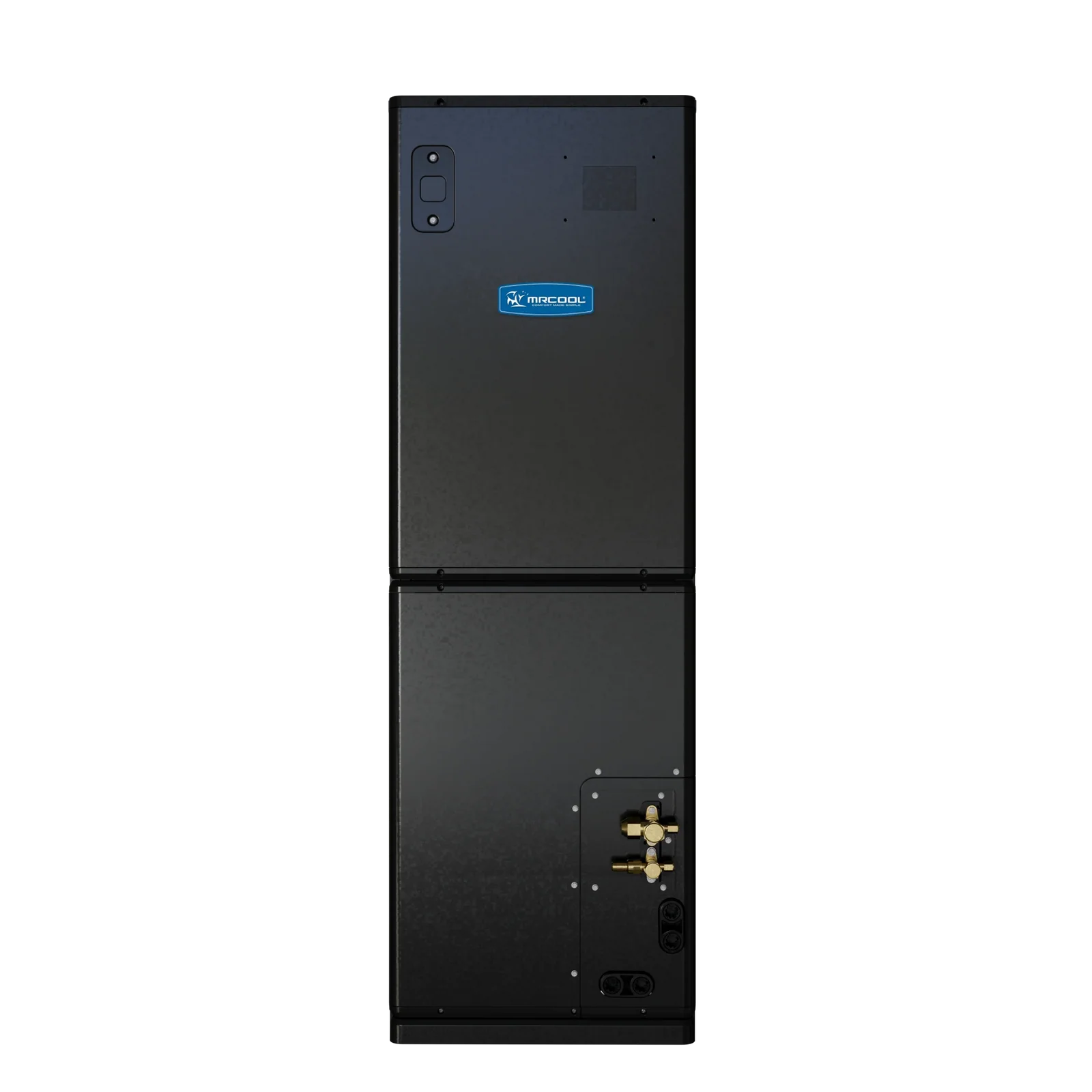

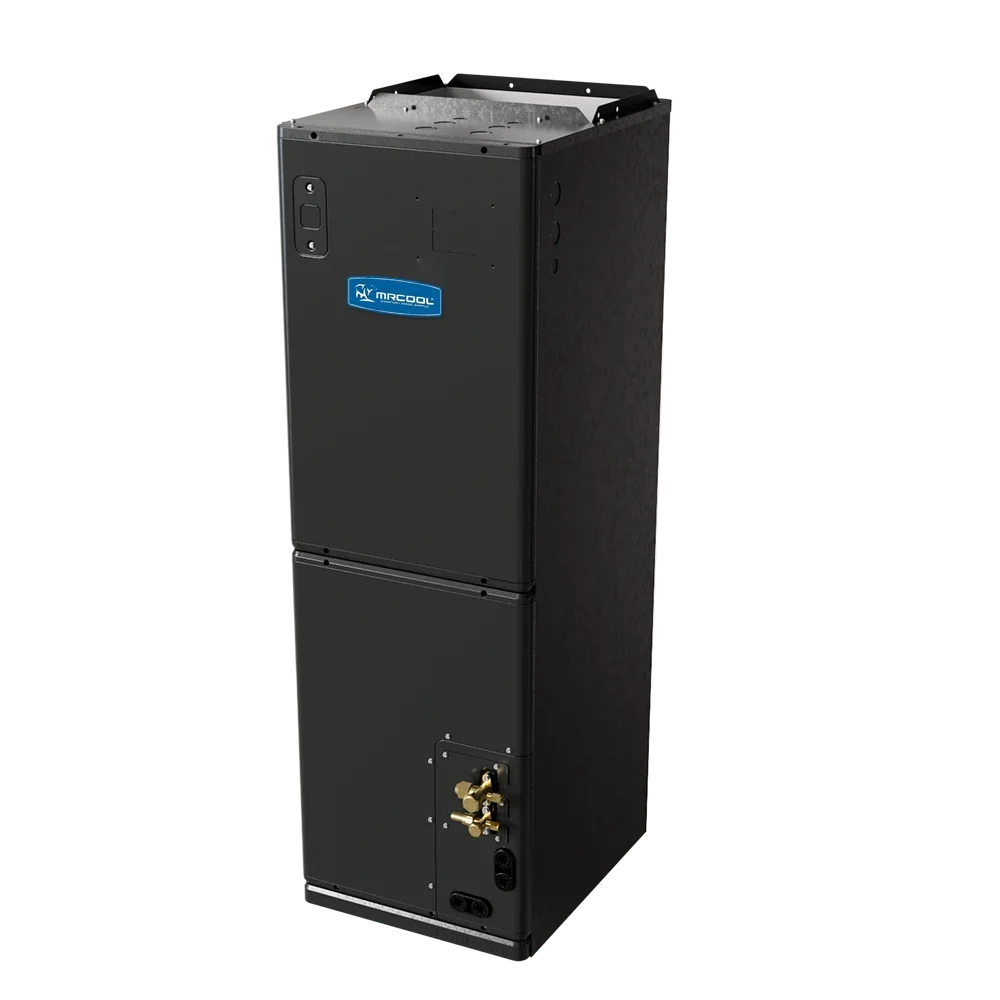

MRCOOL Universal Series 2 Ton Air Handler, UAH18024-O -

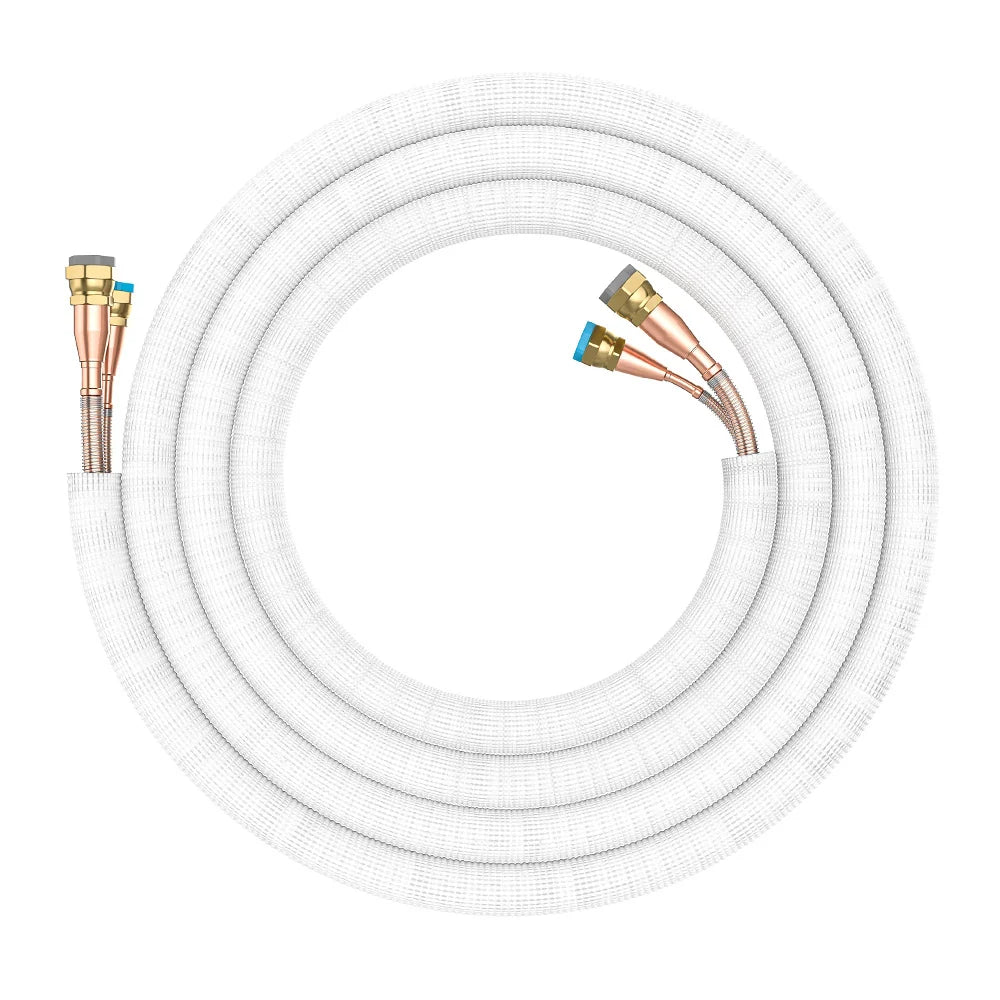

MRCOOL No-Vac 3/8 3/4 Precharged Lineset for Universal Series and Central Ducted Systems - R410A
Specifications :
|
BRAND NAME |
MRCOOL |
|
SERIES |
Universal R-454B |
|
MODEL |
UHP18024-O |
|
EQUIPMENT TYPE |
DC Inverter Heat Pump Condenser |
|
TONNAGE |
2 |
|
RATED COOLING CAPACITY (BTU/H) |
24,000 |
|
MIN/MAX COOLING CAPACITY (BTU/H) |
6,400 / 28,700 |
|
RATED HEATING CAPACITY @ 47 F (BTU/H) |
24,000 |
|
MIN/MAX HEATING CAPACITY @ 47 F (BTU/H) |
6,700 / 29,100 |
|
RATED HEATING CAPACITY @ 17 F (BTU/H) |
19,000 |
|
RATED HEATING CAPACITY @ 5 F (BTU/H) |
20,600 |
|
COP @ 5 F |
2.14 |
|
SEER2 |
18.6 |
|
EER2 |
12 |
|
HSPF2-4 |
10.0 |
|
HSPF2-5 |
8.1 |
|
VOLTAGE / PHASE / FREQUENCY |
208/230 V / 1 / 60 Hz |
|
MIN CIRCUIT AMPACITY (A) |
19 |
|
MAX FUSE / BREAKER (A) |
20 |
|
REFRIGERANT |
R-454B |
|
FACTORY REFRIGERANT CHARGE (OZ) |
74.08 |
|
COMPRESSOR TYPE |
Rotary |
|
COMPRESSOR MODEL |
KTM240D46UKT2 |
|
OUTDOOR AIRFLOW (CFM) |
1,765.8 |
|
OUTDOOR SOUND LEVEL (DBA) |
59 |
|
COOLING OPERATING RANGE |
-22 to 122 F |
|
HEATING OPERATING RANGE |
-22 to 75 F |
|
LIQUID / GAS LINE SIZE |
3/8 in / 3/4 in |
|
MAX PIPING LENGTH |
164 ft |
|
MAX HEIGHT DIFFERENCE |
82 ft |
|
FACTORY PRECHARGED LENGTH |
24.6 ft |
|
ADDITIONAL REFRIGERANT |
0.7 oz/ft |
|
CONNECTION METHOD |
Flare or Quick Connect |
|
NET DIMENSIONS (W X D X H) |
35.04 x 13.46 x 26.50 in |
|
PACKAGED DIMENSIONS (W X D X H) |
39.17 x 15.67 x 29.13 in |
|
NET / GROSS WEIGHT |
102.29 / 109.13 lb |
|
ENERGY STAR V6.1 CERTIFIED |
Yes |
|
ENERGY STAR COLD CLIMATE CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 years |
|
BASE LIMITED LABOR WARRANTY |
2 years with licensed professional installation |
