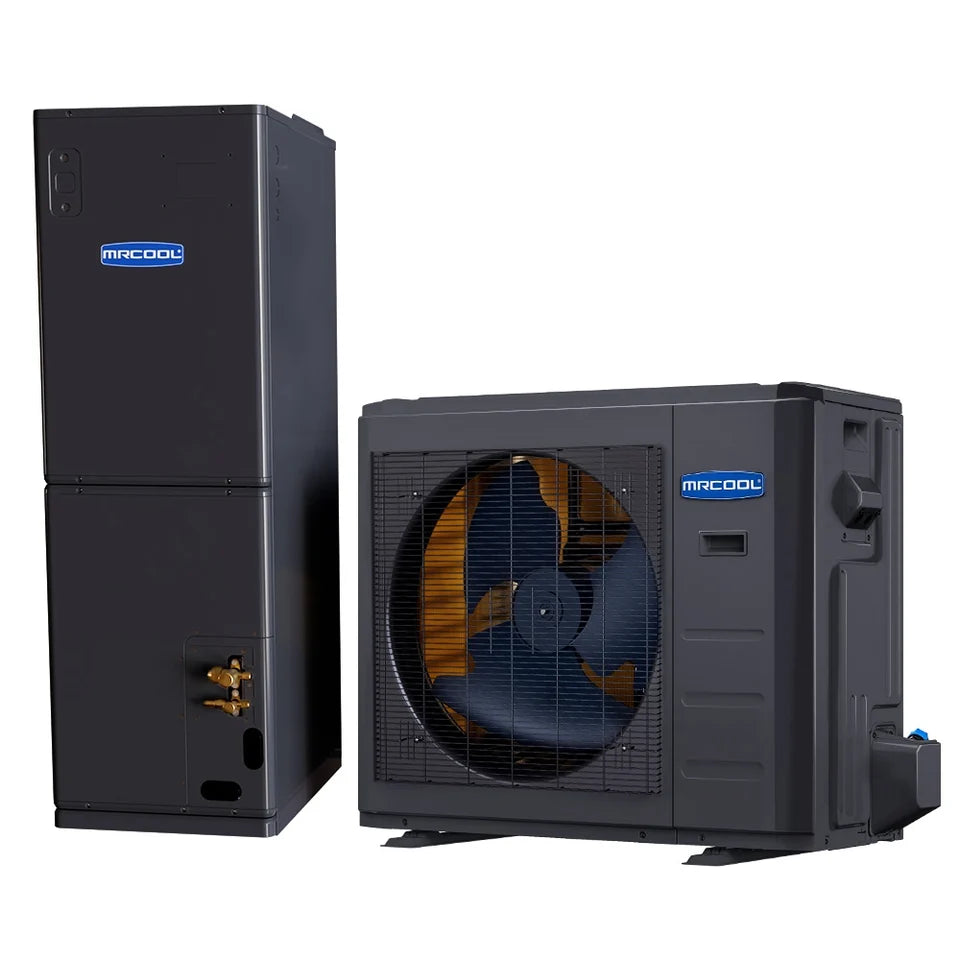

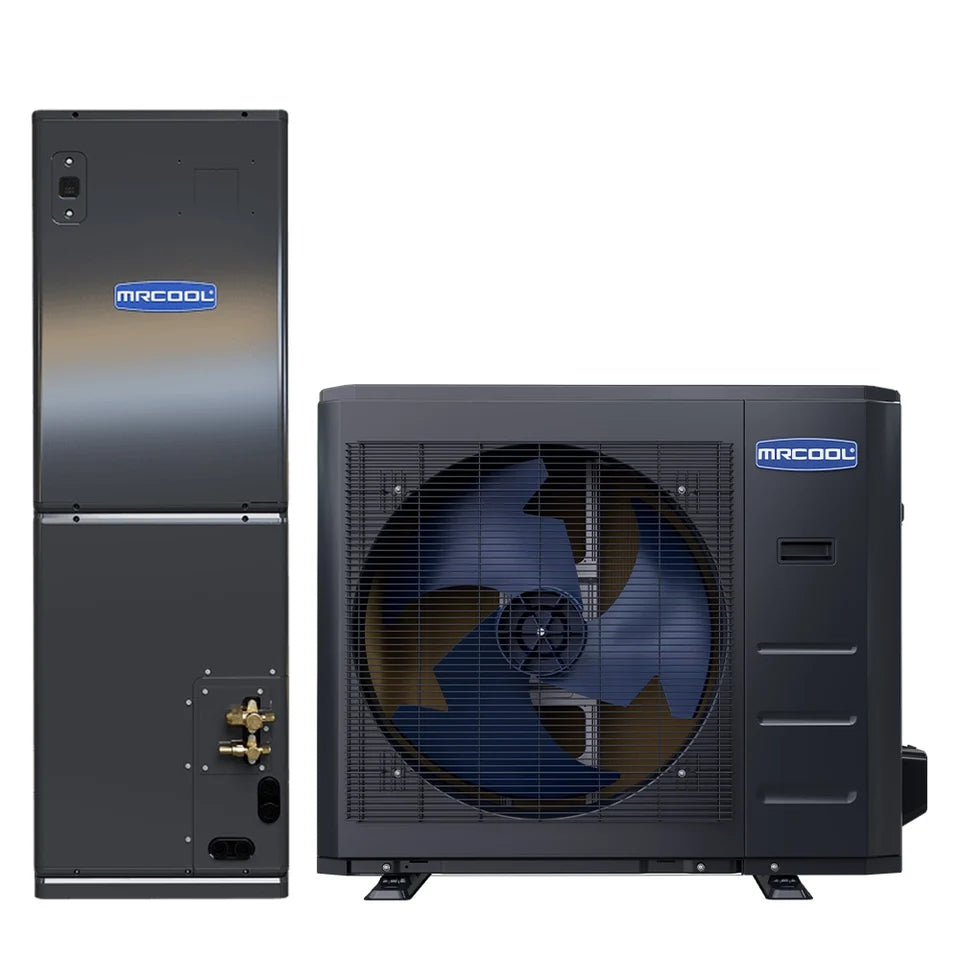

The MRCOOL® Universal® Series 30K DC Inverter Heat Pump System delivers reliable year-round heating and cooling for larger residential spaces. With a 30,000 BTU capacity, 2.5-ton configuration, and up to 17.2 SEER2 efficiency, this system is designed to provide dependable comfort while maintaining efficient operation across a wide range of outdoor temperatures.

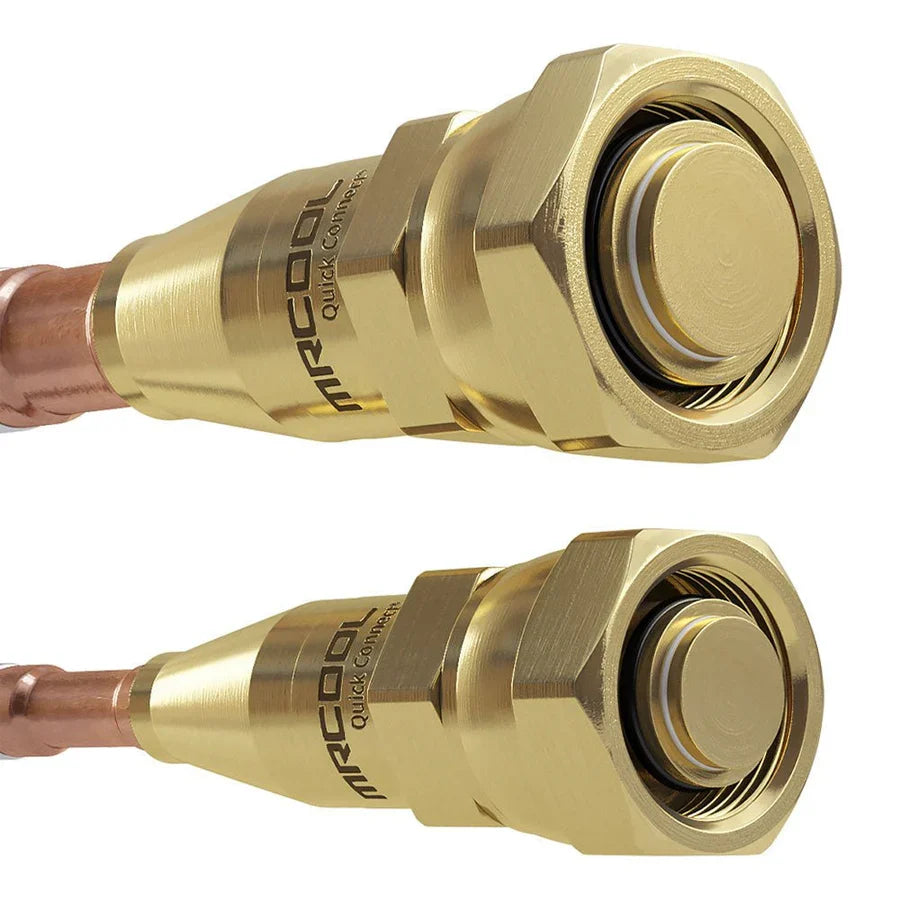

The Universal® 30K system pairs a versatile multi-position air handler with an inverter-driven heat pump condenser, allowing the air handler to be installed in upflow, downflow, or horizontal configurations. Its flexible design makes it suitable for installation in locations such as attics, closets, and crawlspaces, while compatibility with MRCOOL® NO-VAC® Quick Connect® line sets provides a convenient connection option for qualifying installations.
The system features an M-shaped all-aluminum coil, electronic expansion valve, and support for optional Universal® Series heat kits in 5, 8, 10, and 15 kW capacities. With Energy Star V6.1 and Cold Climate certifications, AHRI certification, a 10-year parts warranty, and a 2-year limited labor warranty with licensed professional installation, the 30K Universal® system is built for dependable long-term performance.
What's Included
-
-

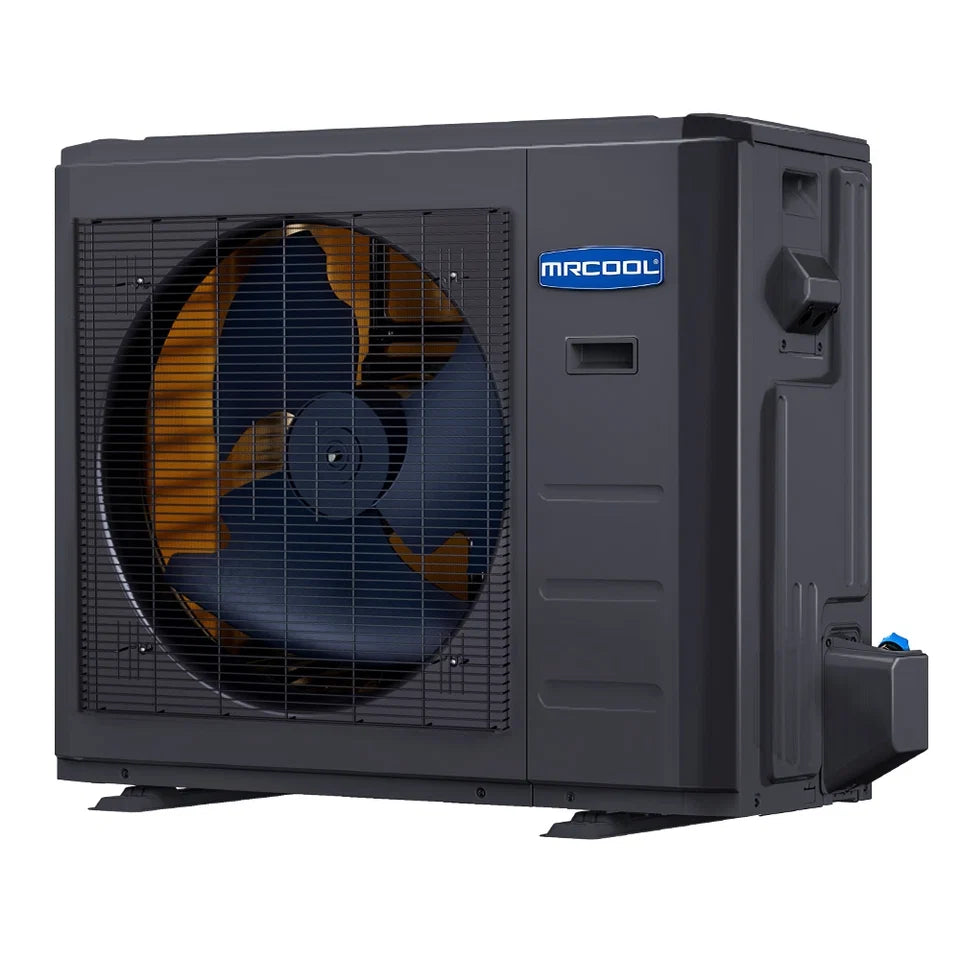

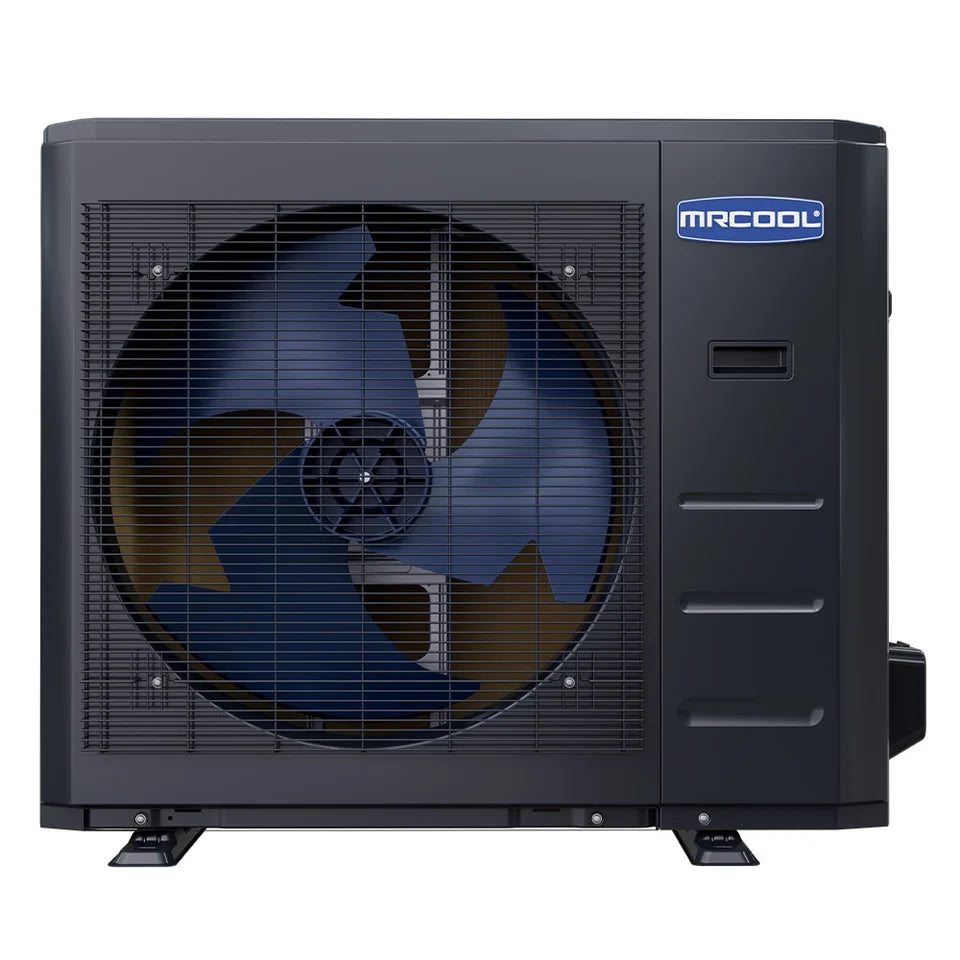

MRCOOL Universal Series 2.5 Ton Heat Pump Inverter Condenser, UHP18030-O -

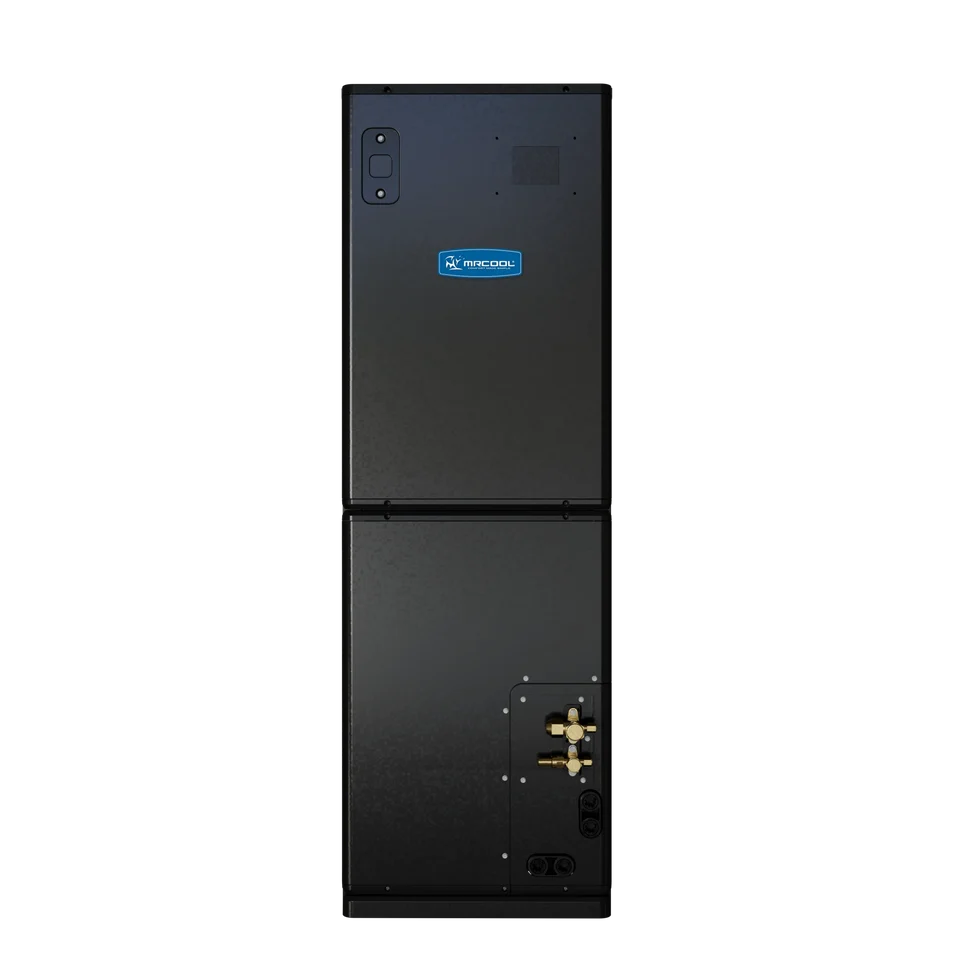

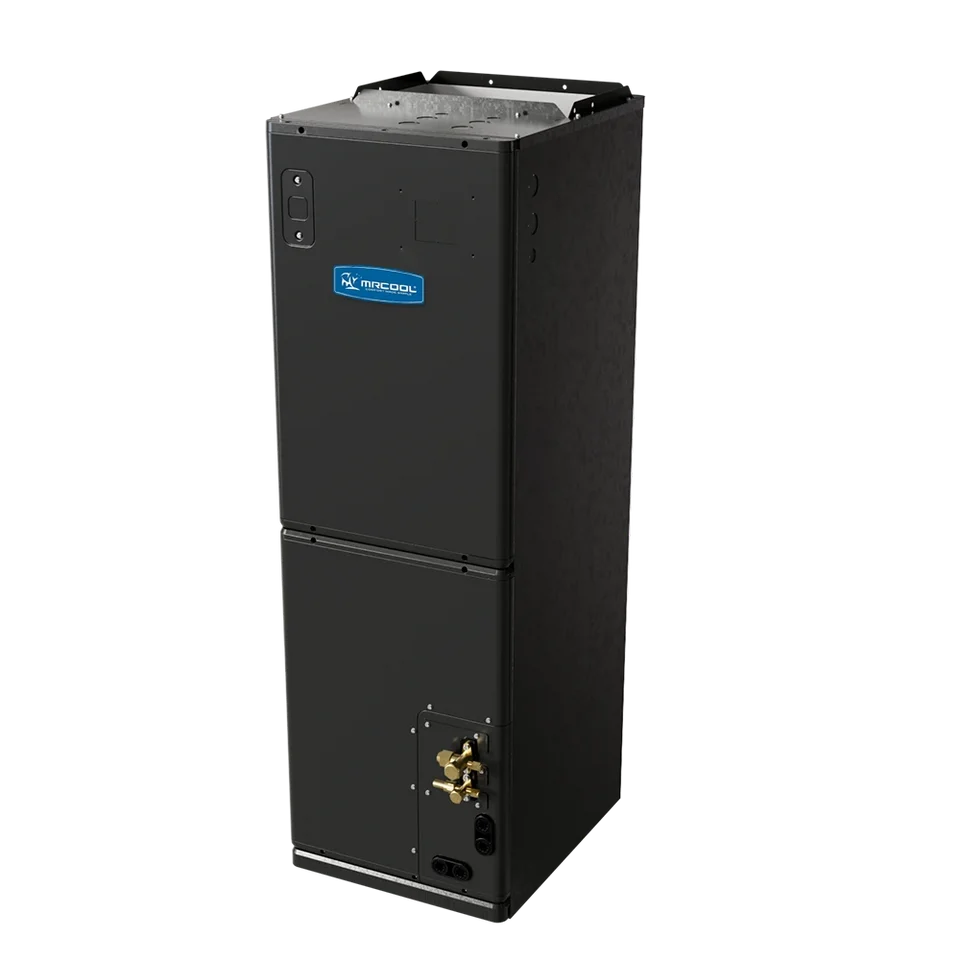

MRCOOL Universal Series 2.5 Ton Air Handler, UAH18030-O -

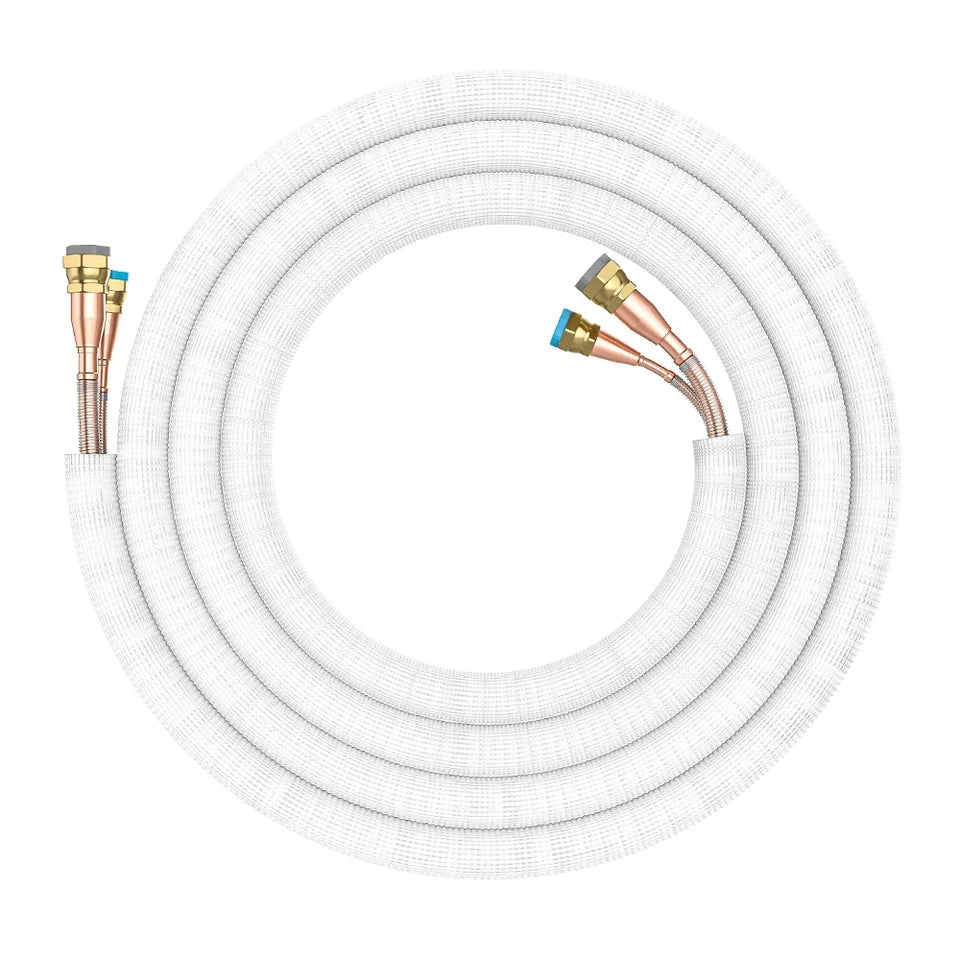

MRCOOL No-Vac 3/8 3/4 Precharged Lineset for Universal Series and Central Ducted Systems - R410A
-
Specifications :
|
BRAND NAME |
MRCOOL |
|
SERIES |
Universal R-454B |
|
MODEL |
UHP18030-O |
|
EQUIPMENT TYPE |
DC Inverter Heat Pump Condenser |
|
TONNAGE |
2.5 |
|
RATED COOLING CAPACITY (BTU/H) |
30,000 |
|
MIN/MAX COOLING CAPACITY (BTU/H) |
11,200 / 40,000 |
|
RATED HEATING CAPACITY @ 47 F (BTU/H) |
33,000 |
|
MIN/MAX HEATING CAPACITY @ 47 F (BTU/H) |
9,700 / 35,800 |
|
RATED HEATING CAPACITY @ 17 F (BTU/H) |
24,000 |
|
RATED HEATING CAPACITY @ 5 F (BTU/H) |
33,200 |
|
COP @ 5 F |
1.97 |
|
SEER2 |
17.2 |
|
EER2 |
12 |
|
HSPF2-4 |
10.8 |
|
HSPF2-5 |
8.8 |
|
VOLTAGE / PHASE / FREQUENCY |
208/230 V / 1 / 60 Hz |
|
MIN CIRCUIT AMPACITY (A) |
29.5 |
|
MAX FUSE / BREAKER (A) |
30 |
|
REFRIGERANT |
R-454B |
|
FACTORY REFRIGERANT CHARGE (OZ) |
105.82 |
|
COMPRESSOR TYPE |
Rotary |
|
COMPRESSOR MODEL |
MTH356UKRC8FQL |
|
OUTDOOR AIRFLOW (CFM) |
3,001.9 |
|
OUTDOOR SOUND LEVEL (DBA) |
62 |
|
COOLING OPERATING RANGE |
-22 to 122 F |
|
HEATING OPERATING RANGE |
-22 to 75 F |
|
LIQUID / GAS LINE SIZE |
3/8 in / 3/4 in |
|
MAX PIPING LENGTH |
164 ft |
|
MAX HEIGHT DIFFERENCE |
82 ft |
|
FACTORY PRECHARGED LENGTH |
24.6 ft |
|
ADDITIONAL REFRIGERANT |
0.7 oz/ft |
|
CONNECTION METHOD |
Flare or Quick Connect |
|
NET DIMENSIONS (W X D X H) |
37.24 x 16.14 x 31.89 in |
|
PACKAGED DIMENSIONS (W X D X H) |
42.91 x 19.68 x 34.84 in |
|
NET / GROSS WEIGHT |
166.67 / 176.37 lb |
|
ENERGY STAR V6.1 CERTIFIED |
Yes |
|
ENERGY STAR COLD CLIMATE CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 years |
|
BASE LIMITED LABOR WARRANTY |
2 years with licensed professional installation |
