The MRCOOL® Universal® Series 60K DC Inverter Heat Pump System is designed to deliver powerful year-round heating and cooling for larger residential spaces. With a 60,000 BTU capacity, 5-ton configuration, and up to 17.5 SEER2 efficiency, this system provides dependable comfort while using inverter-driven technology to adjust operation according to changing heating and cooling demands.

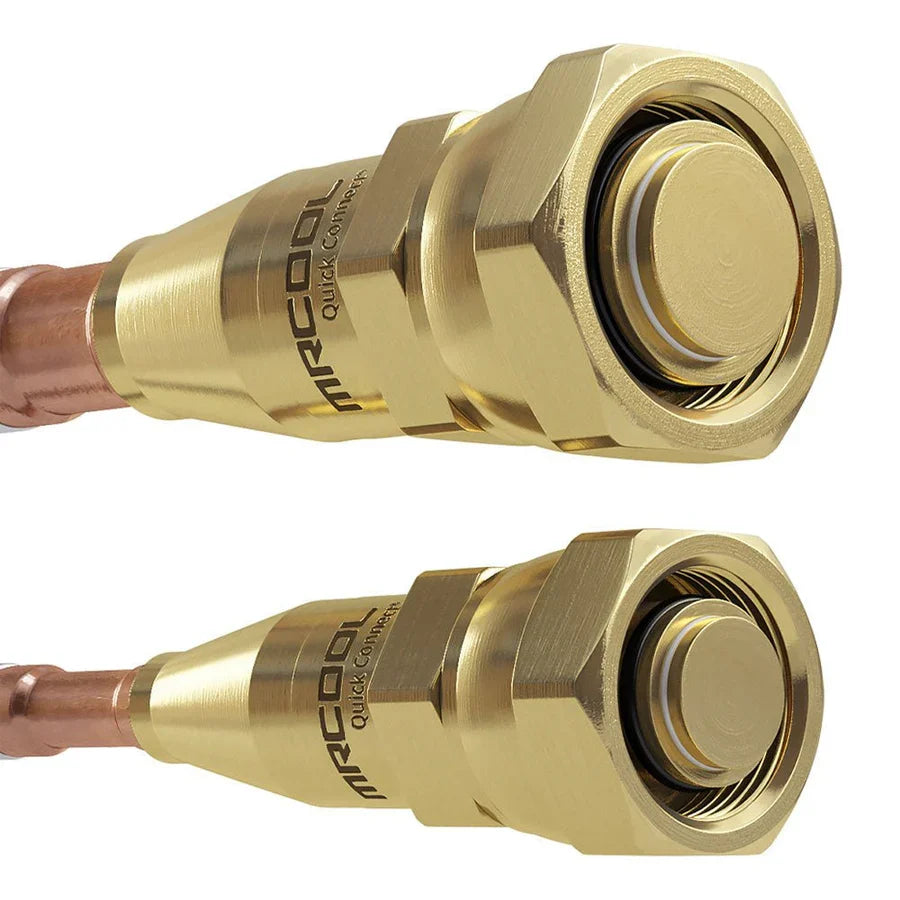

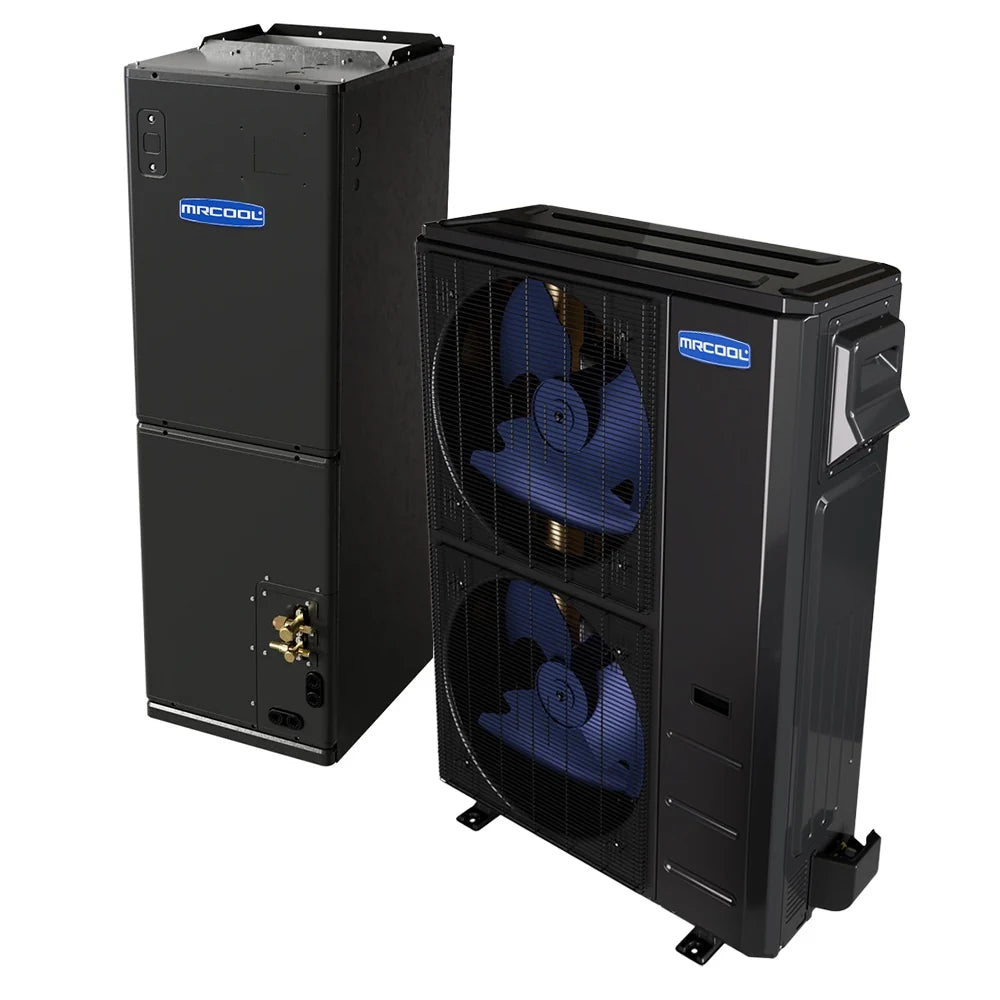

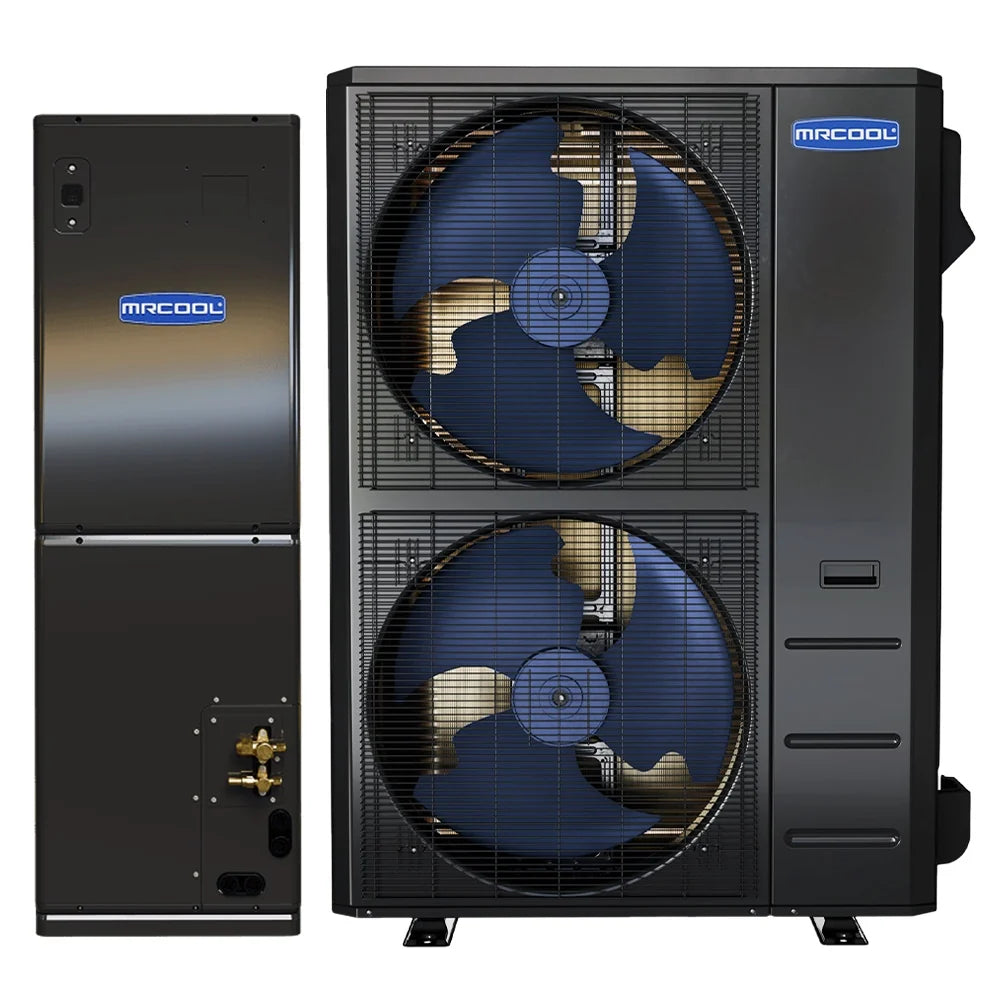

The Universal® 60K system combines an inverter-driven heat pump condenser with a versatile multi-position air handler that supports upflow, downflow, and horizontal installation configurations. Its flexible design makes it suitable for installation in locations such as attics, closets, and crawlspaces, while compatibility with MRCOOL® NO-VAC® Quick Connect® line sets provides a convenient connection option for qualifying installations.
The system features an electronic expansion valve, multi-speed air handler, and compatibility with optional Universal® Series heat kits in 10, 15, and 20 kW capacities for additional heating support. With Energy Star and Cold Climate capabilities, AHRI certification, a 10-year parts warranty, and a 2-year limited labor warranty with licensed professional installation, the 60K Universal® system is built for reliable long-term performance.
What's Included
-
-

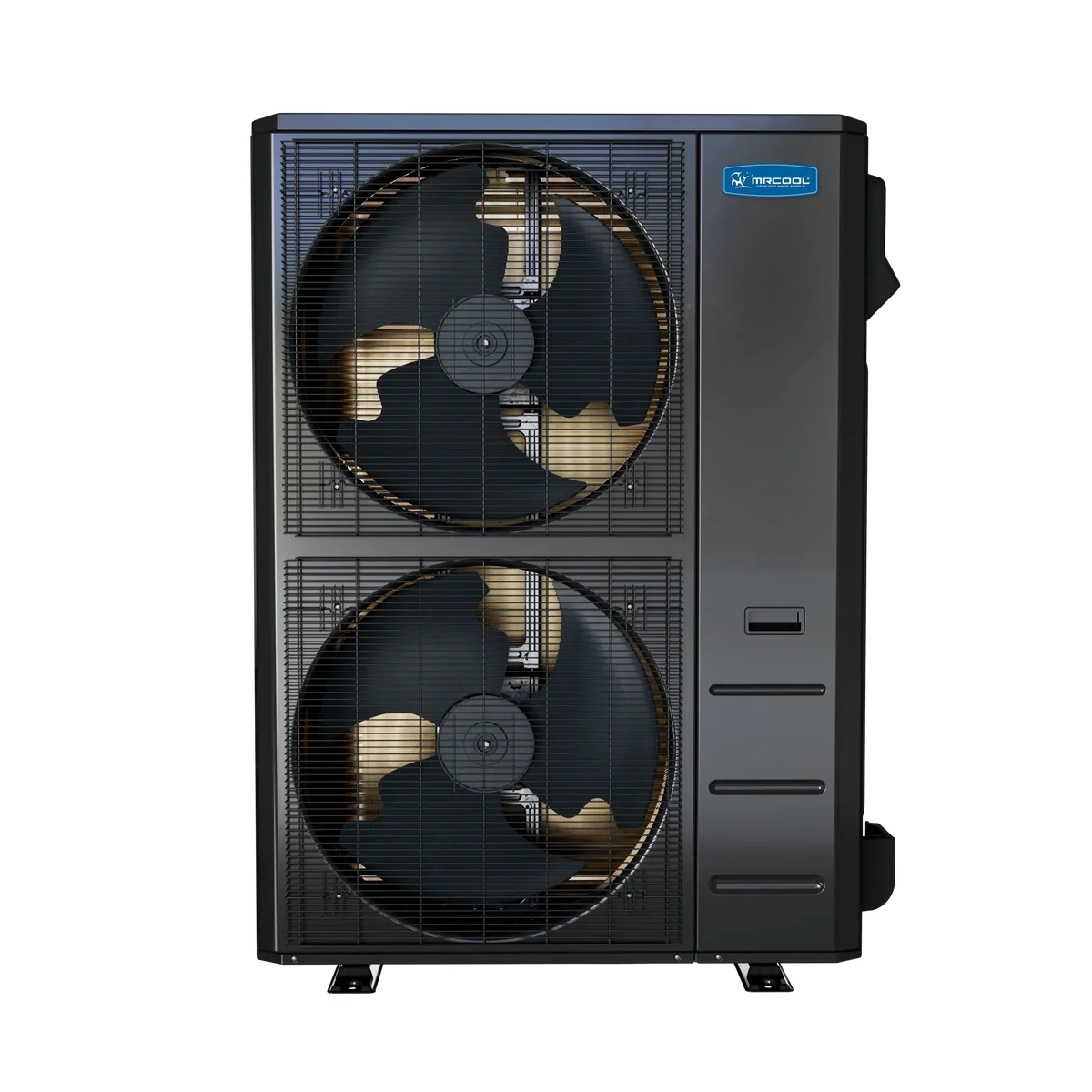

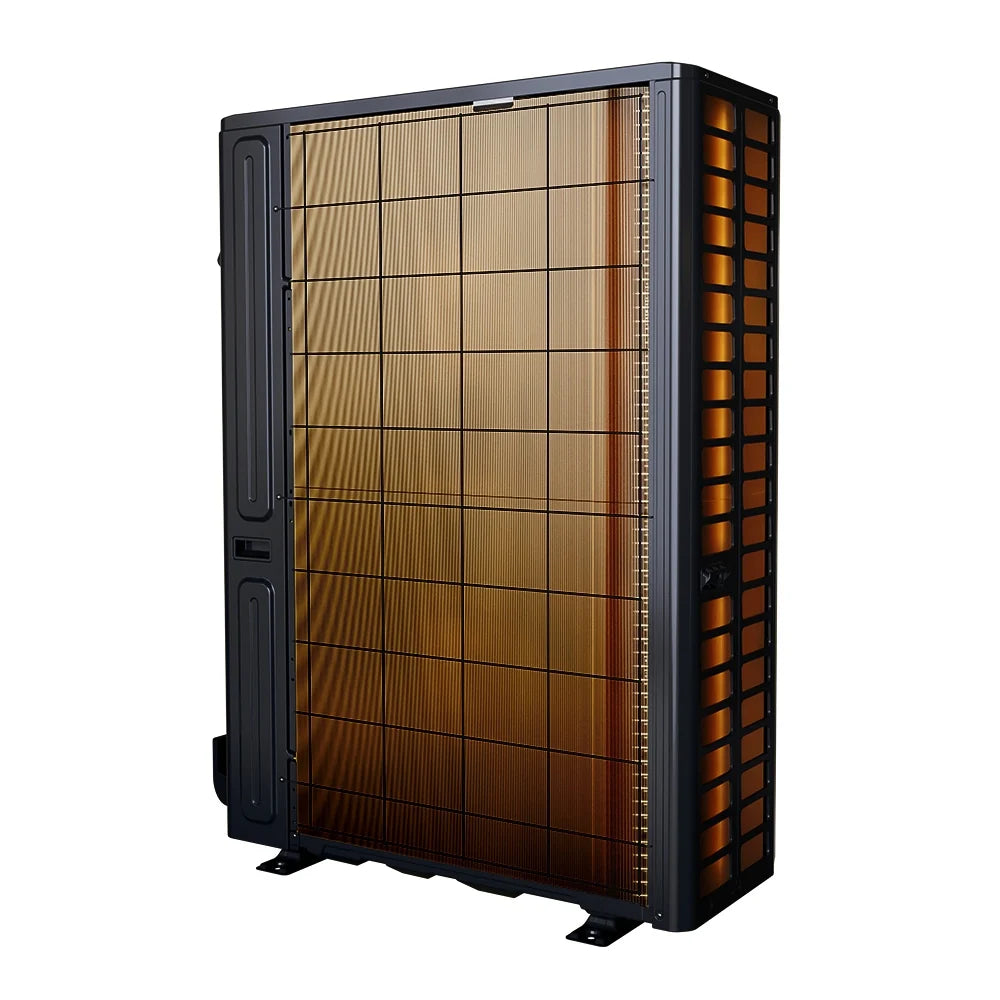

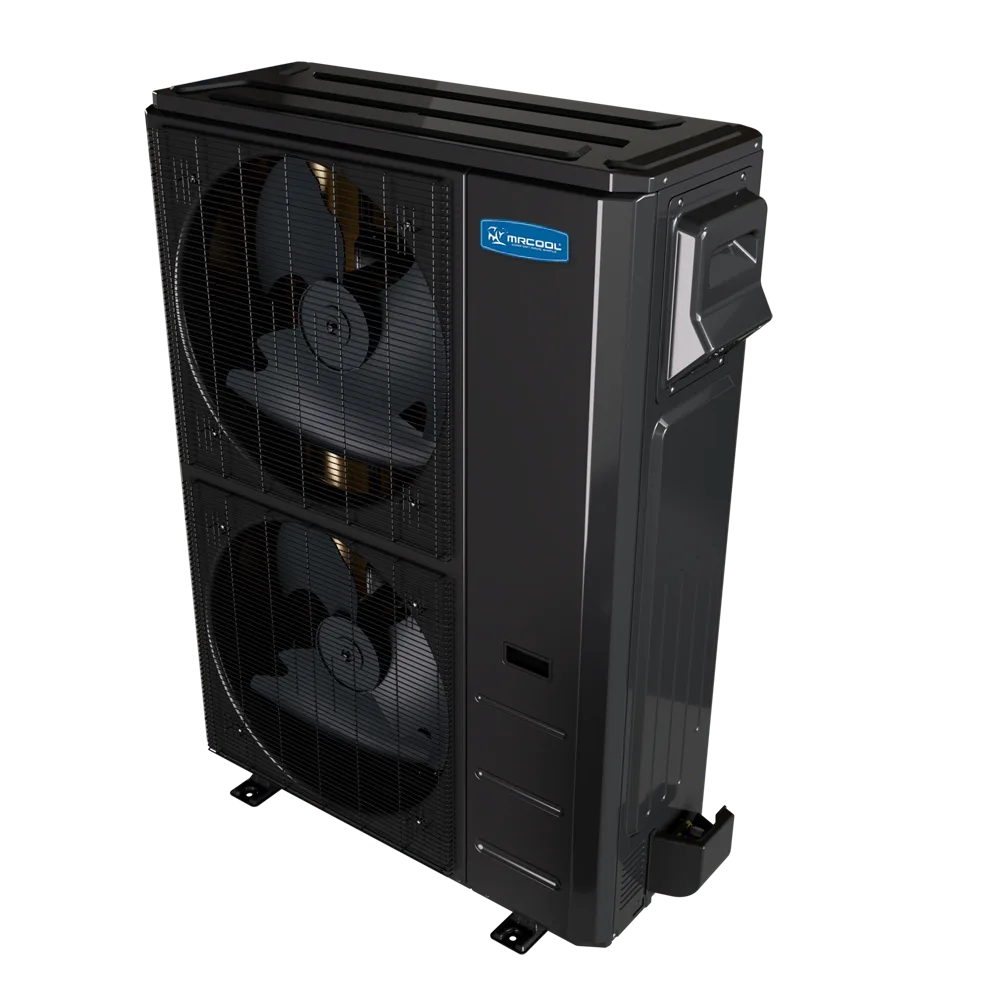

MRCOOL Universal Series 5 Ton Heat Pump Inverter Condenser, UHP1860-O -

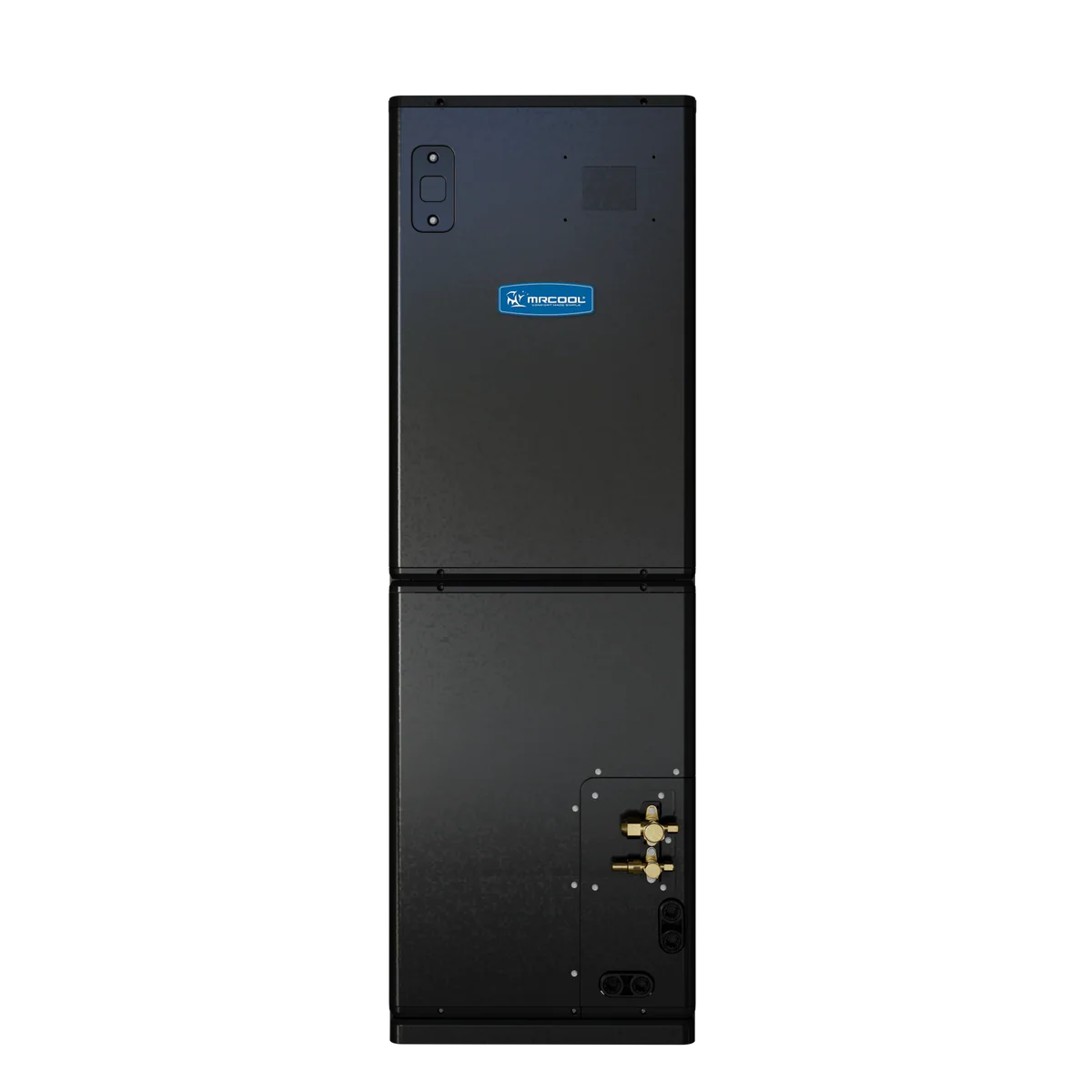

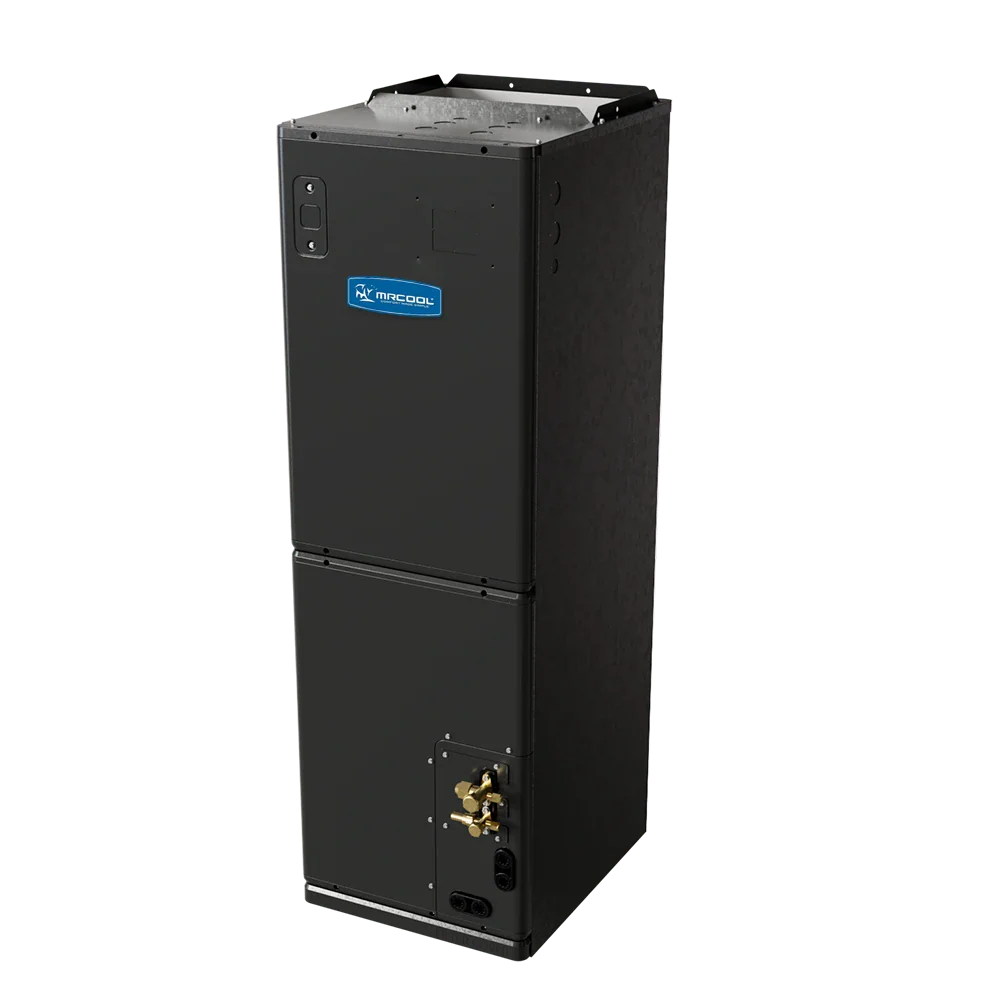

MRCOOL Universal Series 5 Ton Air Handler, UAH1860-O -

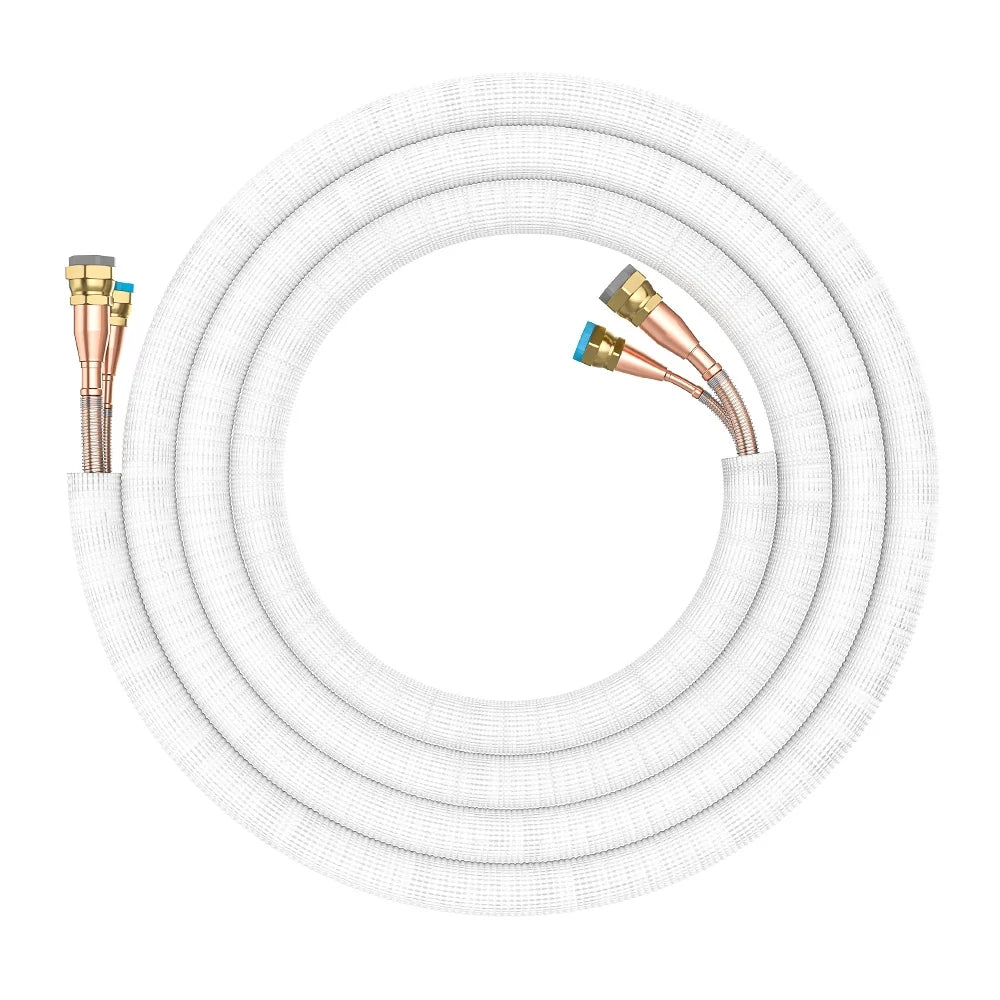

MRCOOL No-Vac 3/8 3/4 Precharged Lineset for Universal Series and Central Ducted Systems - R454B
-
Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
Universal R-454B |
|
MODEL |
UHP1860AH1860-O |
|
EQUIPMENT TYPE |
DC Inverter Heat Pump Split System |
|
TONNAGE |
5 |
|
RATED COOLING CAPACITY (BTU/H) |
54,000 |
|
RATED HEATING CAPACITY @ 47 F (BTU/H) |
55,000 |
|
SEER2 |
17.5 |
|
EER2 |
12 |
|
HSPF2-4 |
9.5 |
|
HSPF2-5 |
7.7 |
|
VOLTAGE / PHASE / FREQUENCY |
208/230 V / 1 / 60 Hz |
|
MIN CIRCUIT AMPACITY (A) |
40 |
|
MAX FUSE / BREAKER (A) |
40 |
|
AIR HANDLER VOLTAGE / PHASE / FREQUENCY |
115/208/230 V / 1 / 60 Hz |
|
AIR HANDLER MIN CIRCUIT AMPACITY (A) |
14.5 / 10 |
|
AIR HANDLER MAX FUSE / BREAKER (A) |
15 |
|
REFRIGERANT |
R-454B |
|
FACTORY REFRIGERANT CHARGE (OZ) |
183.42 |
|
COMPRESSOR TYPE |
Twin-Rotary |
|
OUTDOOR SOUND LEVEL (DBA) |
64.5 |
|
COOLING OPERATING RANGE |
-22 to 122 F |
|
HEATING OPERATING RANGE |
-22 to 75 F |
|
LIQUID / GAS LINE SIZE |
3/8 in / 3/4 in |
|
MAX PIPING LENGTH |
246 ft |
|
CONNECTION METHOD |
Quick Connect, Flare, or Sweat |
|
AIR HANDLER CONFIGURATION |
Multi-Position (Upflow / Downflow / Horizontal) |
|
AIR HANDLER AIRFLOW (CFM) |
1801.1 / 1648.1 / 1500.9 / 1236.1 |
|
FILTER SIZE |
20 x 20 x 1 in |
|
CONDENSER DIMENSIONS (W X D X H) |
37.48 x 16.34 x 52.48 in |
|
AIR HANDLER DIMENSIONS (W X D X H) |
21.50 x 21.50 x 55.94 in |
|
CONDENSER WEIGHT |
242.95 lb |
|
AIR HANDLER WEIGHT |
188.05 lb |
|
METERING DEVICE |
EXV |
|
NUMBER OF SPEEDS |
4 |
|
HEAT KIT COMPATIBILITY |
10 / 15 / 20 kW |
|
ENERGY STAR CERTIFIED |
Yes |
|
ENERGY STAR COLD CLIMATE CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 years |
|
BASE LIMITED LABOR WARRANTY |
2 years with licensed professional installation |
