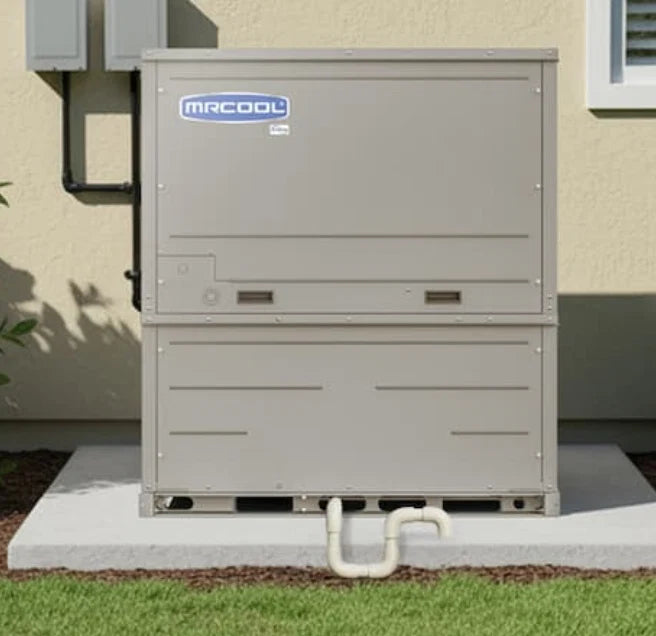

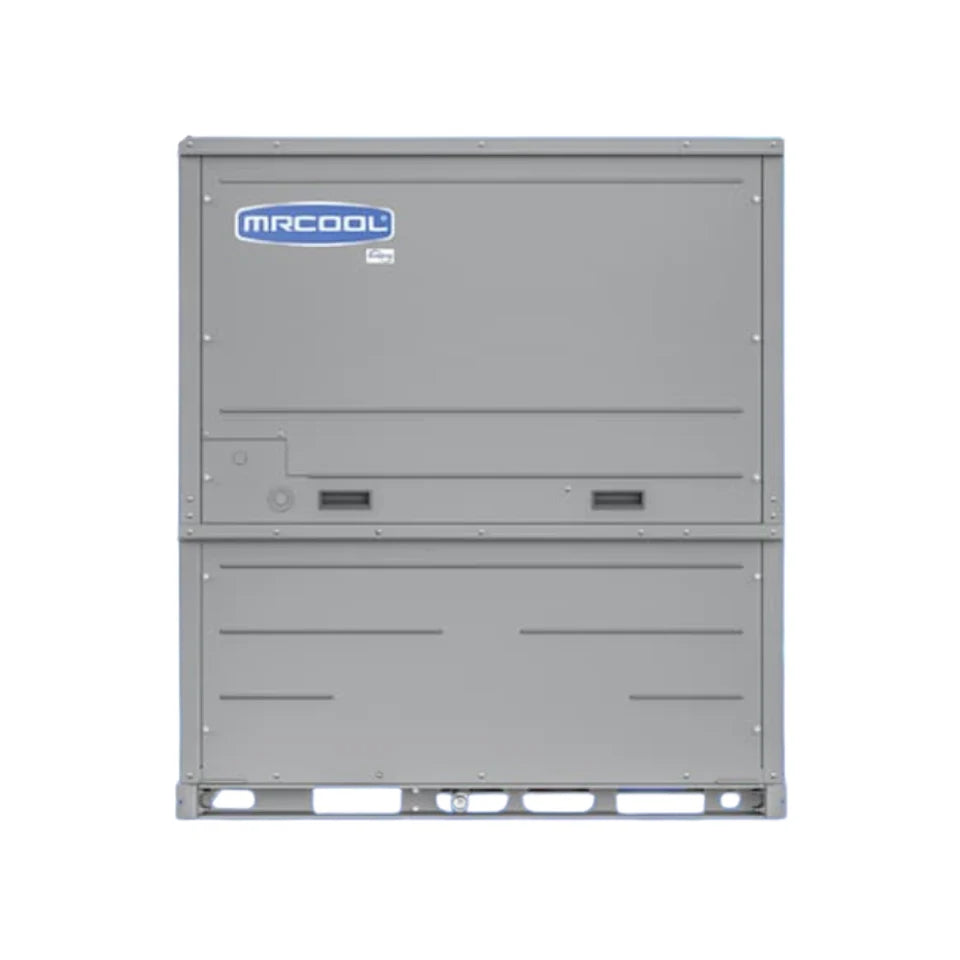

The MRCOOL® 2nd Generation Universal® Series 60K Inverter Packaged Heat Pump is an all-in-one heating and cooling solution designed for larger residential spaces. With a 60,000 BTU capacity, 5-ton configuration, and up to 18 SEER2 efficiency, this system delivers dependable year-round comfort while helping reduce energy consumption through variable-speed inverter operation.
The Universal® 60K packaged heat pump uses an inverter-driven rotary compressor that continuously adjusts operation according to heating and cooling demand. This variable-speed design helps maintain more consistent indoor temperatures while reducing frequent cycling, supporting quieter operation and improved energy efficiency. The system operates with R-32 refrigerant and is designed for heating in outdoor temperatures as low as -22°F and cooling in temperatures up to 125°F.
Designed for flexible installation, the packaged unit supports downflow and horizontal applications and features a direct-drive blower with nine available speeds. The system includes an electronic expansion valve and offers optional auxiliary electric heat kits in 6, 9, and 12 kW capacities. A 10-year parts and labor warranty provides additional coverage for long-term ownership.
What's Included
-
-
MRCOOL Universal DC Inverter 60K BTU 5 Ton 18 SEER2 Single Phase Packaged Heat Pump - R-32
-
Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
Universal Package R32 |
|
MODEL |
MDPH18060D |
|
GTIN |
840255588843 |
|
UPC |
840255588843 |
|
UNIT TYPE |
Package Heat Pump |
|
SHORT DESCRIPTION |
MRCOOL DC Inverter 60K BTU 5T, R32, 18 SEER2 Single Phase Packaged Heat Pump |
|
SEER2 |
18 |
|
EER2 |
11.2 |
|
HSPF2 |
8.3 |
|
TONNAGE |
5 |
|
COOLING CAPACITY (BTU) |
56,000 |
|
HEATING CAPACITY (BTU) |
57,000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE / BREAKER (A) |
45 |
|
MIN CIRCUIT AMPACITY (A) |
39.1 |
|
COLOR |
Grey |
|
REFRIGERANT TYPE |
R-32 |
|
REFRIGERANT VOLUME (OZ) |
204.6 |
|
DECIBEL RATING (DBA) |
68 |
|
INVERTER |
Yes |
|
MIN AMBIENT COOL (F) |
23 |
|
MIN AMBIENT HEAT (F) |
-22 |
|
DRAIN CONNECTION SIZE |
3/4 |
|
COMPRESSOR MOTOR TYPE |
Inverter Rotary |
|
CONDENSER FAN MOTOR TYPE |
Direct Drive |
|
CONDENSER FAN MOTOR RPM |
720 |
|
BLOWER MOTOR TYPE |
Direct Drive |
|
BLOWER MOTOR SPEEDS |
9 |
|
BLOWER MOTOR RPM |
1060 |
|
METERING DEVICE |
EEV |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
6kW, 9kW, 12kW |
|
BASE WARRANTY |
10 Year Parts & Labor Warranty |
|
BASE PARTS WARRANTY |
10 Year Parts |
|
BASE LABOR WARRANTY |
10 Year Labor |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DIMENSIONS (W X D X H) |
21.71 x 42.25 x 39.68 in |
|
NET WEIGHT (LBS) |
628.3 |
|
GROSS DIMENSIONS (W X D X H) |
44.6 x 44.6 x 50.78 in |
|
GROSS WEIGHT (LBS) |
650 |
